Product Overview

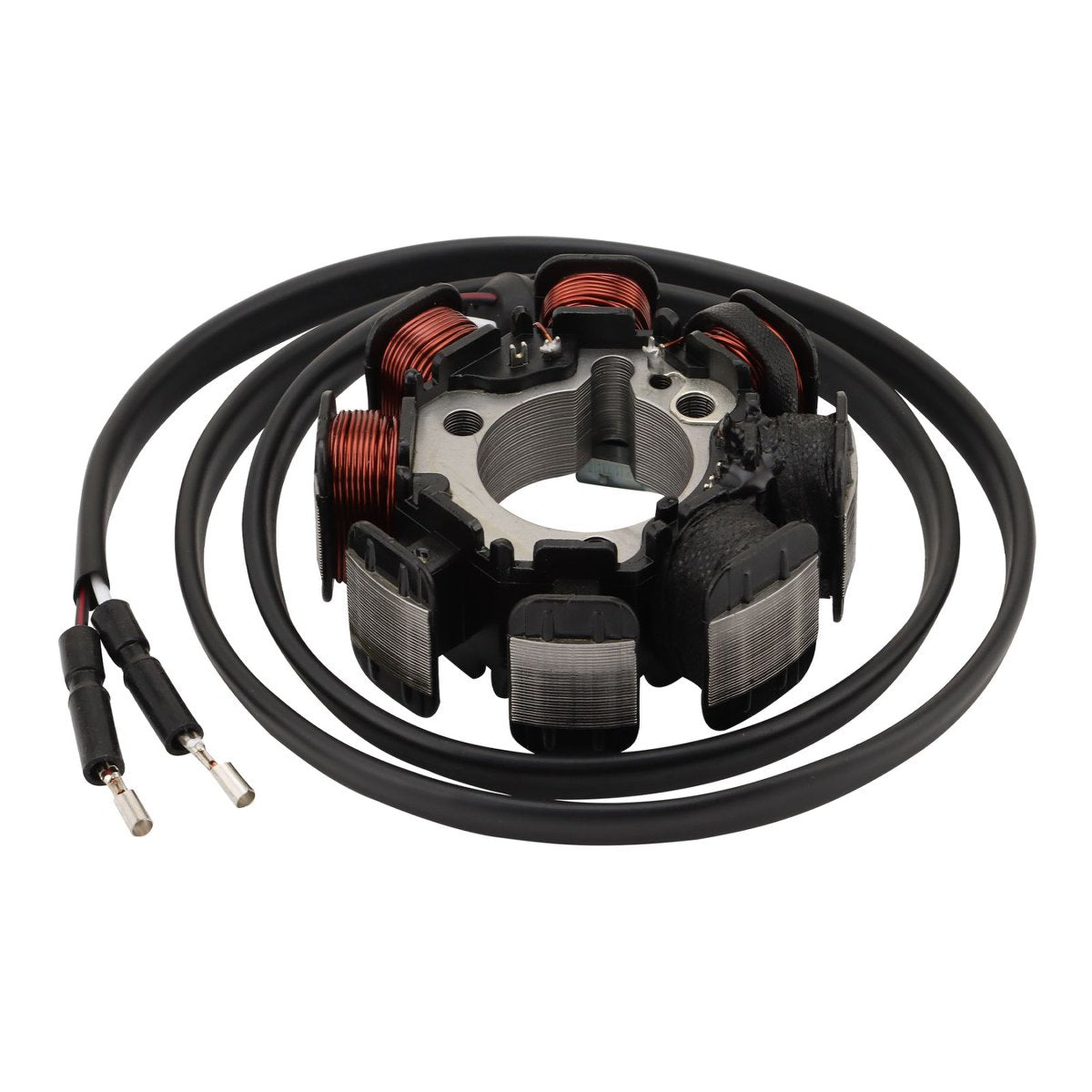

Replace a weak, burned, or failed stator with this 8-coil 2-wire magneto stator, designed for select 1986–1988 Honda XR200R dirt bikes using OEM reference number 31120-KT0-004.
The stator is an important part of the motorcycle ignition and electrical system. It helps generate electrical output while the engine is running, supporting spark, ignition performance, and related electrical components. If your Honda XR200R has no spark, weak spark, hard starting, unstable ignition output, or stator-related electrical failure, replacing the stator may help restore normal operation.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Honda | XR200R / XR200R A | 1986–1988 | 31120-KT0-004 | Main fitment; confirm original stator and connector layout |
| Honda | XR200RG | 1986 | 31120-KT0-004 | Fits matching 8-coil 2-wire AC stator version |
| Honda | XR200RH | 1987 | 31120-KT0-004 | Compare OEM number, wire count, and dimensions |
| Honda | XR200RJ | 1988 | 31120-KT0-004 | Verify original stator size and plug layout before ordering |
| Honda | XR200R / XR 200 R | Select 1986–1988 models | 31120-KT0-004 | Model-name variation; fitment must be confirmed by original part |
Important Fitment Note:
This part is not selected by XR200R model name alone. Honda XR200R models from different year ranges may use different stator designs. This 1986–1988 version uses an 8-coil / 2-wire AC stator layout. It should not be confused with later XR200R stators that may use different wire counts, OEM numbers, thickness, or mounting layouts.

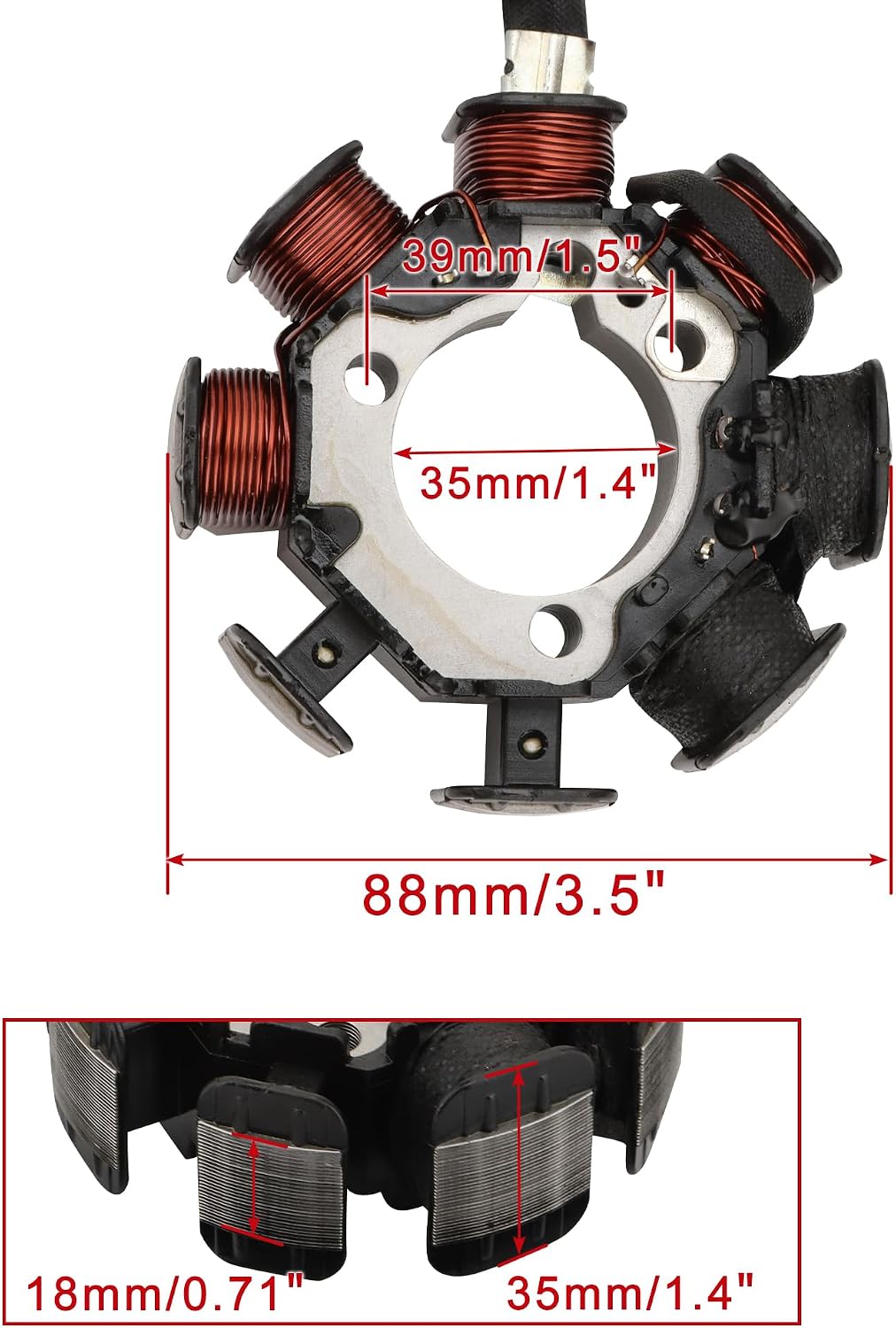

Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 8 Coils / 8 Poles |
| Wire Count | 2 Wire |
| Electrical Type | AC |
| Inner Diameter | 35mm / 1.4" |
| Outer Diameter | 88mm / 3.5" |
| Iron Core Height | 18mm / 0.71" |
| Mounting Hole Distance | 39mm / 1.5" |
| Thickness | 35mm / 1.4" |
| OEM Reference | 31120-KT0-004 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Dirt Bike Ignition / Electrical System |
| Compatible Brand | Honda |
Key Features
- Designed for select 1986–1988 Honda XR200R dirt bikes
- Fits XR200RG 1986, XR200RH 1987, and XR200RJ 1988 applications
- Replaces OEM reference number 31120-KT0-004
- 8-coil 2-wire AC stator helps support ignition and electrical system output
- Helps address no spark, weak spark, hard starting, unstable ignition, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, wire count, plug layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31120-KT0-004 | Main Honda OEM reference for compatible 1986–1988 XR200R stator applications |
| 31120KT0004 | Compact format of 31120-KT0-004 |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select 1986–1988 Honda XR200R models, including XR200RG 1986, XR200RH 1987, and XR200RJ 1988, using OEM reference number 31120-KT0-004. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces Honda OEM 31120-KT0-004. However, OEM number alone is not enough. Please also confirm the 8-coil 2-wire layout, AC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Honda XR200R models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different ignition system design. It should not be used as a replacement for later XR200R stators unless the original part matches exactly. It is also not a replacement for the CDI, ignition coil, spark plug, regulator rectifier, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your dirt bike’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
