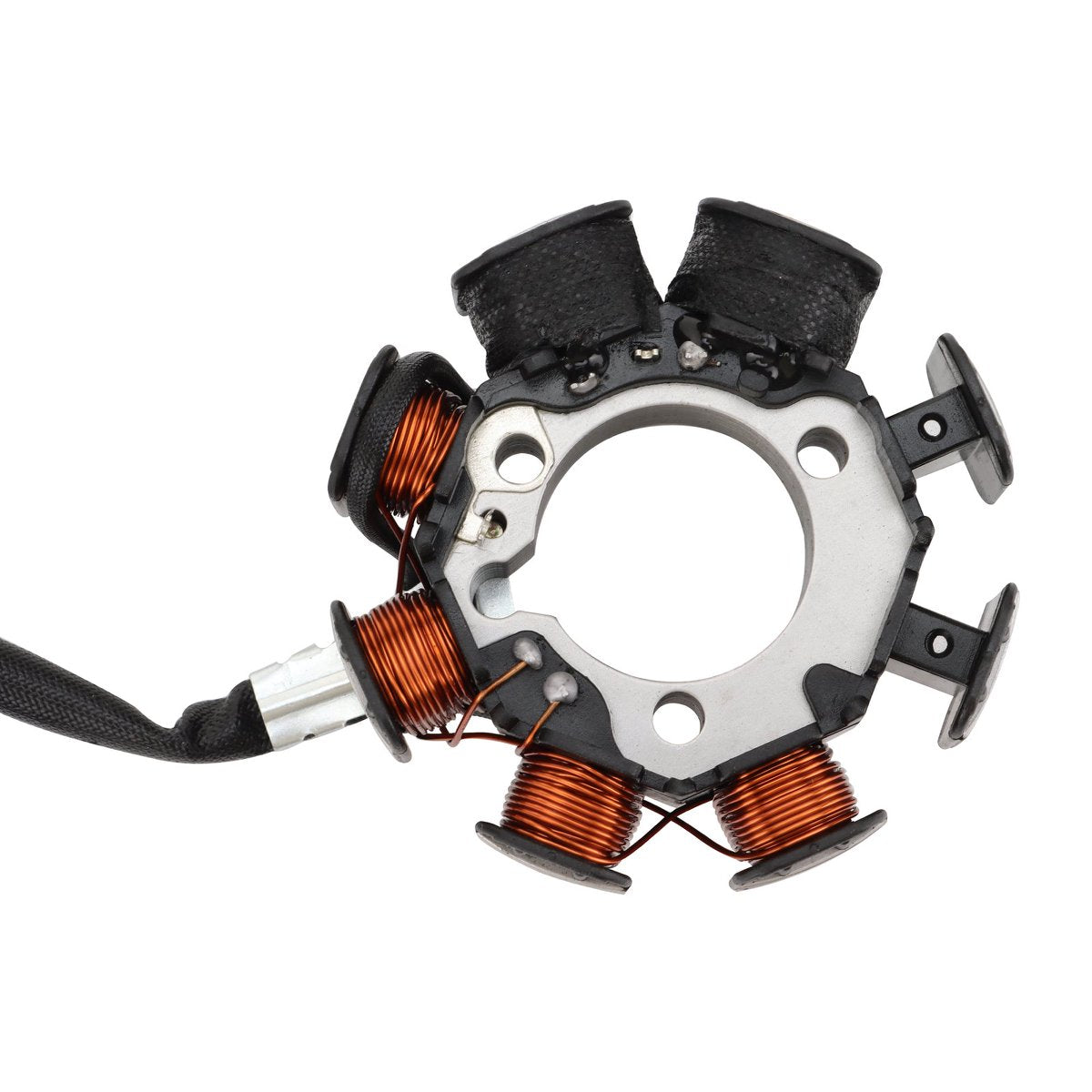

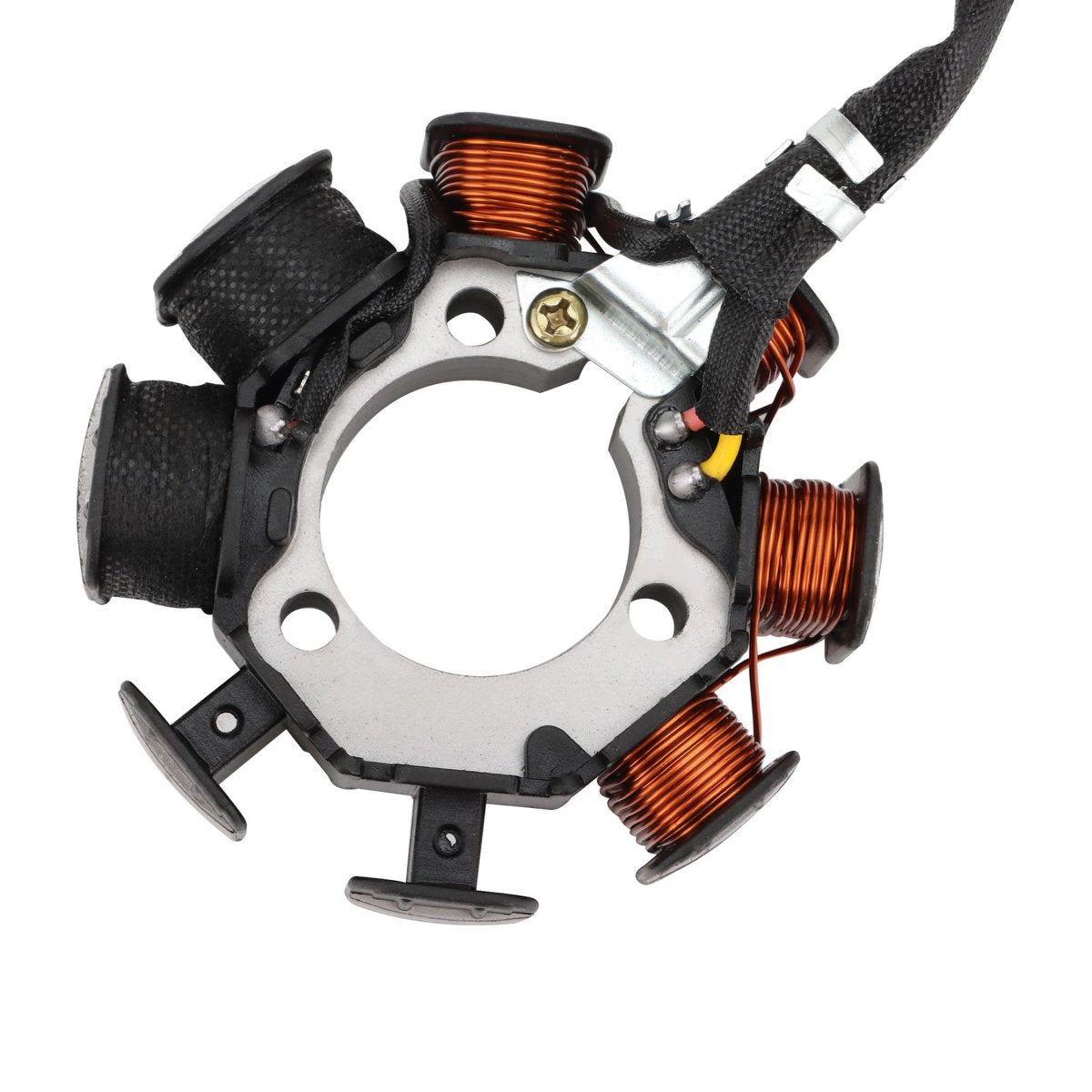

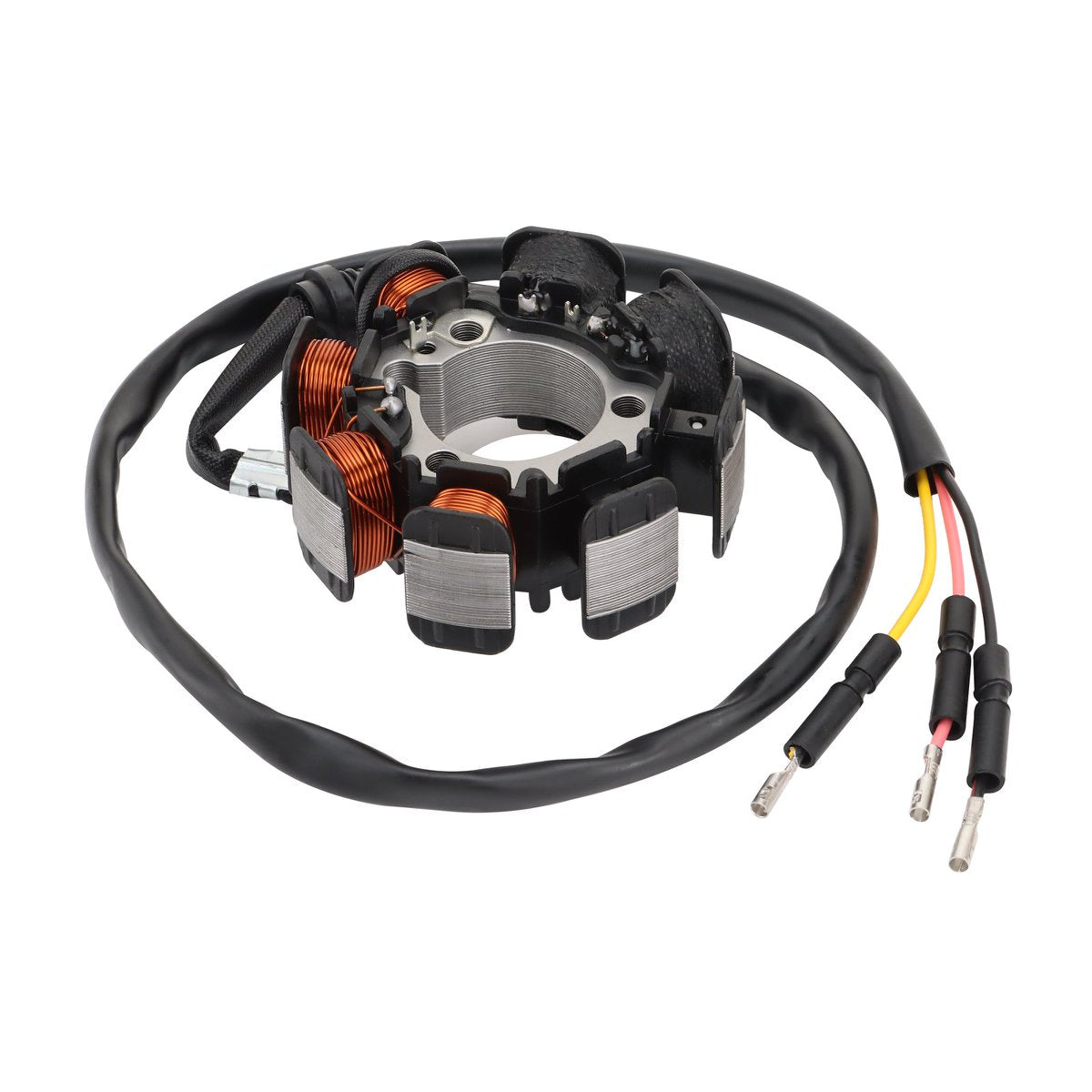

1990–1993 Honda XR200R XR200 8-Coil 3-Wire Magneto Stator
1990–1993 Honda XR200R XR200 8-Coil 3-Wire Magneto Stator
Couldn't load pickup availability
Product Overview
Replace a weak, burned, or failed stator with this 8-coil 3-wire magneto stator, designed for select 1990–1993 Honda XR200R / XR200 dirt bikes.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the ignition circuit and electrical components. If your Honda XR200R has weak spark, poor electrical output, hard starting, or stator-related failure, replacing the stator may help restore normal electrical performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s coil count, wire count, plug layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Honda | XR200R / XR200RL | 1990 | 31120-KT0-830 / 31120-KT0-831 | Main fitment; confirm original stator dimensions |
| Honda | XR200R / XR200RM | 1991 | 31120-KT0-830 / 31120-KT0-831 | Fits matching 8-coil 3-wire stator version only |
| Honda | XR200R / XR200RN | 1992 | 31120-KT0-830 / 31120-KT0-831 | Compare plug layout and mounting hole distance |
| Honda | XR200R / XR200RP | 1993 | 31120-KT0-830 / 31120-KT0-831 | Main fitment; verify original stator before purchase |
| Honda | XR200R / XR200 | 1994–2002 | 31120-KT0-830 / 31120-KT0-831 | Possible fitment only if original stator size, wire count, and plug layout match |
Important Fitment Note:
This part is not selected by engine size alone. Honda XR200R models may use different stator versions depending on year, market, and ignition system design. Please confirm your original stator matches the 8-coil / 3-wire layout, AC type, outer diameter, inner diameter, mounting hole distance, and connector style before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 8 Coils |

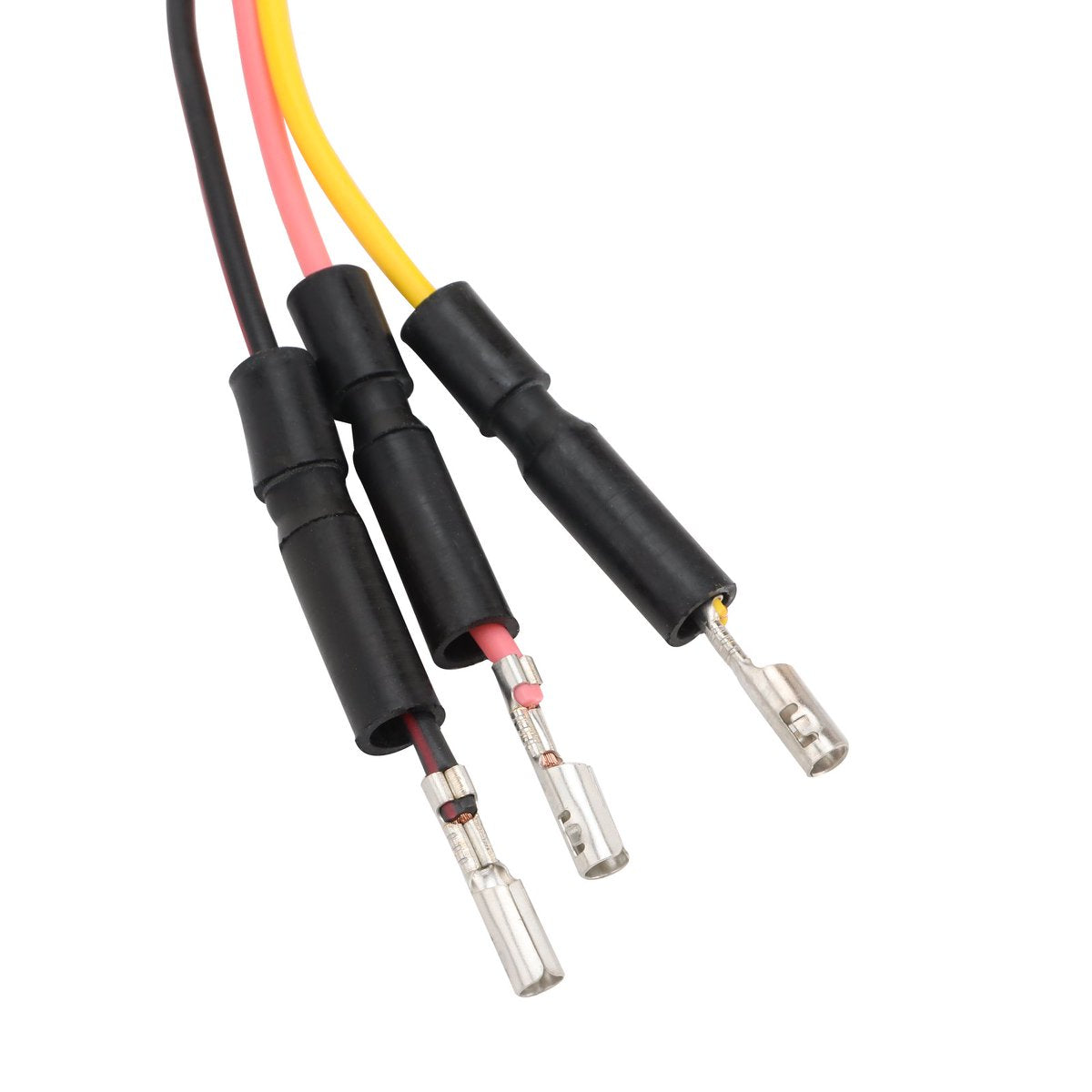

| Wire Count | 3 Wire |
| Electrical Type | AC |

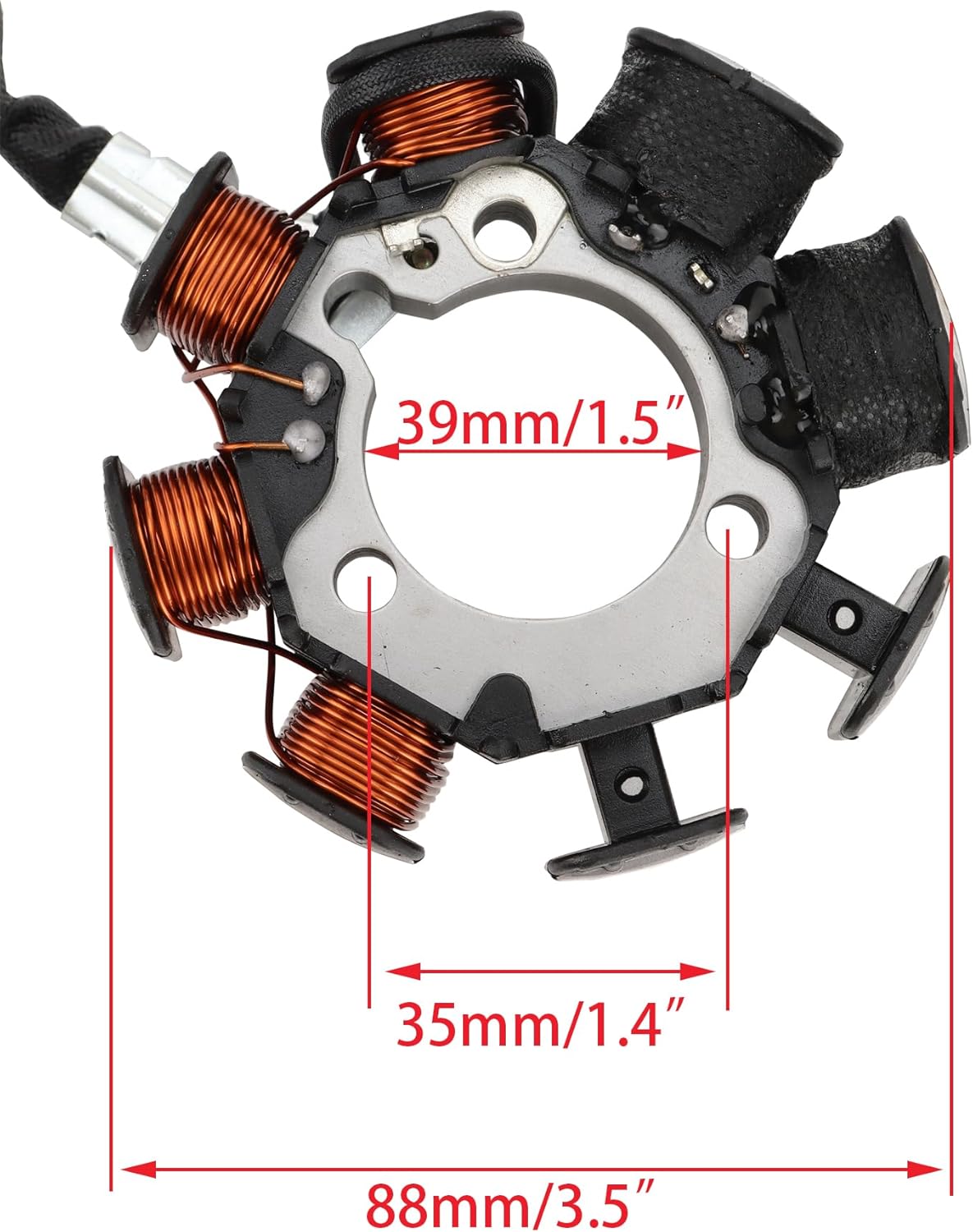

| Inner Diameter | 35mm / 1.4" |
| Outer Diameter | 88mm / 3.5" |

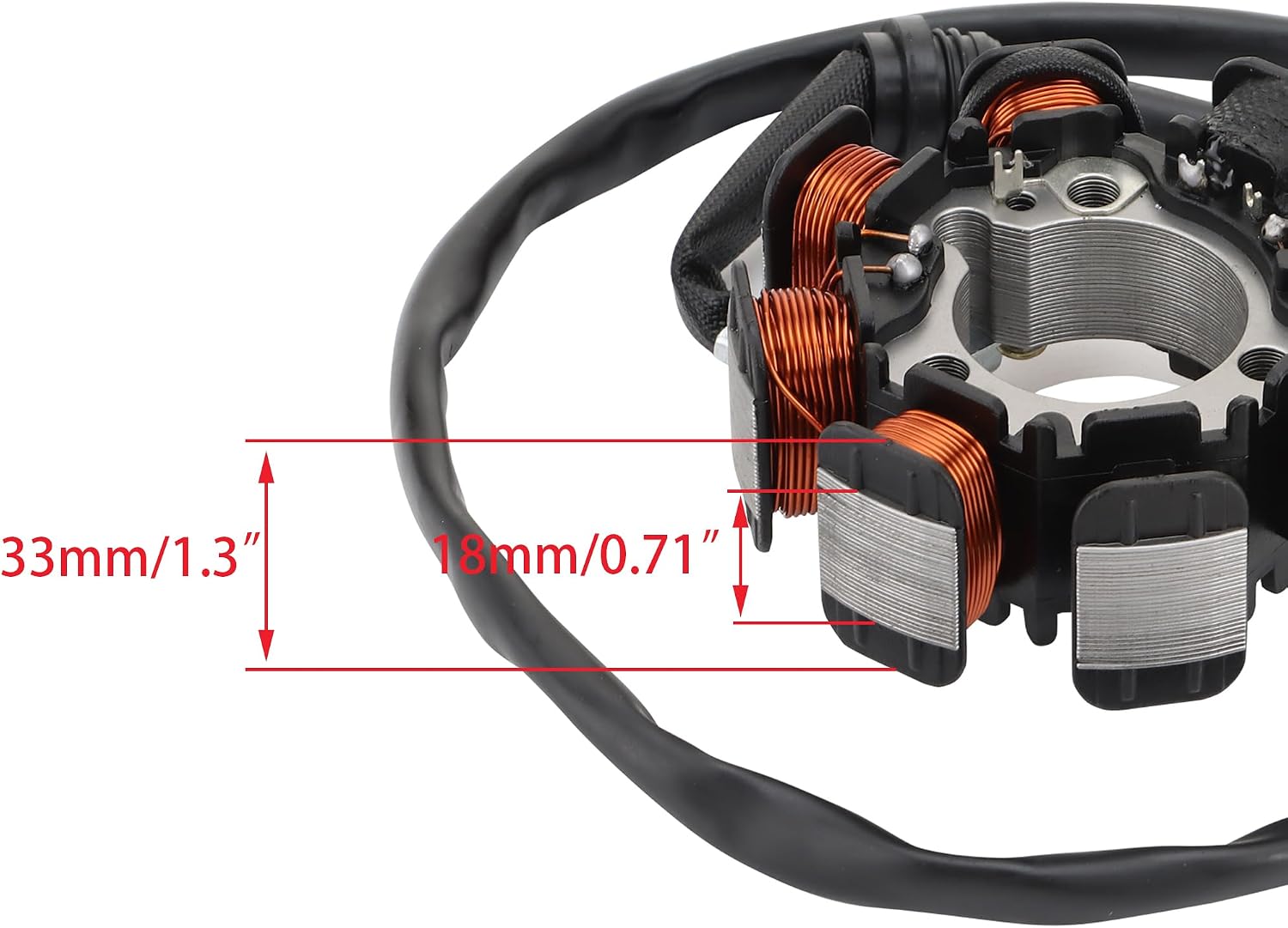

| Iron Core Height | 18mm / 0.71" |
| Mounting Hole Distance | 39mm / 1.5" |
| Thickness | 33mm / 1.3" |
| Possible OEM Reference | 31120-KT0-830 / 31120-KT0-831 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Dirt Bike Charging / Ignition System |
| Compatible Brand | Honda |
Key Features
- Designed for select 1990–1993 Honda XR200R / XR200 dirt bikes
- 8-coil 3-wire AC stator replacement for ignition and electrical system support
- Helps address weak spark, poor electrical output, hard starting, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Compact stator design with 35mm inner diameter and 88mm outer diameter
- Direct replacement style, but original size, wire count, and plug layout must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 31120-KT0-830 | Common reference for Honda XR200R stator applications |
| 31120-KT0-831 | Common reference for Honda XR200R stator applications |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or plug style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select 1990–1993 Honda XR200R / XR200 models using an 8-coil 3-wire AC stator setup. It may also match some 1994–2002 XR200R models only if the original stator uses the same coil count, wire count, connector style, mounting hole distance, inner diameter, outer diameter, and thickness. Please compare your original stator before ordering.
Do I need to match the OEM part number?
Matching the OEM part number is recommended when available. Common Honda XR200R stator references include 31120-KT0-830 and 31120-KT0-831. However, OEM number alone is not enough. Please also confirm the wire count, plug layout, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Honda XR200R or XR200 models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different ignition system design. It is also not suitable if your issue is caused only by a bad CDI, ignition coil, damaged wiring, poor ground connection, or an incorrect flywheel/magneto setup.
What should I check before ordering?
Before ordering, please check your dirt bike’s make, model, year, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
