2010–2013 Hyosung Mirage 250 EFI 18-Coil 5-Wire Stator
2010–2013 Hyosung Mirage 250 EFI 18-Coil 5-Wire Stator
Couldn't load pickup availability
Product Overview

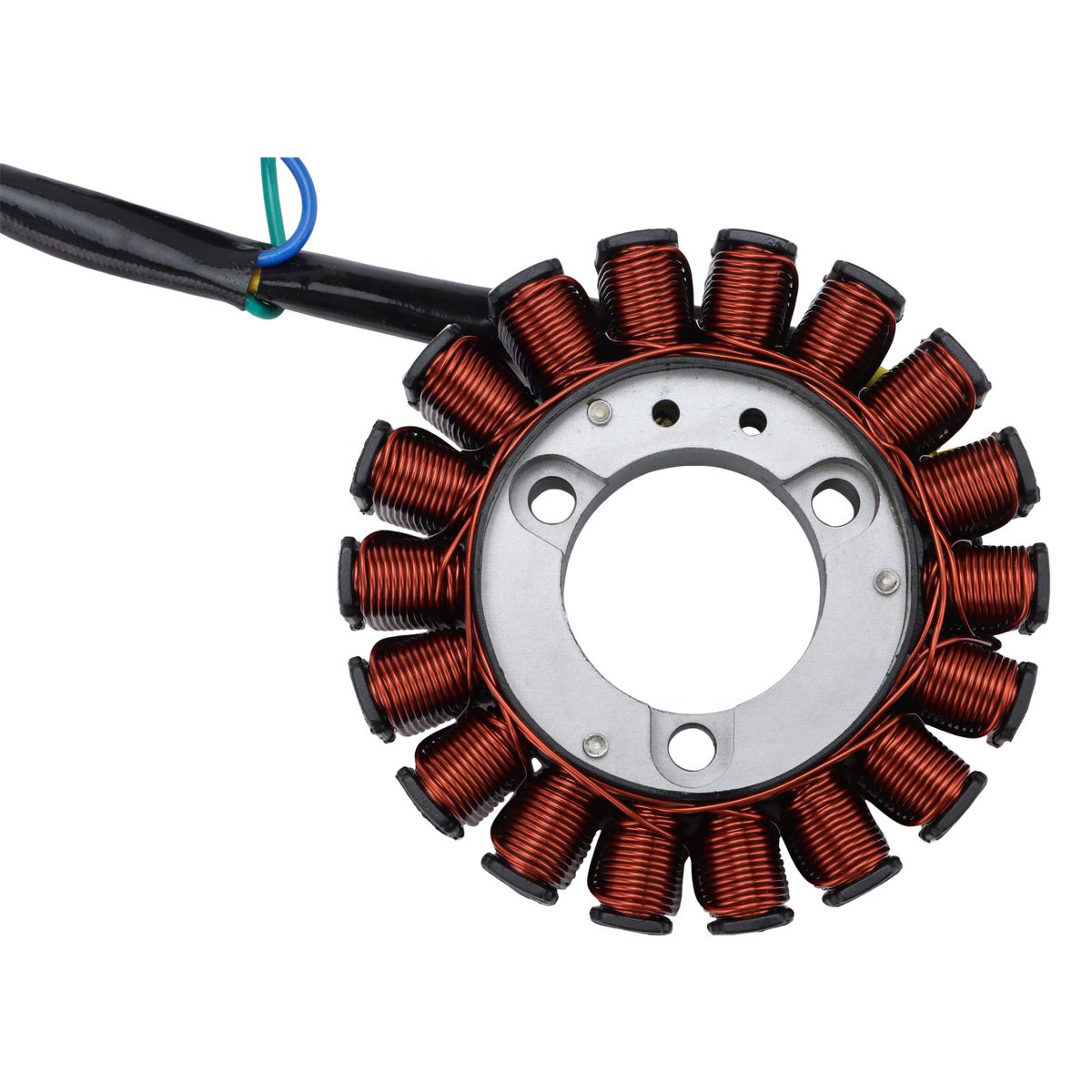

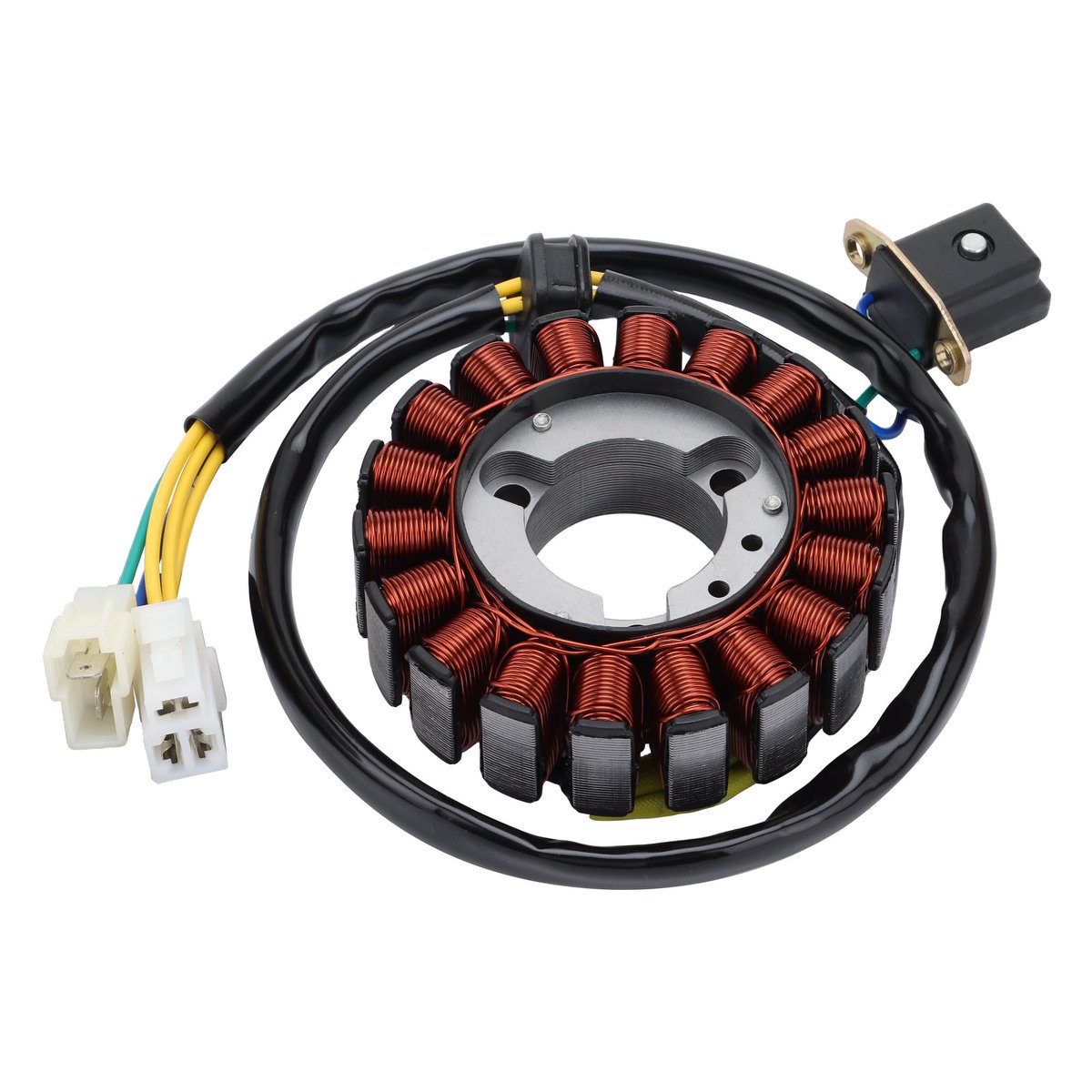

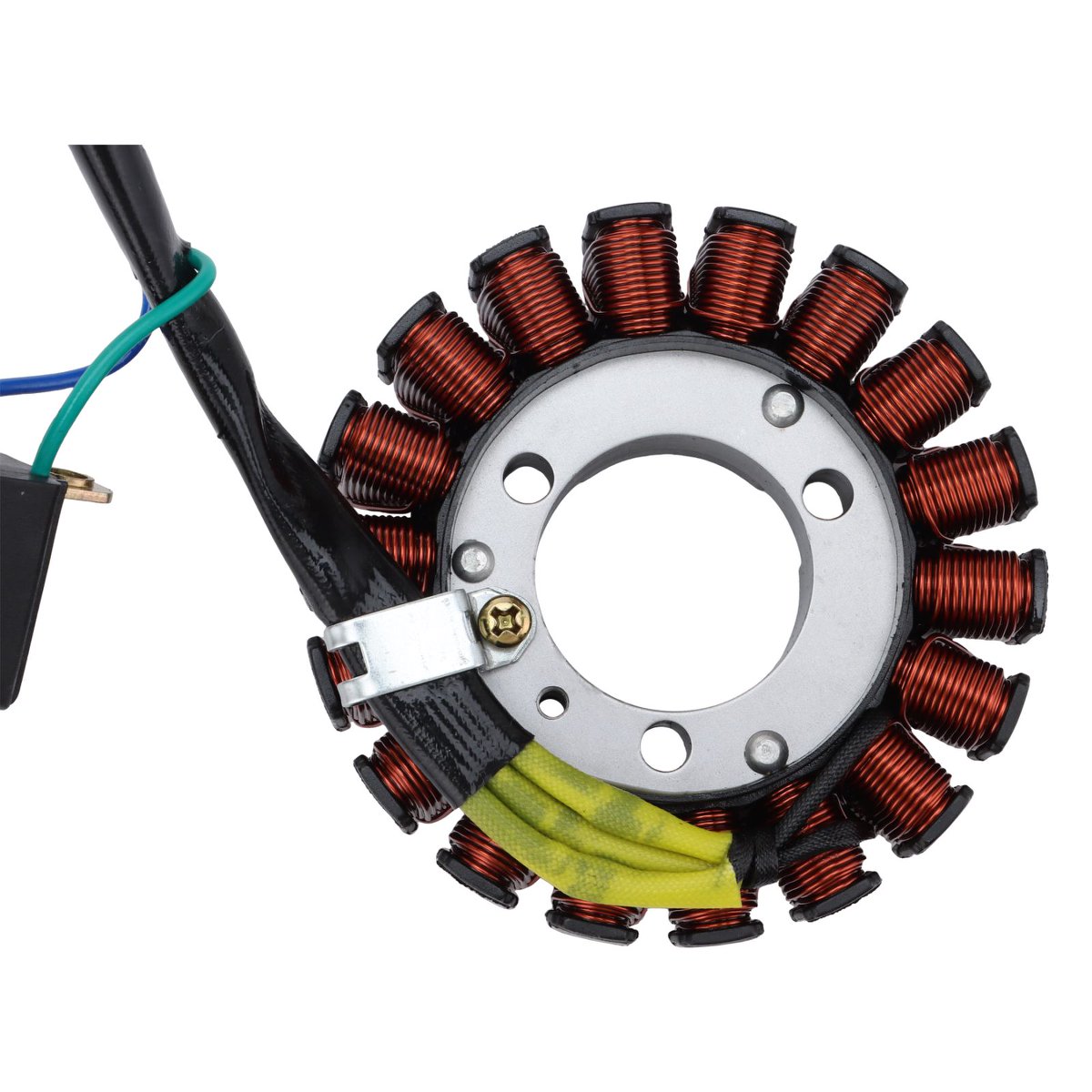

Replace a weak, burned, or failed stator with this 18-coil 5-wire magneto stator, designed for select 2010–2013 Hyosung / Kasinski Mirage 250 EFI motorcycles.
The stator is an important part of the motorcycle charging and ignition system. It helps generate electrical power while the engine is running, supporting the battery, ignition system, lights, sensors, and other electrical components. If your Mirage 250 EFI has weak charging, low battery voltage, dim lights, repeated battery drain, unstable voltage, hard starting, or stator-related electrical failure, replacing the stator may help restore normal electrical performance.
Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, corrosion resistance, and long service life. Please compare your original stator’s coil count, wire count, connector layout, trigger coil position, mounting hole distance, thickness, and dimensions before ordering.
Product Compatibility
| Make / Market Name | Model | Year Range | Fitment Notes |
|---|---|---|---|
| Hyosung | Mirage 250 EFI | 2010–2013 | Main fitment; confirm original stator size and connector layout |
| Kasinski | Mirage 250 EFI | 2010–2013 | Common market-name variation; verify original stator before ordering |
| Hyosung / Kasinski | Mirage 250 Electronic Fuel Injection | 2010–2013 | Fits only matching 18-coil 5-wire DC stator version |
| Hyosung / Kasinski | Comet GT 250 / GTR 250 EFI | Select 2010–2013 applications | Possible related platform fitment only if the original stator matches |
| Motorcycle | 250cc EFI Platform | Select applications | Match by stator size, wire count, plug layout, and pickup coil position |
Important Fitment Note:
This part is not selected by 250cc engine size alone. Mirage 250, Comet 250, GT250, GTR250, and related Hyosung / Kasinski models may use different stators depending on year, market, EFI version, wiring system, and connector layout. Please confirm your original stator matches the 18-coil / 5-wire layout, DC type, 35mm inner diameter, 95mm outer diameter, 40mm mounting hole distance, 30mm trigger mounting hole distance, and 5mm trigger mounting hole diameter before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 5 Wire |
| Electrical Type | DC |

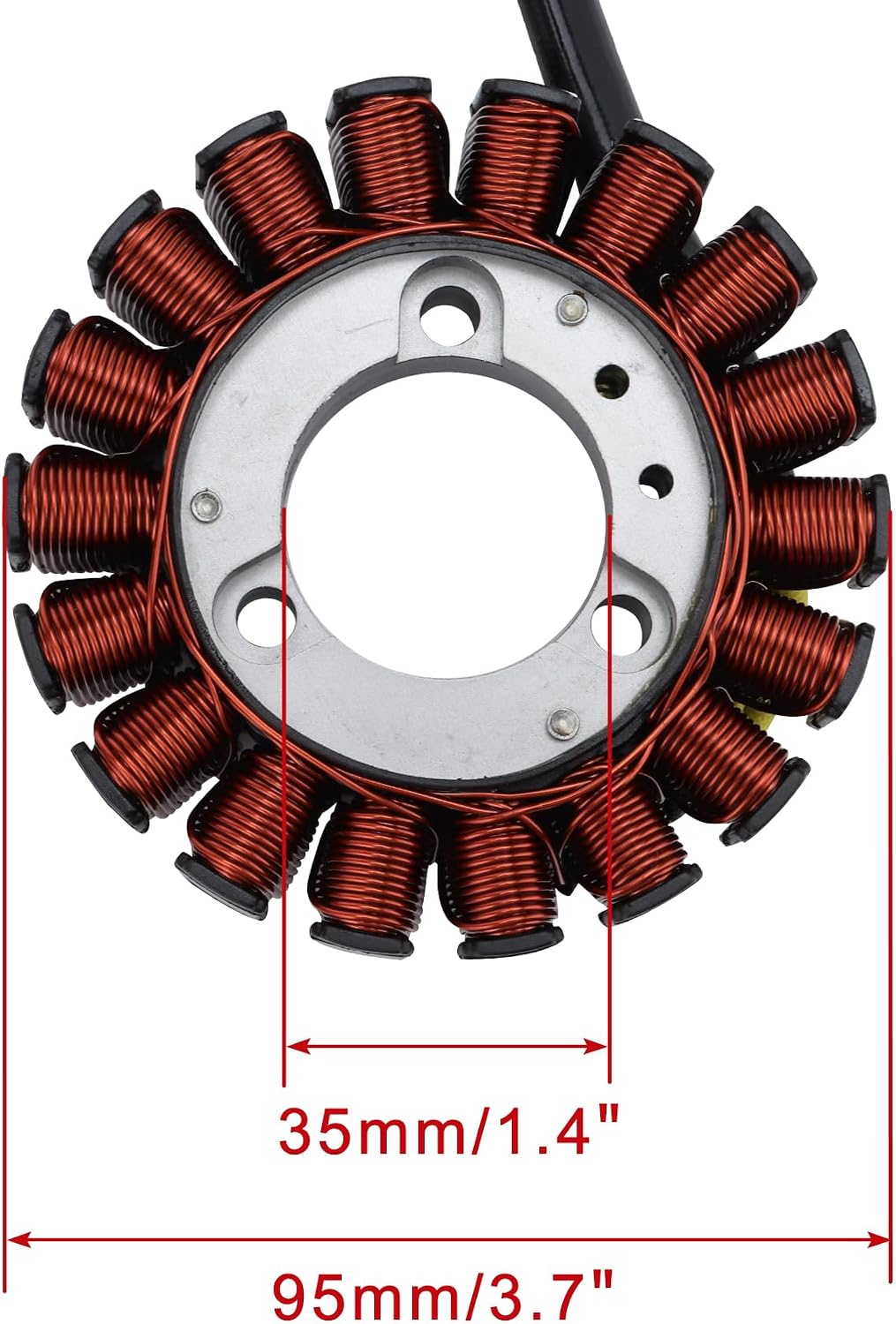

| Inner Diameter | 35mm / 1.4" |
| Outer Diameter | 95mm / 3.7" |

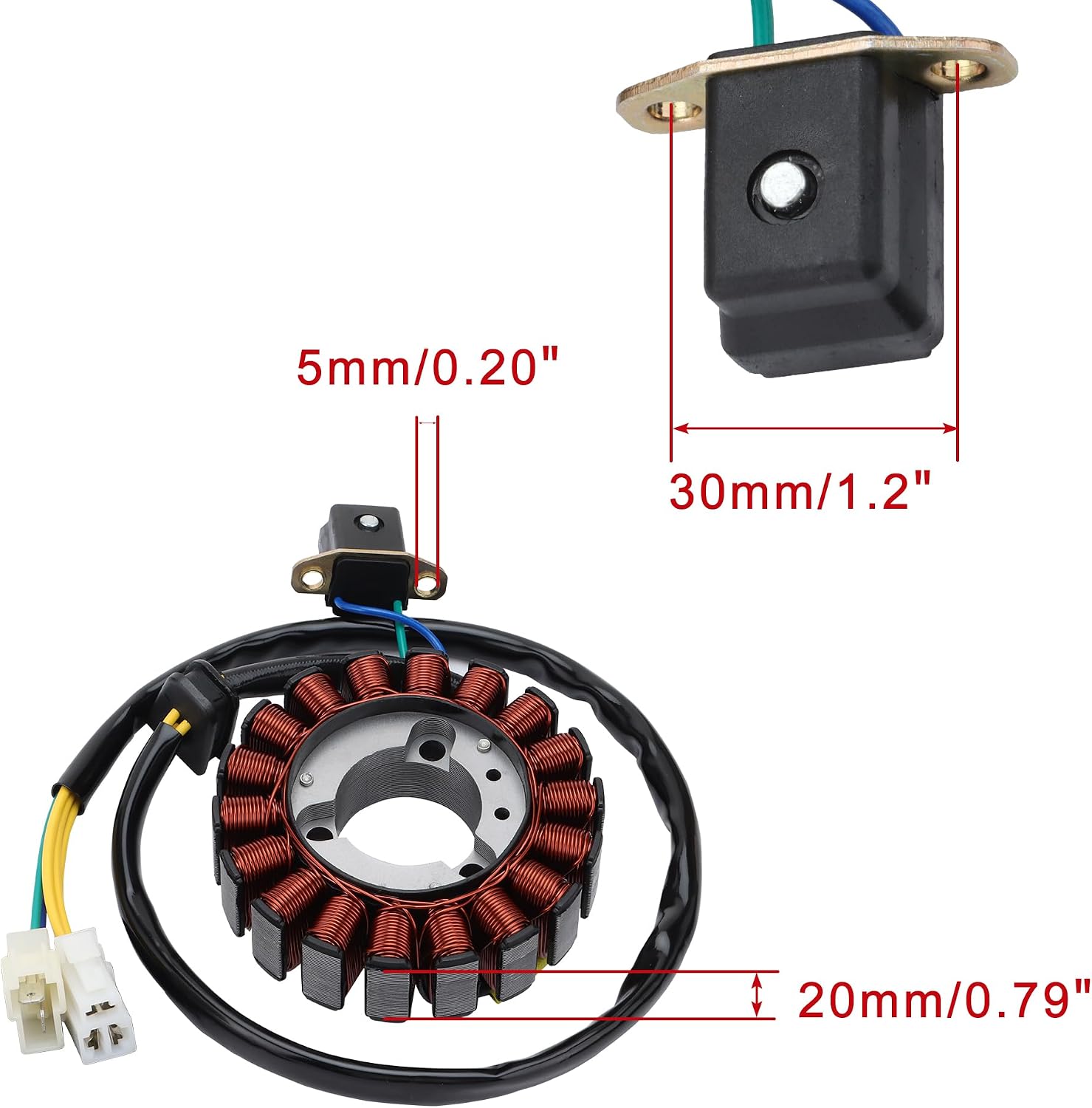

| Iron Core Height | 20mm / 0.79" |

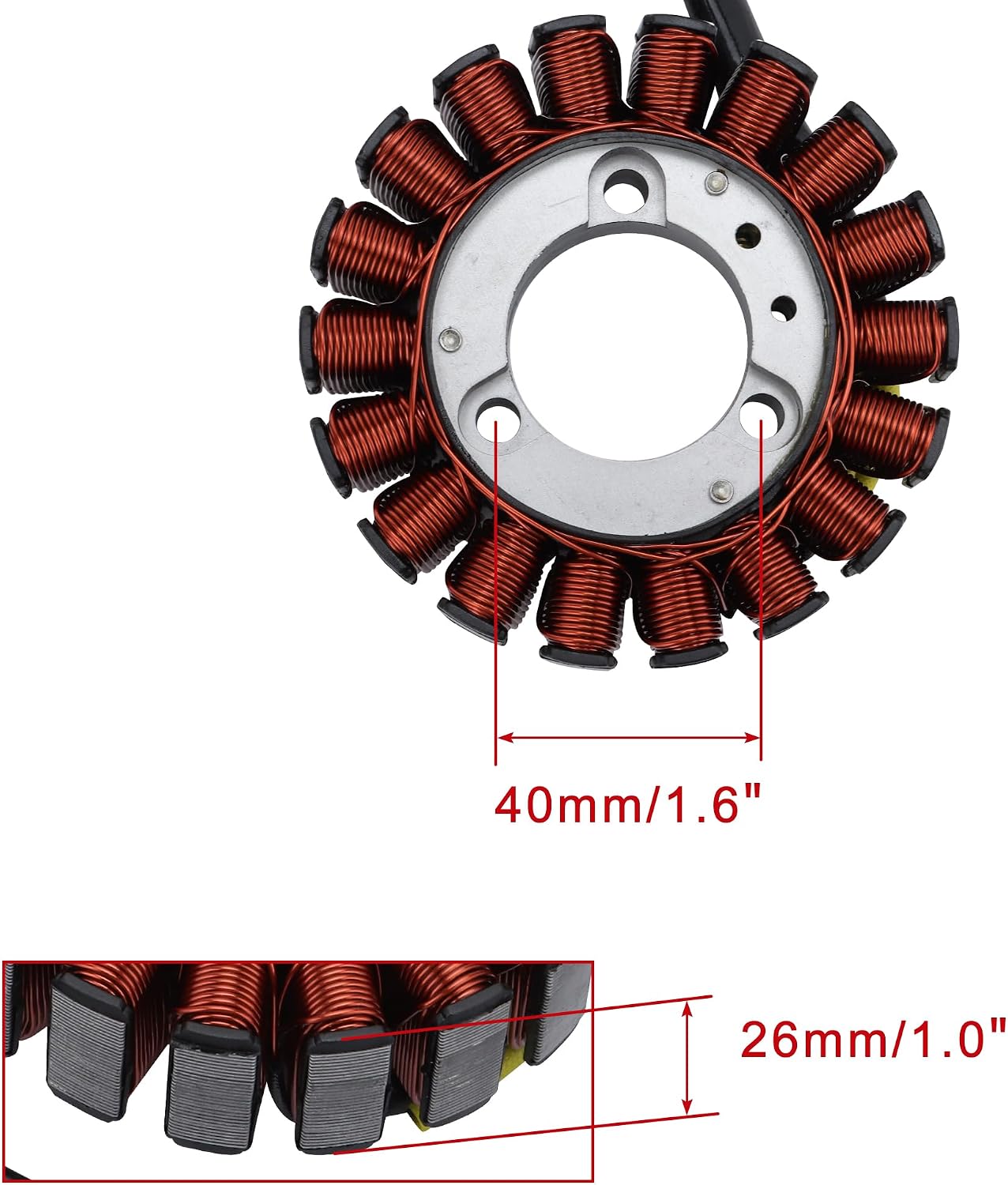

| Mounting Hole Distance | 40mm / 1.6" |
| Thickness | 26mm / 1.0" |
| Trigger Mounting Hole Distance | 30mm / 1.2" |
| Trigger Mounting Hole Diameter | 5mm / 0.20" |
| OEM Reference | Not provided |
| Application | Motorcycle Charging / Ignition System |
| Compatible Brand | Hyosung / Kasinski |
| Material | Metal Lamination Core + Copper Winding |
Key Features
- Designed for select 2010–2013 Mirage 250 EFI motorcycle applications
- 18-coil 5-wire DC stator helps support charging and ignition system output

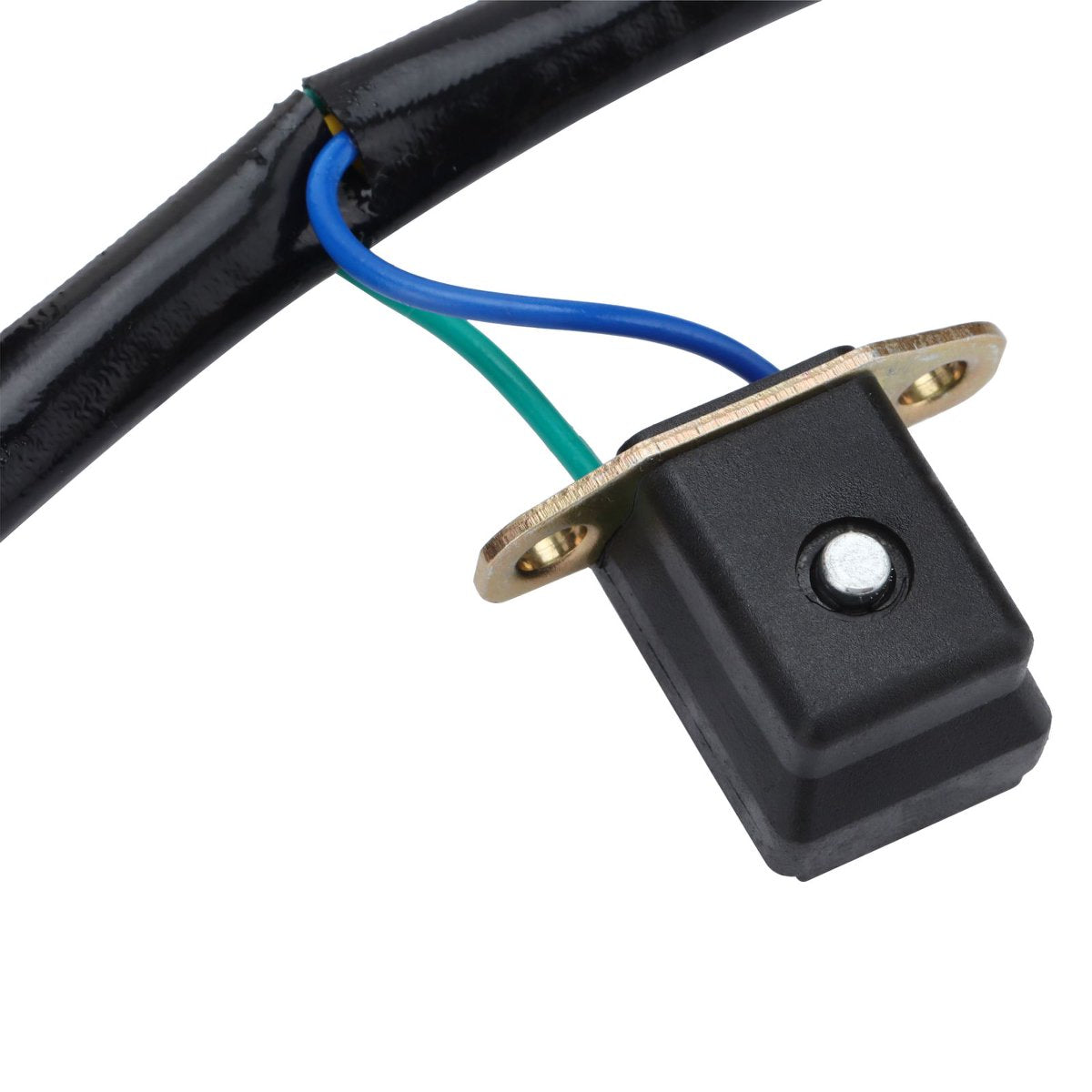

- Includes pickup / trigger coil position for matching EFI applications
- Helps address weak charging, low battery voltage, dim lights, hard starting, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Metal lamination core helps resist rust, corrosion, and deformation

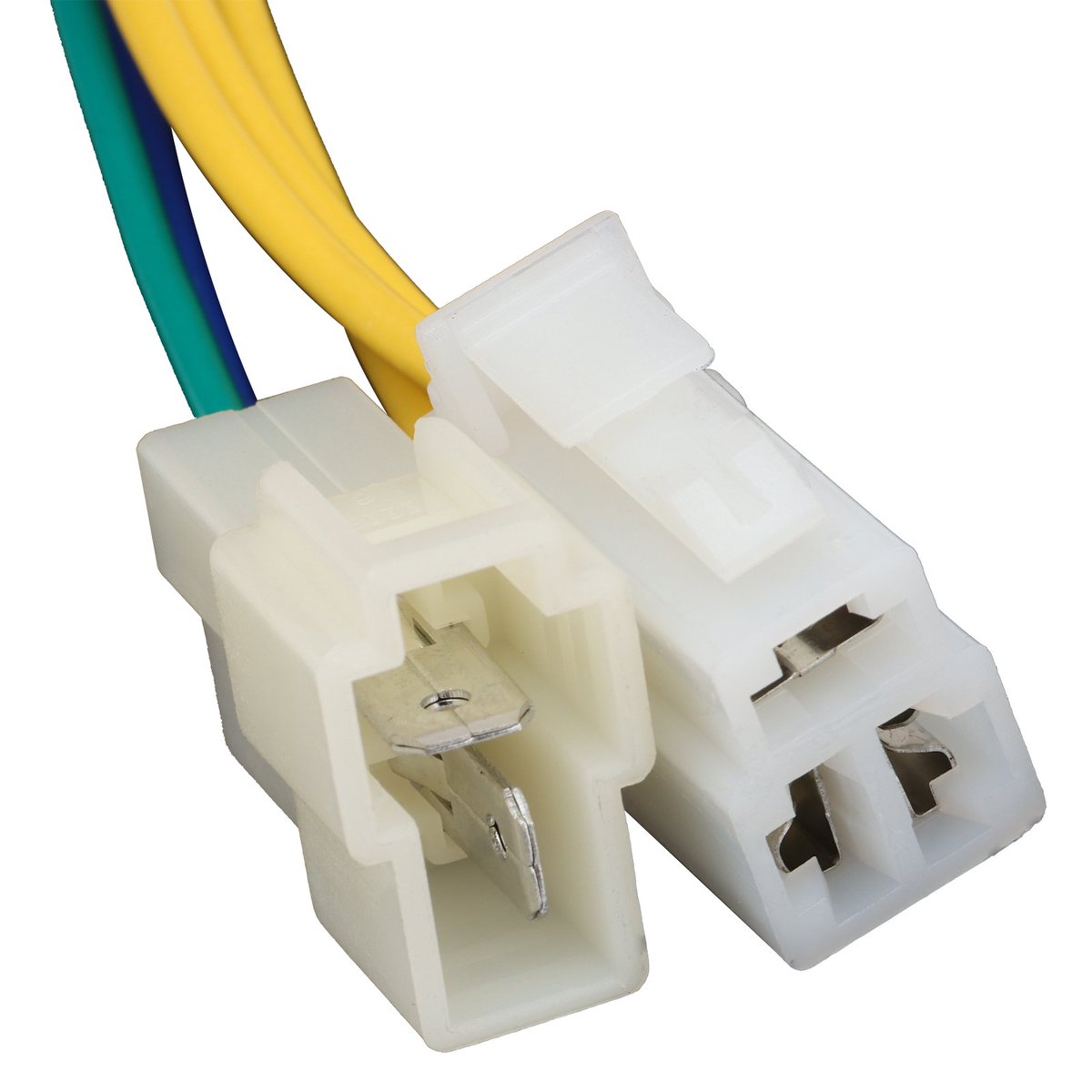

- Direct replacement style, but original connector layout, wire count, pickup coil position, and dimensions must be checked before installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select 2010–2013 Hyosung / Kasinski Mirage 250 EFI motorcycles. Some related Comet GT 250 / GTR 250 EFI applications may use a similar stator, but fitment must be confirmed by the original part. Please compare your original stator’s wire count, connector layout, inner diameter, outer diameter, mounting hole distance, trigger coil position, thickness, and overall shape before ordering.
Do I need to match the OEM part number?
No confirmed OEM number is provided for this exact product. If you have an OEM number from your original stator, please use it together with the physical specifications. The safest method is to confirm the 18-coil 5-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, and stator thickness.
What models or situations does this part not fit?
This part does not fit Mirage 250, Comet 250, GT250, GTR250, or other Hyosung / Kasinski models that use a different stator diameter, different wire count, different connector layout, different trigger coil position, or different charging system design. It is also not a replacement for the regulator rectifier, battery, CDI / ECU, ignition coil, flywheel, starter motor, fuel injection parts, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, EFI version, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, trigger mounting hole distance, trigger mounting hole diameter, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
