Intake Manifold Assembly for 2-Stroke 47cc 49cc Pocket Bike Mini ATV Dirt Bike
Intake Manifold Assembly for 2-Stroke 47cc 49cc Pocket Bike Mini ATV Dirt Bike
4.78 / 5.0
(9) 9 total reviews
Couldn't load pickup availability
Product Overview

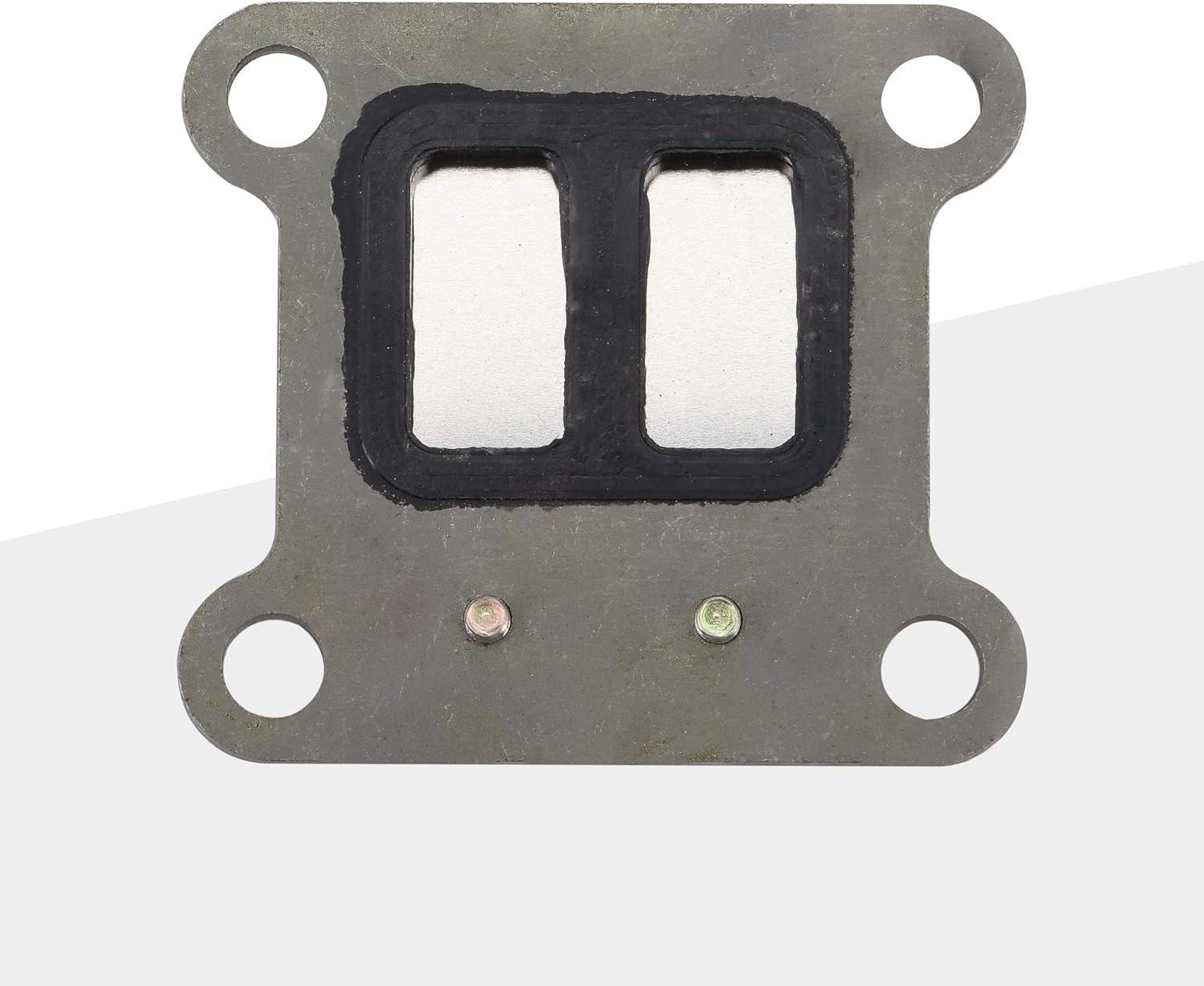

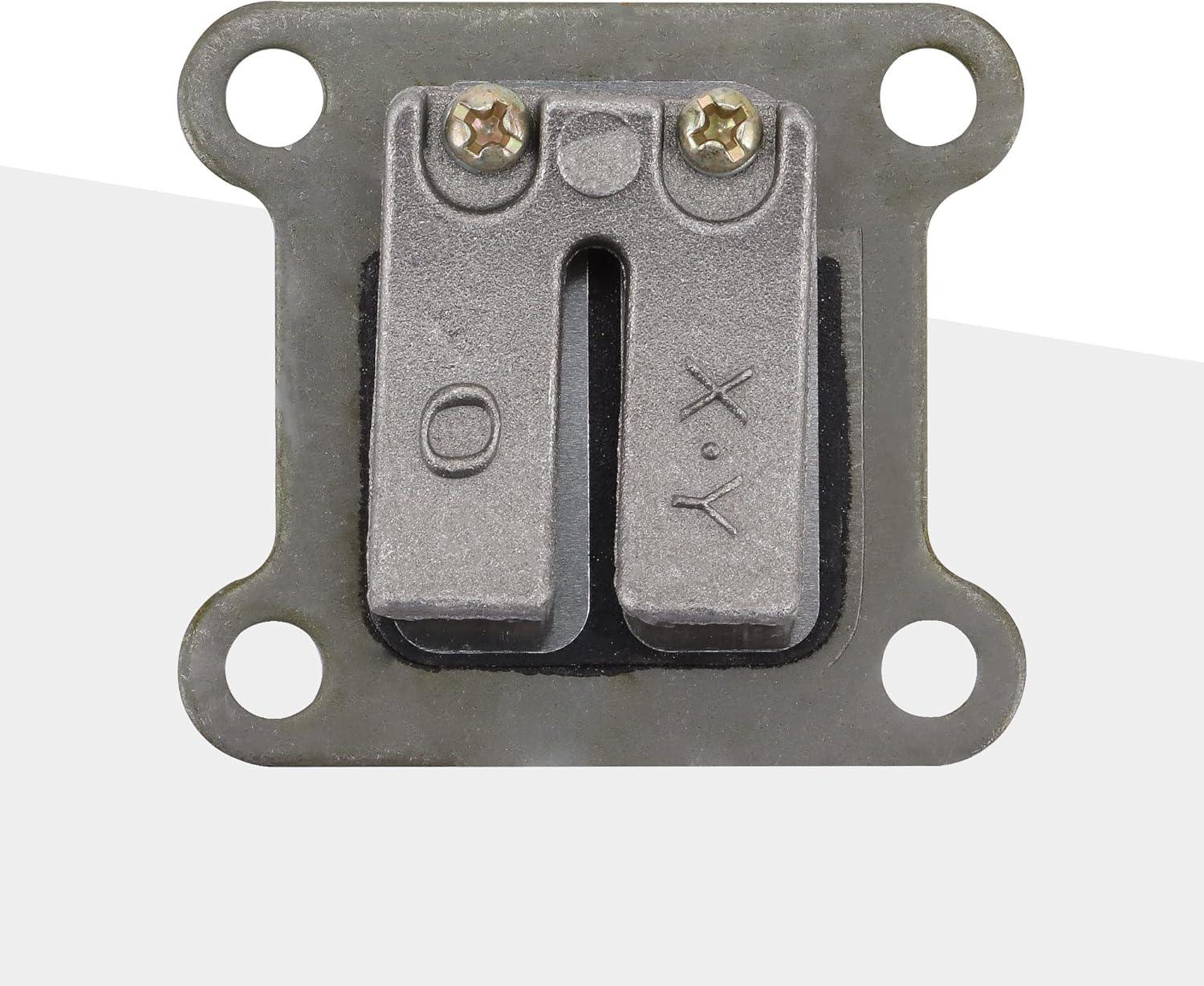

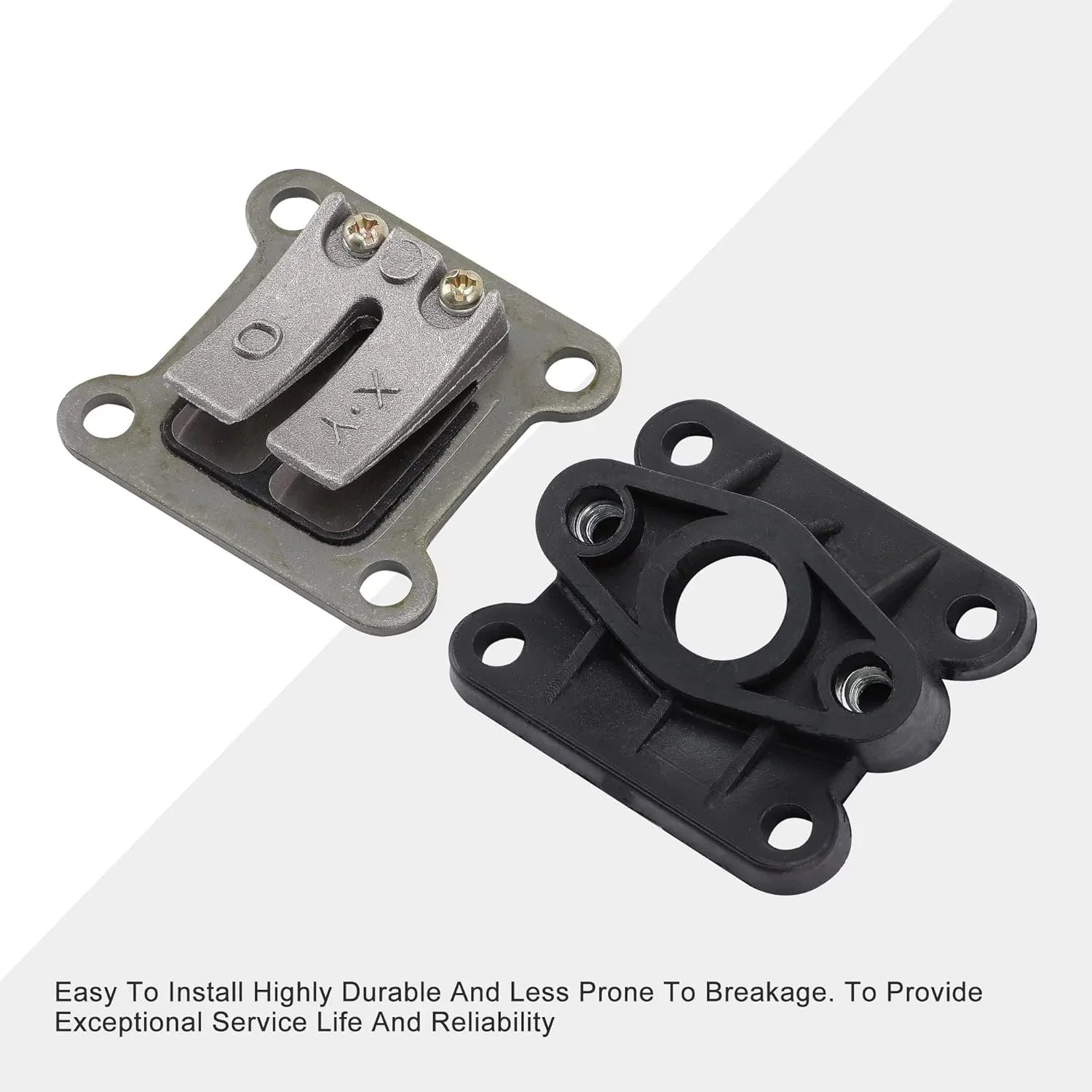

This intake manifold assembly is designed for 2-stroke 47cc and 49cc engines, providing a secure and well-sealed connection between the carburetor and engine.
Its precision fit helps reduce air leaks, improves airflow efficiency, and supports stable engine performance for mini bikes, pocket bikes, and small ATVs.
Product Compatibility
| Vehicle Type | Engine Type | Engine Size | Common Applications |
|---|---|---|---|
| Pocket Bike | 2-Stroke | 47cc | Mini pocket bikes |
| Pocket Bike | 2-Stroke | 49cc | Gas pocket bikes |
| Mini ATV | 2-Stroke | 47cc | Youth mini ATVs |
| Mini ATV | 2-Stroke | 49cc | Small quad bikes |
| Dirt Bike | 2-Stroke | 47cc | Mini dirt pit bikes |
| Dirt Bike | 2-Stroke | 49cc | Youth pit bikes |
| Mini Bike | 2-Stroke | 47cc / 49cc | Recreational mini bikes |
Specifications
| Specification | Details |
|---|---|
| Product Type | Intake Manifold Assembly |
| Engine Type | 2-Stroke |
| Engine Size | 47cc / 49cc |

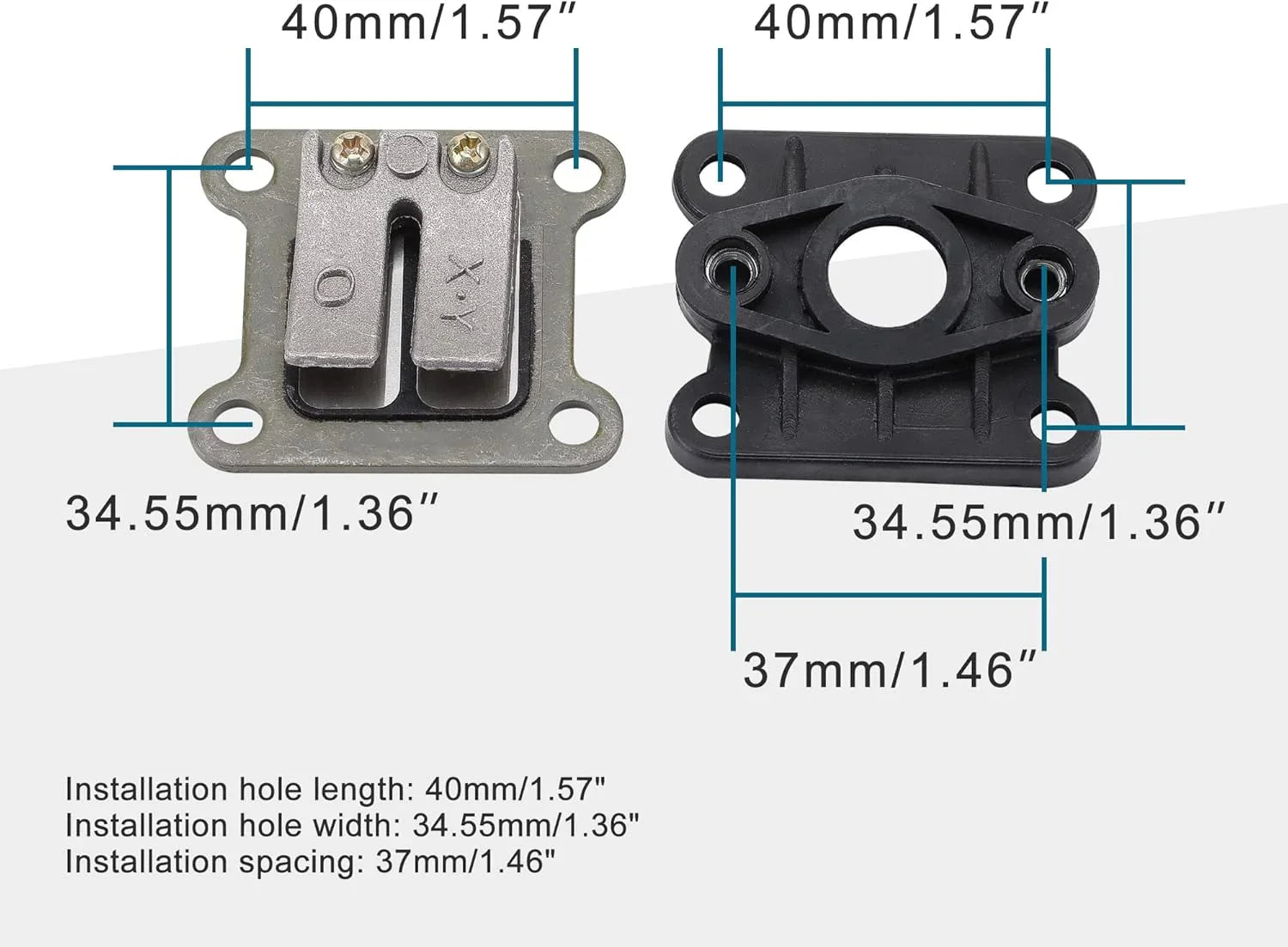

| Intake Pipe Length | 52mm (2.0") |
| Intake Pipe Width | 50mm (1.97") / 47mm (1.9") |
| Mounting Hole Distance | 40mm (1.6") / 35mm (1.4") |
| Manifold Mounting Hole Distance | 37mm (1.5") |
| Material | Heat-resistant, corrosion-resistant alloy |
| Condition | Brand new |
| Package Includes | Intake Manifold Assembly ×1, Keychain ×1 |
Key Features
- Designed for 2-stroke 47cc and 49cc engines
- Tight fit improves sealing and reduces air leakage
- Optimizes airflow for smoother engine performance
- Heat- and corrosion-resistant lightweight construction
- Direct replacement with easy installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This intake manifold is intended for Vehicle Type; Engine Type; Engine Size; Common Applications; Pocket Bike; 2-Stroke; 47cc. Key physical/spec details from the product data include Engine Size: 47cc / 49cc, Intake Pipe Length: 52mm (2.0"), Intake Pipe Width: 50mm (1.97") / 47mm (1.9"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this intake manifold, also compare the bolt spacing, intake port shape, carb-side inner diameter, vacuum nipple position, and gasket shape.
What models or situations does this part not fit?
Do not order this intake manifold for machines outside the listed compatibility, or for units with different port shapes, bolt spacing, carb-side diameter, or vacuum nipple locations. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the bolt spacing, intake port shape, carb-side inner diameter, vacuum nipple position, and gasket shape. Recheck listed specs such as Engine Size: 47cc / 49cc, Intake Pipe Length: 52mm (2.0"), Intake Pipe Width: 50mm (1.97") / 47mm (1.9"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
Llegó en el momento esperado fascinante
I took a chance buying this because I was not 100% sure of the part I needed. So I spend the 7 dollars on this and now our 20 dollar " pocket rocket" we bought from a yard sale is tearing through the streets. Well made and easy to install
these worked really well with my mini bikes that i was putting together
Just needed that reeds to convert a carburetor. Worked as needed.
So the items are good and all and i did use them but it does NOT come with gaskets which in my opinion, anytime you change or remove the manifold or carb, you might as well replace the gaskets too. better performance that way. I figure people who are looking to buy this probably have an old worn out version which they are trying to replace. makes sense to throw in gaskets with this product.I mean come on, they dont even cost that much to manufacture...
