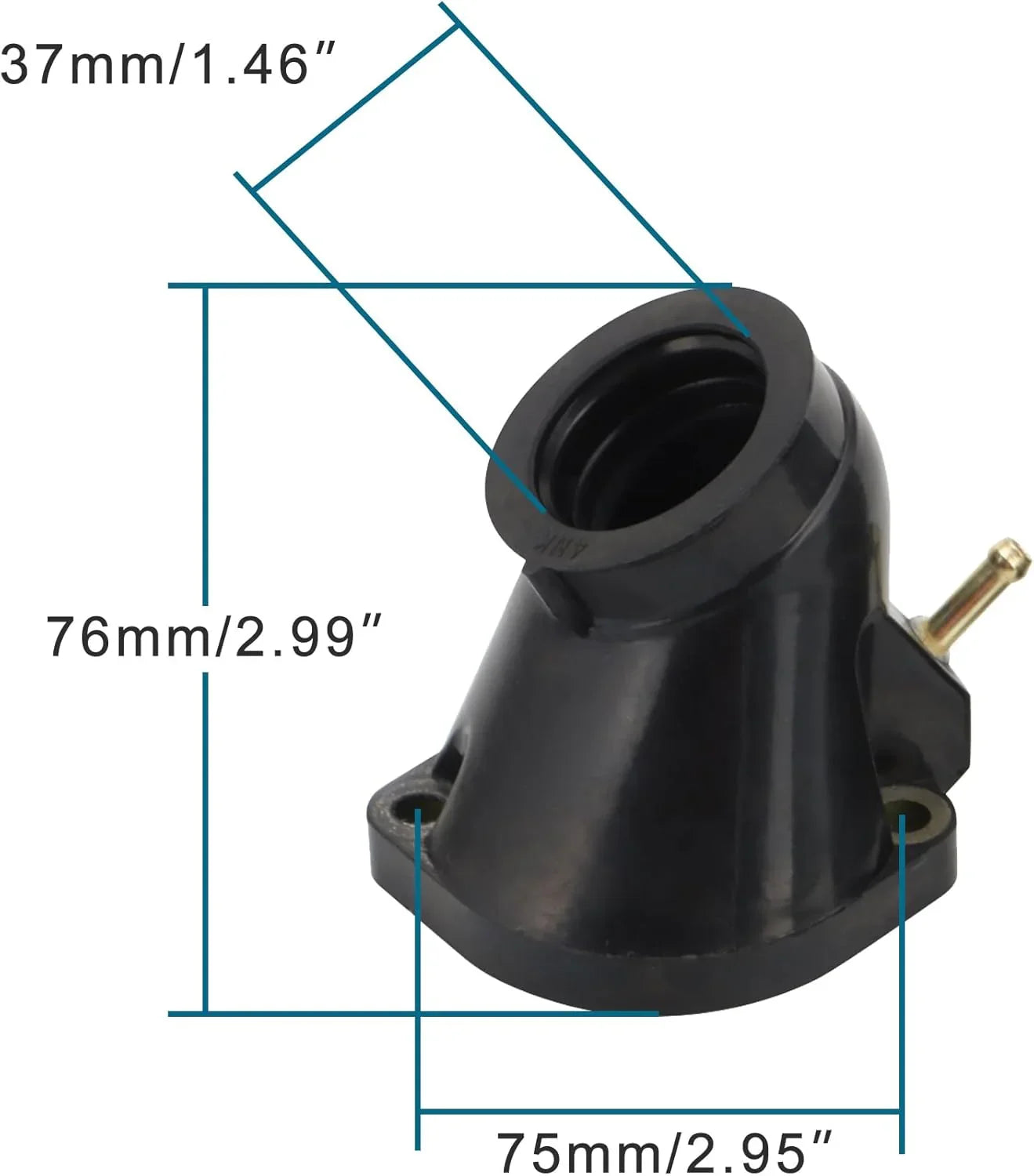

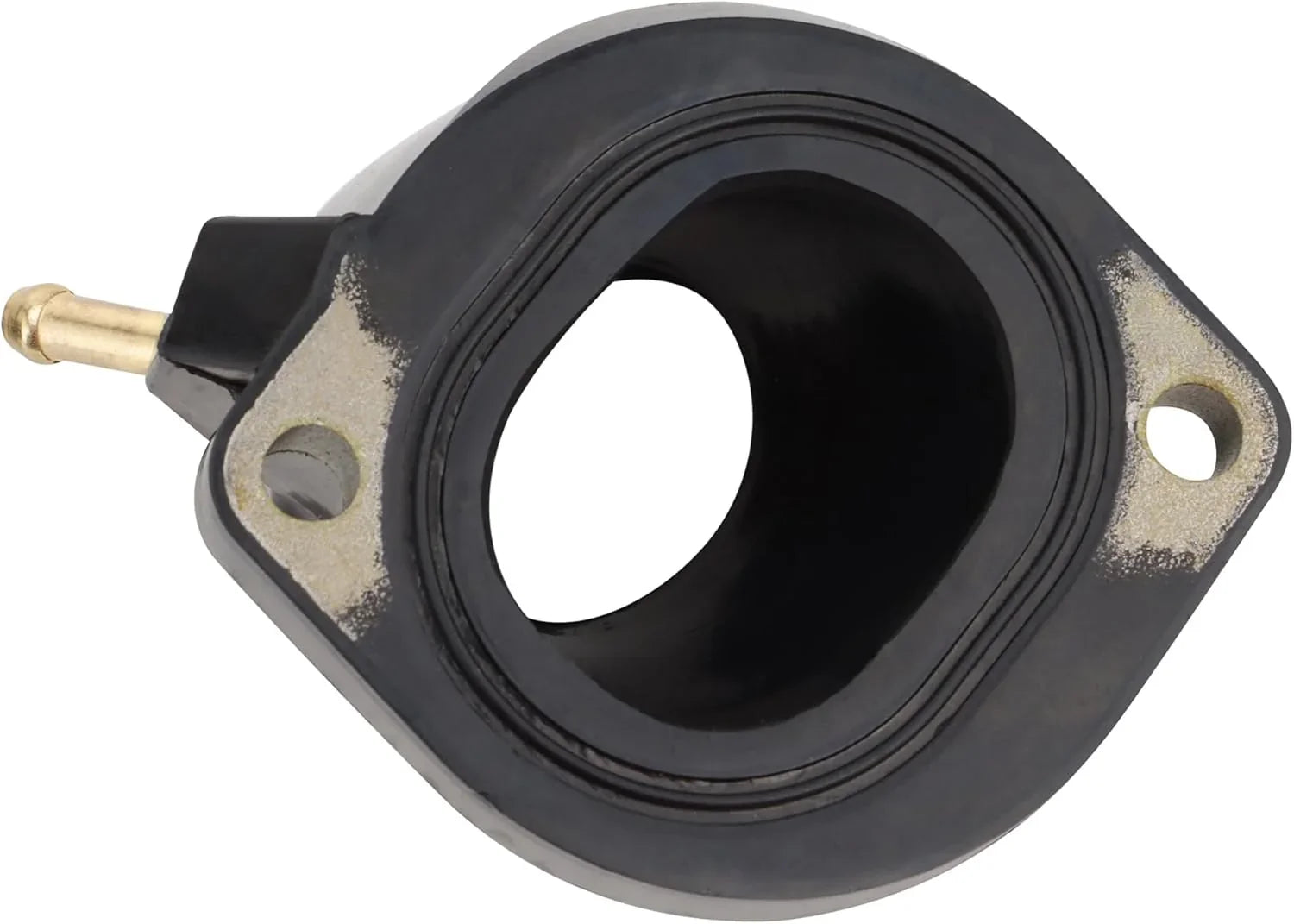

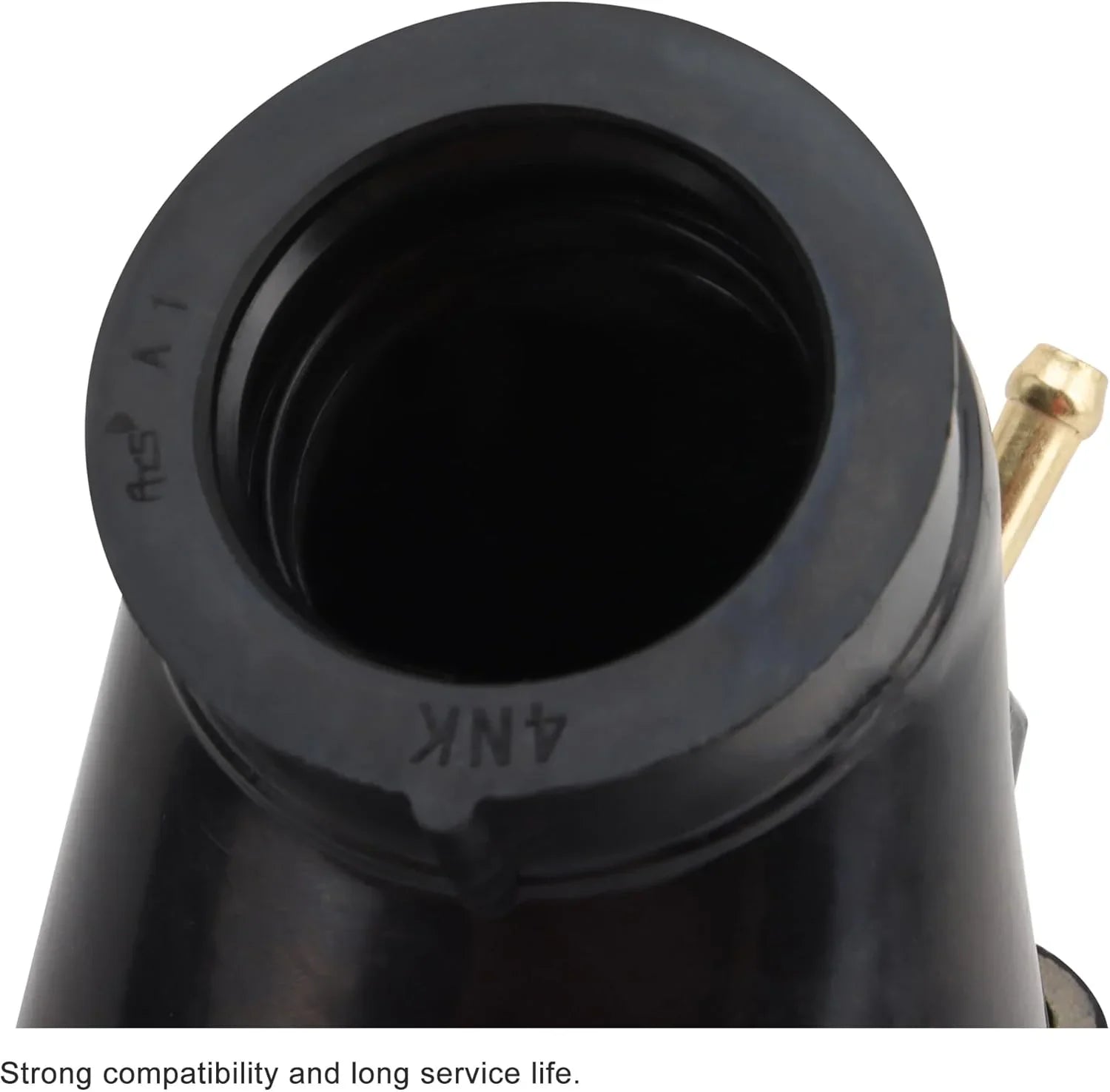

Intake Manifold Boot for Yamaha Royal Star 1300 XVZ1300 XVZ13A (1996-2001) | OEM 4XY-13586-10
Intake Manifold Boot for Yamaha Royal Star 1300 XVZ1300 XVZ13A (1996-2001) | OEM 4XY-13586-10
Couldn't load pickup availability
Product Overview
Maintain the smooth, majestic power of your V4 engine with the GOOFIT Premium Intake Manifold Boot. Specifically designed for the 1996-2001 Yamaha Royal Star 1300 (XVZ1300 / XVZ13A) series, this high-quality replacement is the exact fix for OEM #4XY-13586-10 and #4XY-13596-10.
The Royal Star’s high-displacement V4 engine generates significant heat, which can cause original rubber intake joints to become brittle, crack, or delaminate over time. A failing intake boot leads to vacuum leaks, resulting in poor fuel economy, erratic idling, and "popping" during deceleration. Our boots are constructed from premium oil-resistant rubber, ensuring a 100% airtight seal and maximum durability for long-distance touring.
Product Compatibility
Direct replacement for Yamaha XVZ1300 V4 engines. Please verify your model's OEM part number.
| Brand | Model | Fitment Years | Replaces OEM Part # |
| Yamaha | XVZ1300 Royal Star | 1996 – 2001 | 4XY-13586-10 / 4XY-13596-10 |
| Yamaha | XVZ13A Royal Star Tour Classic | 1996 – 2001 | 4XY-13586-10 / 4XY-13596-10 |
| Yamaha | XVZ1300 Boulevard | 1998 – 2001 | 4XY-13586-10 / 4XY-13596-10 |
Specifications
| Feature | Detail |
| OEM Reference | 4XY-13586-10 / 4XY-13596-10 |
| Engine Type | 1294cc Liquid-Cooled V4 |
| Material | Premium Oil-Resistant Synthetic Rubber |
| Properties | Heat-Stabilized, Crack-Resistant, High-Elasticity Sealing |
| Fitment Type | Direct Factory Replacement |
Key Features
- Premium Oil-Resistant Rubber: Constructed from advanced synthetic rubber that is specifically formulated to resist degradation from modern fuels and engine oils. This ensures the manifold stays flexible, preventing the dry-rot common in aging tourers.
- V4 Performance Optimization: Engineered to provide a perfect airtight vacuum seal between the carburetors and the cylinder heads. This is essential for maintaining the precise synchronization required by the Royal Star's unique V4 configuration.
- Maximum Durability: Built to withstand the constant vibration and high-temperature environment of a 1300cc engine, providing long-lasting usage and peace of mind during long-distance rides.
- Restores Ride Smoothness: Eliminates "unmetered air" leaks that cause lean-running conditions, engine hesitation, and difficult cold starts. Installing new boots is the most effective way to restore the bike’s signature smooth throttle response.
- Precision Factory Fit: Manufactured to the exact dimensions of the 4XY series specification, ensuring a seamless bolt-on installation and perfect alignment with the carburetor bank.
Share
Fitment FAQ
Will this part fit my specific model and year?
This intake manifold is intended for Direct replacement for Yamaha XVZ1300 V4 engines. Please verify your model's OEM part number.; Fitment Years; Replaces OEM Part #; Yamaha; XVZ1300 Royal Star; 1996 – 2001; 4XY-13586-10 / 4XY-13596-10. Listed year information includes 1996–2001, 1998–2001, 1996, 2001, 1998. It is best matched to original part number(s) 4XY-13586-10, 4XY-13596-10, 1996-2001. Key physical/spec details from the product data include 1294cc, 1300cc. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 4XY-13586-10, 4XY-13596-10, 1996-2001 before purchase. For this intake manifold, also compare the bolt spacing, intake port shape, carb-side inner diameter, vacuum nipple position, and gasket shape. This is especially important for Yamaha XVZ1300/XVZ13A models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this intake manifold for machines outside the listed compatibility, or for units with different port shapes, bolt spacing, carb-side diameter, or vacuum nipple locations. If your original part number does not cross-reference with 4XY-13586-10, 4XY-13596-10, 1996-2001, treat the fitment as unconfirmed. Model years outside 1996–2001, 1998–2001, 1996, 2001, 1998 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the bolt spacing, intake port shape, carb-side inner diameter, vacuum nipple position, and gasket shape. Confirm OEM/cross-reference number(s): 4XY-13586-10, 4XY-13596-10, 1996-2001. Recheck listed specs such as 1294cc, 1300cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
