GOOFIT
Starter Motor for Kawasaki Bayou 300 KLF300 Prairie 300 KVF300
Starter Motor for Kawasaki Bayou 300 KLF300 Prairie 300 KVF300
Couldn't load pickup availability
Product Overview
Replace a worn, weak, noisy, or failed starter motor with this electric starter motor, designed for select Kawasaki Bayou 300, KLF300, Prairie 300, KVF300, Lakota 300, and related Kawasaki ATV applications using reference numbers 21163-1080, 21163-1115, 21163-1141, 21163-1249, and 128000-1490.
The starter motor helps crank the engine when the electric start button is pressed. A failing ATV starter motor may cause slow cranking, clicking, intermittent starting, no-crank issues, grinding noise, or failure to start even when the battery is charged.

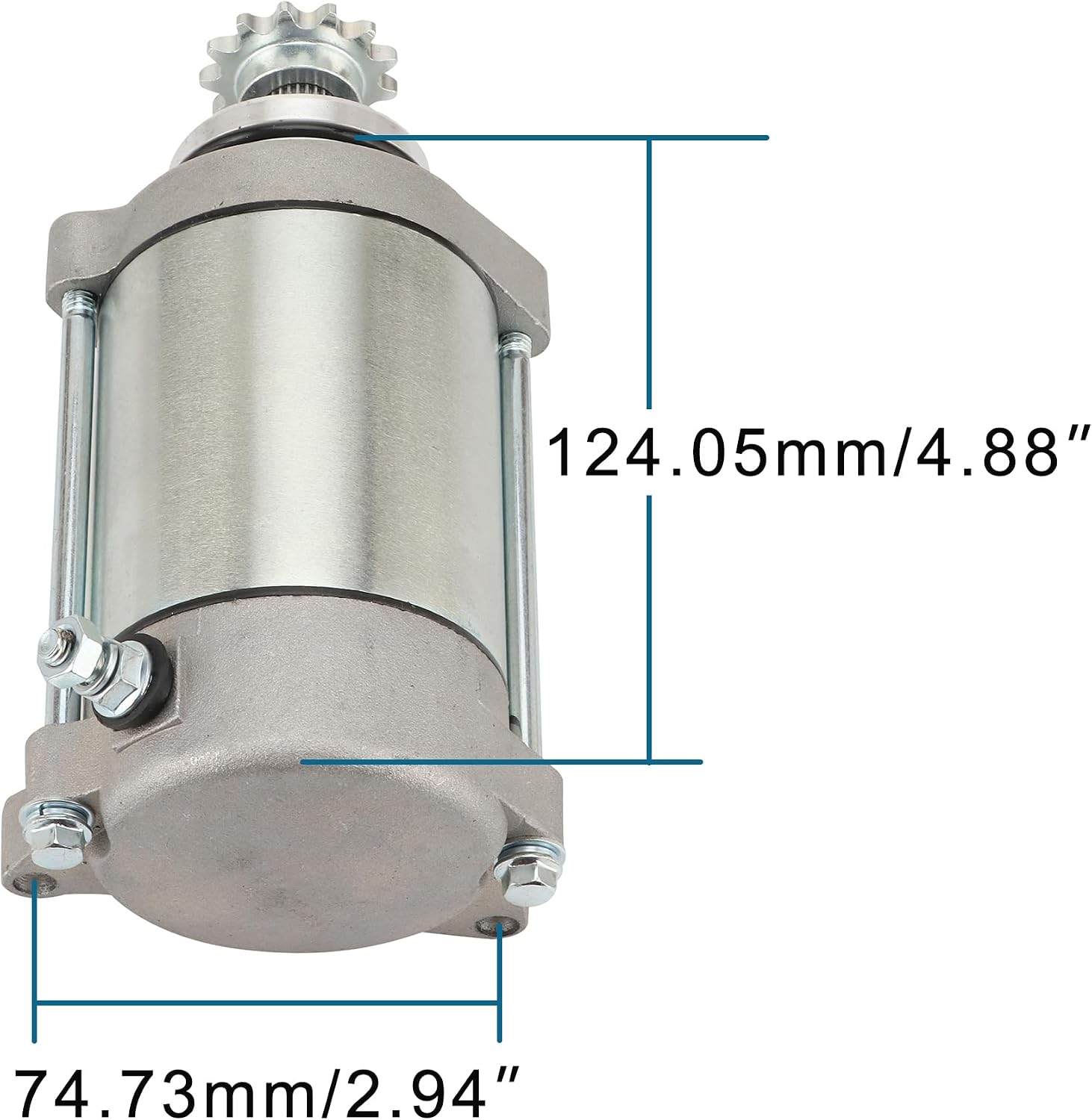

This replacement starter motor features 74.73mm mounting hole spacing and 124.05mm length based on supplied product data. Please compare your original starter motor’s OEM number, tooth count, rotation direction, mounting points, electrical terminal, body shape, gear position, and overall dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM / Reference Number | Fitment Notes |
|---|---|---|---|---|
| Kawasaki | Bayou 300 / KLF300 2x4 | 1986–2004 | 21163-1080 / 21163-1115 / 21163-1141 / 21163-1249 | Main fitment; confirm original starter body and gear |
| Kawasaki | Bayou 300 / KLF300 4x4 | 1989–2004 | 21163-1080 / 21163-1115 / 21163-1141 / 21163-1249 | Main 4x4 fitment; verify mounting layout and terminal position |
| Kawasaki | Prairie 300 / KVF300 2x4 | 1999–2002 | 21163-1249 / related references | Common related fitment; compare original starter before ordering |
| Kawasaki | Prairie 300 / KVF300 4x4 | 1999–2002 | 21163-1249 / related references | Verify original starter number and physical design |
| Kawasaki | Lakota 300 / KEF300 Utility | 1995–2000 | 21163-series / 128000-1490 | Possible related fitment; confirm before purchase |
| Kawasaki | Lakota 300 / KEF300 Sport | 2001–2003 | 21163-series / 128000-1490 | Possible related fitment; match by OEM number and starter body |
| Kawasaki | KLF300 / KVF300 / KEF300 300cc ATV Platform | Select applications | Verify original part | Fitment depends on model, year, drive type, and starter motor version |
Important Fitment Note:
This part is not selected by model name alone. KLF300 usually refers to Kawasaki Bayou 300, while Prairie 300 is commonly listed as KVF300. These models may use different starter motor references depending on year, drive type, 2x4 / 4x4 configuration, market, gear count, rotation direction, mounting points, and electrical terminal style. Please confirm your original starter motor matches one of the listed reference numbers and the same physical design before ordering.
Specifications
| Specification | Details |
| Product Type | Electric Starter Motor |
| Compatible Brand | Kawasaki |
| Main Compatible Models | Bayou 300, KLF300, Prairie 300, KVF300 |
| Possible Related Models | Lakota 300, KEF300, verify before purchase |
| Common Engine Platform | Kawasaki 300cc ATV |
| Mounting Hole Spacing | 74.73mm / 2.94" |
| Length | 124.05mm / 4.88" |
| Main Kawasaki References | 21163-1080 / 21163-1115 / 21163-1141 / 21163-1249 |
| Denso / Mitsuba Reference | 128000-1490 |
| Common Voltage | 12V ATV starting system, verify original starter |
| Rotation Direction | Commonly listed as CCW on aftermarket references; verify original starter |
| Tooth Count | Commonly listed as 31-tooth / 31-spline on some aftermarket references; verify original starter |
| Common Vehicle Type | ATV / Utility ATV / 4-Wheeler / Quad |
| Application | Electric Starting System |
| Fitment Type | Replacement, match by OEM number, gear count, rotation, mounting style, and starter body |
Key Features
- Electric starter motor for select Kawasaki 300cc ATV applications
- Designed for matching Bayou 300 KLF300 and Prairie 300 KVF300 starter systems
- Replaces Kawasaki starter references 21163-1080, 21163-1115, 21163-1141, and 21163-1249
- Cross-referenced with 128000-1490 on some Denso / Mitsuba-style aftermarket listings
- Helps restore electric start function when the original starter motor is weak, worn, noisy, or failed

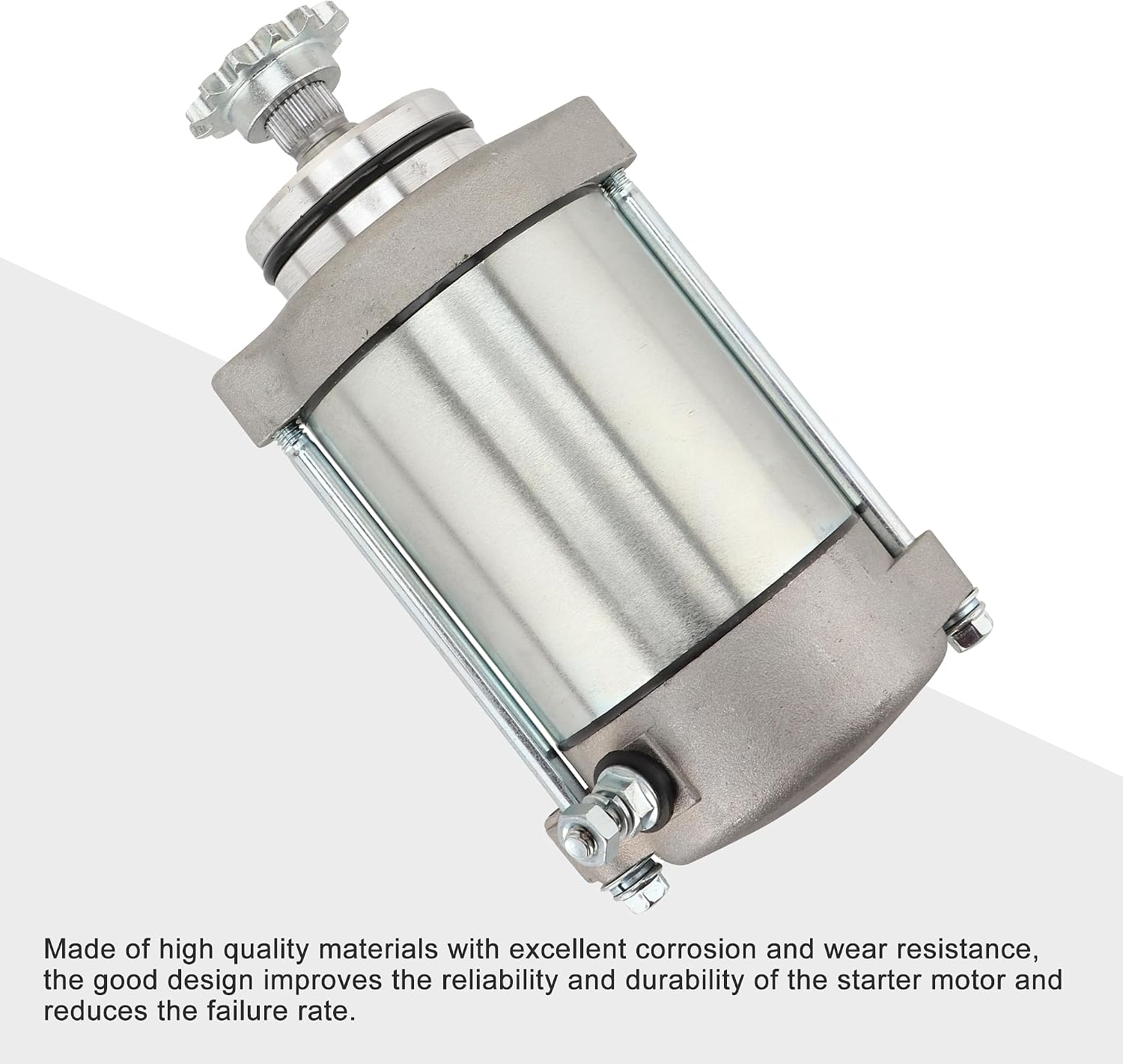

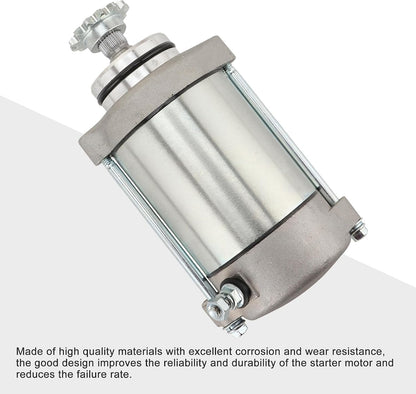

- High-quality material construction helps support corrosion resistance, wear resistance, and long service life
- Replacement-style design for matching Kawasaki ATV starting systems
- Original OEM number, gear count, rotation direction, terminal position, mounting layout, and starter body must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 21163-1080 | Common Kawasaki starter motor reference |
| 211631080 | Compact format of 21163-1080 |
| 21163-1115 | Common Kawasaki starter motor reference |
| 211631115 | Compact format of 21163-1115 |
| 21163-1141 | Common Kawasaki starter motor reference |
| 211631141 | Compact format of 21163-1141 |
| 21163-1249 | Common Kawasaki starter motor reference |
| 211631249 | Compact format of 21163-1249 |
| 128000-1490 | Denso / Mitsuba-style starter motor reference |
| 1280001490 | Compact format of 128000-1490 |
| SMU0012 | Common aftermarket starter motor reference on some listings; verify before purchase |
| 410-54004 | Common aftermarket starter motor reference on some listings; verify before purchase |
| 18630 / 18630N | Common aftermarket starter references on some listings; verify before purchase |
Please use the OEM/reference number together with physical fitment checks. If your original starter motor has a different gear tooth count, rotation direction, shaft style, mounting hole layout, electrical terminal, body length, or mounting position, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This starter motor is designed for select Kawasaki KLF300 Bayou 300 applications when the original starter matches one of the listed reference numbers, such as 21163-1080, 21163-1115, 21163-1141, 21163-1249, or 128000-1490. Please compare your original starter motor’s part number, gear count, rotation direction, mounting hole spacing, body shape, and electrical terminal before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM or reference number is strongly recommended. This starter motor cross-references with Kawasaki 21163-1080, 21163-1115, 21163-1141, 21163-1249, and 128000-1490. However, OEM number alone is not enough. Please also confirm the gear count, rotation direction, mounting hole spacing, terminal position, shaft design, starter body shape, and available installation space.
What models or situations does this part not fit?
This part does not fit Kawasaki Bayou, Prairie, Lakota, Brute Force, Mule, Mojave, KFX, or other Kawasaki ATV models that use a different starter motor number, different gear count, different rotation direction, different shaft length, different mounting holes, different terminal style, or different starter body. It is also not a replacement for the battery, starter relay, starter clutch, stator, ignition coil, CDI / ECU, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your ATV’s make, model, year, drive type, original starter motor OEM number, gear count, rotation direction, mounting hole spacing, electrical terminal, shaft position, starter body length, starter body shape, and product photos. For best fitment, compare this starter motor directly with your original unit.
