2005–2021 Kawasaki Mule 600 610 SX 18-Coil 2-Wire Stator 59031-2132
2005–2021 Kawasaki Mule 600 610 SX 18-Coil 2-Wire Stator 59031-2132
Couldn't load pickup availability
Product Overview

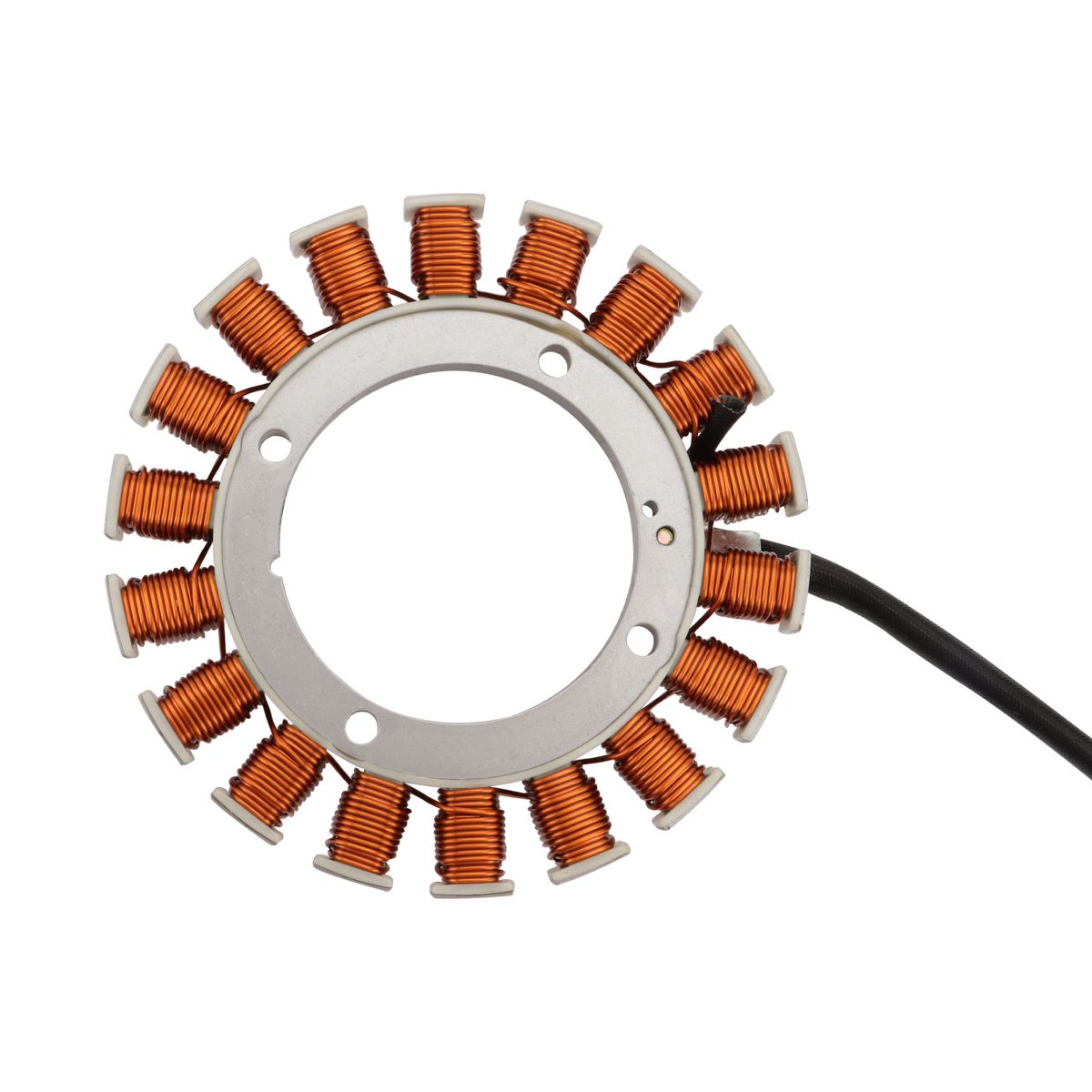

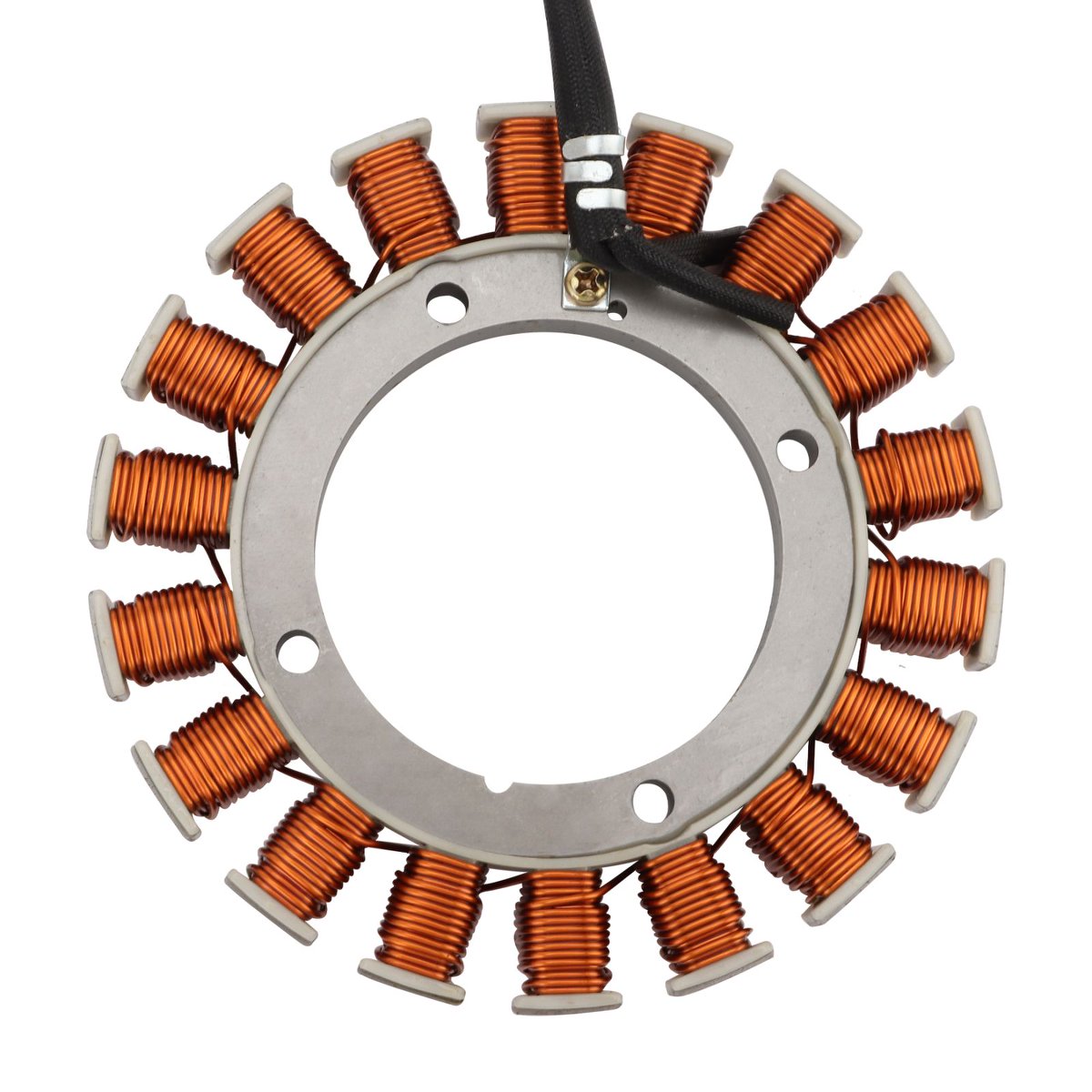

Replace a weak, burned, or failed charging stator with this 18-coil 2-wire magneto stator, designed for select Kawasaki Mule 600, Mule 610 4x4, Mule 610 4x4 XC, and Mule SX KAF400 utility vehicles.
The stator is an important part of the UTV charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Kawasaki Mule has weak charging, low battery voltage, dim lights, repeated battery drain, or charging-system failure, replacing the stator may help restore normal electrical output.

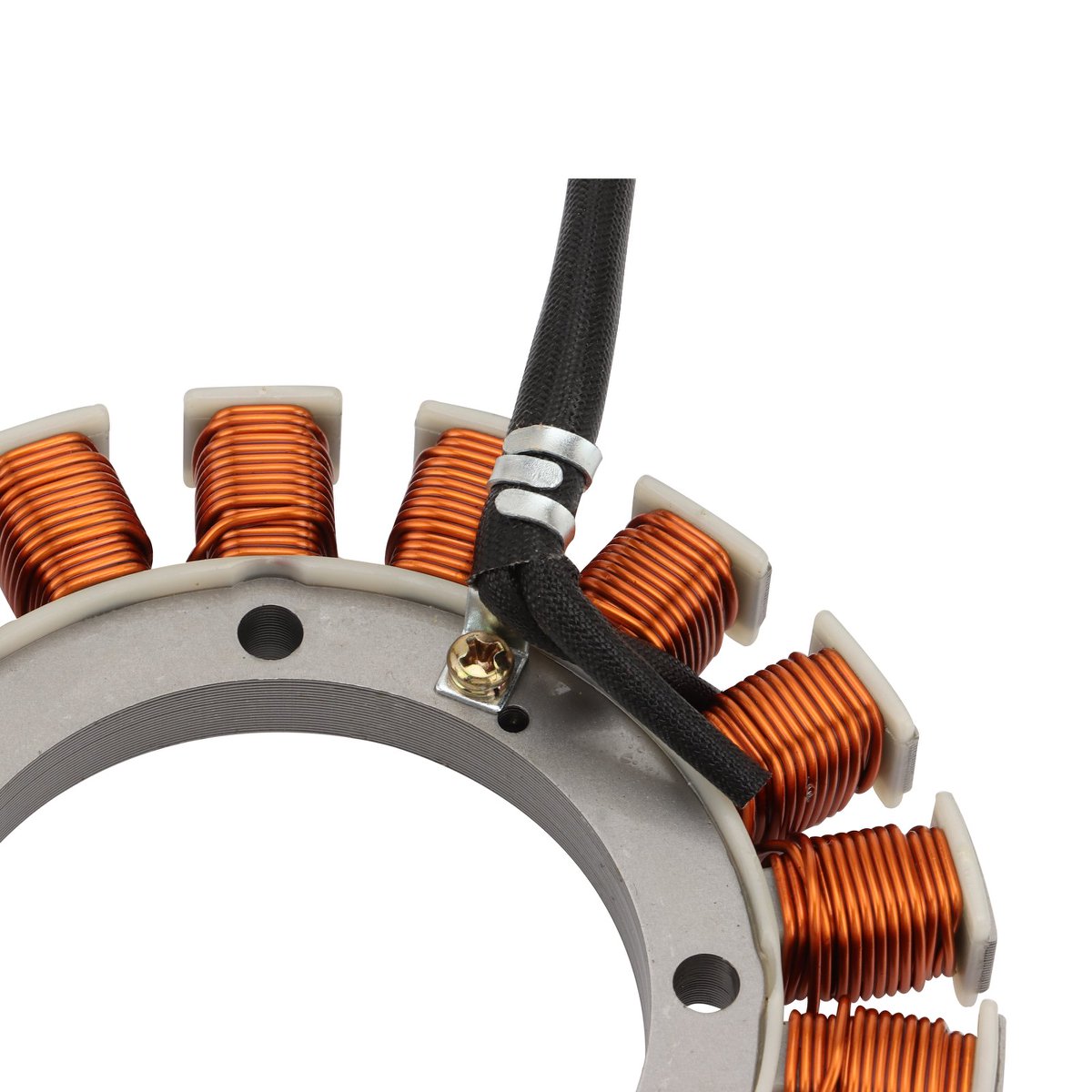

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, connector layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | Model Code | Fitment Notes |
|---|---|---|---|---|
| Kawasaki | Mule 600 | 2005–2016 | KAF400B | Main fitment; confirm original stator size and 2-wire layout |
| Kawasaki | Mule 600 | 2010 | KAF400BAF | Fits matching charging coil version only |
| Kawasaki | Mule 610 4x4 | 2007–2016 | KAF400A / KAF400B | Verify OEM number, connector, and dimensions |
| Kawasaki | Mule 610 4x4 | 2007–2010 | KAF400C | Compare original stator before ordering |
| Kawasaki | Mule 610 4x4 | 2016 | KAF400G | Fits only if original stator matches this design |
| Kawasaki | Mule 610 4x4 XC | 2010–2016 | KAF400D | Confirm wire count and mounting hole spacing |
| Kawasaki | Mule 610 4x4 XC | 2011–2016 | KAF400E | Check original stator and plug layout |
| Kawasaki | Mule 610 4x4 XC | 2014–2016 | KAF400F | Fits matching 18-coil 2-wire stator version |
| Kawasaki | Mule SX | 2017–2021 | KAF400 | Confirm exact submodel and original charging coil before purchase |
Important Fitment Note:

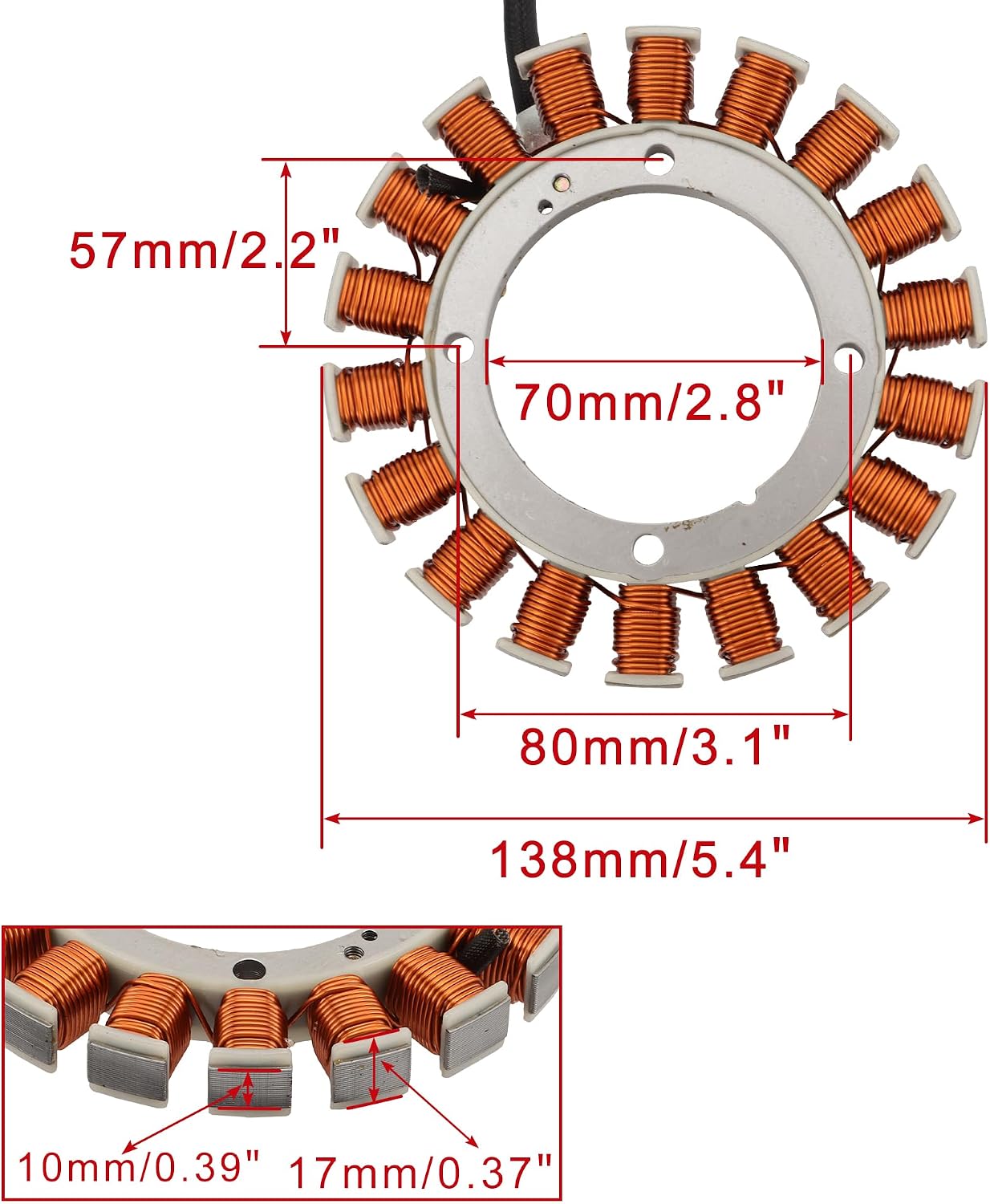

This part is not selected by Mule model name alone. Kawasaki Mule 600, Mule 610, and Mule SX models may use different charging components depending on year, submodel, market, and wiring system. Please confirm your original stator matches the 18-coil / 2-wire layout, DC type, 70mm inner diameter, 138mm outer diameter, 57mm and 80mm mounting hole distances, and overall shape before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Charging Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 2 Wire |
| Electrical Type | DC |
| Inner Diameter | 70mm / 2.8" |
| Outer Diameter | 138mm / 5.4" |
| Iron Core Height | 10mm / 0.39" |
| Mounting Hole Distance | 57mm / 2.2" and 80mm / 3.1" |
| Thickness | 17mm / 0.67" |
| OEM / Reference Number | 59031-2132 / 59031-7016 |
| Material | Metal Lamination Core + Copper Winding |
| Application | UTV Charging System |
| Compatible Brand | Kawasaki |
Key Features
- Designed for select Kawasaki Mule 600, Mule 610 4x4, Mule 610 4x4 XC, and Mule SX KAF400 models
- Replaces common charging coil references 59031-2132 and 59031-7016
- 18-coil 2-wire stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, battery drain, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Metal lamination core helps resist rust, corrosion, and deformation
- Direct replacement style, but original stator size, wire count, and connector layout must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 59031-2132 | Common Kawasaki charging coil reference for Mule 600 / Mule 610 / Mule SX KAF400 applications |
| 59031-7016 | Common aftermarket cross-reference for compatible Kawasaki Mule 600 / 610 / SX stator listings |
Please use the OEM/reference number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or connector style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select Kawasaki Mule 600 models from 2005–2016, Mule 610 4x4 models from 2007–2016, Mule 610 4x4 XC models from 2010–2016, and Mule SX models from 2017–2021. Please compare your original stator’s OEM/reference number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, and thickness before ordering.
Do I need to match the OEM part number?

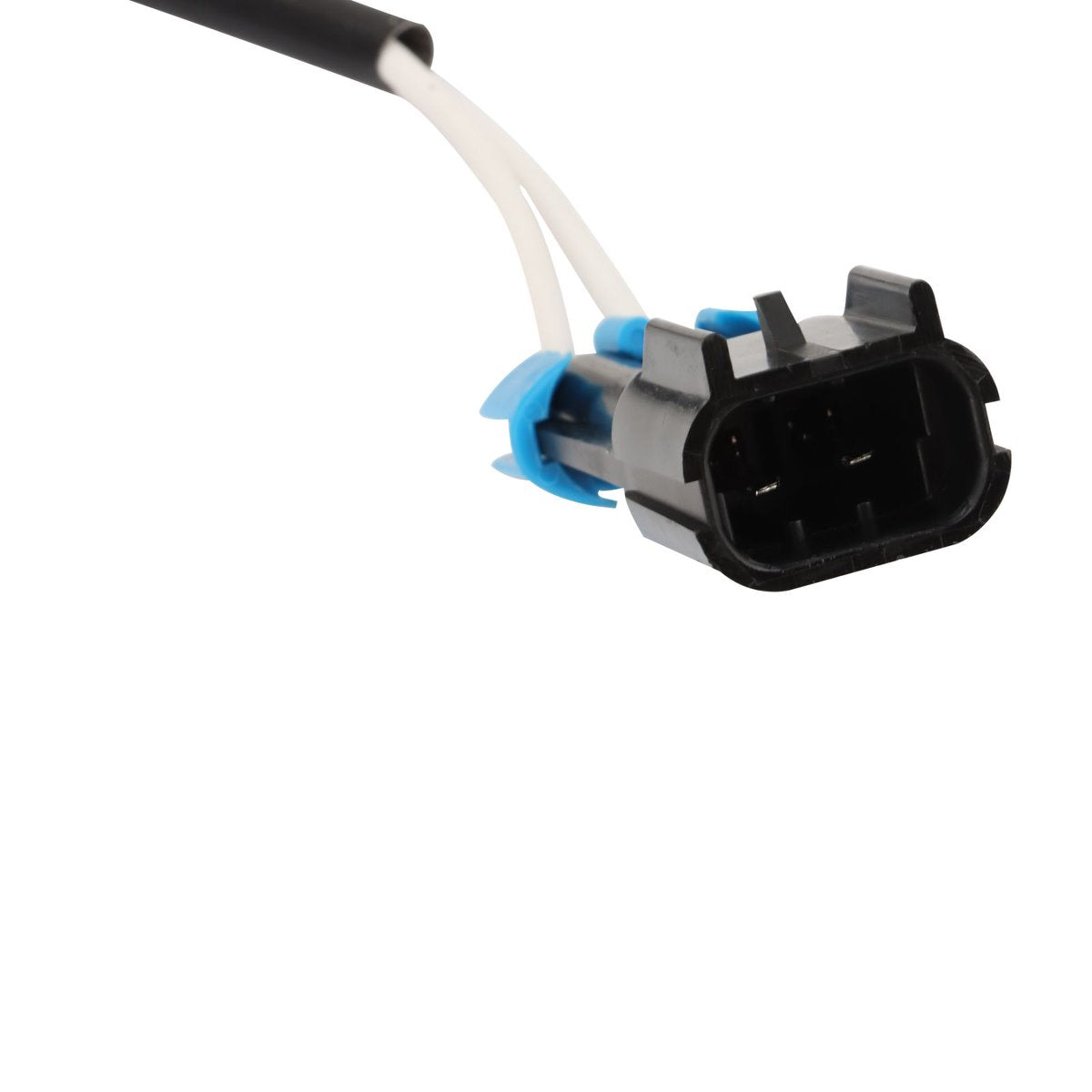

Yes, matching the OEM or reference number is strongly recommended. This stator is commonly associated with 59031-2132 and 59031-7016. However, OEM number alone is not enough. Please also confirm the 18-coil 2-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, and stator thickness.
What models or situations does this part not fit?
This part does not fit Kawasaki Mule models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different charging system design. It is also not a replacement for the regulator rectifier, battery, ignition coil, starter motor, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your UTV’s make, model, year, submodel code, OEM/reference number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
