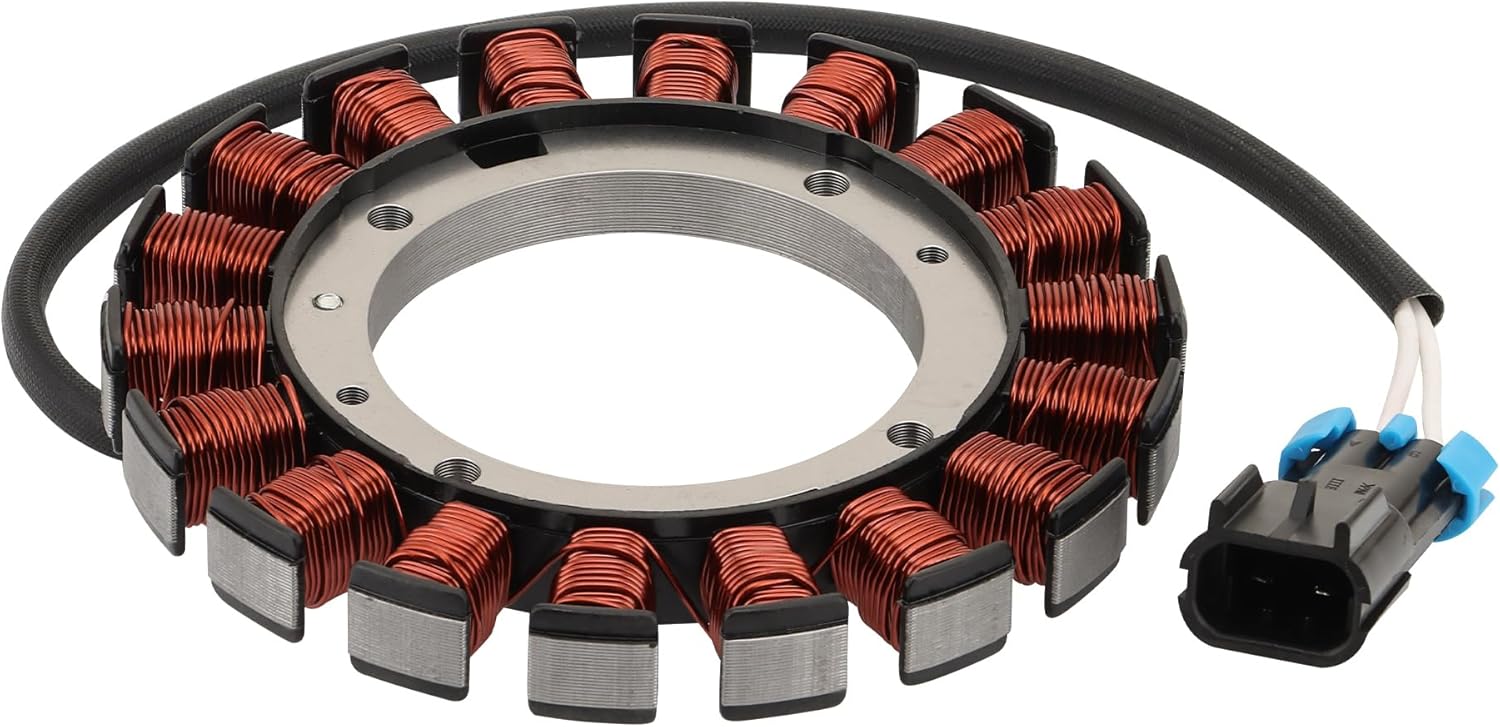

Kawasaki Mule 600 610 SX KAF400 Generator Stator Coil | 59031-2132
Kawasaki Mule 600 610 SX KAF400 Generator Stator Coil | 59031-2132
Couldn't load pickup availability
Product Overview

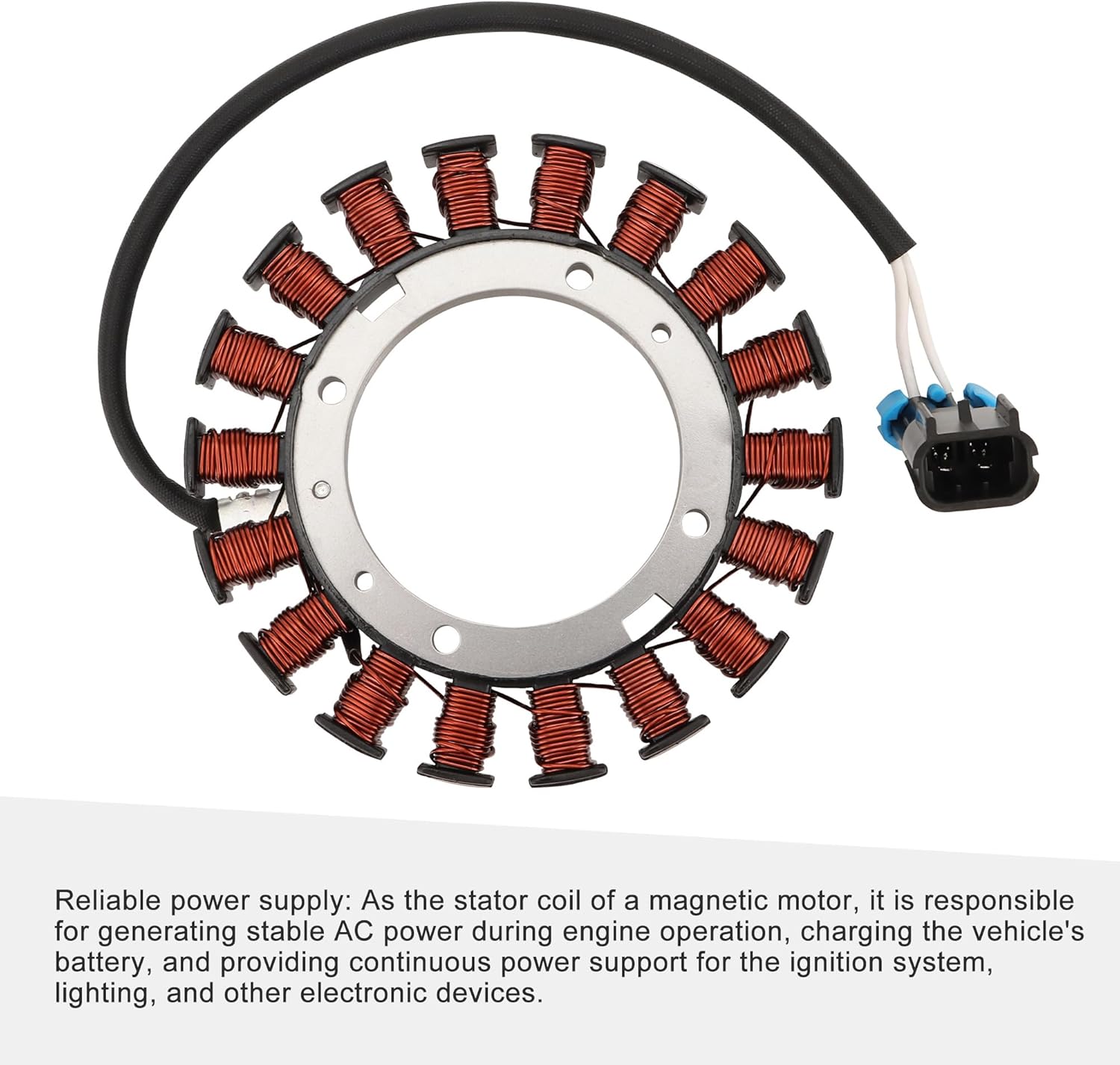

Restore reliable charging and ignition performance with this generator magneto stator coil, designed for selected Kawasaki Mule 600, Mule 610, Mule SX, Mule XC, and KAF400 utility vehicle applications.
Built to replace 59031-2132 / 59031-7016, this stator helps solve common electrical issues such as battery not charging, weak or no spark, hard starting, unstable voltage, and intermittent charging failure.

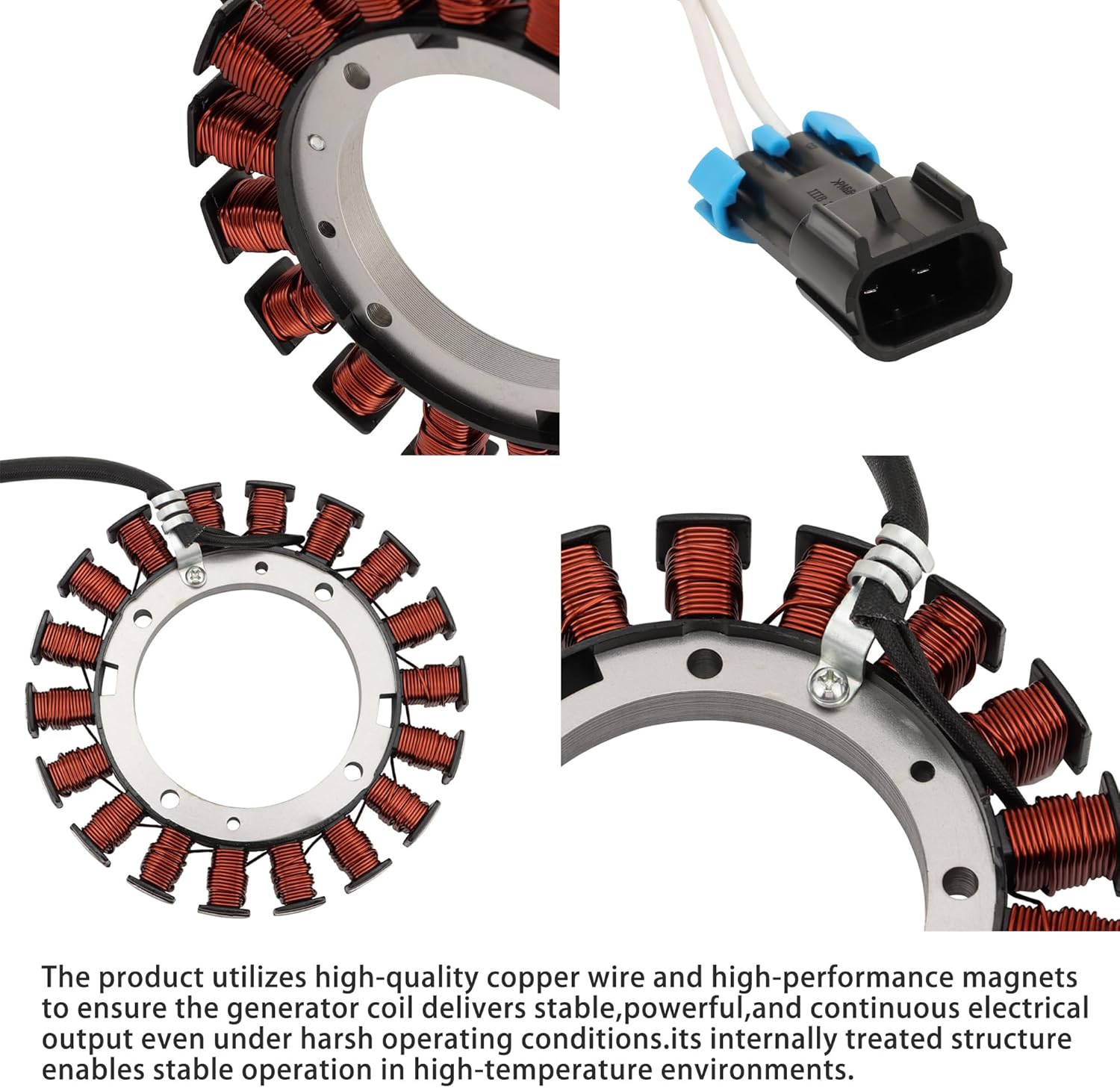

The product uses high-quality copper wire and durable magnetic materials to help the generator coil deliver stable, powerful, and continuous electrical output, even under demanding utility and off-road operating conditions. Its treated internal structure supports stable operation in high-temperature environments.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Kawasaki | Mule 600 KAF400 | 400cc | 2005–2016 | Verify OEM number, connector style, and stator dimensions before purchase |
| Kawasaki | Mule 610 4x4 KAF400 | 400cc | 2005–2016 | Verify OEM number, connector style, and stator dimensions before purchase |
| Kawasaki | Mule 610 4x4 XC / SE / Camo | 400cc | Please verify | Match by OEM number and original stator layout |
| Kawasaki | Mule SX KAF400 | 400cc | Please verify | Match by OEM number, connector style, and original stator |
| Kawasaki | Mule SX 4x4 / XC / SE | 400cc | Please verify | Match by OEM number, connector style, and original stator |
OEM Cross Reference:
59031-2132, 59031-7016
Specifications
| Specification | Details |
|---|---|
| Part Type | Generator Magneto Stator Coil / Charging Coil |

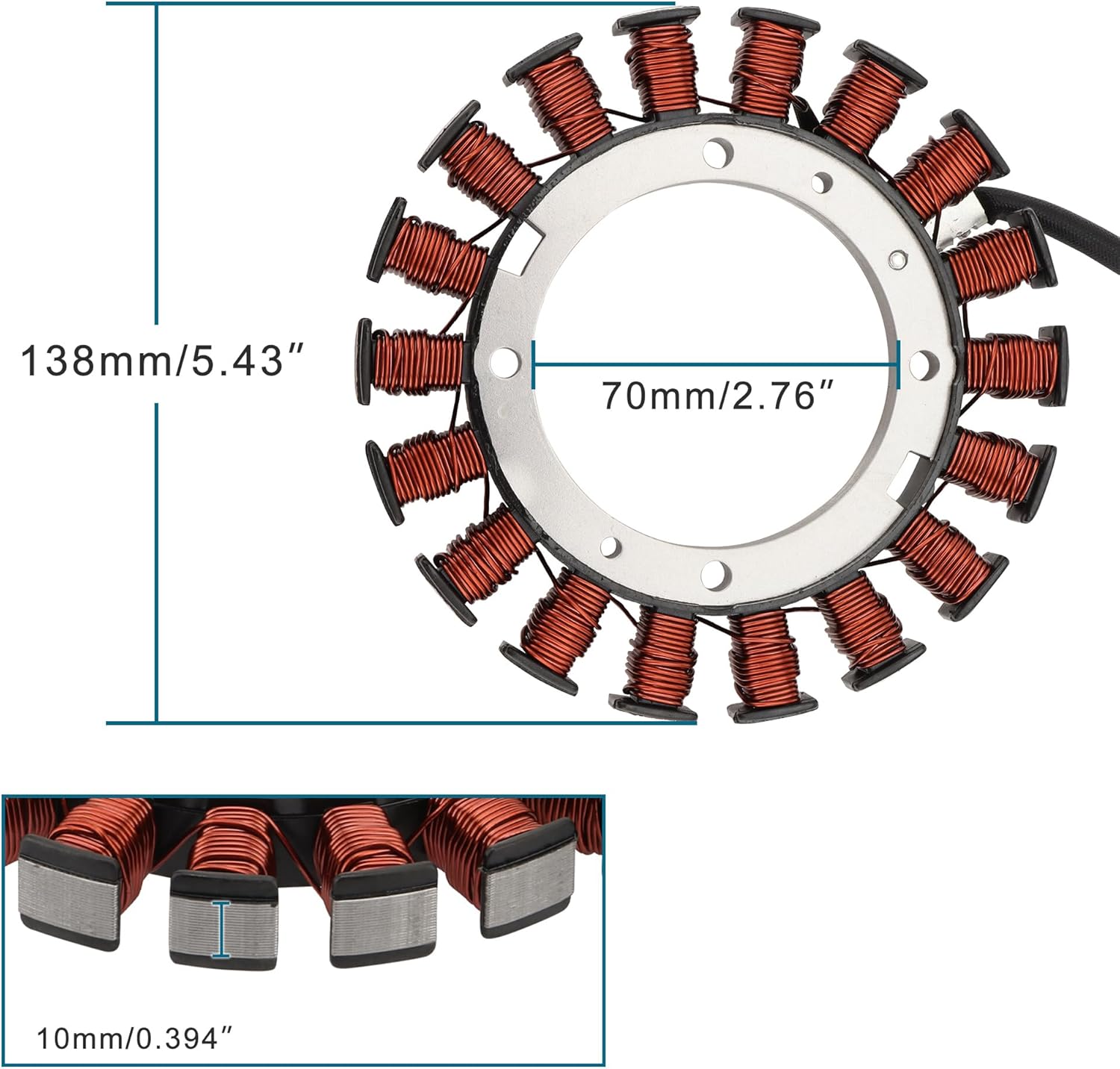

| Outer Diameter | 138 mm / 5.43" |
| Inner Diameter | 70 mm / 2.76" |
| Iron Core Height | 10 mm / 0.39" |
| OEM Replacement | 59031-2132 / 59031-7016 |
| Material | Copper wire / Magnetic materials / High-grade lamination construction |
| Function | Charging and ignition system support |
| Installation | Direct replacement on correctly matched applications |
| Fitment Method | Match by OEM number, connector style, stator size, and original part layout |
| Condition | 100% New Aftermarket |
Key Features
- Kawasaki Mule KAF400 Fitment – Designed for selected Mule 600, Mule 610, Mule SX, and Mule XC applications
- OEM-Style Replacement – Built to replace Kawasaki stator / charging coil numbers 59031-2132 / 59031-7016
- Stable Electrical Output – Helps support battery charging and ignition-system performance
- Durable Copper Wire Construction – Designed for continuous power generation under utility use
- High-Temperature Operation – Internal treatment helps support stable performance in hot working conditions
- Direct Replacement Style – Designed for easier installation when dimensions and connector match
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 2005–2016, 2005, 2016. It is best matched to original part number(s) 59031-2132, 59031-7016. Key physical/spec details from the product data include Outer Diameter: 138 mm / 5.43", Inner Diameter: 70 mm / 2.76", Iron Core Height: 10 mm / 0.39". Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 59031-2132, 59031-7016 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki KAF400 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 59031-2132, 59031-7016, treat the fitment as unconfirmed. Model years outside 2005–2016, 2005, 2016 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 59031-2132, 59031-7016. Recheck listed specs such as Outer Diameter: 138 mm / 5.43", Inner Diameter: 70 mm / 2.76", Iron Core Height: 10 mm / 0.39". If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
