2006–2007 Kawasaki Ninja ZX-10R ZX1000D 15-Coil 3-Wire Stator 21003-0036
2006–2007 Kawasaki Ninja ZX-10R ZX1000D 15-Coil 3-Wire Stator 21003-0036
Couldn't load pickup availability
Product Overview

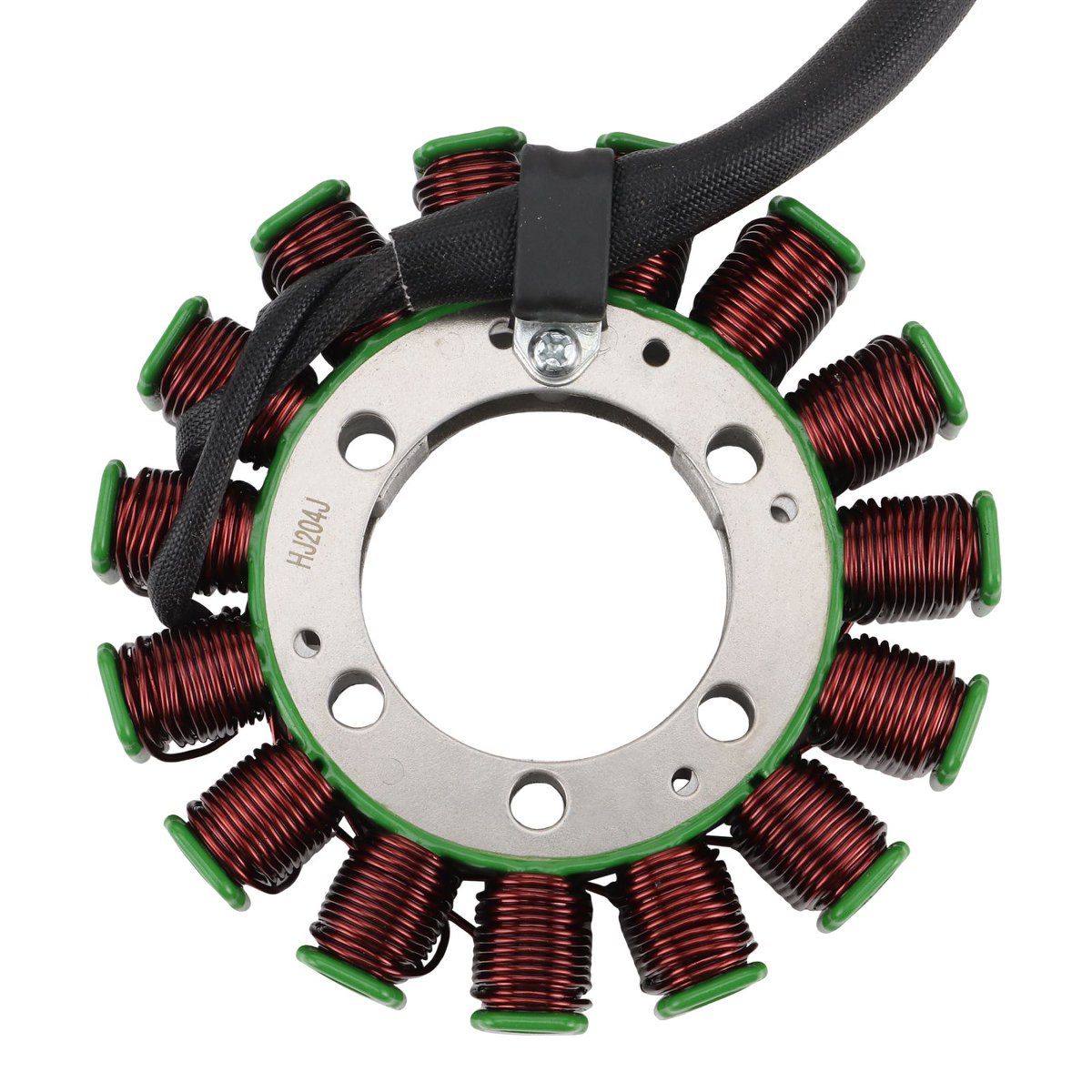

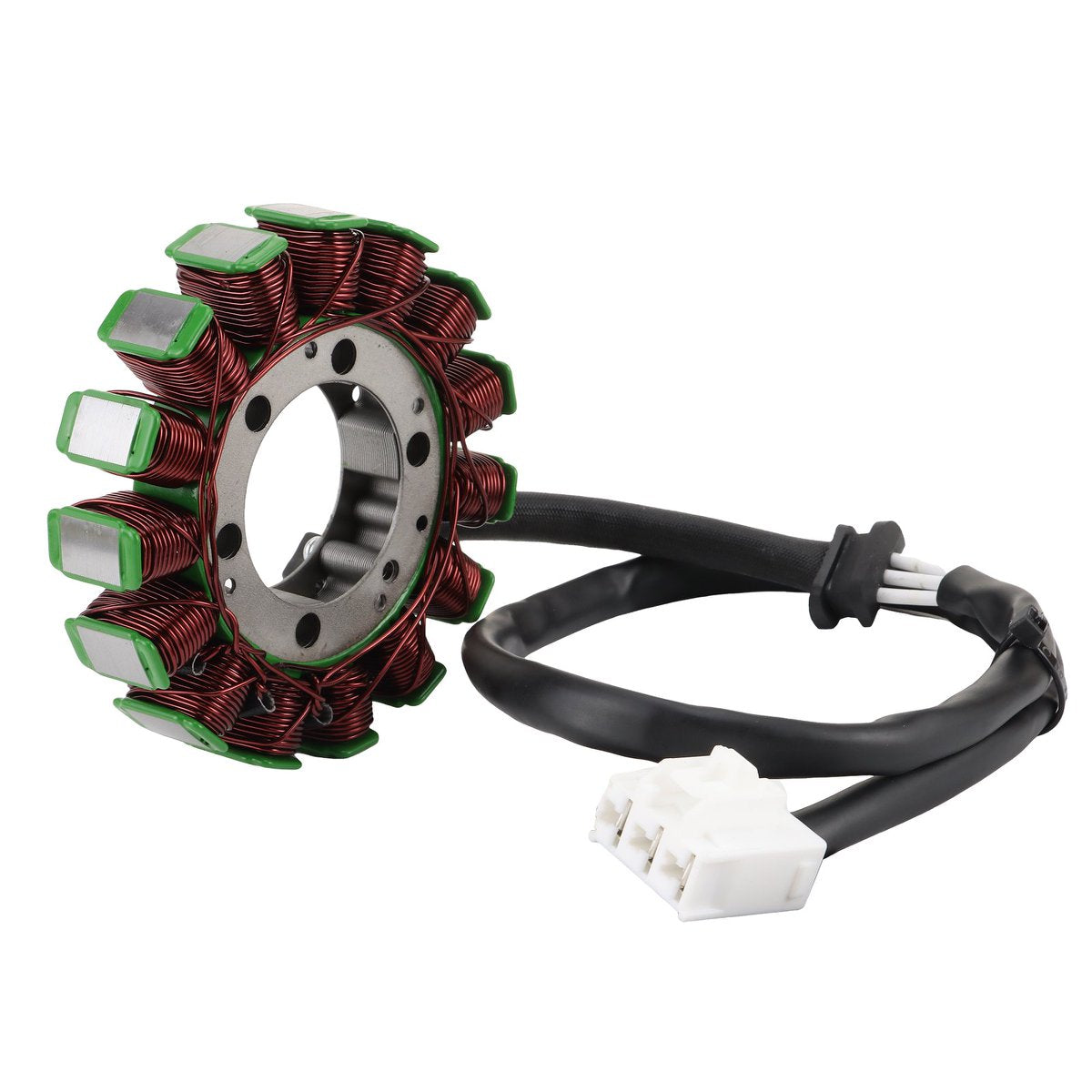

Replace a weak, burned, or failed stator with this 15-coil 3-wire magneto stator, designed for 2006–2007 Kawasaki Ninja ZX-10R / ZX1000D motorcycles using OEM reference numbers 21003-0036 and 21003-0052.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, and other electrical components. If your Kawasaki ZX-10R has battery charging problems, dim lights, unstable voltage, or repeated electrical failure, replacing the stator may help restore normal charging performance.

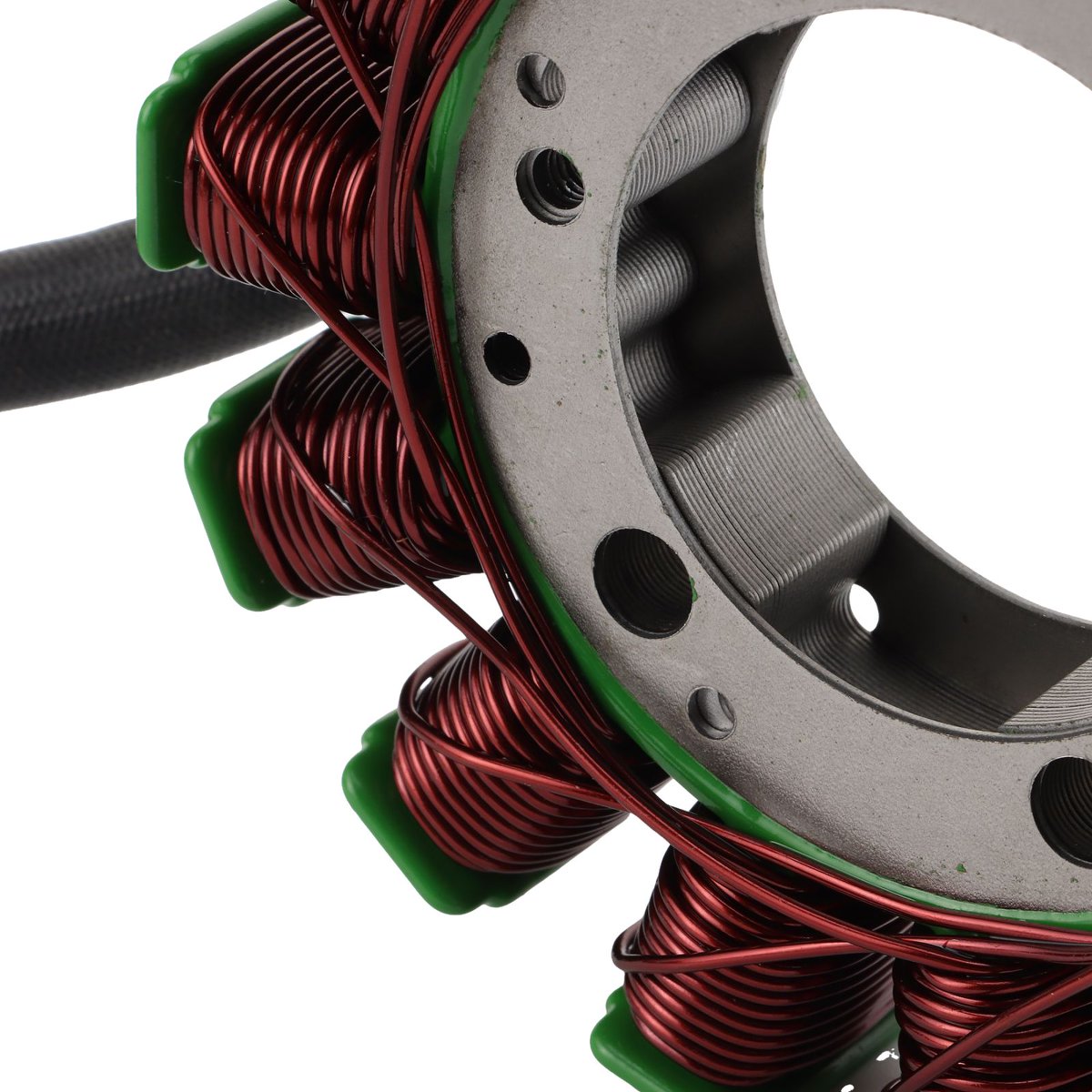

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, plug style, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Kawasaki | Ninja ZX-10R / ZX1000D6F | 2006 | 21003-0036 / 21003-0052 / 21003-0054 | Main fitment; confirm original stator and plug layout |
| Kawasaki | Ninja ZX-10R / ZX1000D7F | 2007 | 21003-0036 / 21003-0052 / 21003-0054 | Fits matching 15-coil 3-wire stator version |
| Kawasaki | Ninja ZX-10R / ZX1000D7FA | 2007 | 21003-0036 / 21003-0052 / 21003-0054 | Confirm OEM number, wire count, and mounting holes |
| Kawasaki | ZX1000 / ZX10R | 2006–2007 | 21003-0036 / 21003-0052 / 21003-0054 | Fits only models using the same stator design |
Important Fitment Note:
This part is not selected by engine size alone. Kawasaki ZX-10R models may use different stator designs depending on year, market, and production version. Please confirm your original stator matches the OEM reference, 15-coil / 3-wire layout, connector style, and dimensions listed below.

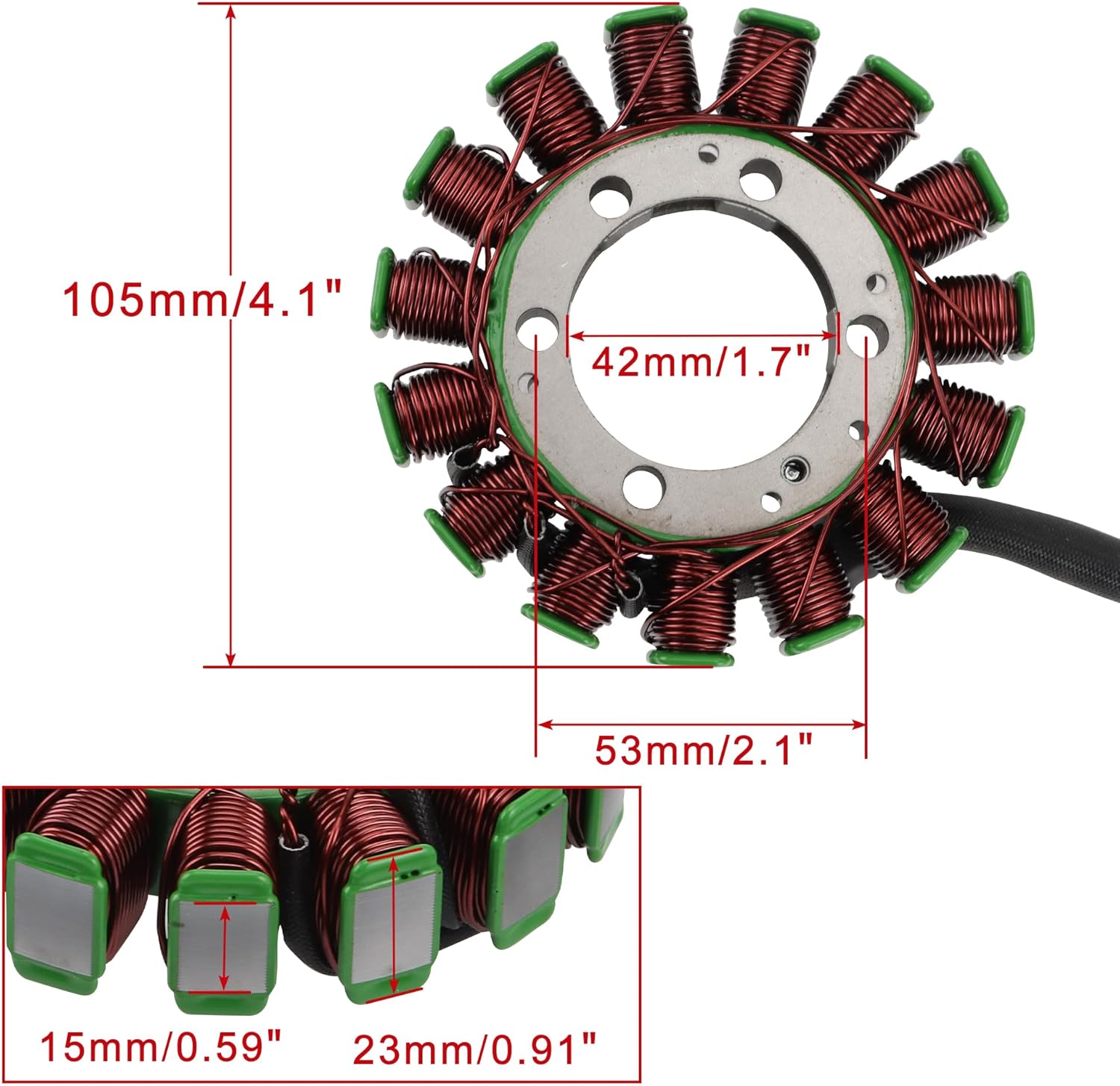

Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 15 Coils |
| Wire Count | 3 Wire |
| Electrical Type | DC |
| Inner Diameter | 42mm / 1.7" |
| Outer Diameter | 105mm / 4.1" |
| Iron Core Height | 15mm / 0.59" |
| Mounting Hole Distance | 53mm / 2.1" |
| Thickness | 23mm / 0.91" |
| OEM Reference | 21003-0036 / 21003-0052 |
| Possible Cross Reference | 21003-0054 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | Kawasaki |
Key Features
- Designed for 2006–2007 Kawasaki Ninja ZX-10R / ZX1000D motorcycles
- Replaces OEM reference numbers 21003-0036 and 21003-0052
- 15-coil 3-wire stator helps support stable charging system output
- Helps address weak battery charging, dim lights, unstable voltage, or stator failure
- Copper winding supports stable conductivity and improved heat resistance
- Durable metal lamination core helps resist deformation, rust, and corrosion
- Direct replacement style, but original OEM number, plug, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 21003-0036 | Main OEM reference for 2006–2007 Kawasaki ZX-10R stator applications |
| 21003-0052 | Common replacement reference for compatible ZX1000 / ZX-10R stator applications |
| 21003-0054 | Common cross-reference used on several aftermarket ZX-10R stator listings |
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for 2006–2007 Kawasaki Ninja ZX-10R / ZX1000D models, including ZX1000D6F, ZX1000D7F, and ZX1000D7FA versions, using OEM reference numbers 21003-0036, 21003-0052, or 21003-0054. Please compare your original stator’s OEM number, wire count, plug layout, inner diameter, outer diameter, and mounting hole distance before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces 21003-0036 and 21003-0052, and may also cross-reference with 21003-0054. However, OEM number alone is not enough. Please also confirm that your original stator uses the same 15-coil 3-wire design, connector style, mounting hole spacing, and overall dimensions.
What models or situations does this part not fit?
This part does not fit Kawasaki ZX-10R models outside the 2006–2007 fitment range if they use a different stator design, OEM number, wire count, connector layout, or mounting hole spacing. It is also not suitable if your charging issue is caused only by a bad regulator rectifier, weak battery, damaged wiring, burned connector, or poor ground connection.
What should I check before ordering?

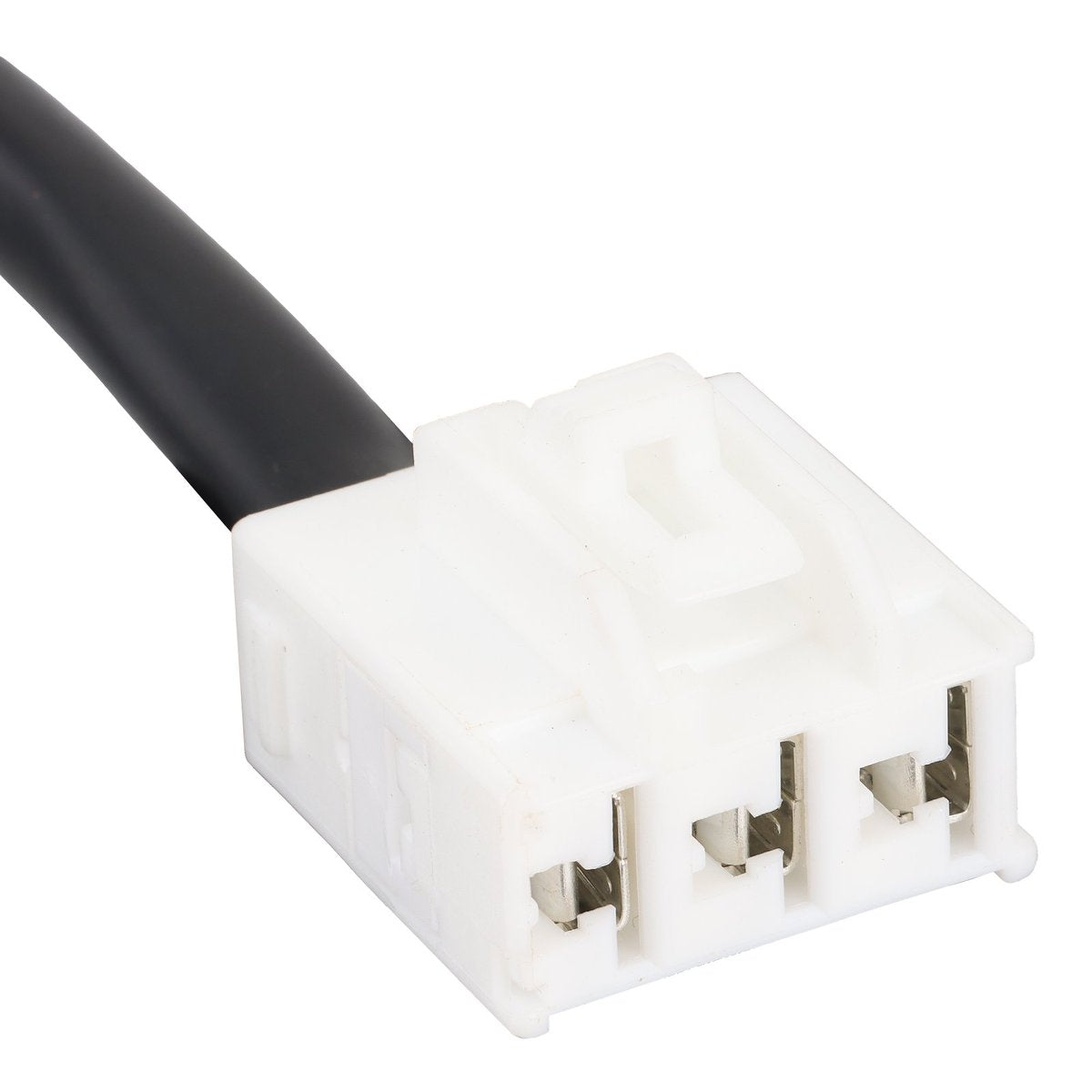

Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
