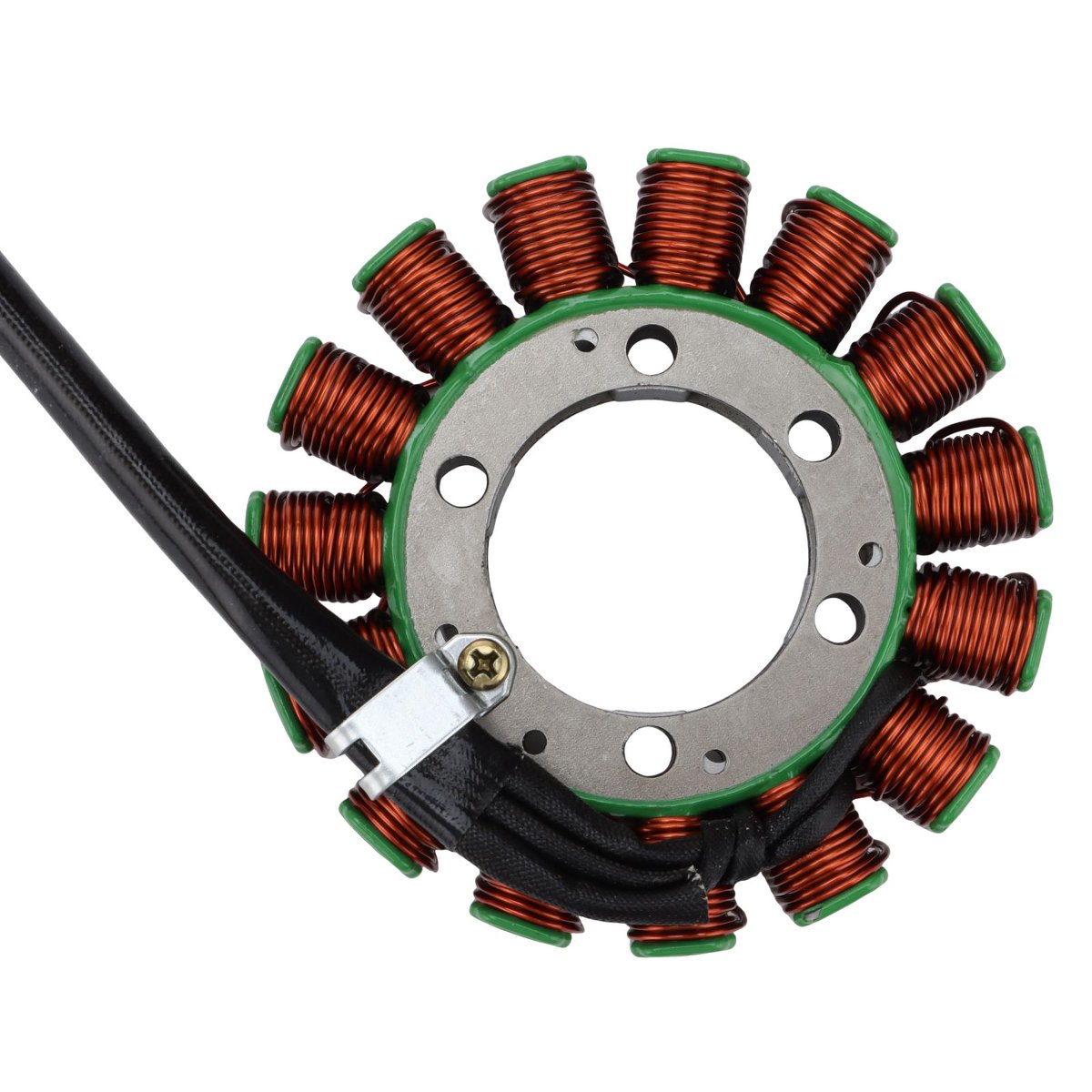

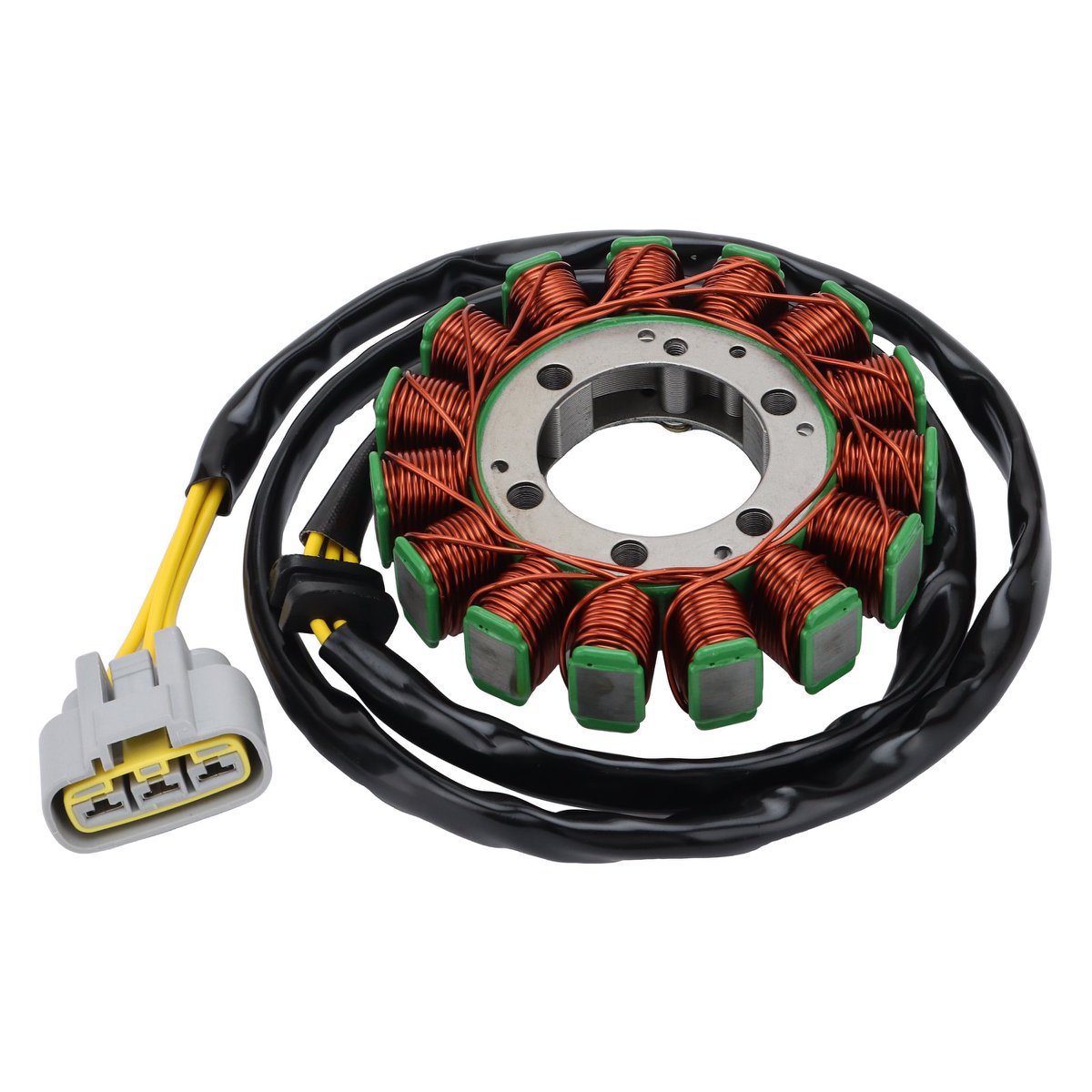

2009–2012 Kawasaki Ninja ZX-6R 15-Coil 3-Wire Stator 21003-0083
2009–2012 Kawasaki Ninja ZX-6R 15-Coil 3-Wire Stator 21003-0083
Couldn't load pickup availability
Product Overview
Replace a weak, burned, or failed stator with this 15-coil 3-wire magneto stator, designed for select 2009–2012 Kawasaki Ninja ZX-6R motorcycles using OEM reference number 21003-0083.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, sensors, and other electrical components. If your Kawasaki ZX-6R has weak charging, low battery voltage, dim lights, repeated battery drain, unstable output, or stator-related charging failure, replacing the stator may help restore normal electrical performance.

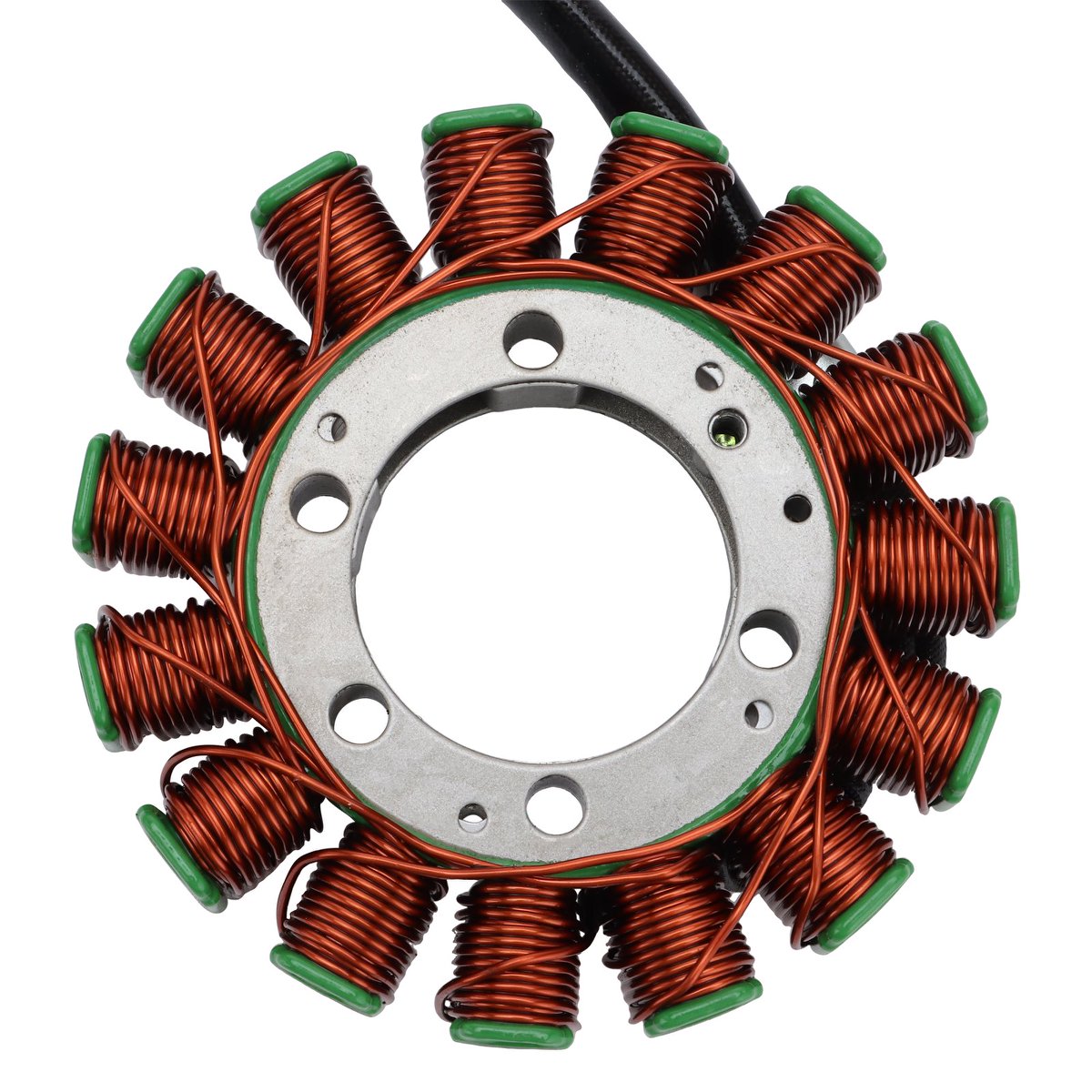

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and reliable riding performance. Please compare your original stator’s OEM number, coil count, wire count, plug layout, mounting hole distance, thickness, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| Kawasaki | Ninja ZX-6R | 2009–2012 | 21003-0083 | Main fitment; confirm original stator and connector layout |
| Kawasaki | ZX-6R / ZX6R | 2009–2012 | 21003-0083 | Model-name variation; verify original part before ordering |
| Kawasaki | ZX600R Ninja ZX-6R | 2009–2012 | 21003-0083 | Fits matching 15-coil 3-wire stator version only |
| Kawasaki | Ninja ZX 6R | 2009–2012 | 21003-0083 | Search-name variation; match by OEM number and dimensions |
Important Fitment Note:

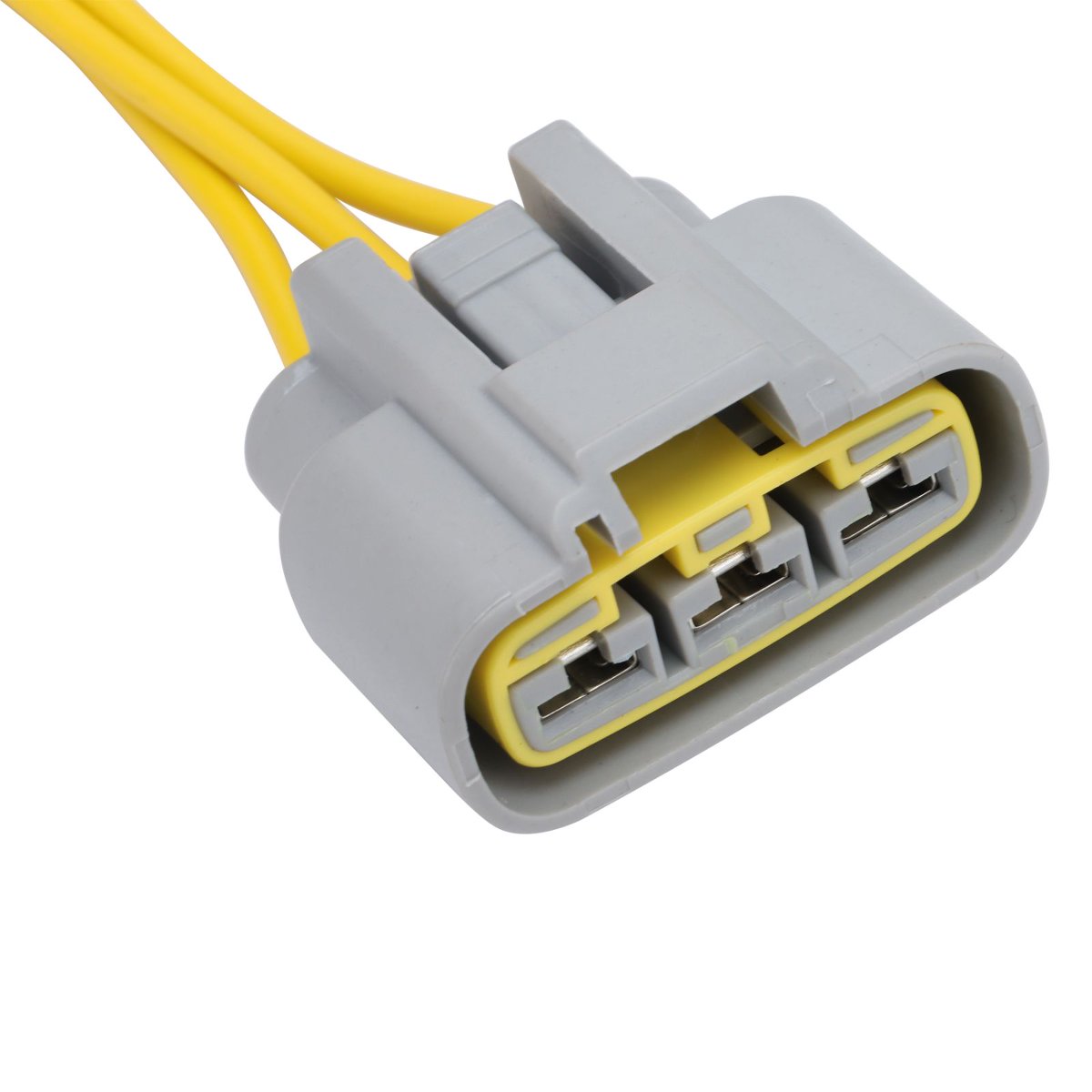

This part is not selected by model name alone. Kawasaki ZX-6R models may use different charging components depending on year, market, and production version. Please confirm your original stator matches OEM 21003-0083, the 15-coil / 3-wire layout, DC type, connector style, 42mm inner diameter, 104mm outer diameter, mounting hole layout, and overall shape before ordering.
Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Stator Coil |
| Coil Count | 15 Coils |
| Wire Count | 3 Wire |
| Electrical Type | DC |

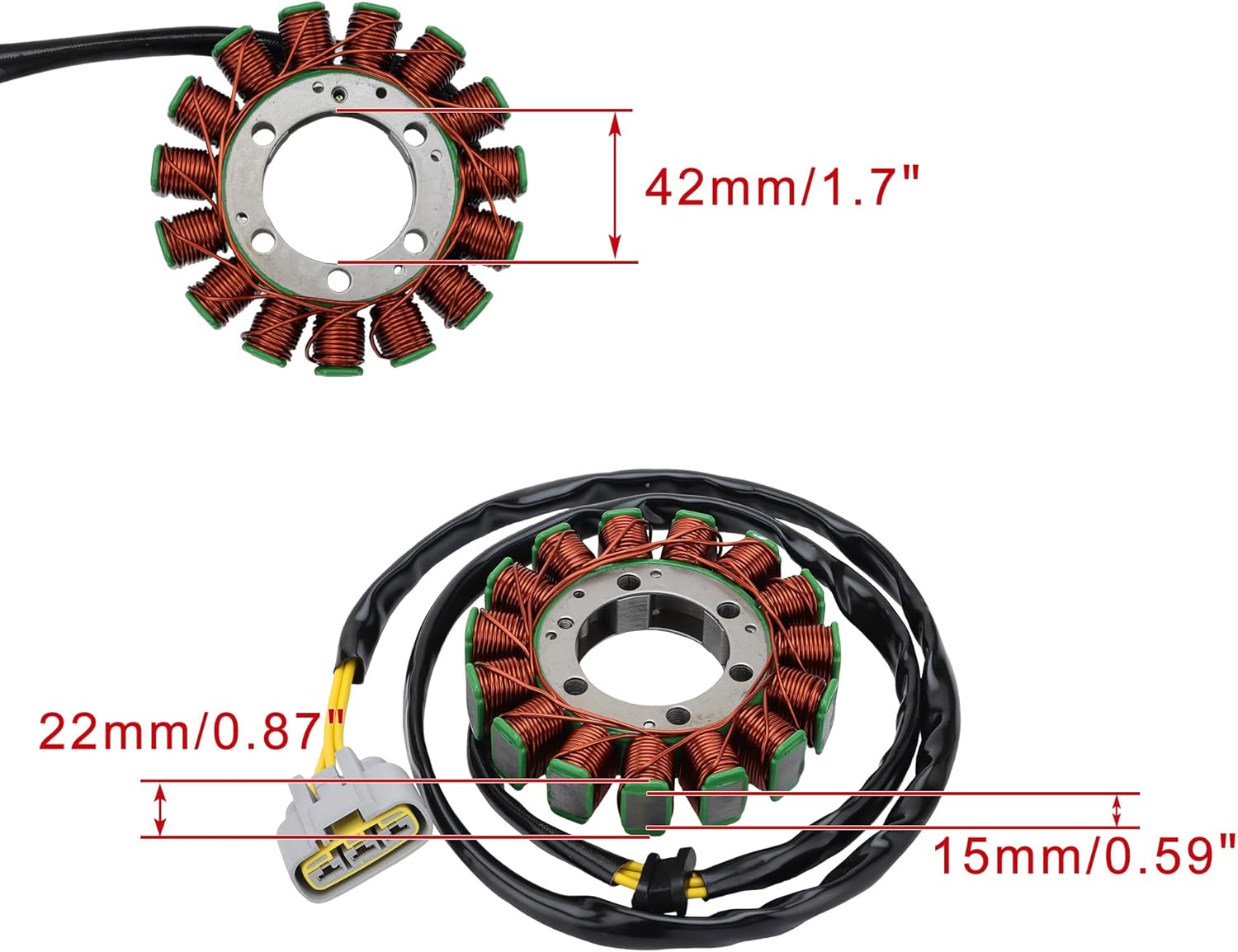

| Inner Diameter | 42mm / 1.7" |

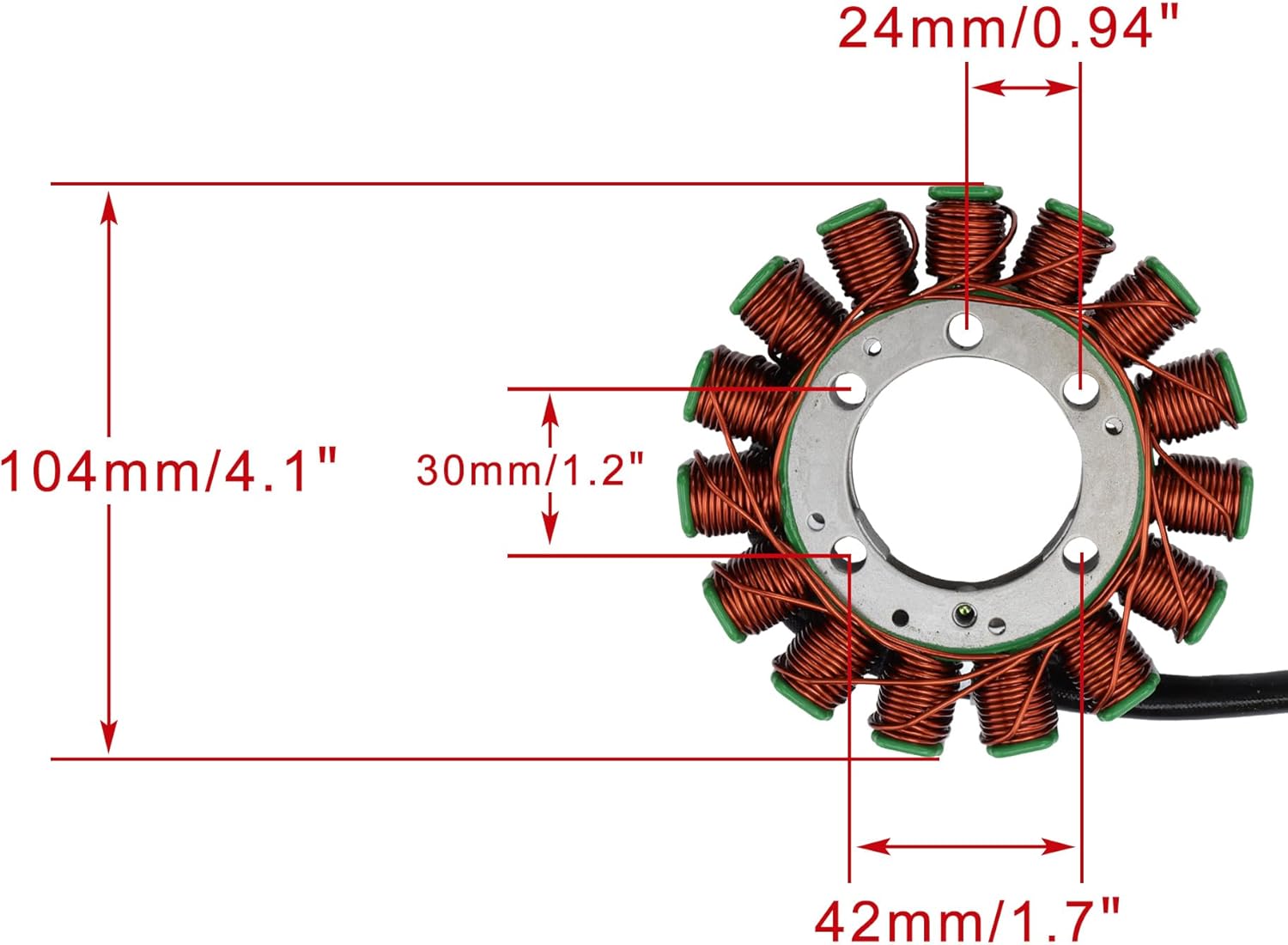

| Outer Diameter | 104mm / 4.1" |
| Iron Core Height | 15mm / 0.59" |
| Mounting Hole Distance | 42mm / 1.7", 30mm / 1.2", and 24mm / 0.94" |
| Thickness | 22mm / 0.87" |
| OEM Reference | 21003-0083 |
| Application | Motorcycle Charging System |
| Compatible Brand | Kawasaki |
| Material | Metal Lamination Core + Copper Winding |
Key Features
- Designed for select 2009–2012 Kawasaki Ninja ZX-6R motorcycles
- Replaces Kawasaki OEM reference number 21003-0083
- 15-coil 3-wire stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, battery drain, or stator failure
- Suitable for matching ZX-6R charging systems using the same 3-wire stator design
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, connector layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 21003-0083 | Main Kawasaki Ninja ZX-6R stator reference for compatible 2009–2012 applications |
| 210030083 | Compact format of 21003-0083 |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, plug style, or pin count, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select 2009–2012 Kawasaki Ninja ZX-6R motorcycles using OEM reference number 21003-0083. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, thickness, and overall shape before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces Kawasaki OEM 21003-0083. However, OEM number alone is not enough. Please also confirm the 15-coil 3-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distance, stator thickness, and connector layout.
What models or situations does this part not fit?
This part does not fit Kawasaki ZX-6R, ZX-6RR, ZX-10R, Ninja 650, or other Kawasaki models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different charging system design. It is also not a replacement for the regulator rectifier, battery, CDI, ignition coil, flywheel, starter motor, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
