Kawasaki Vulcan 1500 1600 Magneto Stator 1999–2008 | 21003-1372 21003-1373
Kawasaki Vulcan 1500 1600 Magneto Stator 1999–2008 | 21003-1372 21003-1373
Couldn't load pickup availability

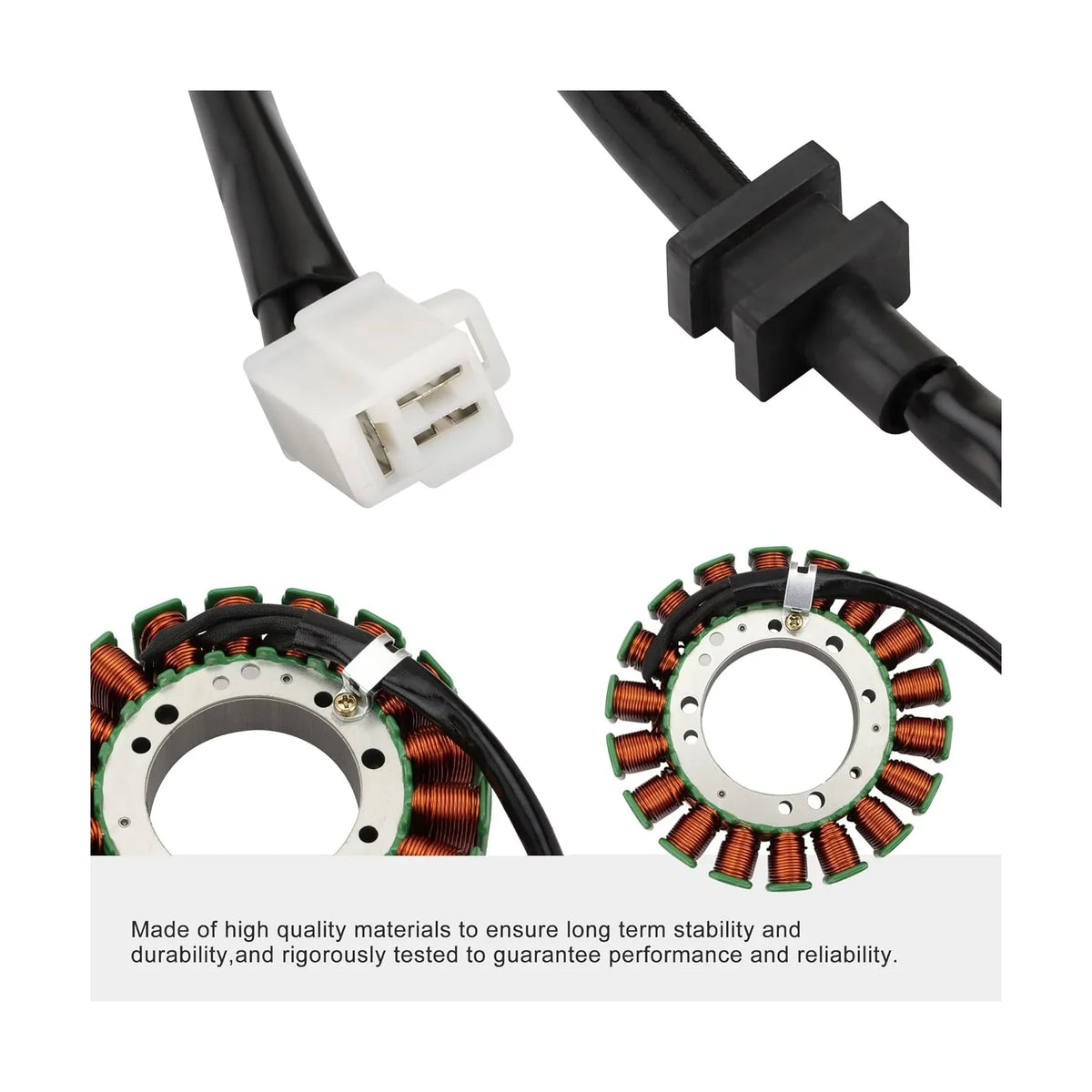

Product Overview
Restore reliable charging performance on your Kawasaki Vulcan with this aftermarket magneto generator stator, designed for select Vulcan 1500 and Vulcan 1600 motorcycles.
Compatible applications include Vulcan Classic, Classic FI, Nomad, Drifter, and Mean Streak models from the VN1500 and VN1600 families.
Product Compatibility
| Brand | Model | Years | Model Family |
|---|---|---|---|
| Kawasaki | Vulcan 1500 Classic | 1999–2004 | VN1500E |
| Kawasaki | Vulcan 1500 Classic FI | 2000–2008 | VN1500N |
| Kawasaki | Vulcan 1500 Classic Tourer | 1999–2001 | VN1500 |
| Kawasaki | Vulcan 1500 Nomad | 1999–2001 | VN1500G |
| Kawasaki | Vulcan 1500 Nomad FI | 2000–2004 | VN1500L |
| Kawasaki | Vulcan 1500 Drifter | 2001–2005 | VN1500R |
| Kawasaki | Vulcan 1500 Mean Streak | 2002–2003 | VN1500P |
| Kawasaki | Vulcan 1600 Classic | 2003–2008 | VN1600A |
| Kawasaki | Vulcan 1600 Mean Streak | 2004–2008 | VN1600B |
| Kawasaki | Vulcan 1600 Nomad | 2005–2008 | VN1600D |
OEM Cross References
Common Kawasaki stator numbers associated with these applications include:
- 21003-1372
- 21003-1375
- 21003-1326
- 21003-1373
- 21003-0008
- 21003-1356
- 21003-0007
- 21003-1325
- 21003-1376
Specifications
| Specification | Details |
|---|---|
| Product Type | Magneto Generator Stator |
| Outer Diameter | 130 mm / 5.12 in |
| Inner Diameter | 58 mm / 2.28 in |
| Iron Core Height | 19 mm / 0.75 in |
| Application | Kawasaki Vulcan Motorcycle |
| Model Families | VN1500 / VN1600 |
| Installation Type | Direct Fit When Correctly Matched |
| Electrical Function | Generates AC Power for Charging System |
| Package Quantity | 1 Stator |
Key Features
- Vulcan 1500 & 1600 Fitment – Designed for a wide range of VN1500 and VN1600 Classic, Nomad, Drifter, and Mean Streak models.
- Multiple OEM Cross References – Covers several Kawasaki 21003-series stator numbers used throughout the 1999–2008 Vulcan platform.
- Stable Power Generation – Quality conductive windings help provide consistent AC output for the motorcycle charging system.
- Heat-Resistant Construction – Designed to withstand the elevated temperatures found inside the generator housing.
- Direct-Fit Installation – Plug-and-play wiring configuration requires no modification when matched to the correct original stator.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Kawasaki Vulcan 1500 1600 Nomad Mean Streak. Listed year information includes 1999–2008, 2003–2008, 1999, 2008, 2003. It is best matched to original part number(s) 21003-1372, 21003-1375, 21003-0008, 21003-1326. Key physical/spec details from the product data include Outer Diameter: 130mm (5.12"), Inner Diameter: 58mm (2.28"), Iron Core Height: 19mm (0.74"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 21003-1372, 21003-1375, 21003-0008, 21003-1326 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21003-1372, 21003-1375, 21003-0008, 21003-1326, treat the fitment as unconfirmed. Model years outside 1999–2008, 2003–2008, 1999, 2008, 2003 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21003-1372, 21003-1375, 21003-0008, 21003-1326. Recheck listed specs such as Outer Diameter: 130mm (5.12"), Inner Diameter: 58mm (2.28"), Iron Core Height: 19mm (0.74"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
