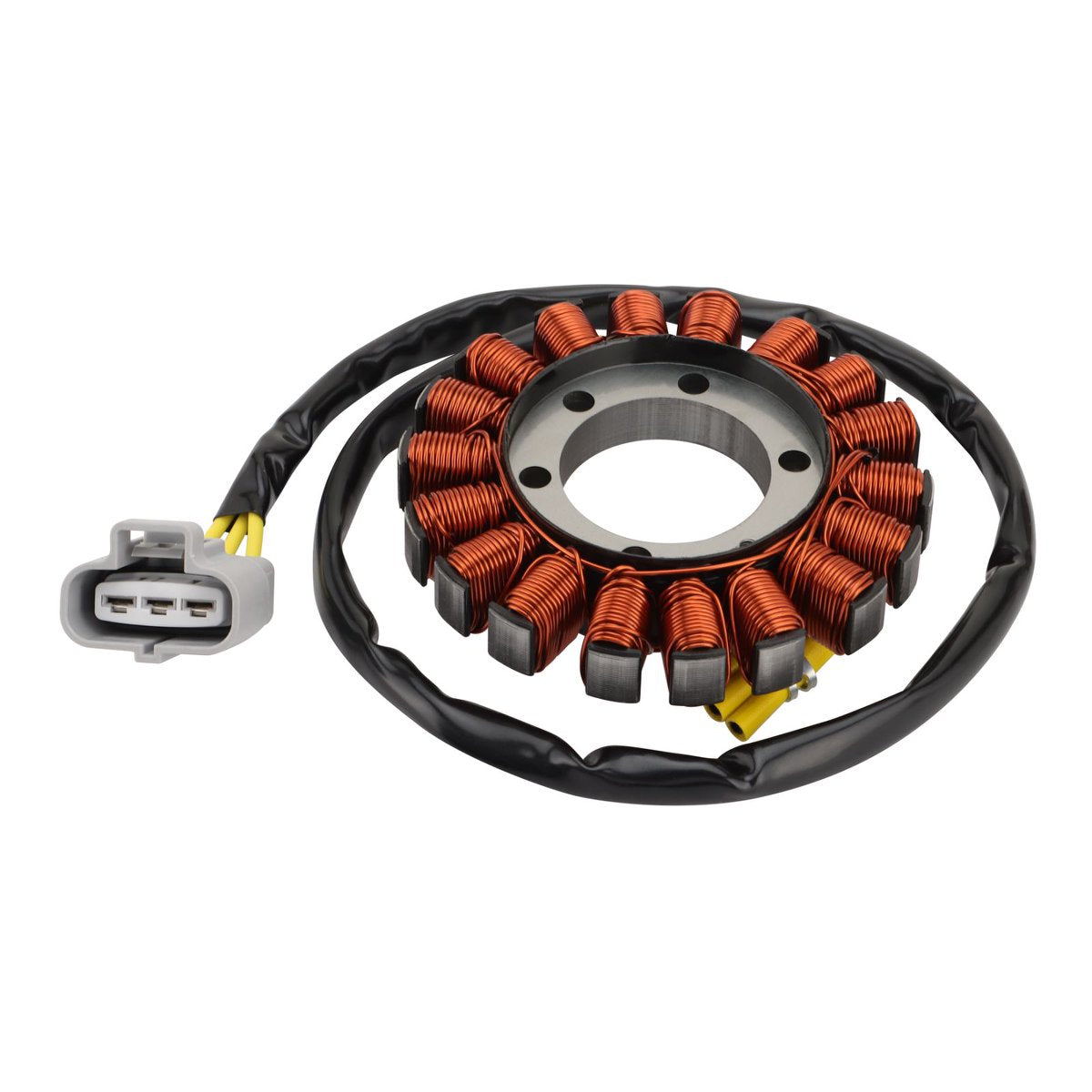

2013–2021 KTM 1050 1090 1190 1290 Adventure Super Duke 18-Coil Stator 60339004000
2013–2021 KTM 1050 1090 1190 1290 Adventure Super Duke 18-Coil Stator 60339004000
Couldn't load pickup availability
Product Overview

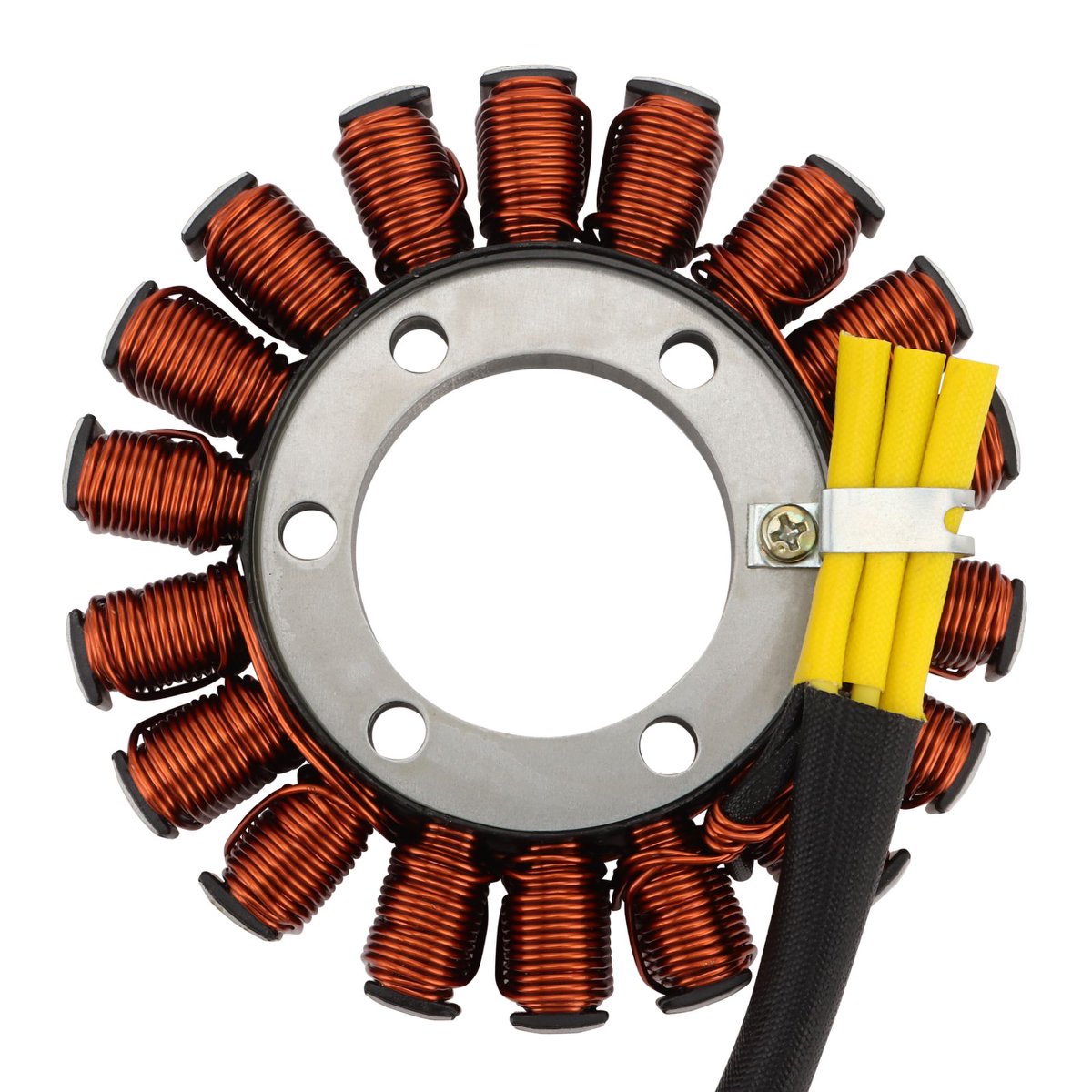

Replace a weak, burned, or failed stator with this 18-coil 3-wire magneto stator, designed for select KTM 1050, 1090, 1190, and 1290 Adventure / Super Adventure / Super Duke models using OEM reference number 60339004000.
The stator is an important part of the motorcycle charging system. It helps generate electrical power while the engine is running, supporting the battery, lights, ignition system, sensors, and other electrical components. If your KTM Adventure or Super Duke has weak charging, low battery voltage, dim lights, repeated battery drain, unstable voltage, or stator-related failure, replacing the stator may help restore normal charging performance.

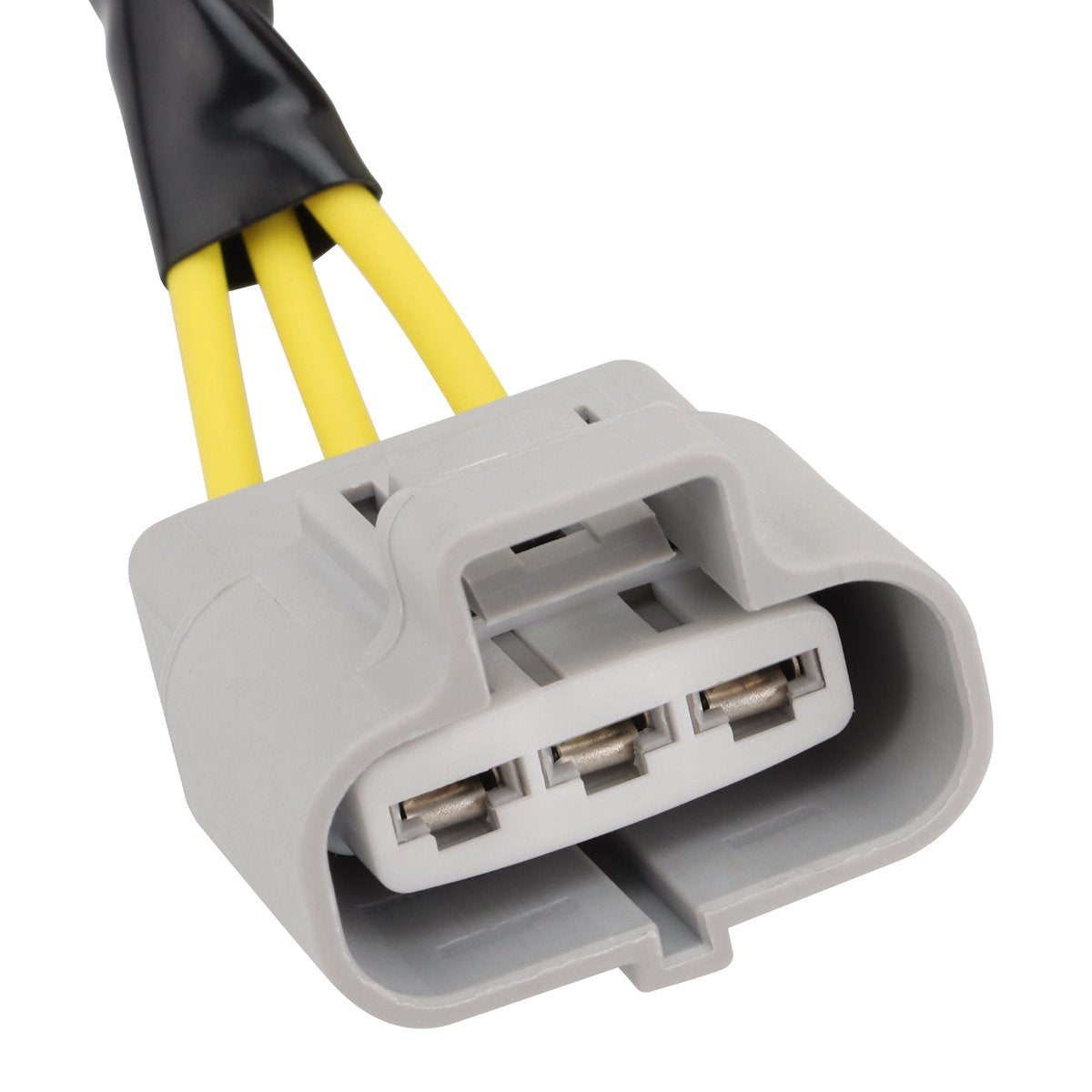

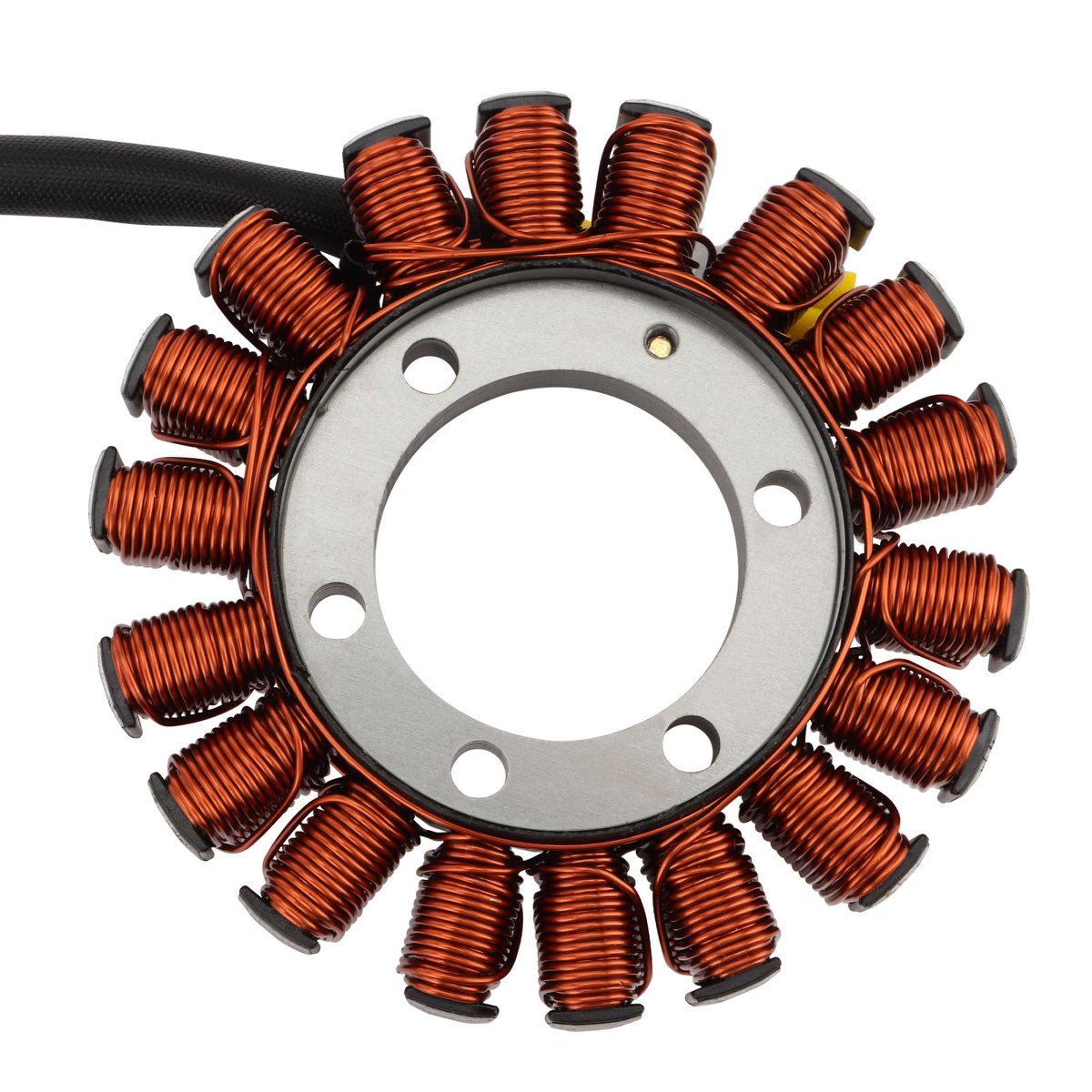

Built with a metal lamination core and copper windings, this replacement stator is designed for stable conductivity, heat resistance, and long service life. Please compare your original stator’s OEM number, wire count, connector layout, mounting hole distance, and dimensions before ordering.
Product Compatibility
| Make | Model | Year Range | OEM Reference | Fitment Notes |
|---|---|---|---|---|
| KTM | 1050 Adventure ABS | 2015–2016 | 60339004000 | Main fitment; confirm original stator size and plug layout |
| KTM | 1090 Adventure | 2016–2018 | 60339004000 | Fits matching 18-coil 3-wire stator version |
| KTM | 1090 Adventure S | 2019 | 60339004000 | Verify OEM number and connector before ordering |
| KTM | 1090 Adventure R | 2017–2019 | 60339004000 | Common Adventure R fitment; compare original stator |
| KTM | 1190 Adventure ABS | 2013–2016 | 60339004000 | Main fitment; confirm charging system version |
| KTM | 1190 Adventure R ABS | 2013–2016 | 60339004000 | Fits only if original stator matches this design |
| KTM | 1290 Super Duke R | 2014–2021 | 60339004000 | Confirm OEM number, plug style, and dimensions |
| KTM | 1290 Super Duke GT | 2016–2021 | 60339004000 | Includes GT / ABS applications where matching OEM is used |
| KTM | 1290 Super Duke R Special Edition ABS | 2016 | 60339004000 | Verify original part before purchase |
| KTM | 1290 Super Adventure ABS | 2015–2016 | 60339004000 | Main Super Adventure fitment |
| KTM | 1290 Super Adventure T | 2017–2019 | 60339004000 | Compare wire count and connector layout |
| KTM | 1290 Super Adventure S | 2017–2021 | 60339004000 | Fits matching 18-coil 3-wire stator version |
| KTM | 1290 Super Adventure R | 2017–2021 | 60339004000 | Includes R / TKC listings where OEM 60339004000 matches |
Important Fitment Note:
This part is not selected by engine size alone. KTM 1050, 1090, 1190, and 1290 models may use different charging components depending on year, market, trim, and electrical system version. Please confirm your original stator matches OEM 60339004000, the 18-coil / 3-wire layout, DC type, connector style, mounting hole spacing, and dimensions listed below.

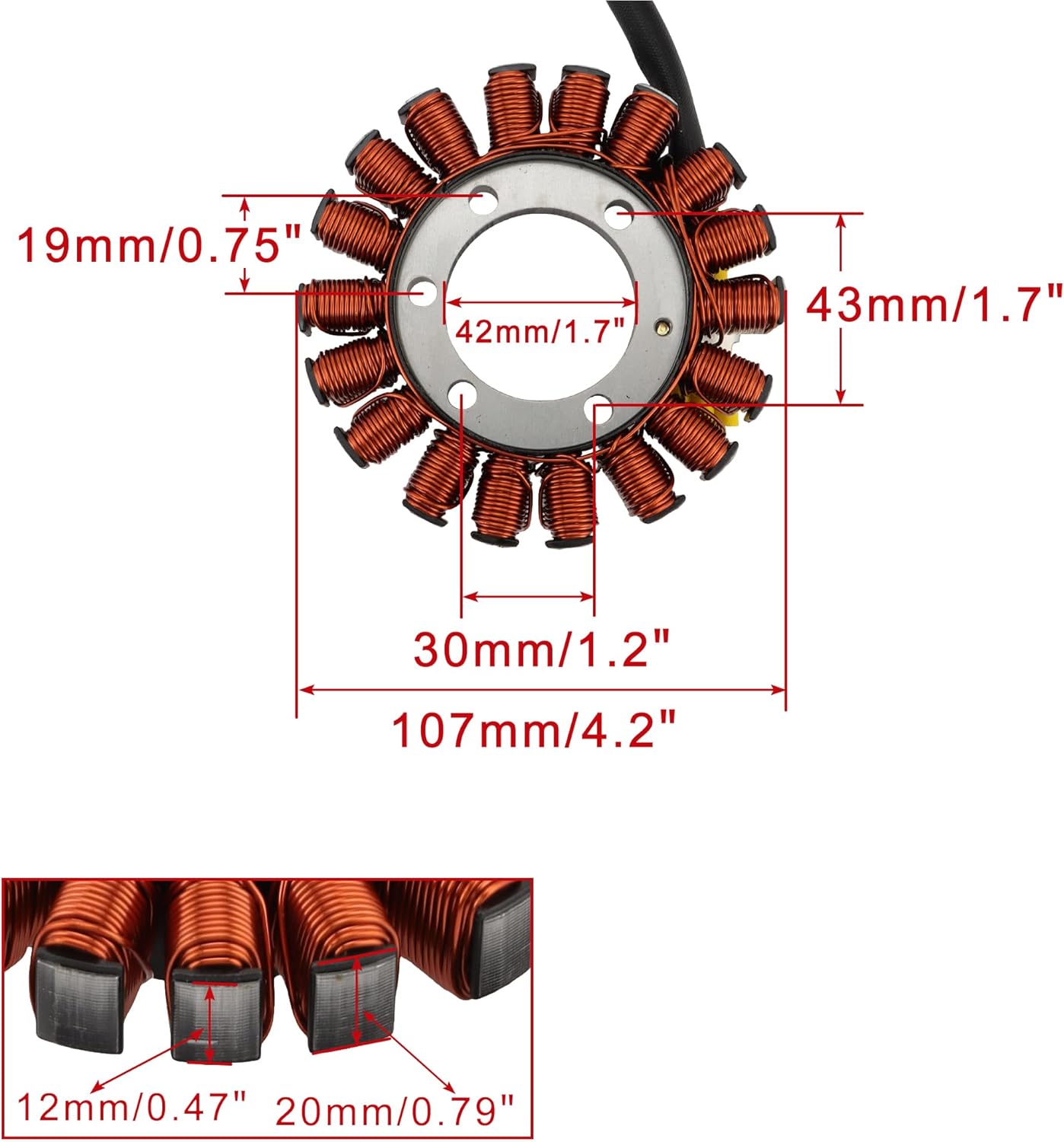

Specifications
| Specification | Details |
| Product Type | Magneto Stator / Generator Coil |
| Coil Count | 18 Coils / 18 Poles |
| Wire Count | 3 Wire |
| Electrical Type | DC |
| Inner Diameter | 42mm / 1.7" |
| Outer Diameter | 107mm / 4.2" |
| Iron Core Height | 12mm / 0.47" |
| Mounting Hole Distance | 19mm / 0.75", 30mm / 1.2", and 43mm / 1.7" |
| Thickness | 20mm / 0.79" |
| OEM Reference | 60339004000 |
| Material | Metal Lamination Core + Copper Winding |
| Application | Motorcycle Charging System |
| Compatible Brand | KTM |
Key Features
- Designed for select KTM 1050, 1090, 1190, and 1290 Adventure / Super Adventure / Super Duke models
- Replaces KTM OEM reference number 60339004000
- 18-coil 3-wire DC stator helps support stable charging system output
- Helps address weak charging, low battery voltage, dim lights, battery drain, or stator failure
- Fits matching KTM Adventure, Super Adventure R/S/T, Super Duke R, and Super Duke GT applications
- Copper winding supports stable conductivity and improved heat resistance
- Direct replacement style, but original OEM number, connector layout, and dimensions must be checked before installation
OEM Cross Reference
| OEM / Reference Number | Notes |
| 60339004000 | Main KTM OEM reference for compatible Adventure, Super Adventure, Super Duke R, and Super Duke GT stator applications |
| 603 39 004 000 | Spaced KTM-style format of the same reference number |
| 60239104000 | Possible related reference on some aftermarket listings; verify before purchase |
Please use the OEM number together with physical dimensions and connector layout for fitment confirmation. If your original stator has a different wire count, outer diameter, inner diameter, mounting hole spacing, thickness, or connector style, this part may not fit.
Share
Fitment FAQ
Will this part fit my specific model and year?
This stator is designed for select KTM 1050 Adventure, 1090 Adventure, 1190 Adventure, 1290 Super Adventure, 1290 Super Duke R, and 1290 Super Duke GT models using OEM reference number 60339004000. Please compare your original stator’s OEM number, wire count, connector layout, inner diameter, outer diameter, mounting hole distance, and thickness before ordering.
Do I need to match the OEM part number?
Yes, matching the OEM part number is strongly recommended. This stator replaces KTM OEM 60339004000. However, OEM number alone is not enough. Please also confirm the 18-coil 3-wire layout, DC electrical type, plug style, inner diameter, outer diameter, mounting hole distances, and stator thickness.
What models or situations does this part not fit?
This part does not fit KTM models that use a different stator diameter, different wire count, different connector layout, different mounting hole spacing, or a different charging system design. It is also not a replacement for the regulator rectifier, battery, ignition coil, starter motor, flywheel, or complete wiring harness.
What should I check before ordering?
Before ordering, please check your motorcycle’s make, model, year, trim version, OEM part number, original stator coil count, wire count, connector shape, inner diameter, outer diameter, mounting hole distance, stator thickness, and overall shape. For best fitment, compare the product photos and specifications with your original stator before purchase.
