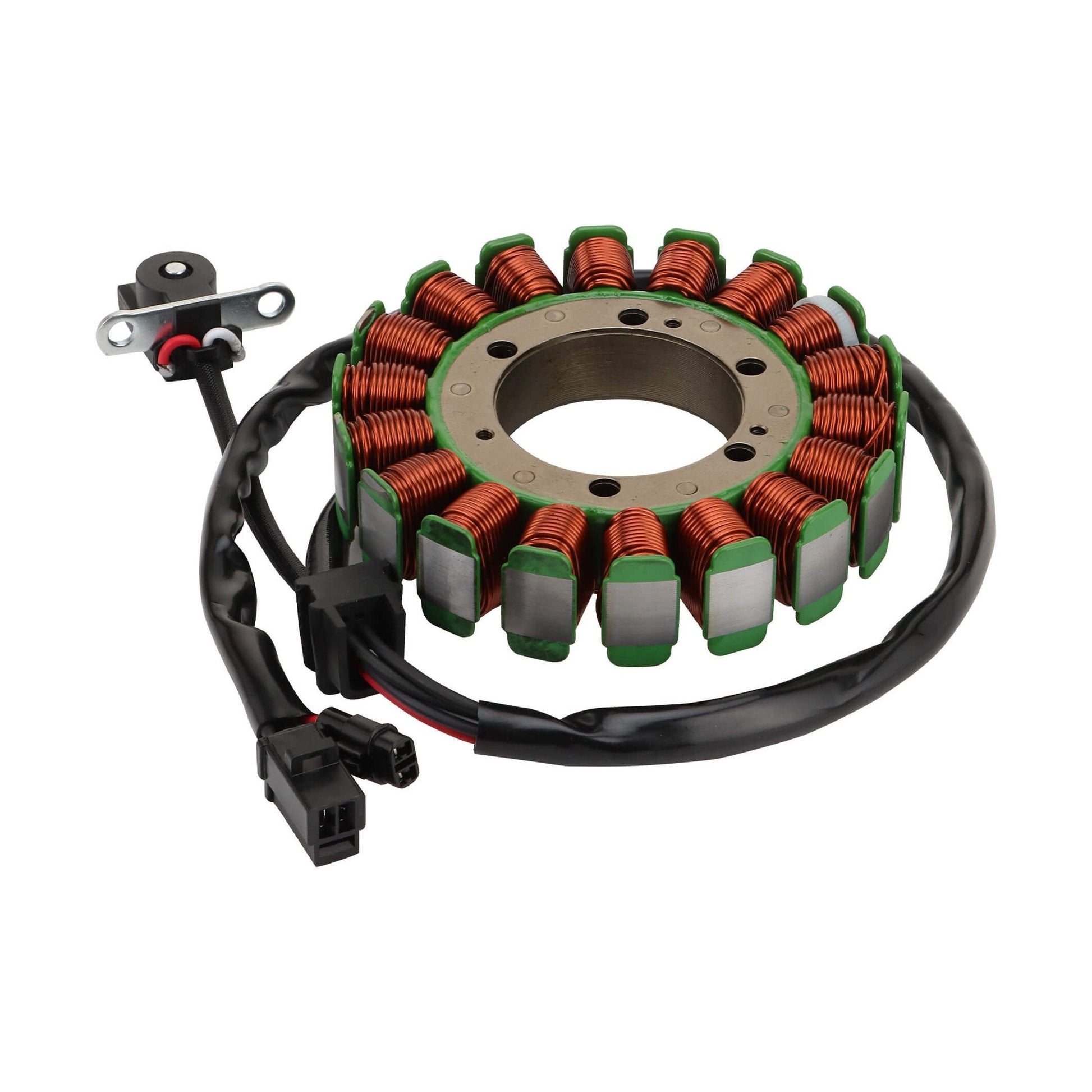

Magneto Generator Stator Coil for Arctic Cat Wildcat 1000 Series (2012–2019)
Restore your Wildcat’s charging and ignition reliability. This premium aftermarket Magneto Stator is a direct "plug-and-play" replacement for the Arctic Cat 0802-064 and 0802-072 factory units. Engineered for the heavy-duty demands of the Wildcat 1000 series, it provides the stable electrical output required for consistent engine starting, battery charging, and responsive performance on the trail.
Constructed with highest-grade copper windings (heat-resistant up to 200°C) and premium lamination materials, this stator is built to withstand the extreme thermal stress of high-performance UTV engines. Its durable design ensures stable power output, protecting your battery and voltage regulator from premature failure.
Product Compatibility
| Make | Model | Years | Fitment Details |
| Arctic Cat | Wildcat 1000 / GT | 2012–2015 | All Submodels |
| Arctic Cat | Wildcat X 1000 | 2013–2019 | Standard, Limited, SE, EPS |
| Arctic Cat | Wildcat 4 1000 / 4X | 2013–2018 | All Submodels |

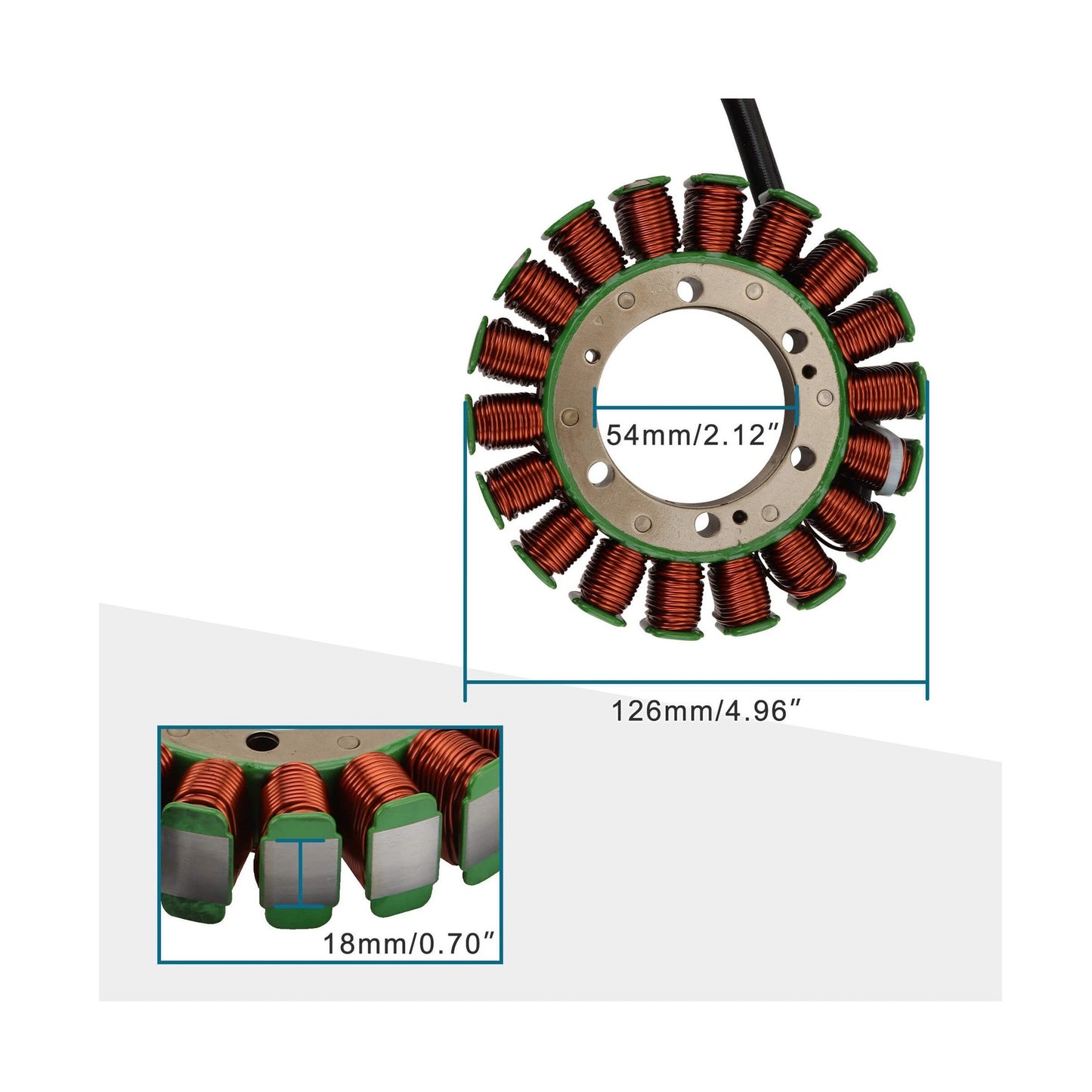

Key Technical Specs:
- OEM Reference: 0802-064, 0802-072, 0830-132
- Outer Diameter: 126mm (4.96")
- Inner Diameter: 54mm (2.12")
- Thickness: 18mm-20mm

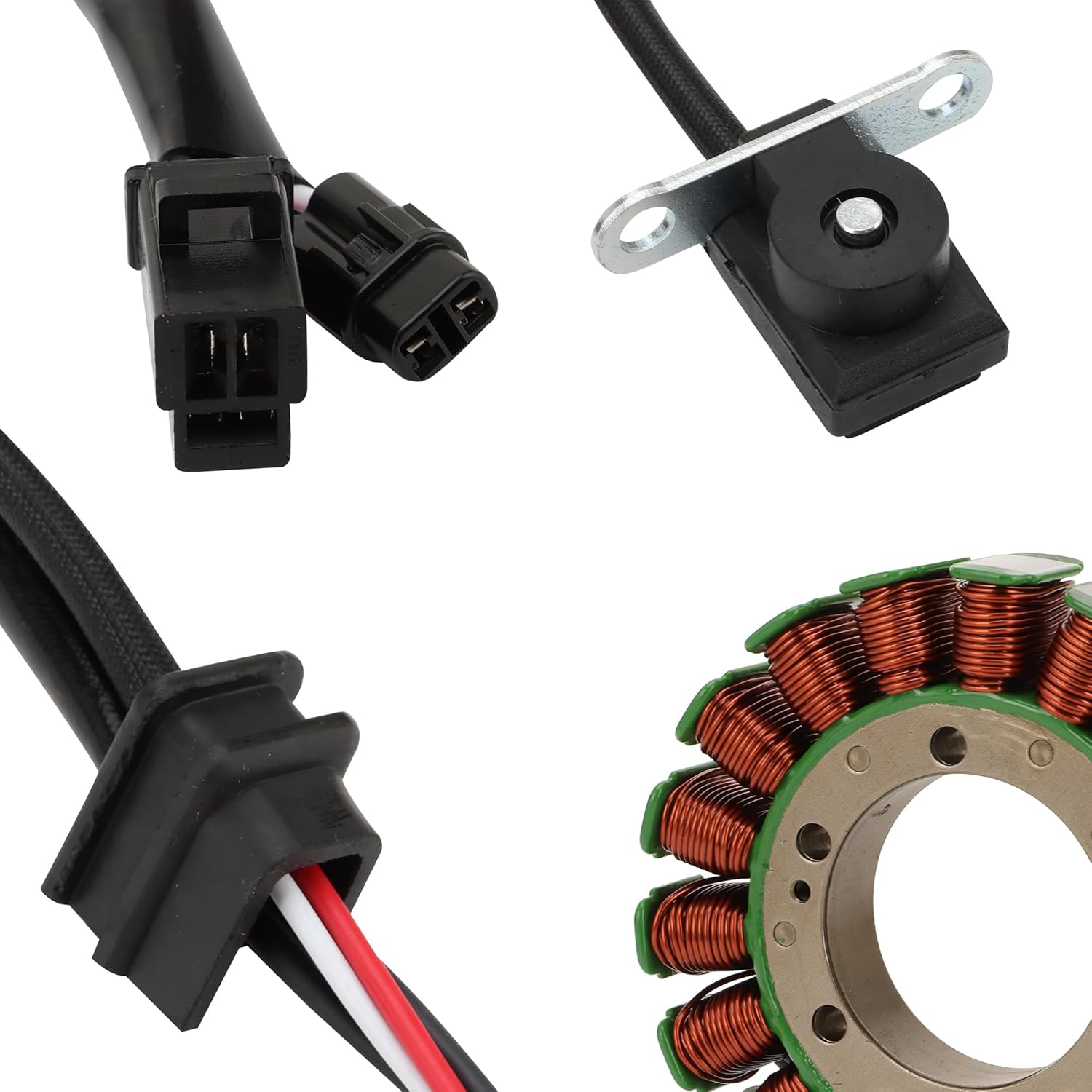

- Configuration: 18-Pole design with pick-up pulsar coil included
Why Choose This Replacement?
- Superior Durability: Features high-temperature resistant copper wire and premium insulation for longevity in harsh environments.
- Stable Power: Ensures your ignition system receives the strong voltage needed for a smooth-running engine and sensitive throttle.
- Direct Fit: Designed to match factory mounting points and electrical connectors for a hassle-free installation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Arctic Cat Wildcat 1000 GT X 4 4X (2012-2019). Listed year information includes 2012–2019, 2012–2015, 2013–2019, 2013–2018, 2012. It is best matched to original part number(s) 0802-064, 0802-072, 0830-132, 2012-2019. Key physical/spec details from the product data include Outer Diameter: 126mm (4.96"), Inner Diameter: 54mm (2.12"), Thickness: 18mm-20mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 0802-064, 0802-072, 0830-132, 2012-2019 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Arctic Cat models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 0802-064, 0802-072, 0830-132, 2012-2019, treat the fitment as unconfirmed. Model years outside 2012–2019, 2012–2015, 2013–2019, 2013–2018, 2012 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 0802-064, 0802-072, 0830-132, 2012-2019. Recheck listed specs such as Outer Diameter: 126mm (4.96"), Inner Diameter: 54mm (2.12"), Thickness: 18mm-20mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
