Magneto Stator Coil for CG CB 150cc-250cc Pit Bike & ATV | 88mm
Magneto Stator Coil for CG CB 150cc-250cc Pit Bike & ATV | 88mm
Couldn't load pickup availability

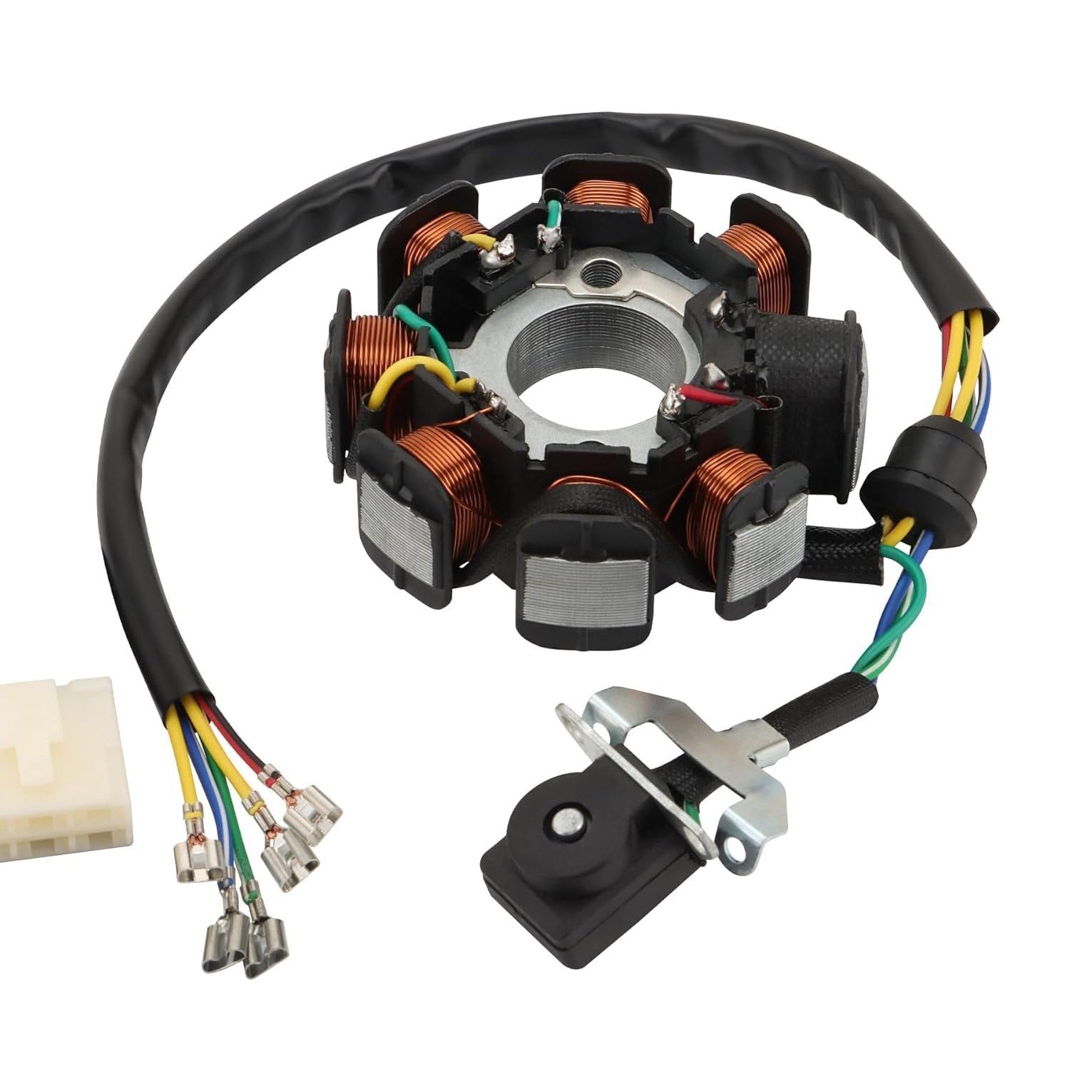

8-Pole Magneto Generator Stator Coil for CG & CB 150cc-250cc Engines
Engineered for the demands of off-road riding. This high-output 8-pole Magneto Stator is a precision replacement for vertical engines found in TTR250 style pit bikes, dirt bikes, and ATVs. Specifically designed for 150cc, 200cc, and 250cc (165FMM/166FMM) powerplants, it ensures your machine maintains a powerful, continuous electrical charge for reliable ignition and lighting performance.

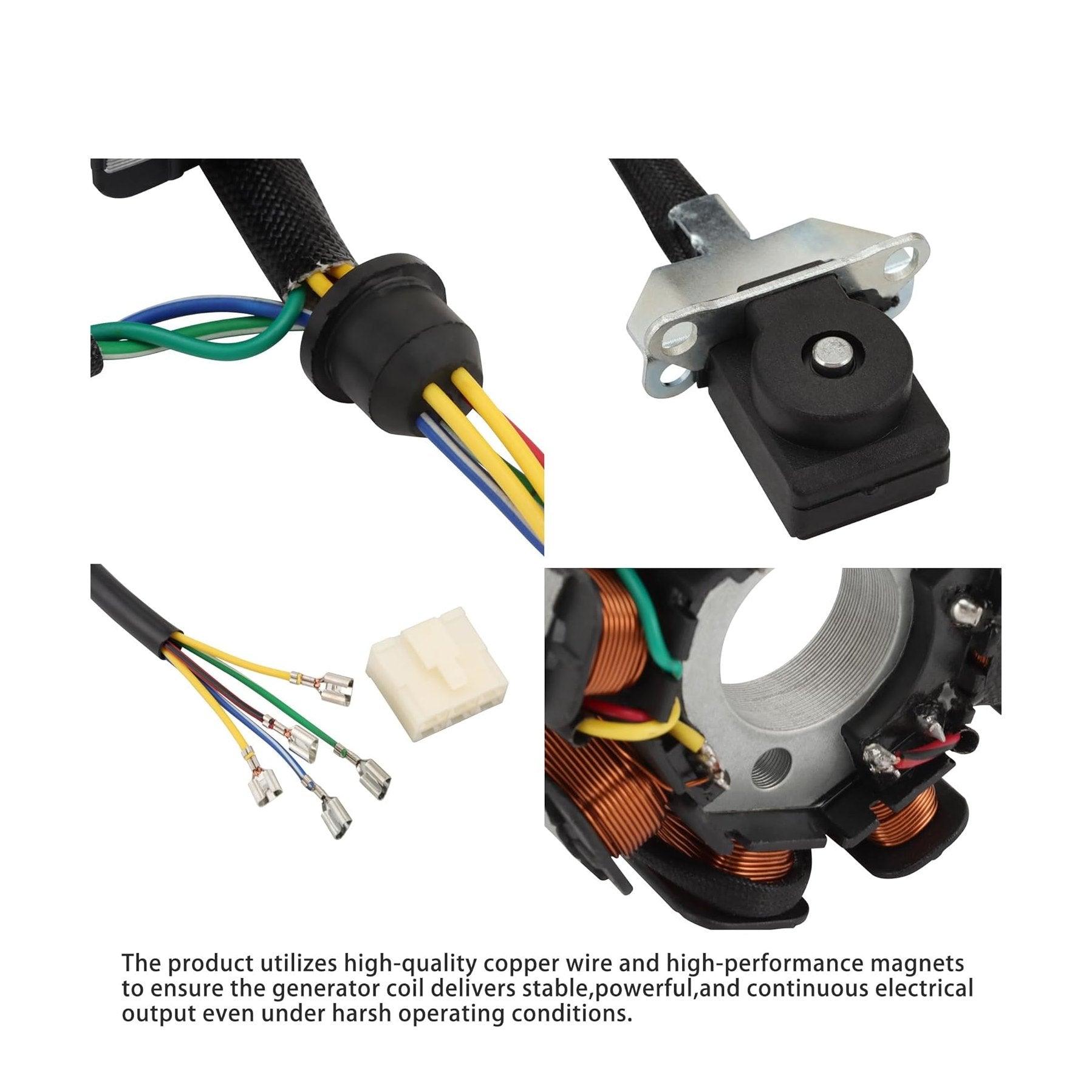

Constructed with premium copper wire and high-performance magnets, this stator is built to survive the high-vibration and high-heat environments of trail riding. The internally treated structure prevents insulation breakdown in extreme temperatures, providing a long service life and reducing the risk of electrical failure deep in the woods.
Product Compatibility
| Engine Type | Displacement | Common Models |
| CG Vertical | 150cc / 200cc / 250cc | TaoTao, Coolster, Lifan, Zongshen |
| CB Vertical | 150cc / 200cc / 250cc | TTR250 Clones, Brazilian-style CGs |
| Engine Codes | 165FMM / 166FMM | Most Overhead Valve (OHV) clones |
Key Technical Specs:
- Pole Count: 8-Pole (8-Coil) High-Output Design

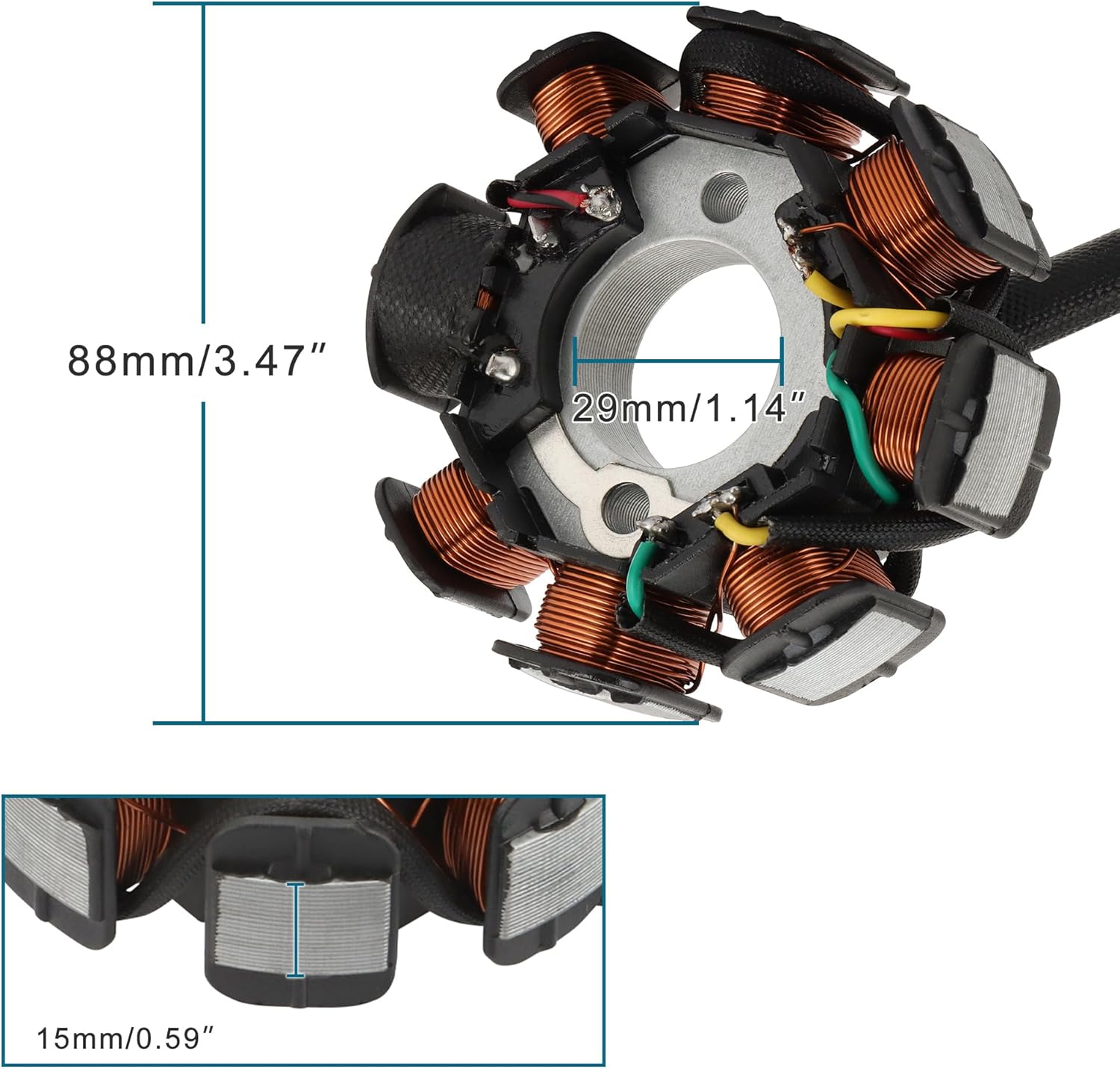

- Outer Diameter: 88mm (3.47")
- Inner Diameter: 29mm (1.14")
- Iron Core Height: 15mm (0.59")
- Installation: Direct bolt-on for 3-bolt mounting systems
Why Upgrade to This Stator?
- Stable Power Delivery: Prevents headlight flickering and weak spark issues common in older factory stators.
- Direct Plug-and-Play: Matches standard wiring harnesses for a "no-cut" installation process.
- Enhanced Heat Resistance: Superior insulation allows for reliable operation in high-humidity and high-heat conditions.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine Type; Displacement; Common Models; CG Vertical; 150cc / 200cc / 250cc; TaoTao, Coolster, Lifan, Zongshen; CB Vertical. Key physical/spec details from the product data include Outer Diameter: 88mm (3.47"), Inner Diameter: 29mm (1.14"), Iron Core Height: 15mm (0.59"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Lifan/TaoTao models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Outer Diameter: 88mm (3.47"), Inner Diameter: 29mm (1.14"), Iron Core Height: 15mm (0.59"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
