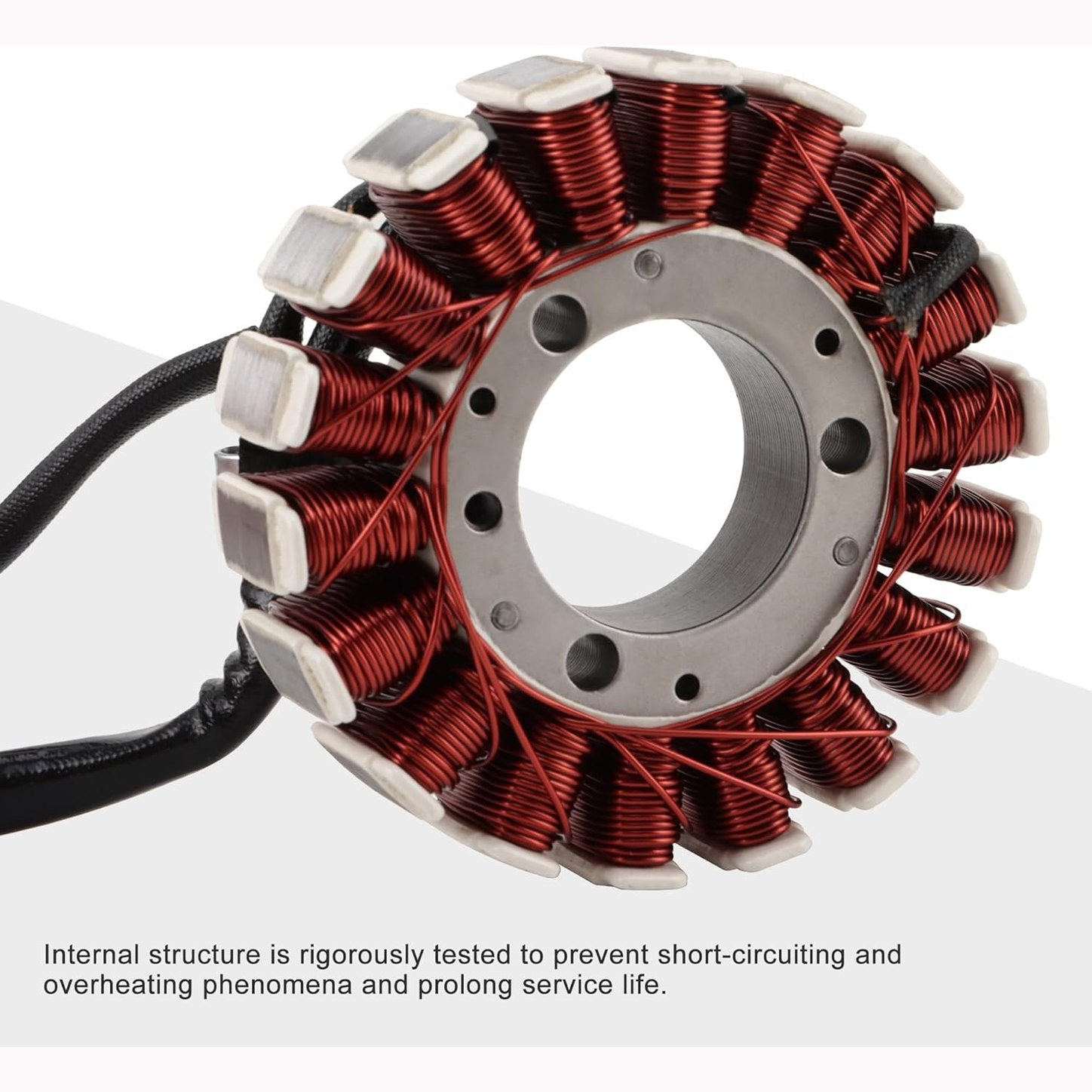

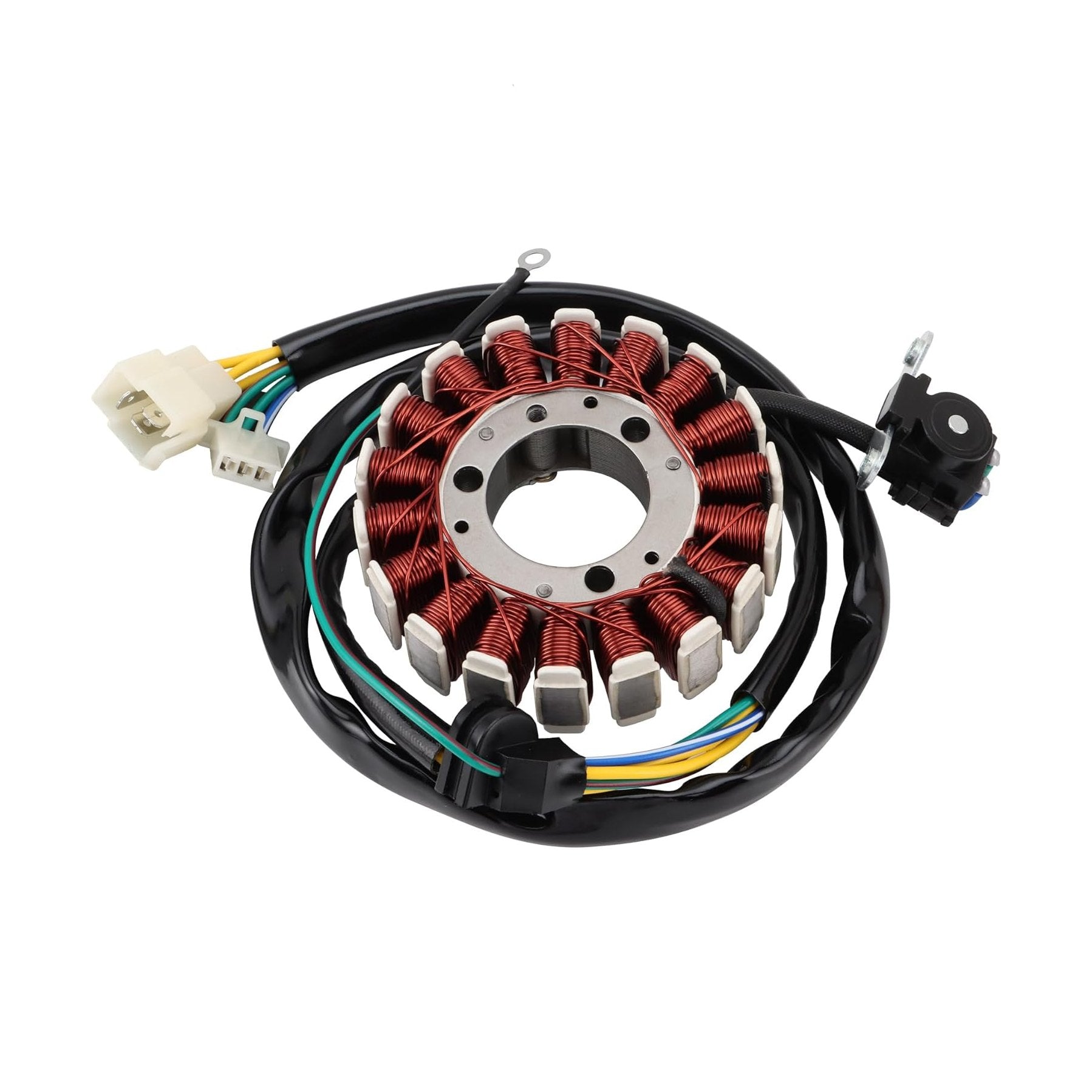

Magneto Stator Coil for Honda CBF250 CBX250 (2004-2010) | 31120-KPF-911
Magneto Stator Coil for Honda CBF250 CBX250 (2004-2010) | 31120-KPF-911
Couldn't load pickup availability
Restore Reliable Charging Power to Your Honda 250
If your Honda CBF250 or CBX250 Twister is suffering from:
- Battery not charging
- Weak or flickering lights
- Hard starting
- Sudden engine stalling
- Burned stator smell
A failing stator is one of the most common causes.
This high-quality replacement Magneto Stator Coil is engineered to match OEM performance standards and directly replaces Honda OEM Part #31120-KPF-911.
Compatible Models
| Make | Model | Years | OEM Part Number |
| Honda | CBF250 | 2004–2009 | 31120-KPF-911 |
| Honda | CBX250 Twister | 2004–2010 | 31120-KPF-911 |
Technical Specifications

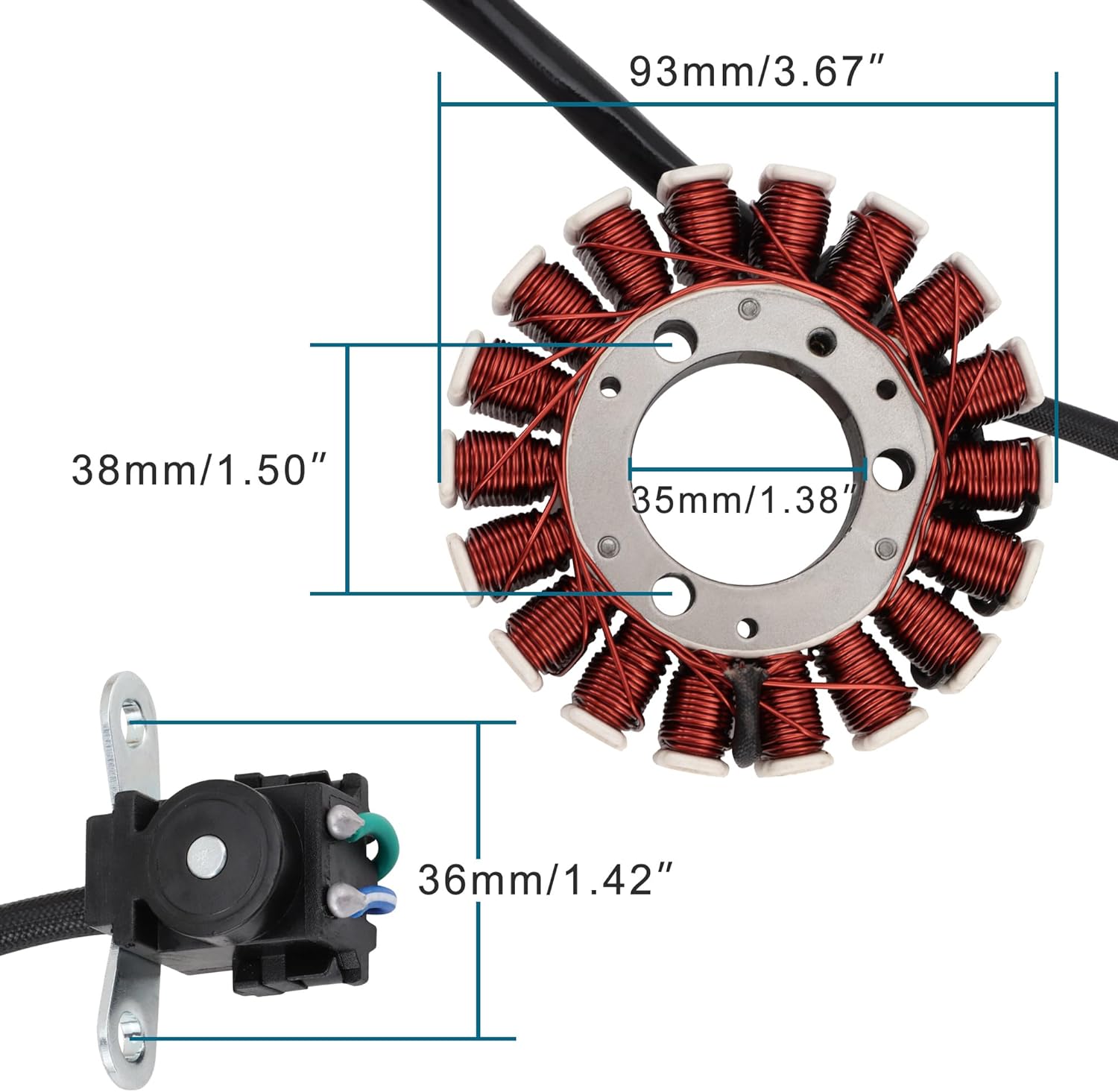

- Outer Diameter: 93mm (3.67")
- Inner Diameter: 35mm (1.38")
- Thickness: 27mm (1.06")

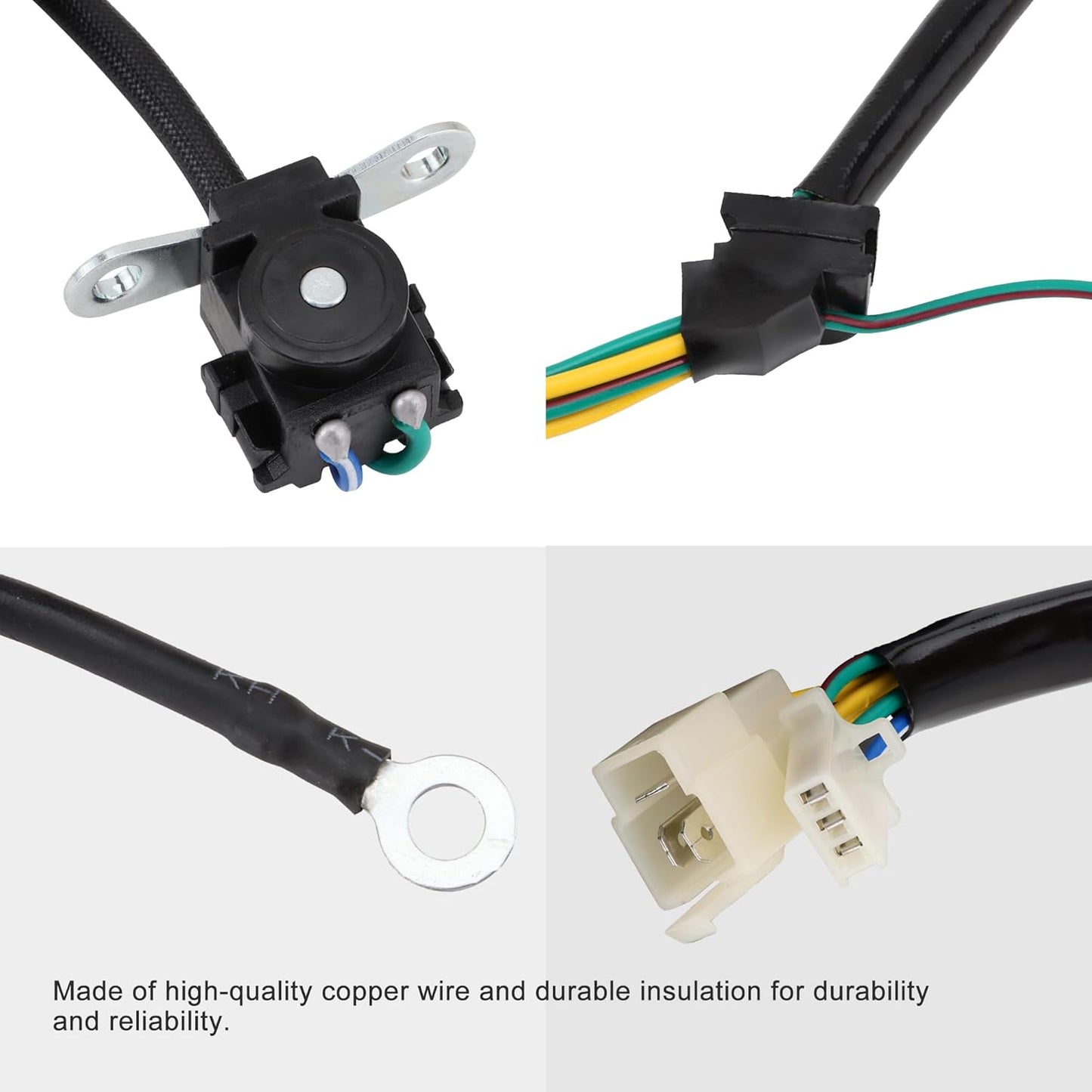

- Wire Configuration: 6 Wires / 3-Plug Connector
- Condition: 100% New
- Installation: Direct Bolt-On Replacement
Why Choose This Stator Coil?
✔ Direct OEM Fit
Designed to match factory mounting points for true plug-and-play installation.
✔ Stable Charging Output
Delivers consistent AC output to regulator/rectifier, preventing undercharging or voltage spikes.
✔ High-Temperature Resistant Copper Windings
Premium insulation coating prevents overheating and electrical breakdown.
✔ Long Service Life
Built for daily commuting and long-distance riding reliability.
Helpful Guides
– How to Diagnose Honda CBF250 Charging Problems
– How to Replace a Stator Coil on Honda CBF250
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Years; OEM Part Number; Honda; CBF250; 2004–2009; 31120-KPF-911. It is best matched to original part number(s) 31120-KPF-911, 2004-2010. Key physical/spec details from the product data include Outer Diameter: 93mm (3.67"), Inner Diameter: 35mm (1.38"), Thickness: 27mm (1.06"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31120-KPF-911, 2004-2010 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda CBF250/CBX250/KPF-911 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-KPF-911, 2004-2010, treat the fitment as unconfirmed. Model years outside 2004–2010, 2004–2009, 2004, 2010, 2009 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-KPF-911, 2004-2010. Recheck listed specs such as Outer Diameter: 93mm (3.67"), Inner Diameter: 35mm (1.38"), Thickness: 27mm (1.06"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
