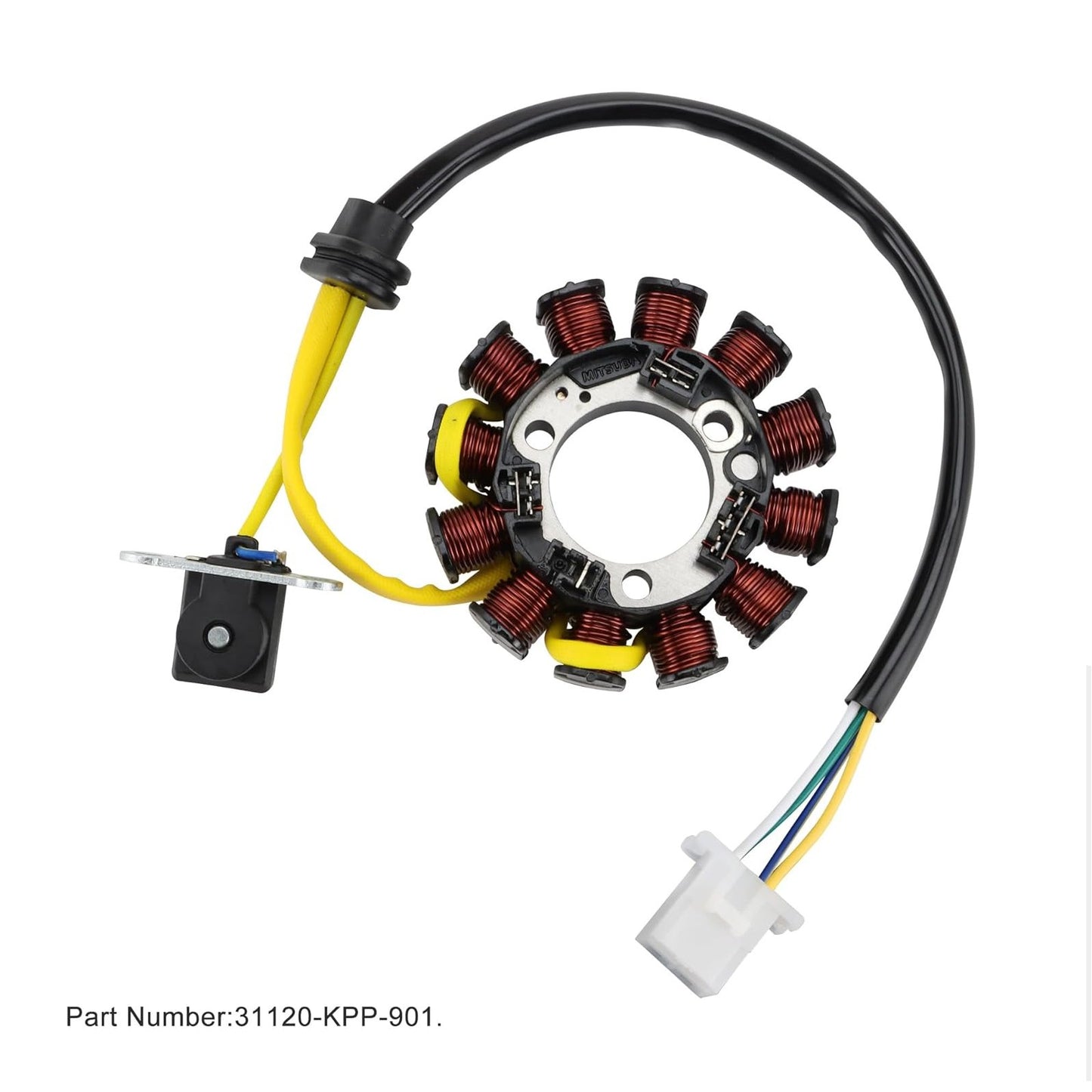

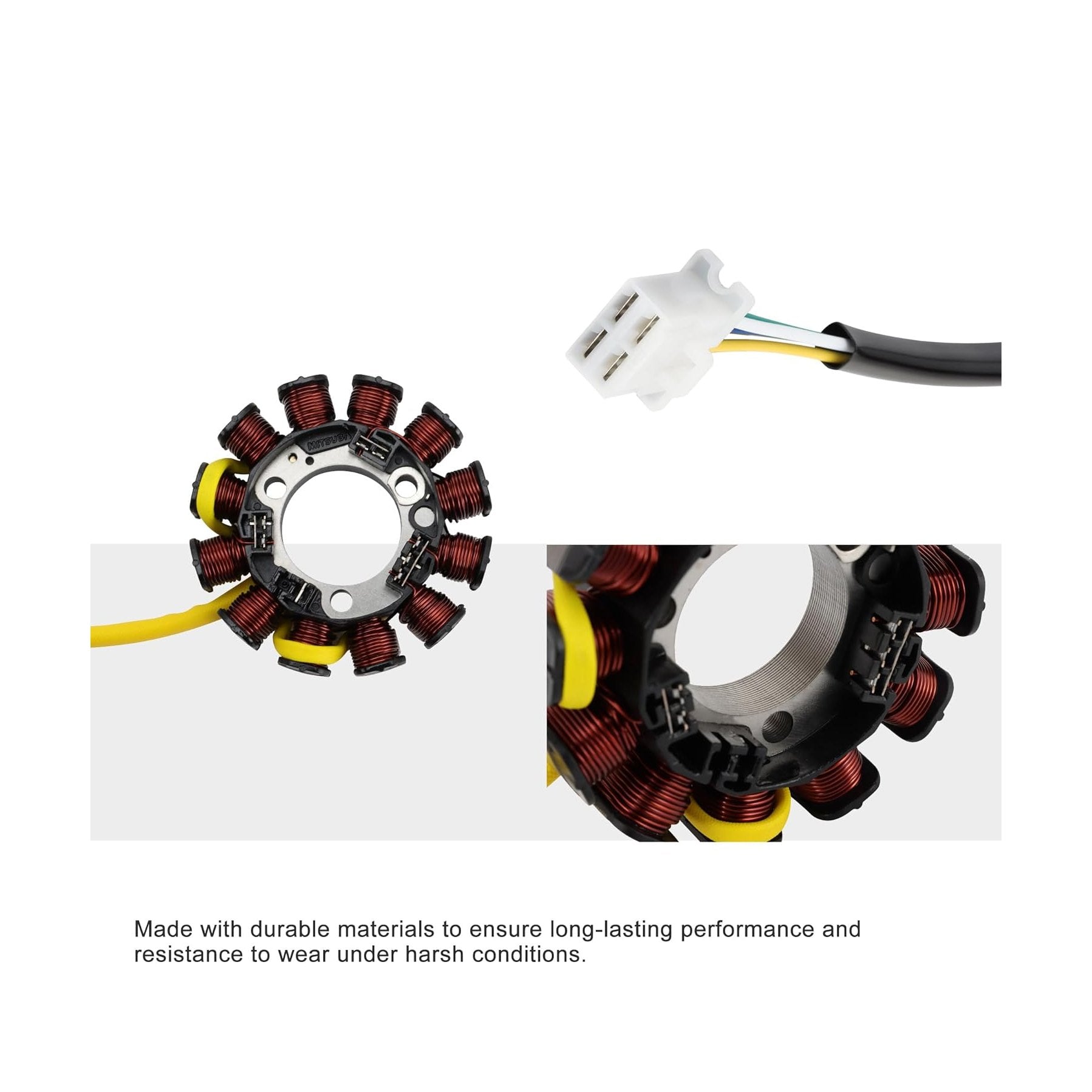

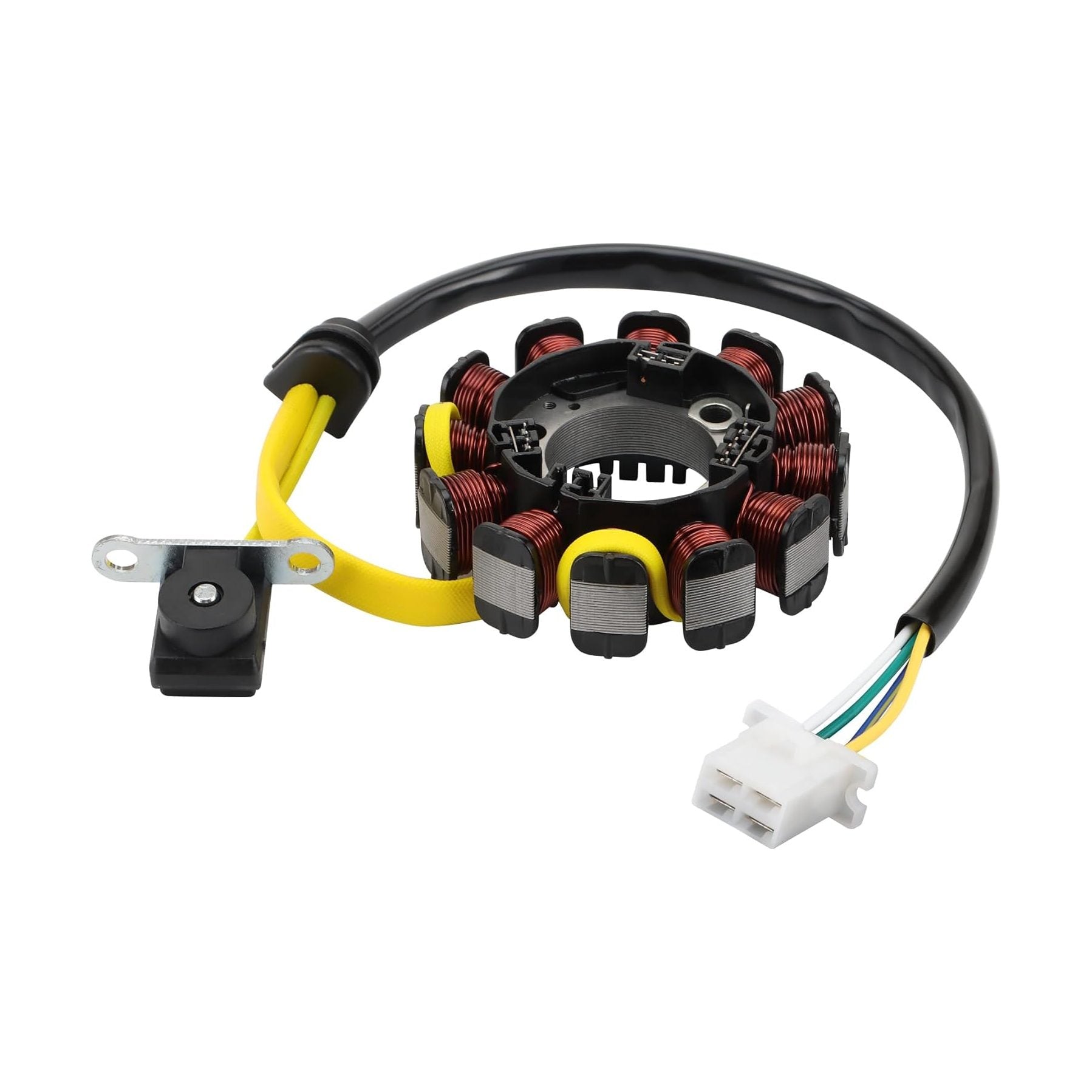

Magneto Stator Coil for Honda CBR150R CBR150M (2003-2010) | 31120-KPP-901
Magneto Stator Coil for Honda CBR150R CBR150M (2003-2010) | 31120-KPP-901
Couldn't load pickup availability
Restore Peak Ignition Performance | OEM Ref: 31120-KPP-901
Is your CBR150R struggling with a dead battery or weak spark? Don't let a failing charging system keep you off the road. This premium aftermarket Magneto Stator is precision-engineered to replace the Honda factory unit (31120-KPP-901), delivering the stable electrical output your high-revving engine demands.
Why This Stator is the Best Choice for Your CBR:
- Built for Heat: Features highest-grade copper windings resistant to 200°C, ensuring longevity in high-performance liquid-cooled engines.
- Plug-and-Play Simplicity: Includes the pick-up pulsar coil and OEM-style connectors. No cutting or soldering required.
- High-RPM Stability: Optimized for the first-generation carburetor models to ensure a consistent spark even at the redline.
- Certified Quality: Every unit is factory-tested for AC voltage output to guarantee "out-of-the-box" reliability.
Technical Specifications
| Feature | Details |
| OEM Part Number | 31120-KPP-901 |
| Compatibility | Honda CBR150R (2004-2010) / CBR150M (2003-2004) |
| Wire Material | High-temp resistant copper (up to 200°C) |
| Package Includes | Stator Core + Pick-up Pulsar Coil + Connector |
| Fitment Type | Direct Bolt-on Replacement |
Compatibility Guide
| Make | Model | Years | Notes |
| Honda | CBR150R | 2004–2010 | Carburetor Models Only |
| Honda | CBR150M | 2003–2004 | Early Chassis Models |
Pro Tip: If your bike isn't charging or has no spark, the stator is the suspect. Need help diagnosing? Check out our guide: Honda CBR150R Common Stator Problems Explained
Installation & Support
Worried about the DIY process? We’ve got you covered.
- Step-by-Step Guide: How to Replace a CBR150R Stator Coil
- Comparison: OEM vs. Aftermarket - Which is best for your bike?
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Honda CBR150R (2004-2010) / CBR150M (2003-2004); Wire Material; High-temp resistant copper (up to 200°C). Listed year information includes 2003–2010, 2004–2010, 2003–2004, 2003, 2010. It is best matched to original part number(s) 31120-KPP-901, 2003-2010, 2004-2010, 2003-2004. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31120-KPP-901, 2003-2010, 2004-2010, 2003-2004 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda CBR150R/CBR150M/KPP-901 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-KPP-901, 2003-2010, 2004-2010, 2003-2004, treat the fitment as unconfirmed. Model years outside 2003–2010, 2004–2010, 2003–2004, 2003, 2010 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-KPP-901, 2003-2010, 2004-2010, 2003-2004. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
