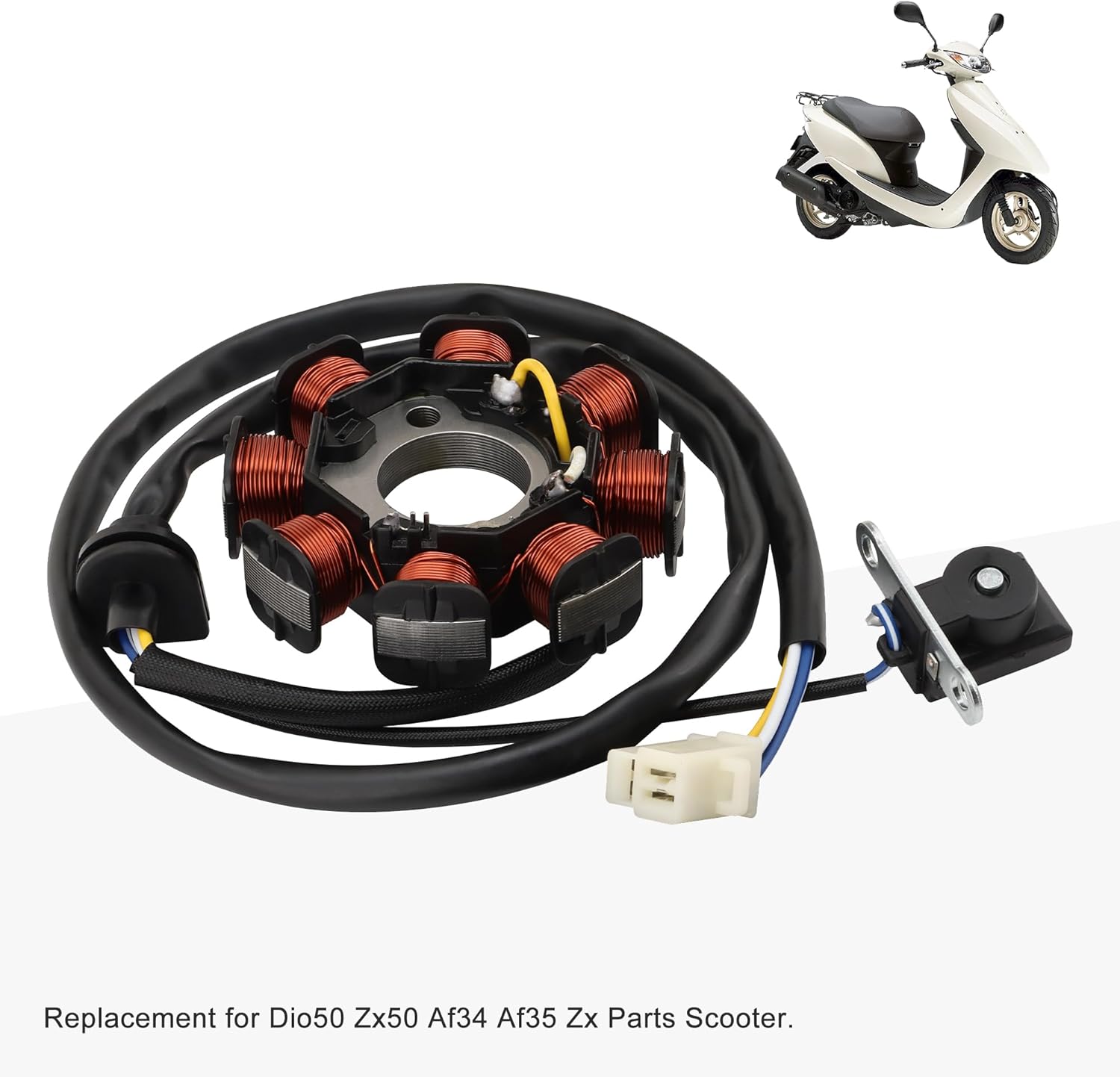

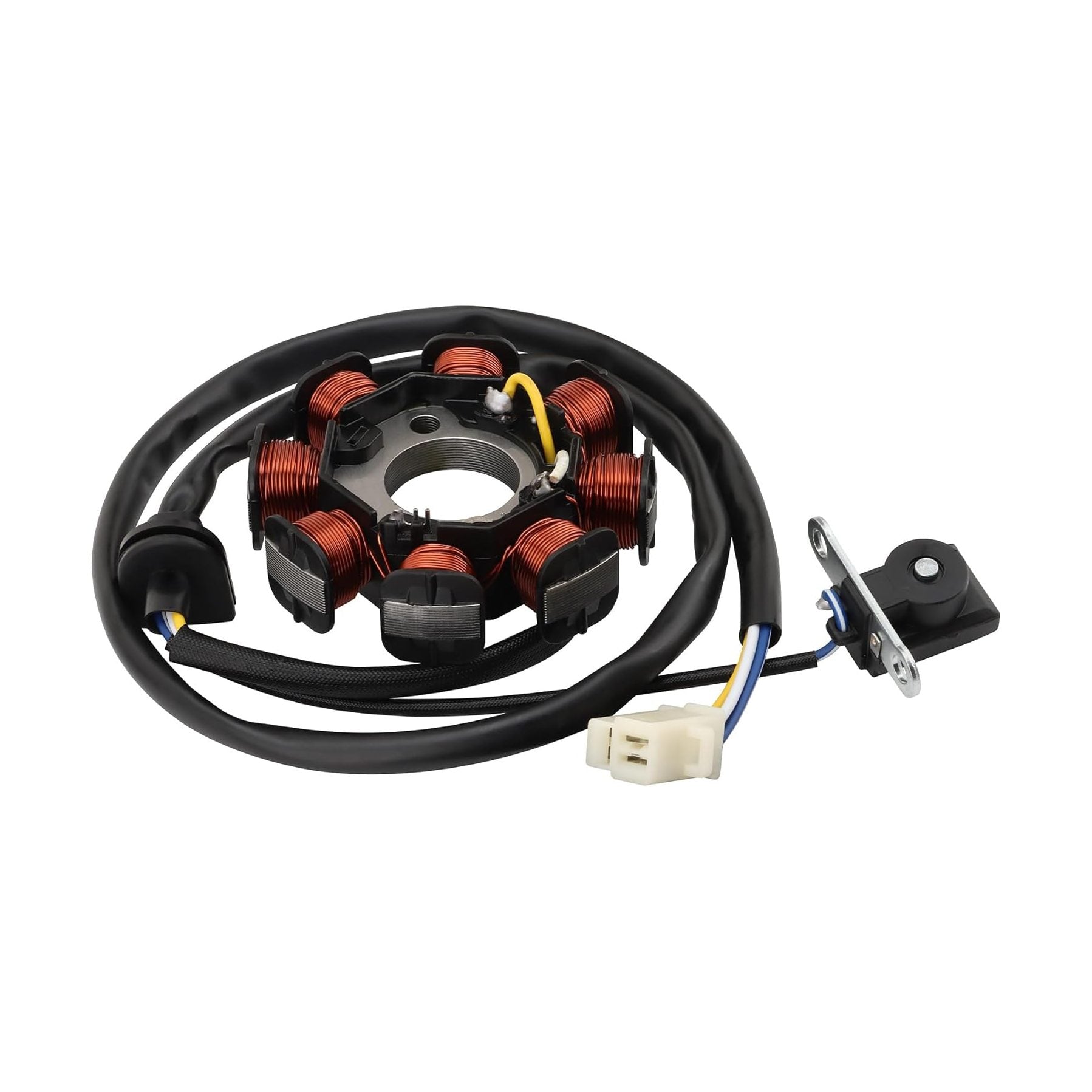

Magneto Stator Coil for Honda Dio 50 ZX50 AF34 AF35 (1994-2003)
Magneto Stator Coil for Honda Dio 50 ZX50 AF34 AF35 (1994-2003)
Couldn't load pickup availability
Product Overview
Restore reliable ignition and charging performance for Honda Dio 50 AF34 / AF35 ZX (1994–2003) with this premium aftermarket magneto stator coil, designed specifically for the Live Dio series.
This stator is a direct plug-and-play replacement that delivers stable AC output for consistent ignition spark and proper battery charging. Ideal for resolving hard starting, weak spark, and charging issues.
Constructed with high-purity copper windings and thin heat-dissipating insulation, it runs cooler than standard replacements, helping extend service life and reduce heat-related electrical failures.
Product Compatibility
| Make | Model | Years | Fitment Details |
| Honda | Dio 50 (Live Dio) | 1994–2003 | AF34 Chassis |
| Honda | Dio 50 ZX | 1994–2003 | AF35 Chassis |
| Honda | ZX50 | 1994–2003 | Performance Models |
Technical Specifications
| Specification | Details |
|---|---|

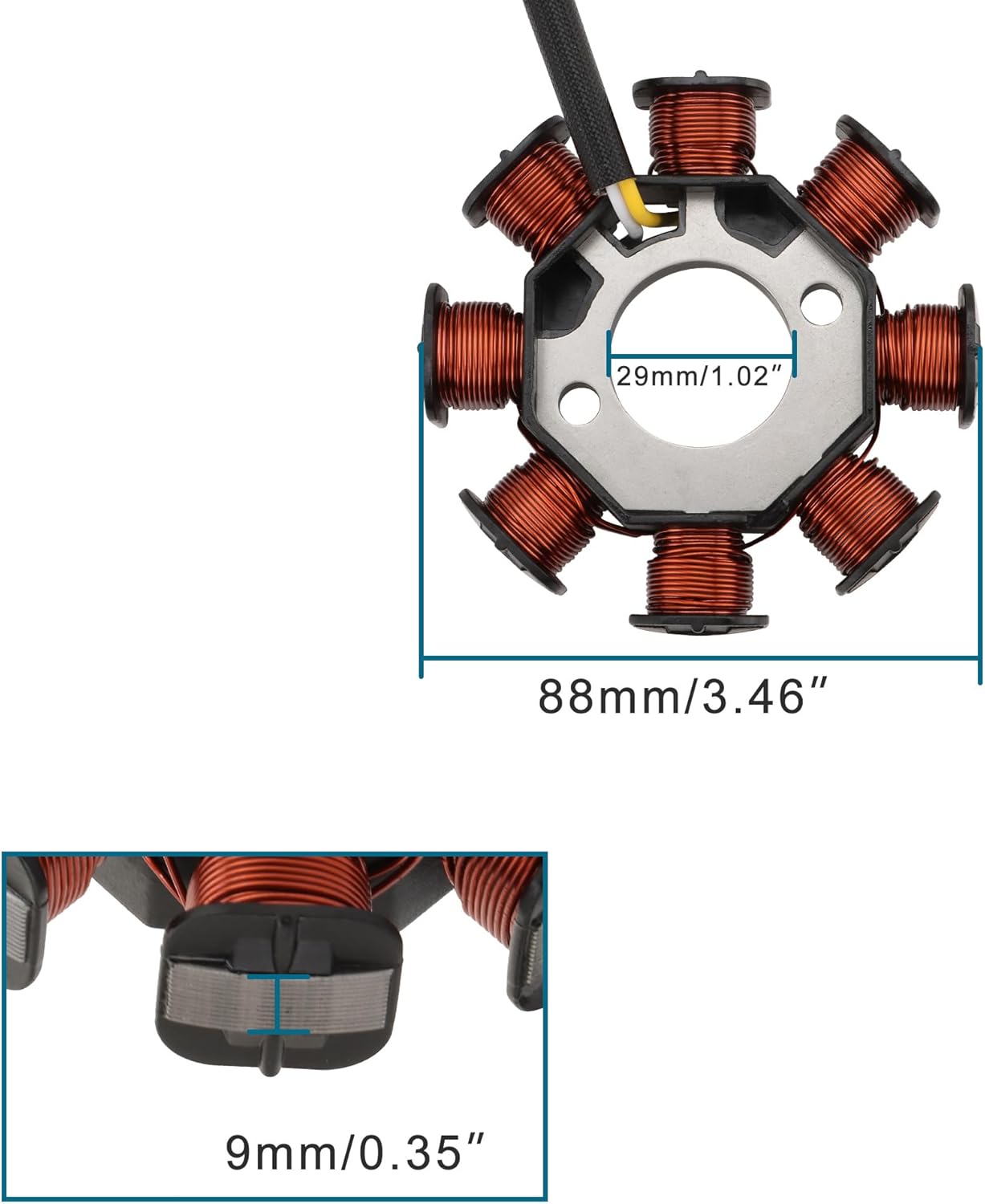

| Outer Diameter | 88mm (3.46") |
| Inner Diameter | 29mm (1.02") |
| Core Height | 9mm (0.35") |
| Winding Material | High-conductivity copper |
| Insulation Type | Thin-layer heat-dissipating insulation |
| Design | OEM-fit, plug-and-play replacement |
Key Features
-
Enhanced Heat Dissipation
Thin insulation design allows faster thermal transfer, keeping operating temperatures lower than standard stators. -
Stable Ignition Output
Provides consistent AC voltage for strong spark energy, smoother idle, and reliable throttle response. -
Reliable Charging Performance
Restores proper electrical output for battery charging and lighting systems. -
Exact OEM Fitment
Precision-machined to match factory mounting points for hassle-free installation. -
Long Service Life
Heat-resistant copper windings reduce coil breakdown and electrical shorts over time.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Honda Dio 50 ZX50 AF34 AF35 (1994-2003). It is best matched to original part number(s) 1994-2003. Key physical/spec details from the product data include Outer Diameter: 88mm (3.46"), Inner Diameter: 29mm (1.02"), Core Height: 9mm (0.35"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 1994-2003 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda ZX50/AF34/AF35 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 1994-2003, treat the fitment as unconfirmed. Model years outside 1994–2003, 1994, 2003 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 1994-2003. Recheck listed specs such as Outer Diameter: 88mm (3.46"), Inner Diameter: 29mm (1.02"), Core Height: 9mm (0.35"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
