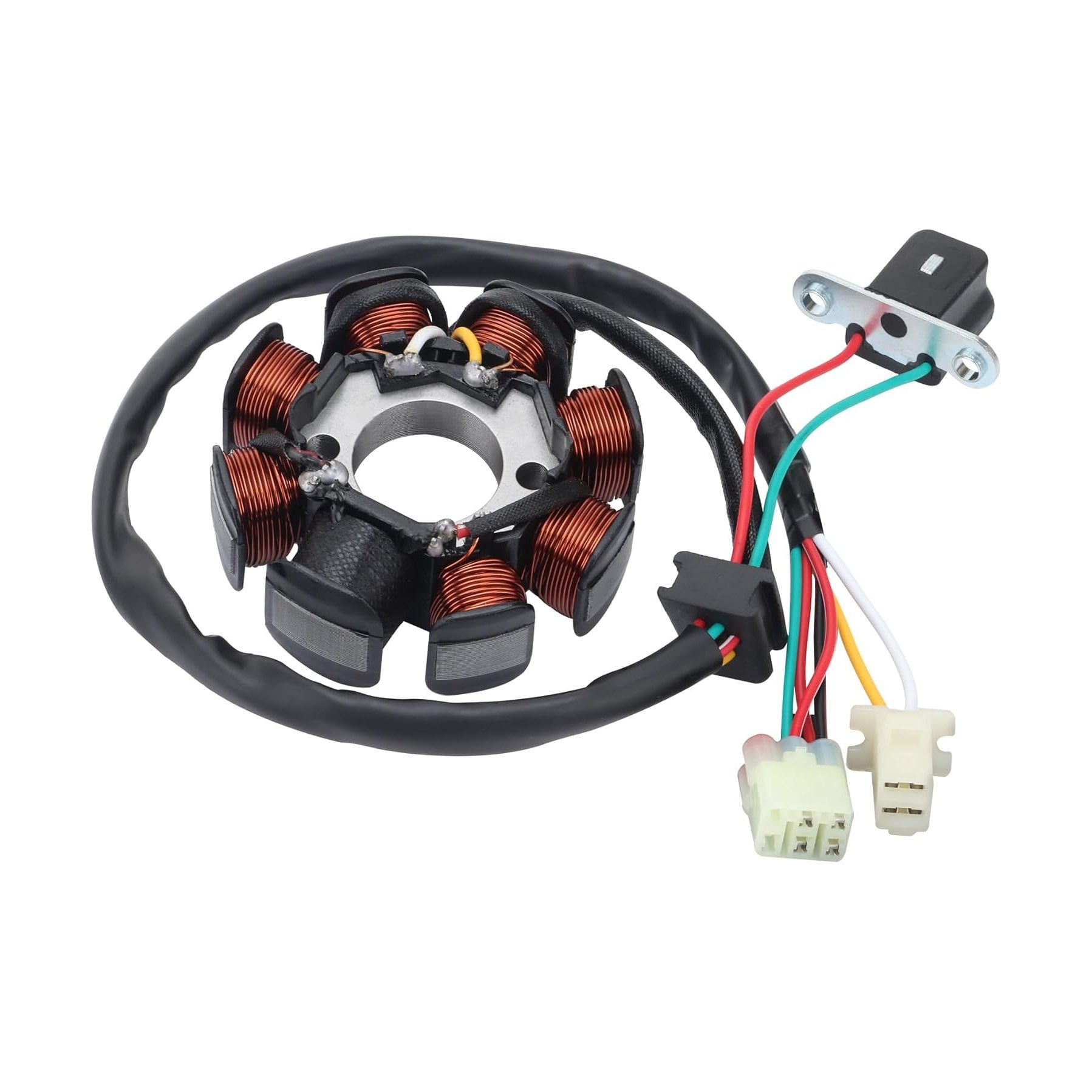

Magneto Stator Coil for Husqvarna TE, TC, SMR, TXC 250 & 450 (2005–2010)
Ensure your Husqvarna’s ignition system is trail-ready. This GOOFIT 8-pole Magneto Stator is a precision-engineered replacement for the 250cc and 450cc Husqvarna series. Designed with high-grade copper windings resistant to temperatures up to 200°C, it provides the stable electrical output required for high-intensity off-road riding.

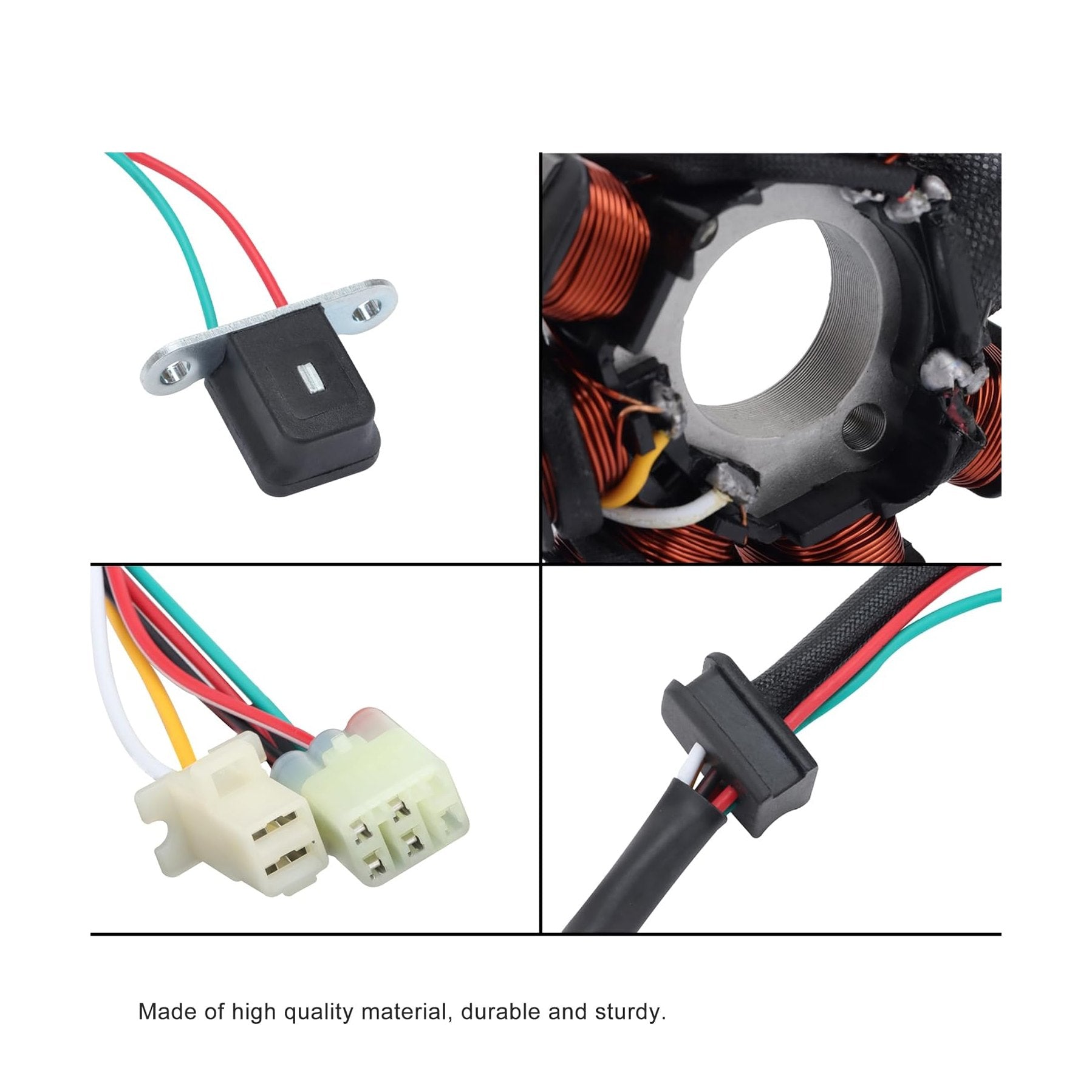

This 84mm stator is a direct "plug-and-play" unit, including the pulsar pickup coil, factory-style connectors, and a rubber grommet for a seamless, modification-free installation.
| Model | Sub-Models | Years |
| Husqvarna 250 | TE, TC, TXC, SMR | 2005–2010 |
| Husqvarna 450 | TE, TC, TXC, SMR | 2005–2010 |
| Husqvarna 510 | TE, TC, TXC, SMR | 2005–2010 |
Key Technical Specs:
- Stator Type: 8-Pole Magneto

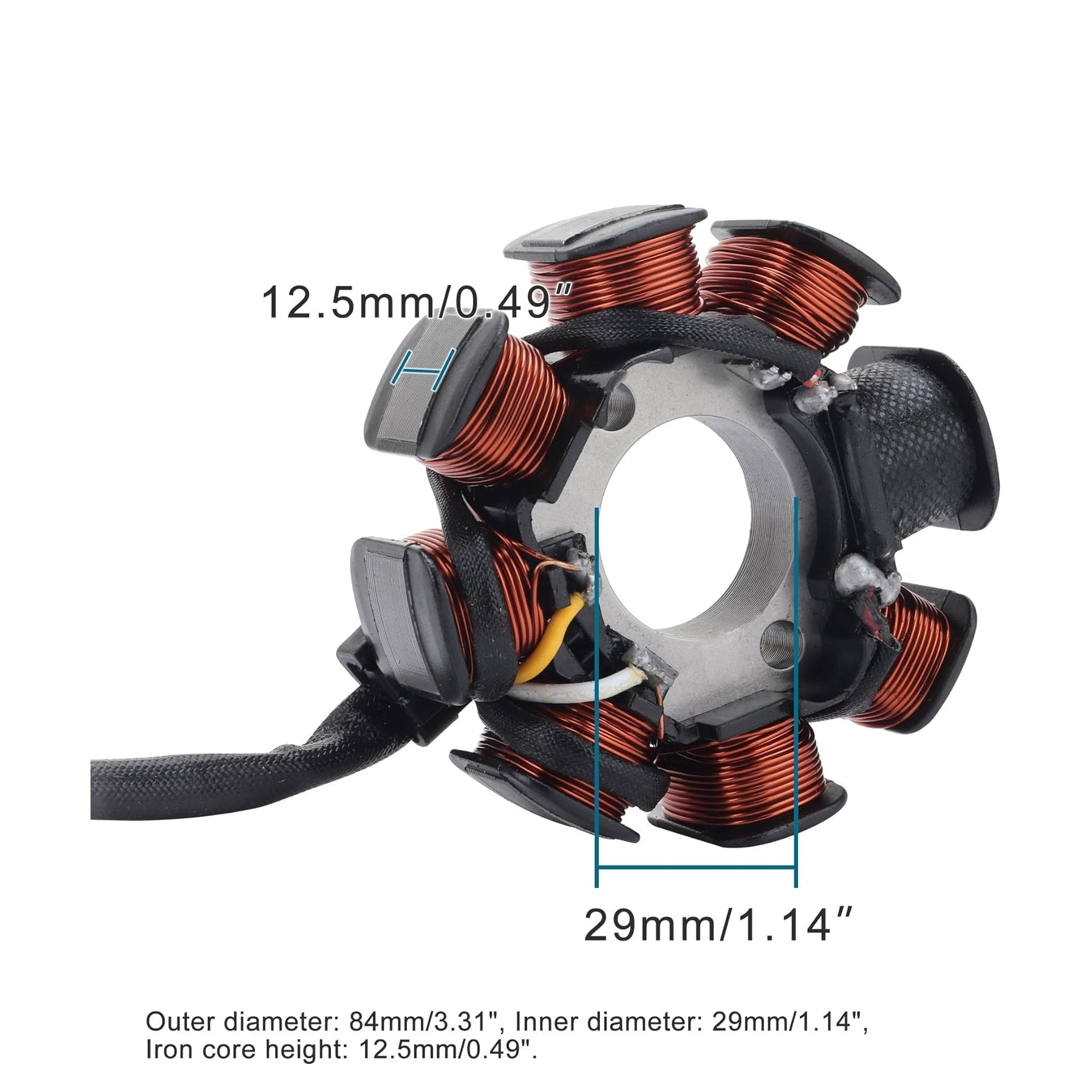

- Outer Diameter: 84mm (3.31")
- Inner Diameter: 29mm (1.14")
- Iron Core Height: 12.5mm (0.49")
Top Performance Features:
- Direct OEM Fit: Engineered to match original specifications for a perfect swap.
- High-Temp Durability: Uses highest-grade lamination materials to prevent electrical failure under heat.
- Complete Assembly: Comes with pickup coil and connectors included.
- Corrosion Resistant: Built to withstand the moisture and vibration of demanding terrain.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Husqvarna TE TC SMR TXC 250 450 (2005-2010). It is best matched to original part number(s) 2005-2010. Key physical/spec details from the product data include Outer Diameter: 84mm (3.31"), Inner Diameter: 29mm (1.14"), Iron Core Height: 12.5mm (0.49"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 2005-2010 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 2005-2010, treat the fitment as unconfirmed. Model years outside 2005–2010, 2005, 2010 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 2005-2010. Recheck listed specs such as Outer Diameter: 84mm (3.31"), Inner Diameter: 29mm (1.14"), Iron Core Height: 12.5mm (0.49"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
