Magneto Stator Coil for Kawasaki Bayou 220 (1996-2002) & 250 (2003-2011) | 21003-1287

Magneto Stator Coil for Kawasaki Bayou 220 (1996-2002) & 250 (2003-2011) | 21003-1287

$33.99
$33.99
Sale Sold out
Shipping calculated at checkout.

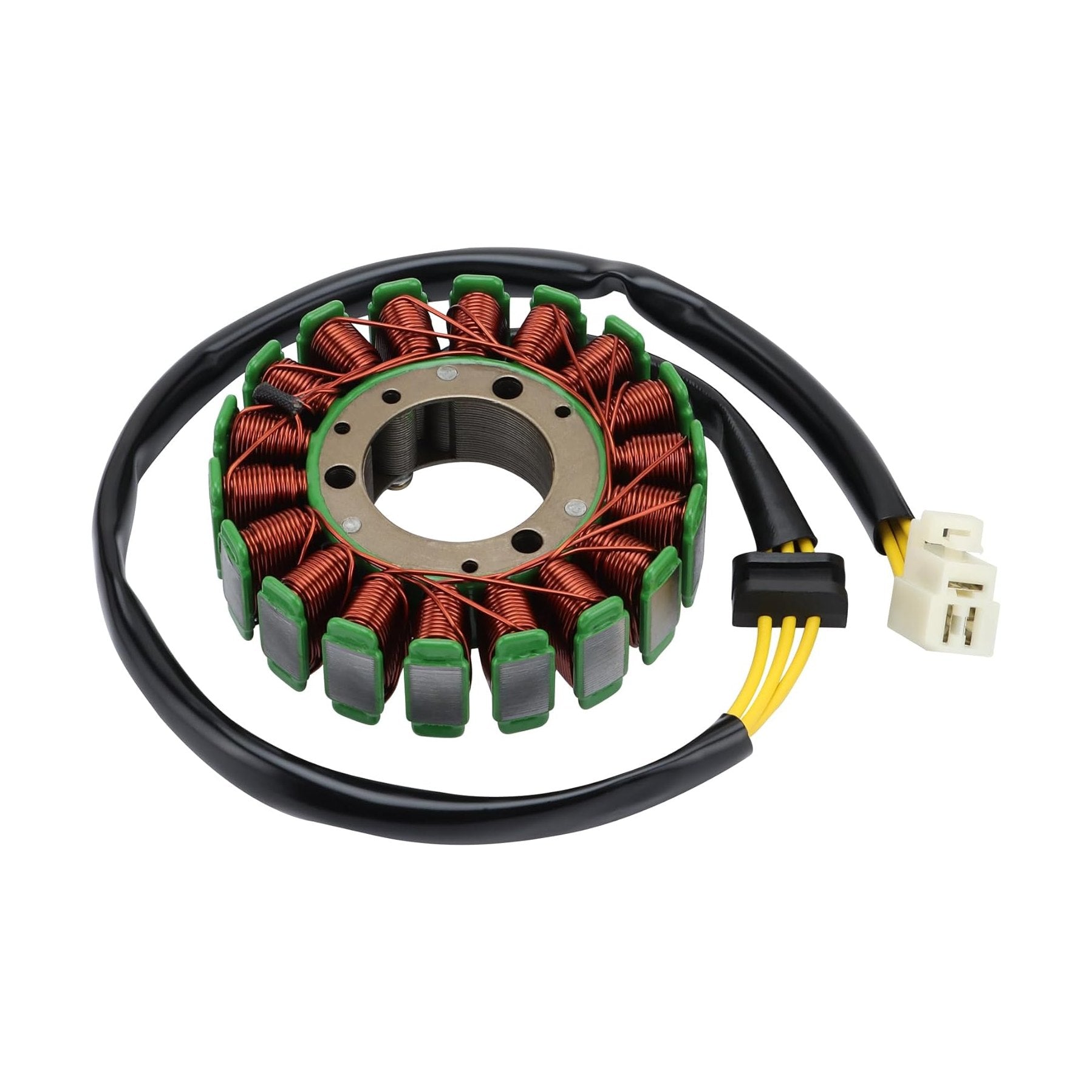

Magneto Stator Coil for Kawasaki Bayou 220 & 250 (1996–2011)

Get your Kawasaki Bayou back on the trail. This GOOFIT Magneto Stator is a high-performance replacement for the Kawasaki 21003-1287 factory unit. Specifically designed for the 220cc and 250cc Bayou models, it provides the stable electrical output needed for a reliable spark and a healthy charging system.

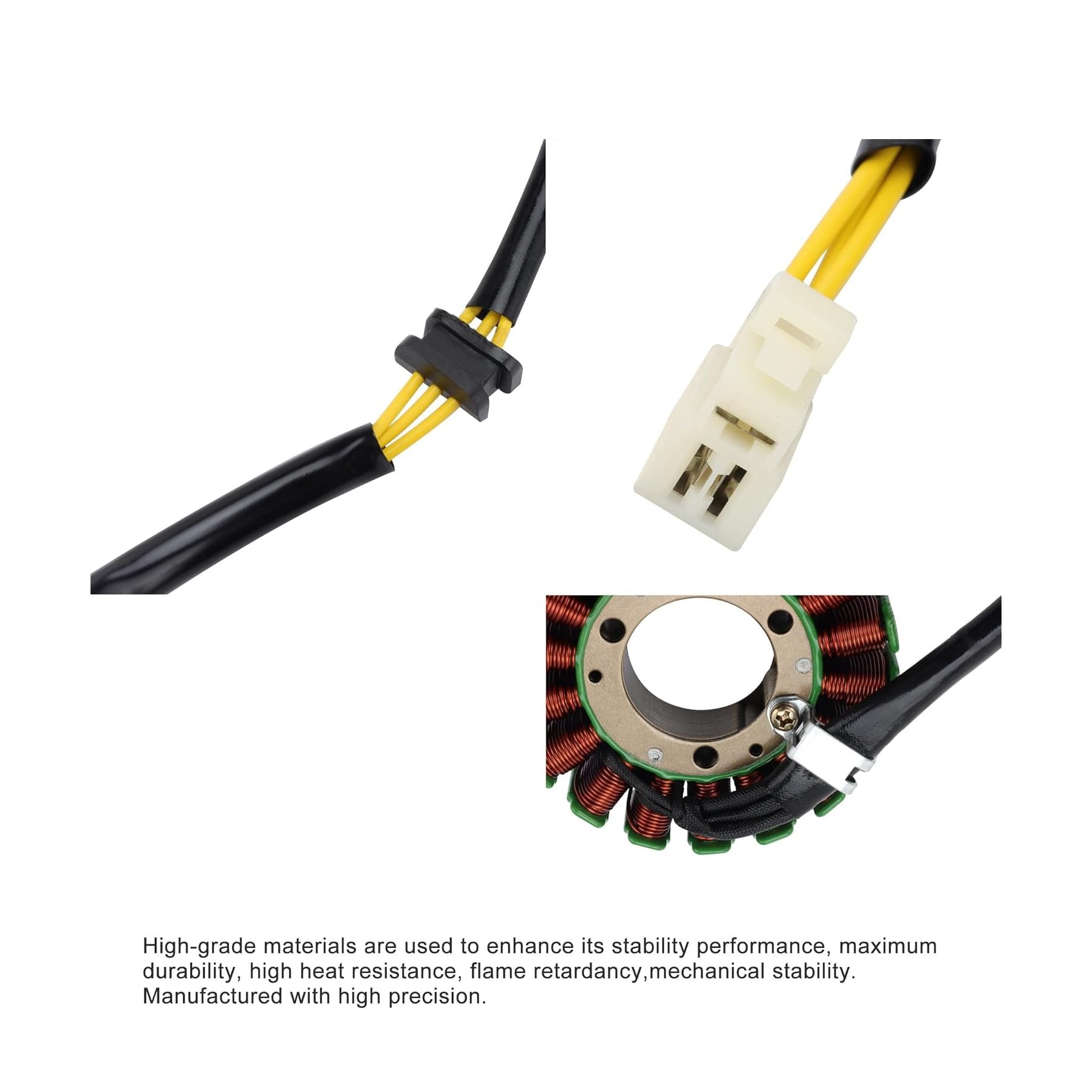

Constructed with the highest-grade laminated materials and high-temperature resistant copper windings, this stator is built to withstand the rigorous demands of utility ATV use.

Make Model Years OEM Part Number
Kawasaki KLF220 Bayou 220 1996–2002 21003-1287
Kawasaki KLF250 Bayou 250 2003–2011 21003-1287

Key Technical Specs:

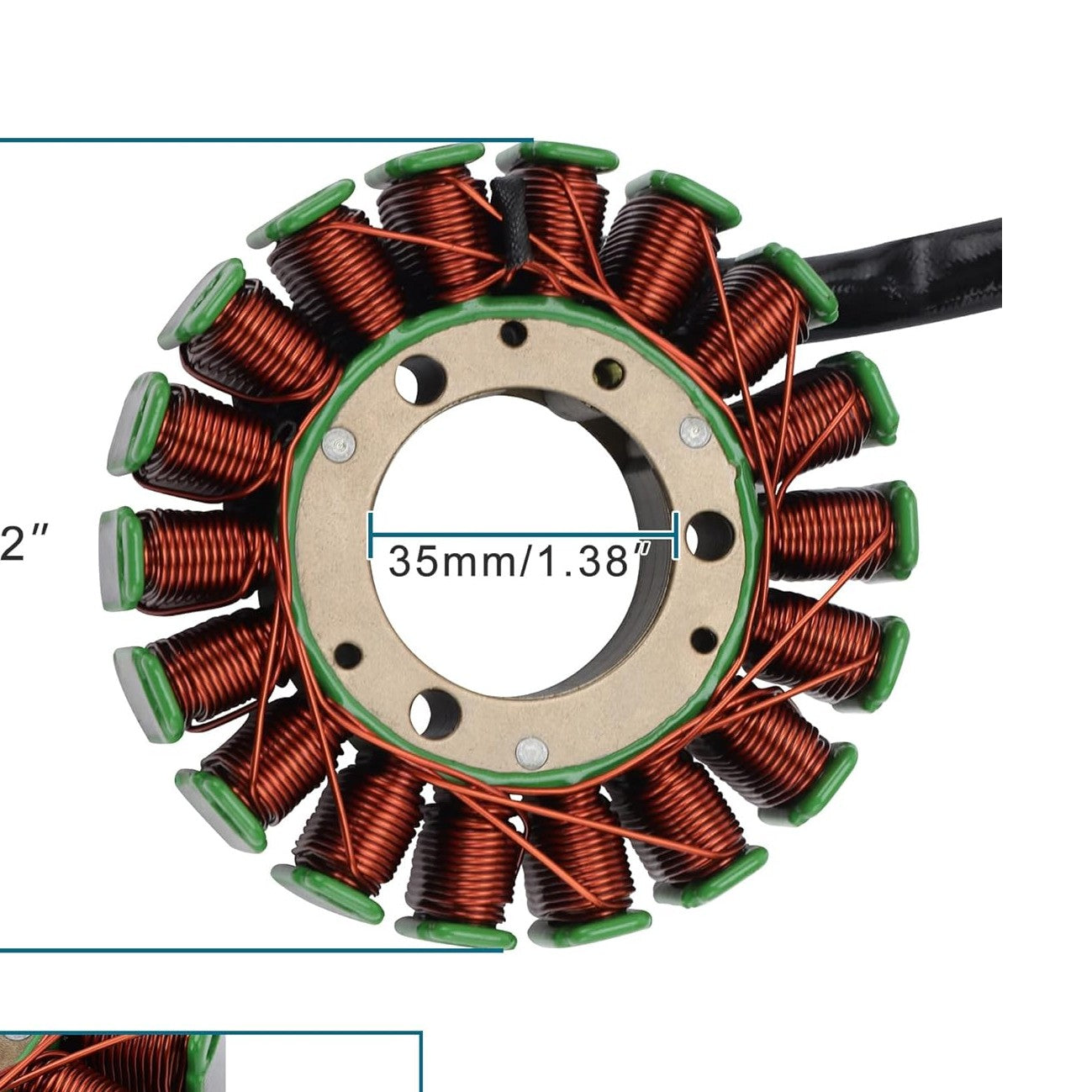

  • Outer Diameter: 93mm (3.67")
  • Inner Diameter: 35mm (1.38")
  • Installation: Plug-and-play, 3-bolt mounting
  • Design: 18-coil configuration for maximum output

Why Choose This Replacement?

  • Direct Fit: Designed to match factory mounting and connector specs for a hassle-free, modification-free installation.
  • Stable Power: Effectively improves starting speed and ensures smooth engine operation across all RPMs.
  • Extreme Durability: Precision-wound copper and high-grade steel lamination protect against heat-related electrical shorts.
View full details

Fitment FAQ

Will this part fit my specific model and year?

This magneto stator is intended for Kawasaki Bayou 220 (1996-2002) & 250 (2003-2011). Listed year information includes 1996–2002, 2003–2011, 1996–2011, 1996, 2002. It is best matched to original part number(s) 21003-1287, 1996-2002, 2003-2011. Key physical/spec details from the product data include Outer Diameter: 93mm (3.67"), Inner Diameter: 35mm (1.38"), 220cc. Use the compatibility table and product photos together before ordering.

Do I need to match the OEM part number?

Yes. Match your original part number to 21003-1287, 1996-2002, 2003-2011 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki models because similar model names can use different parts by year or trim.

What models or situations does this part not fit?

Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21003-1287, 1996-2002, 2003-2011, treat the fitment as unconfirmed. Model years outside 1996–2002, 2003–2011, 1996–2011, 1996, 2002 should be verified separately. Do not rely only on the model name or engine size.

What should I check before ordering?

Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21003-1287, 1996-2002, 2003-2011. Recheck listed specs such as Outer Diameter: 93mm (3.67"), Inner Diameter: 35mm (1.38"), 220cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
