Magneto Stator Coil for Kawasaki KLX450R (2008-2019) | OEM 21003-0070 21003-0090
Magneto Stator Coil for Kawasaki KLX450R (2008-2019) | OEM 21003-0070 21003-0090
Couldn't load pickup availability

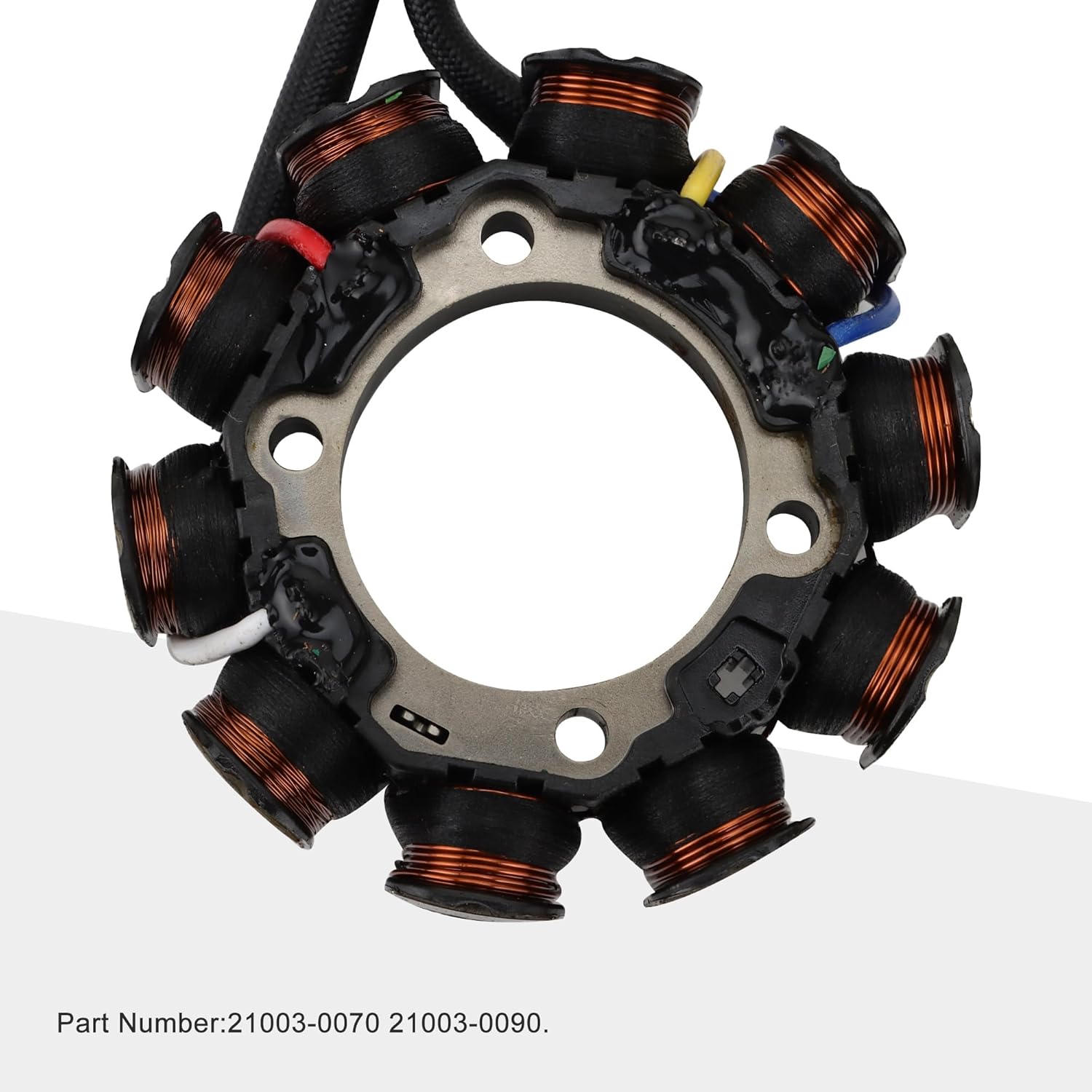

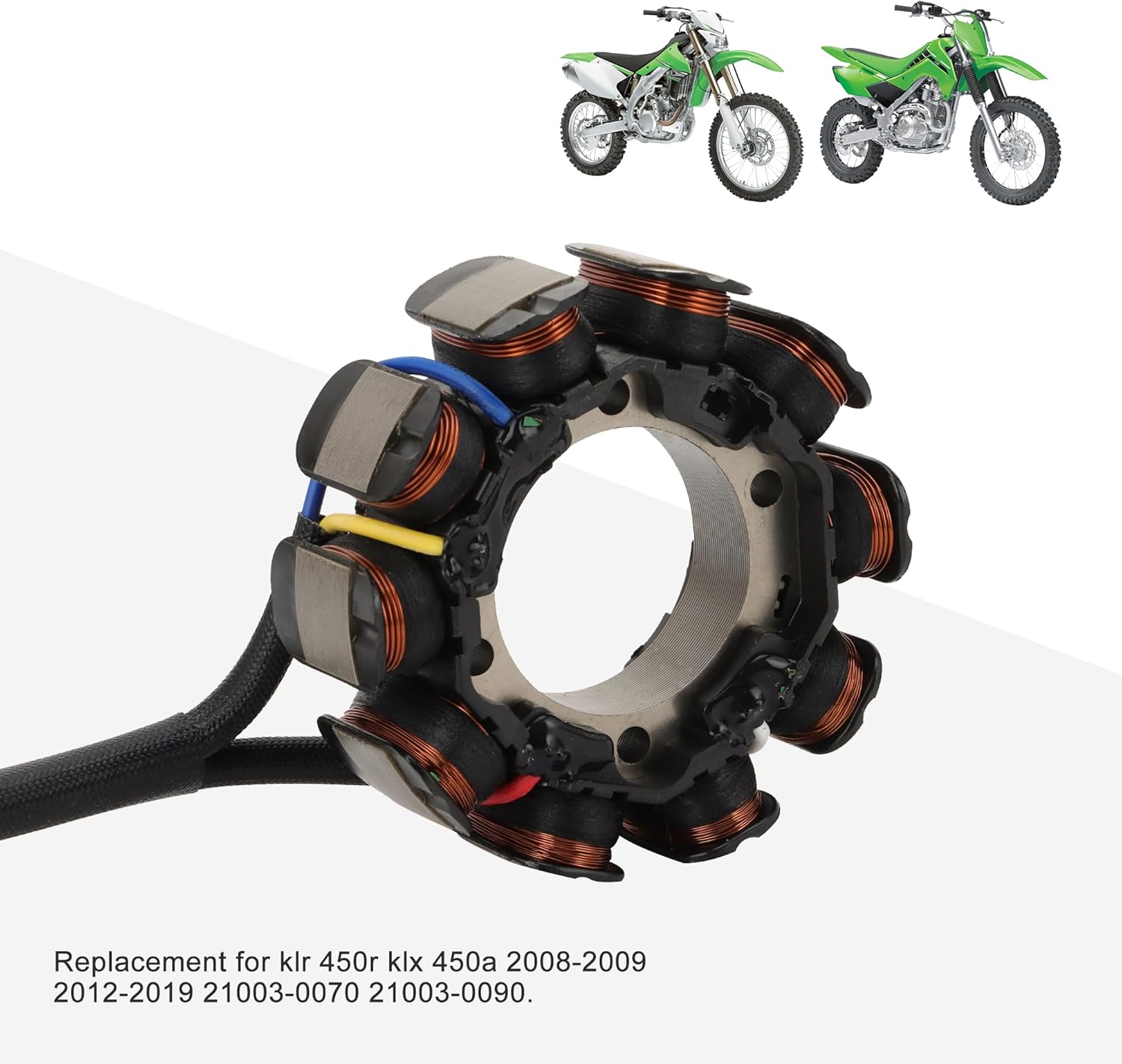

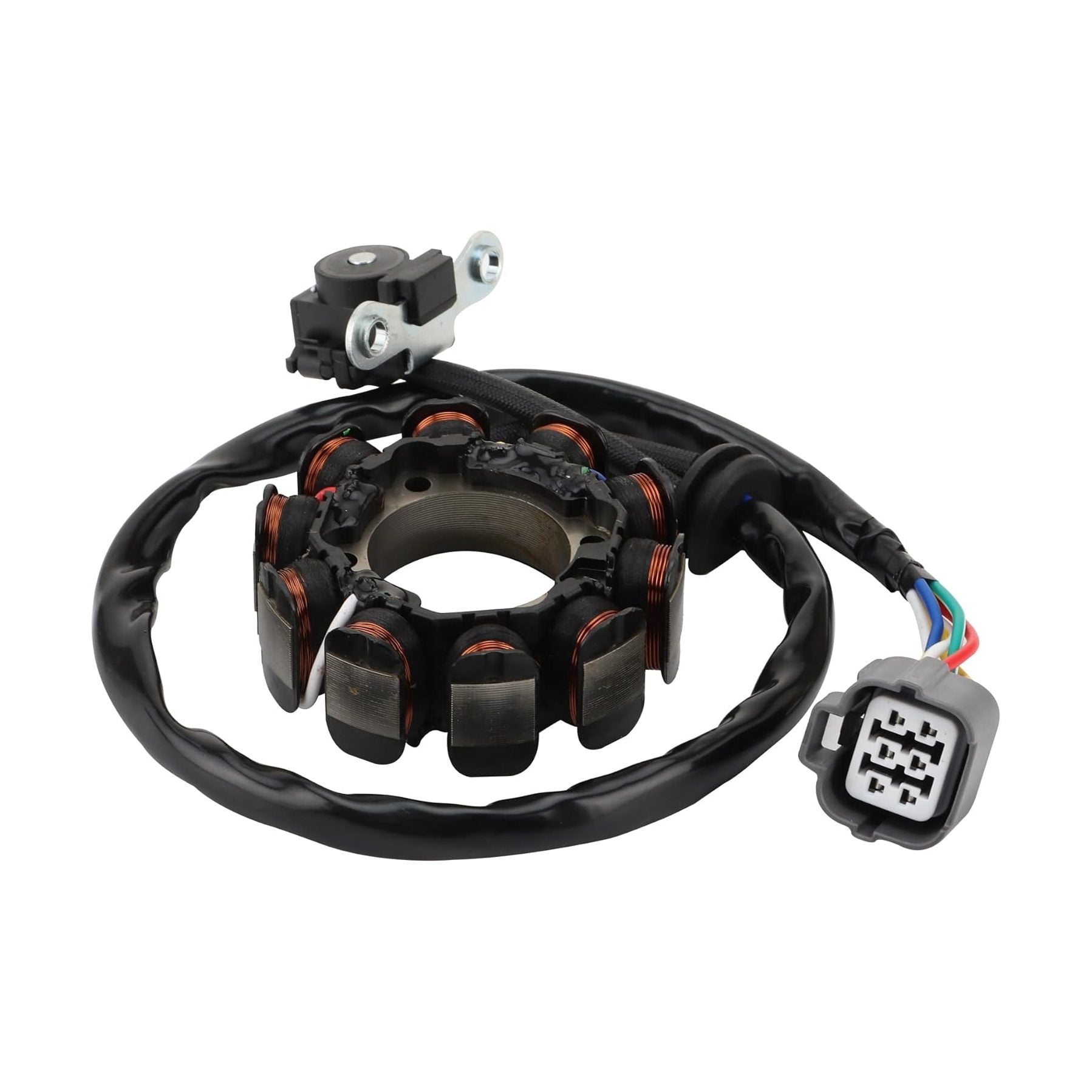

Magneto Generator Stator Coil for Kawasaki KLX450R (2008–2019)
Restore your machine’s power and ignition reliability. This premium aftermarket Magneto Stator is a precision replacement for the Kawasaki 21003-0070 and 21003-0090 units. Specifically designed for the KLX450R series, it delivers the strong and stable ignition energy required for peak performance, ensuring your bike starts reliably and maintains a consistent charge.

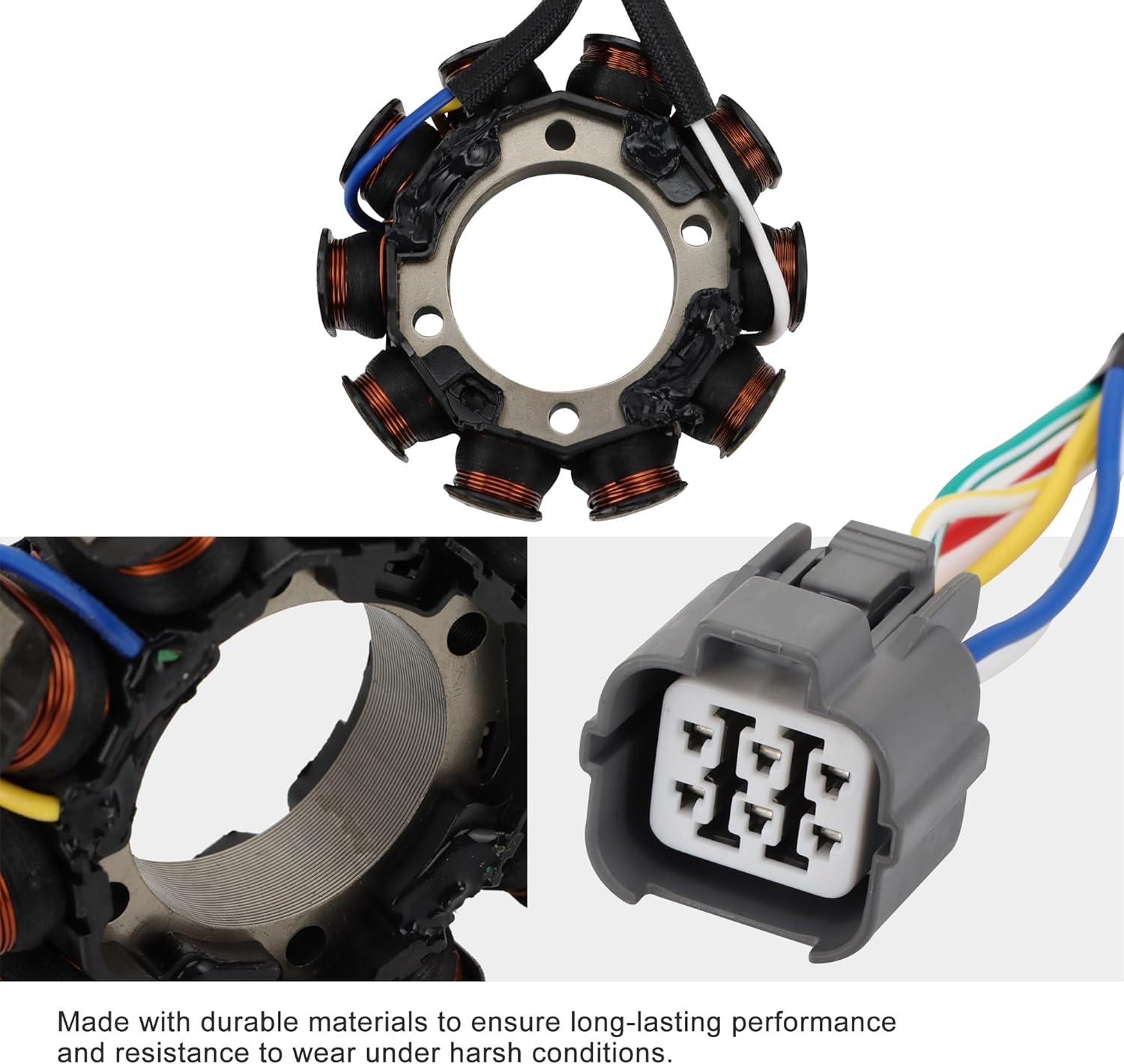

Manufactured with highest-grade lamination materials and advanced copper windings, this stator is built to thrive in high-heat and high-vibration off-road environments. Its plug-and-play design includes the correct 6-pin connector and rubber grommet, allowing for a seamless installation that matches your factory wiring exactly.
Product Compatibility
| Make | Model | Years | Fitment Details |
| Kawasaki | KLX450R | 2008–2009 | All Models (KLX450A) |
| Kawasaki | KLX450R | 2012–2019 | All Models (KLX450A) |
Key Technical Specs:
- OEM Part Numbers: 21003-0070 / 21003-0090
- Configuration: 10-Pole Stator with Pickup Pulsar Coil
- Wiring: 6-Wire, 1-Plug (6-Pin) configuration
- Installation: Direct bolt-on; "plug-and-play" fitment
Why Choose This Stator?
- Stable Power Delivery: Engineered to provide a consistent electrical output, reducing the risk of sputtering or battery drain during long rides.
- Extreme Heat Resistance: Features high-quality insulation that withstands the elevated temperatures of hard off-road use.
- Tested Quality: Every unit undergoes rigorous quality testing to ensure maximum wear resistance and long-term durability.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Kawasaki KLX450R (2008-2019). Listed year information includes 2008–2019, 2008–2009, 2012–2019, 2008, 2019. It is best matched to original part number(s) 21003-0070, 21003-0090, 2008-2019. Key physical/spec details from the product data include Wiring: 6-Wire, 1-Plug (6-Pin) configuration. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 21003-0070, 21003-0090, 2008-2019 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki KLX450R models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21003-0070, 21003-0090, 2008-2019, treat the fitment as unconfirmed. Model years outside 2008–2019, 2008–2009, 2012–2019, 2008, 2019 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21003-0070, 21003-0090, 2008-2019. Recheck listed specs such as Wiring: 6-Wire, 1-Plug (6-Pin) configuration. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
