Magneto Stator Coil for Kawasaki Ninja 250SL Z250SL BX250 (2014-2017) | 21003-0141
Magneto Stator Coil for Kawasaki Ninja 250SL Z250SL BX250 (2014-2017) | 21003-0141
Couldn't load pickup availability
Magneto Generator Stator Coil for Kawasaki Ninja 250SL & Z250SL (2014–2017)
Restore your Kawasaki’s electrical reliability. This premium aftermarket Magneto Stator is a direct "plug-and-play" replacement for the Kawasaki 21003-0141 factory unit. Specifically engineered for the 250cc single-cylinder series, it ensures a consistent electrical output to support the ignition system, battery charging, and critical ABS sensors.

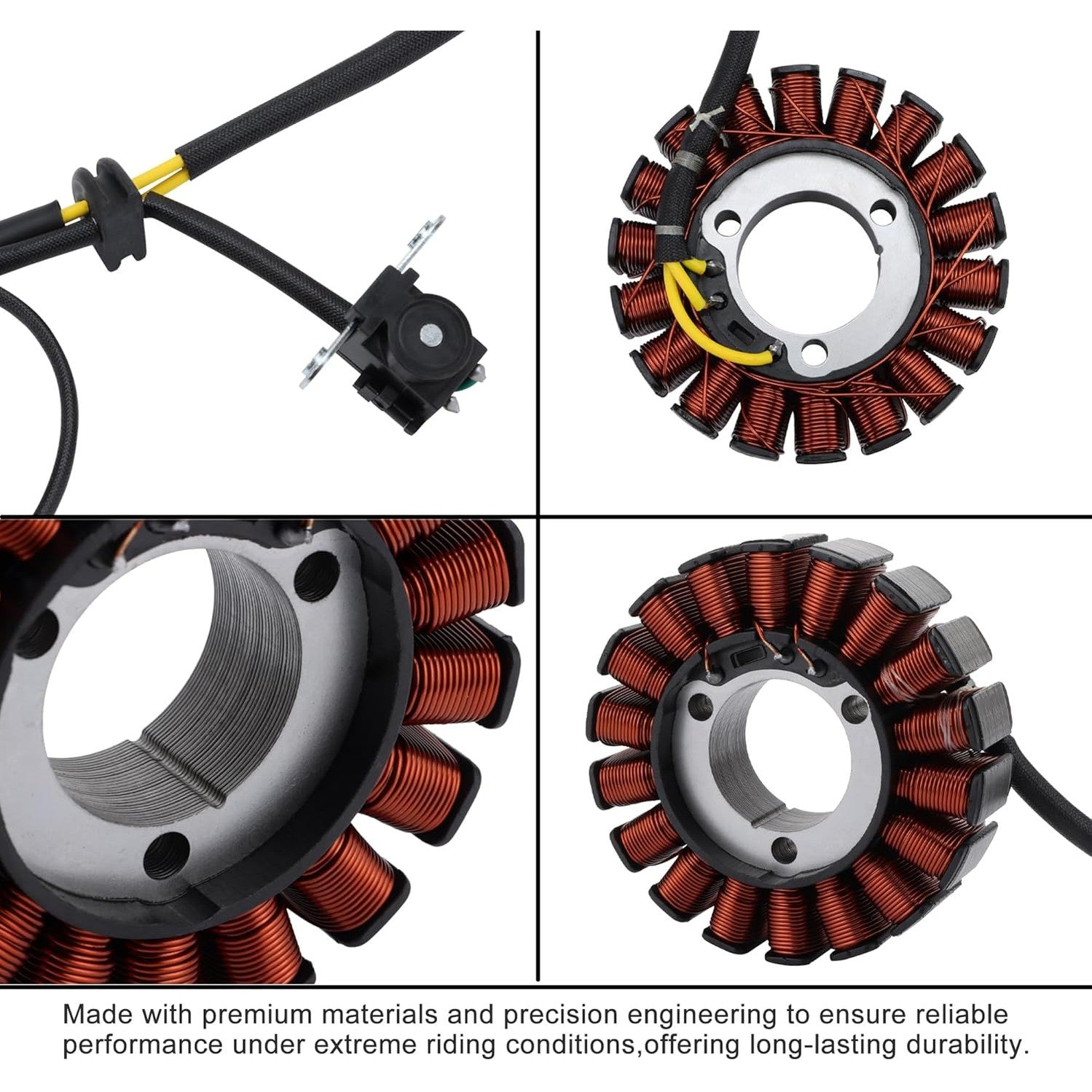

Constructed with highest-grade copper windings (heat-resistant up to 200°C) and premium lamination materials, this stator is built to withstand high-vibration and high-heat environments. Its corrosion-resistant housing protects against moisture and oil, preventing the common "burnt stator" failures seen in older units.
| Make | Model | Years | Fitment Details |

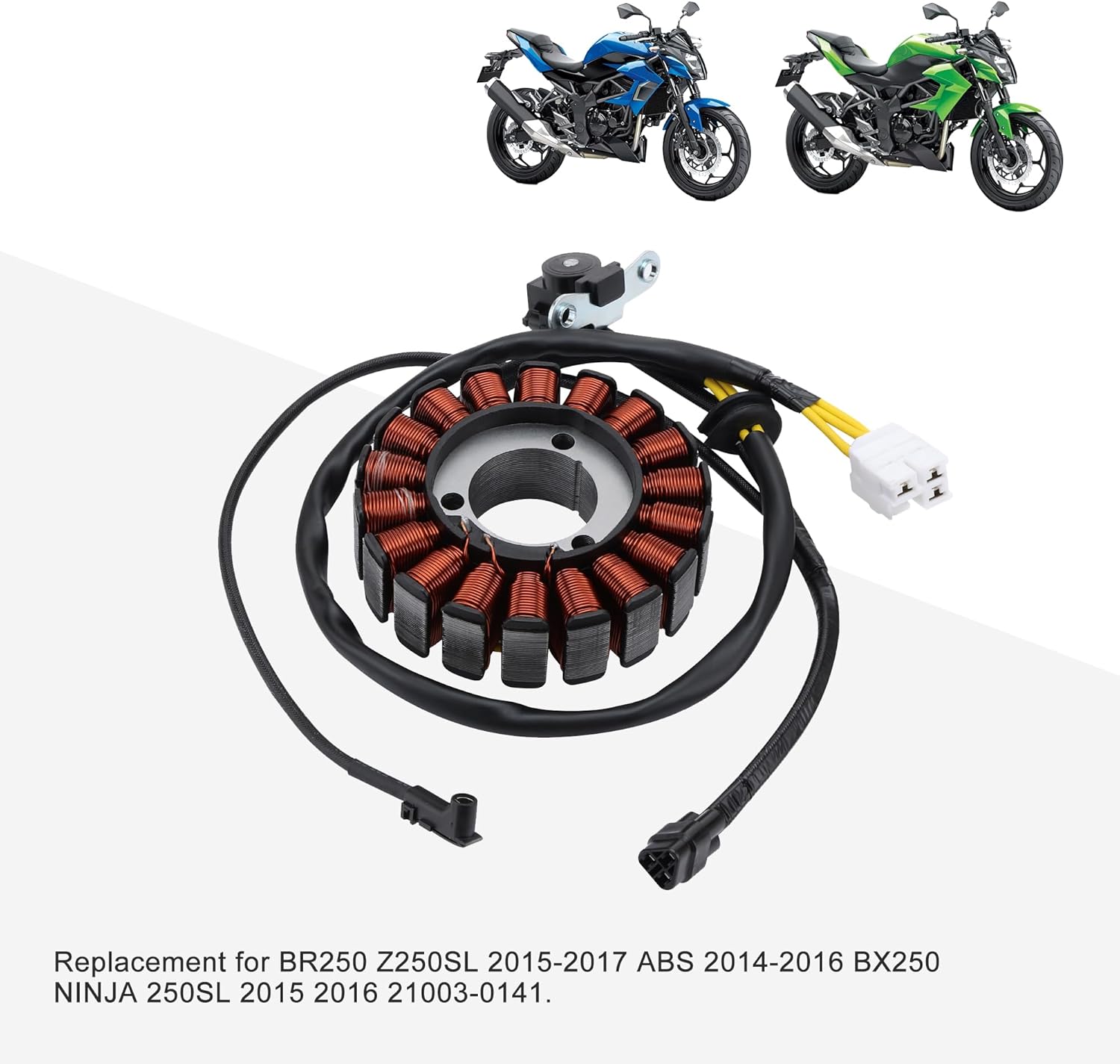

| Kawasaki | Ninja 250SL (BX250) | 2015–2016 | Standard & ABS Models |
| Kawasaki | Z250SL (BR250) | 2014–2017 | Standard & ABS Models |
Key Technical Specs:
- OEM Reference: 21003-0141

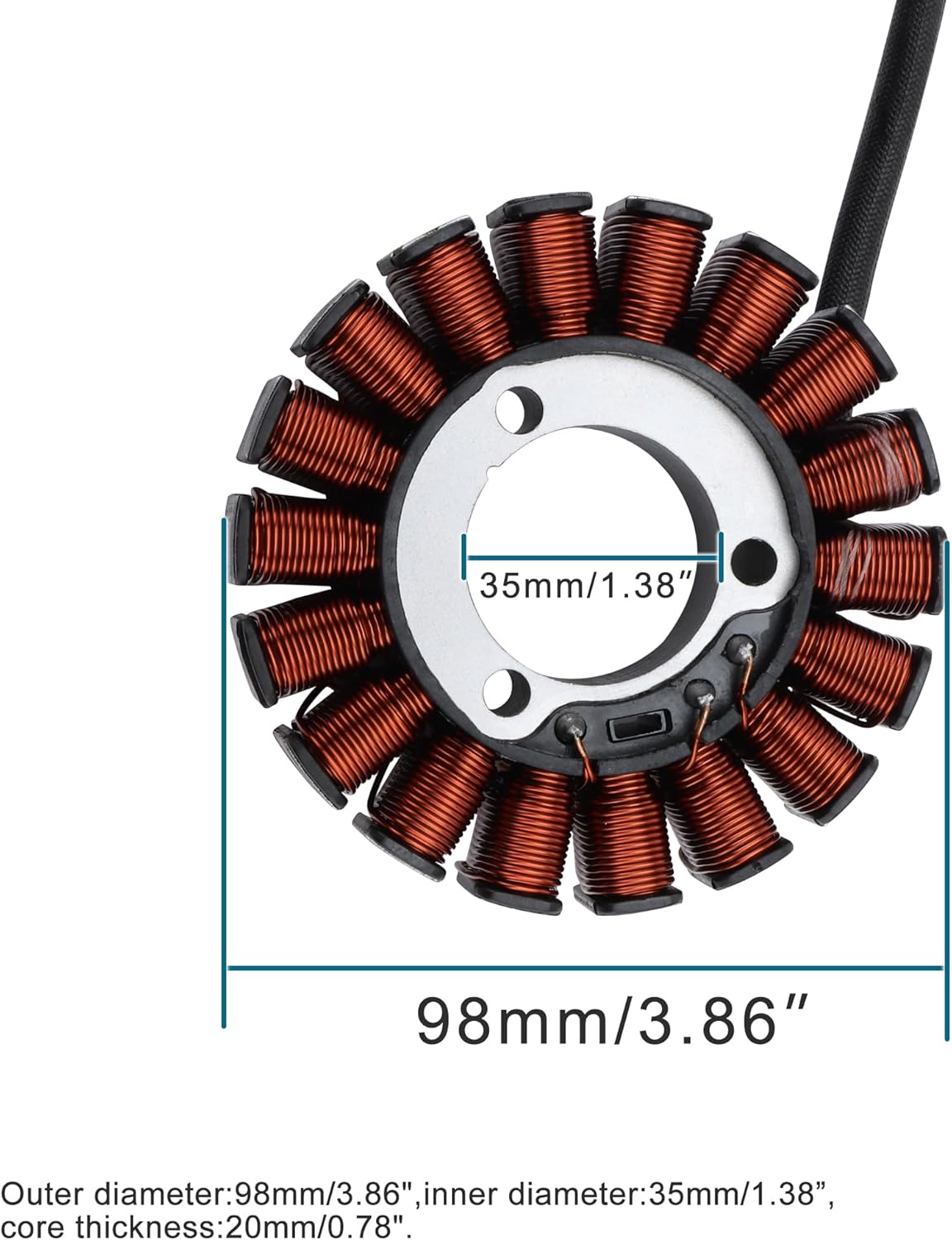

- Outer Diameter: 98mm (3.86")
- Inner Diameter: 34.3mm (1.35")

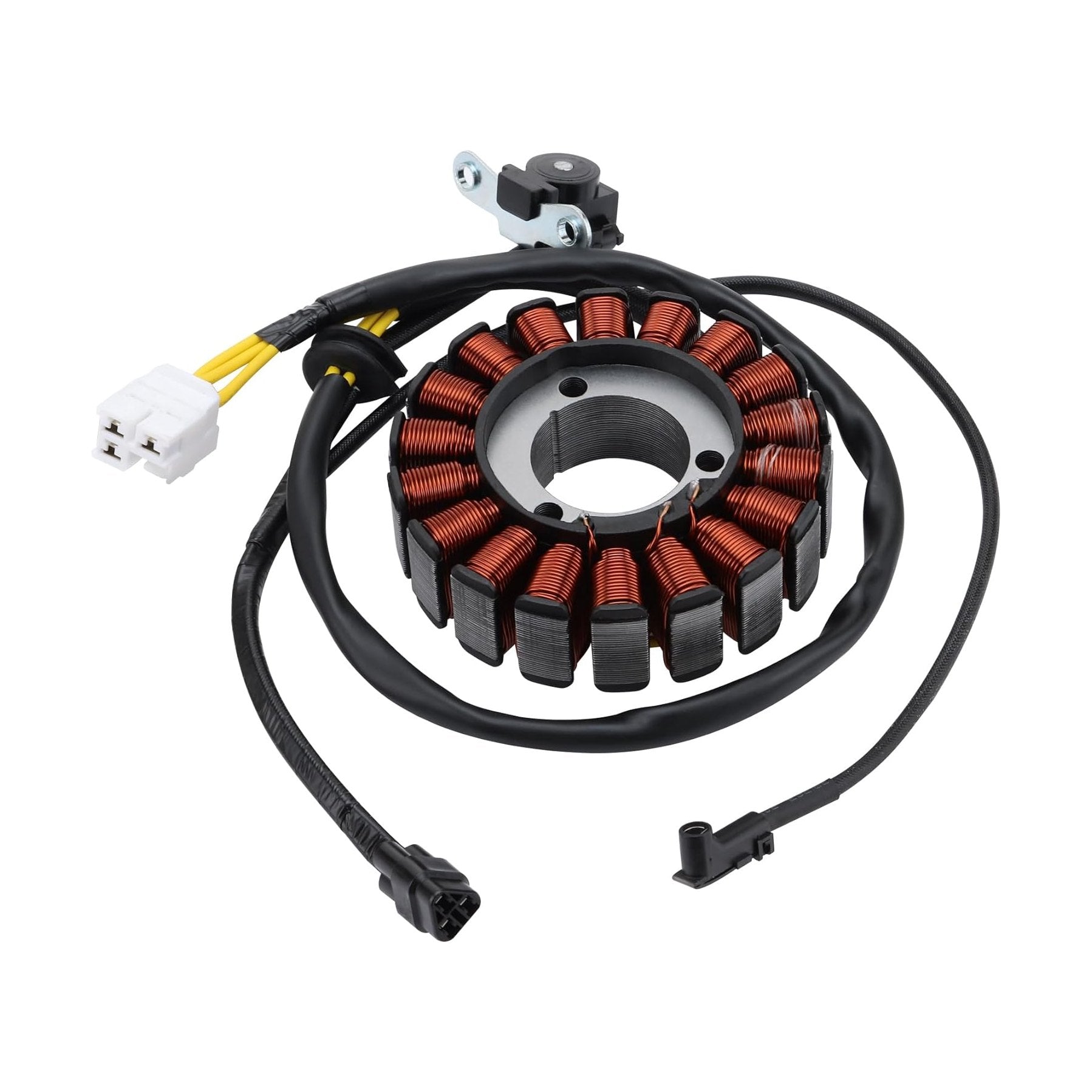

- Configuration: 18-Pole design with pick-up pulsar coil included
Why Choose This Replacement?
- No Modification Required: Designed as a direct fit to match factory mounting points and electrical connectors.
- Stable Power Output: Improves ignition efficiency and engine longevity by delivering a smooth current at all RPM ranges.
- Extreme Heat Resistance: Features specialized insulation to prevent electrical short-circuiting under high engine temperatures.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Kawasaki Ninja 250SL Z250SL BX250 (2014-2017). Listed year information includes 2014–2017, 2015–2016, 2014, 2017, 2015. It is best matched to original part number(s) 21003-0141, 2014-2017. Key physical/spec details from the product data include Outer Diameter: 98mm (3.86"), Inner Diameter: 34.3mm (1.35"), 250cc. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 21003-0141, 2014-2017 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki BX250 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21003-0141, 2014-2017, treat the fitment as unconfirmed. Model years outside 2014–2017, 2015–2016, 2014, 2017, 2015 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21003-0141, 2014-2017. Recheck listed specs such as Outer Diameter: 98mm (3.86"), Inner Diameter: 34.3mm (1.35"), 250cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
