Magneto Stator Coil for Kawasaki Ninja 300 EX300 & Z300 (2013-2017) | 21003-0128
Magneto Stator Coil for Kawasaki Ninja 300 EX300 & Z300 (2013-2017) | 21003-0128
Couldn't load pickup availability

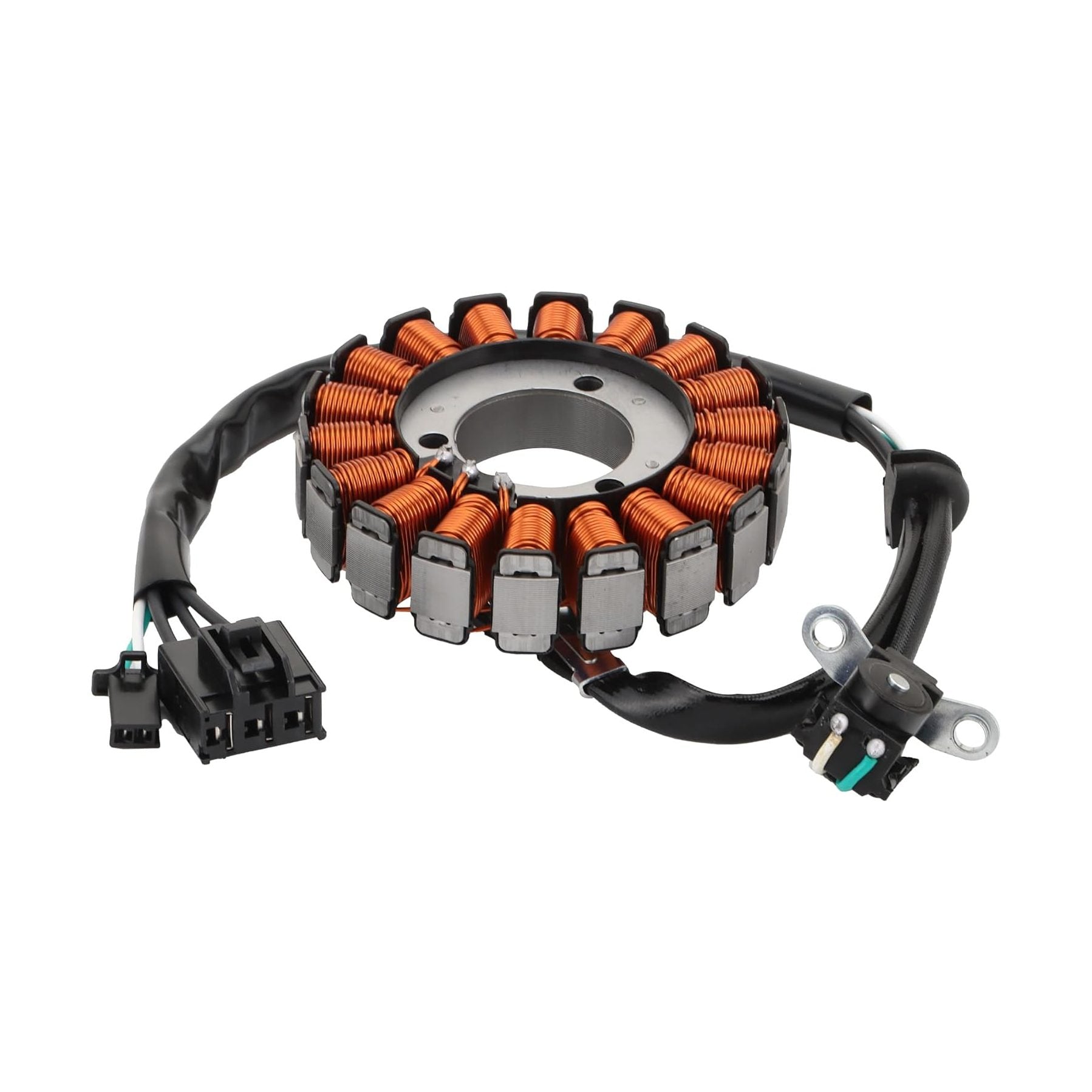

Magneto Generator Stator Coil for Kawasaki Ninja 300 & Z-Series (2013–2017)
Restore your Kawasaki’s charging system performance. This premium aftermarket Magneto Stator is a direct "plug-and-play" replacement for the Kawasaki 21003-0128 factory unit. Specifically engineered for the 300cc parallel-twin engine, it provides the stable electrical output required for consistent ignition and reliable battery charging in both standard and ABS models.
Constructed with highest-grade copper windings (heat-resistant up to 200°C) and premium lamination materials, this stator is designed to maintain stable performance in harsh environments. The precise manufacturing process ensures maximum durability and reliability, effectively prolonging the service life of your motorcycle's electrical system and reducing the risk of roadside failures.
Product Compatibility
| Make | Model | Years | Fitment Details |
| Kawasaki | Ninja 300 (EX300) | 2013–2017 | All Models (Standard & ABS) |
| Kawasaki | Ninja 250R (EX250) | 2013–2017 | New Gen Parallel-Twin |
| Kawasaki | Z300 (ER300) | 2015–2018 | Standard & ABS |
| Kawasaki | Z250 (ER250) | 2013–2014 | Parallel-Twin |
Key Technical Specs:
- OEM Reference: 21003-0128

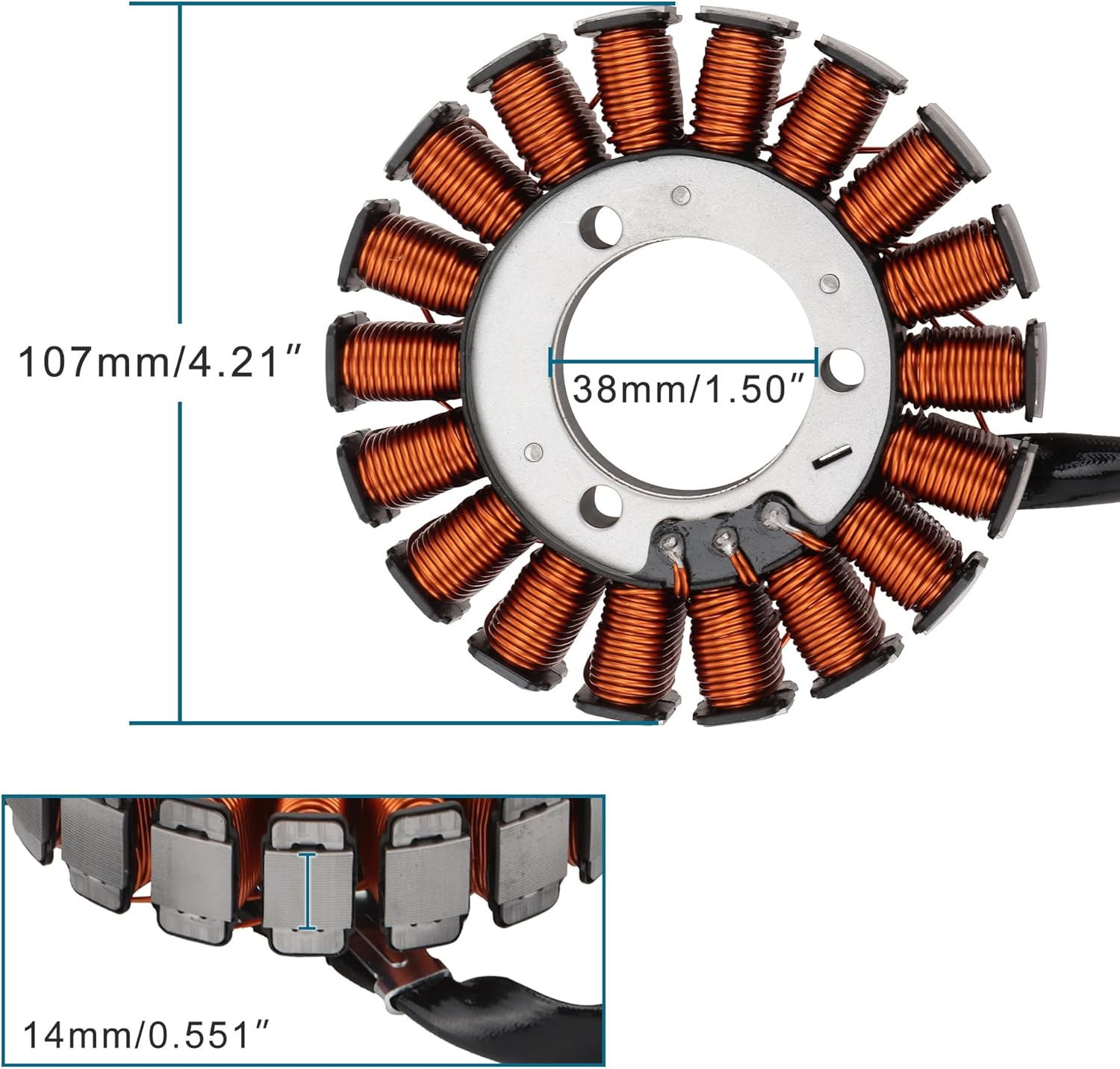

- Outer Diameter: 107mm (4.21")
- Inner Diameter: 38mm (1.50")
- Thickness: 14mm-16mm
- Pole Configuration: 18-Pole high-output design

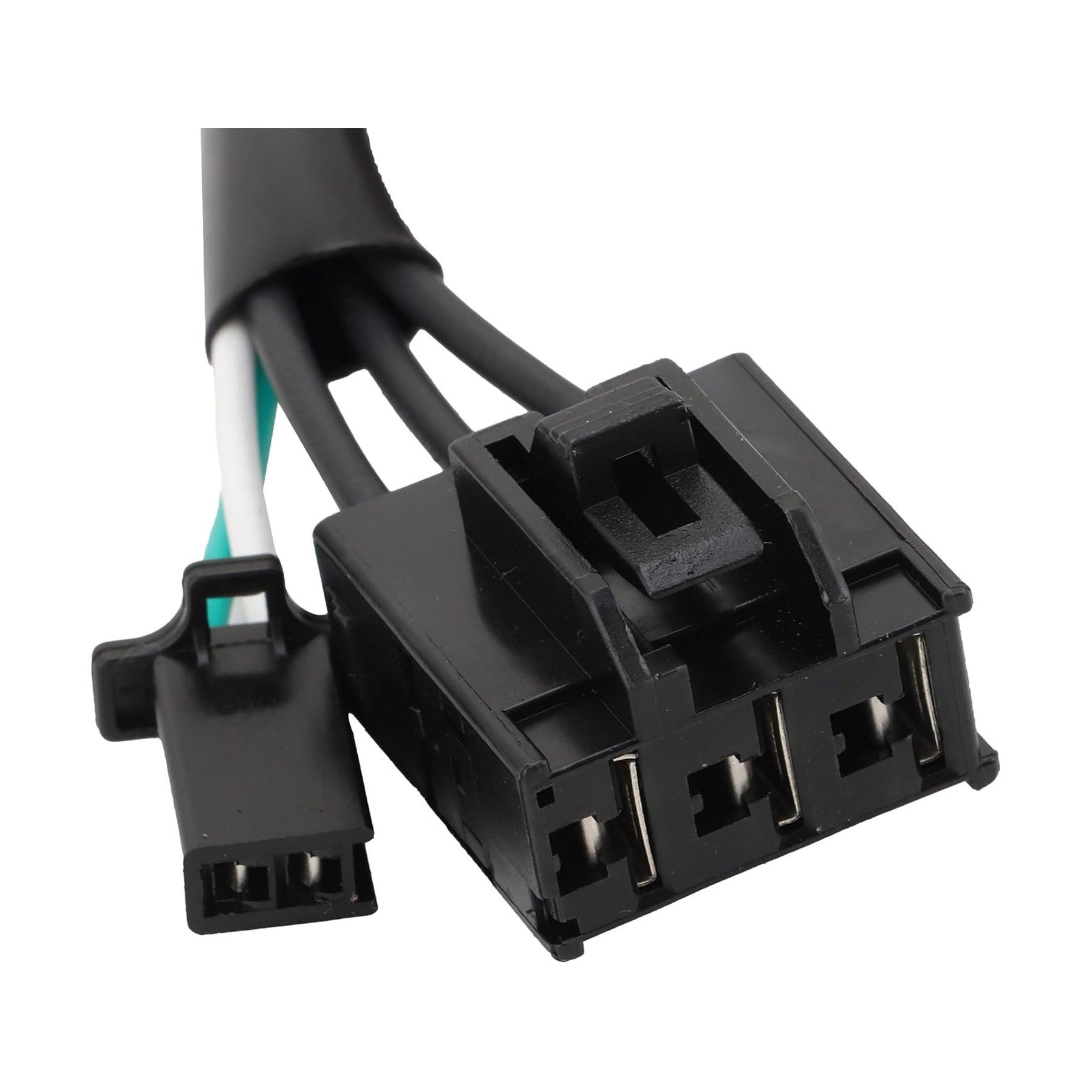

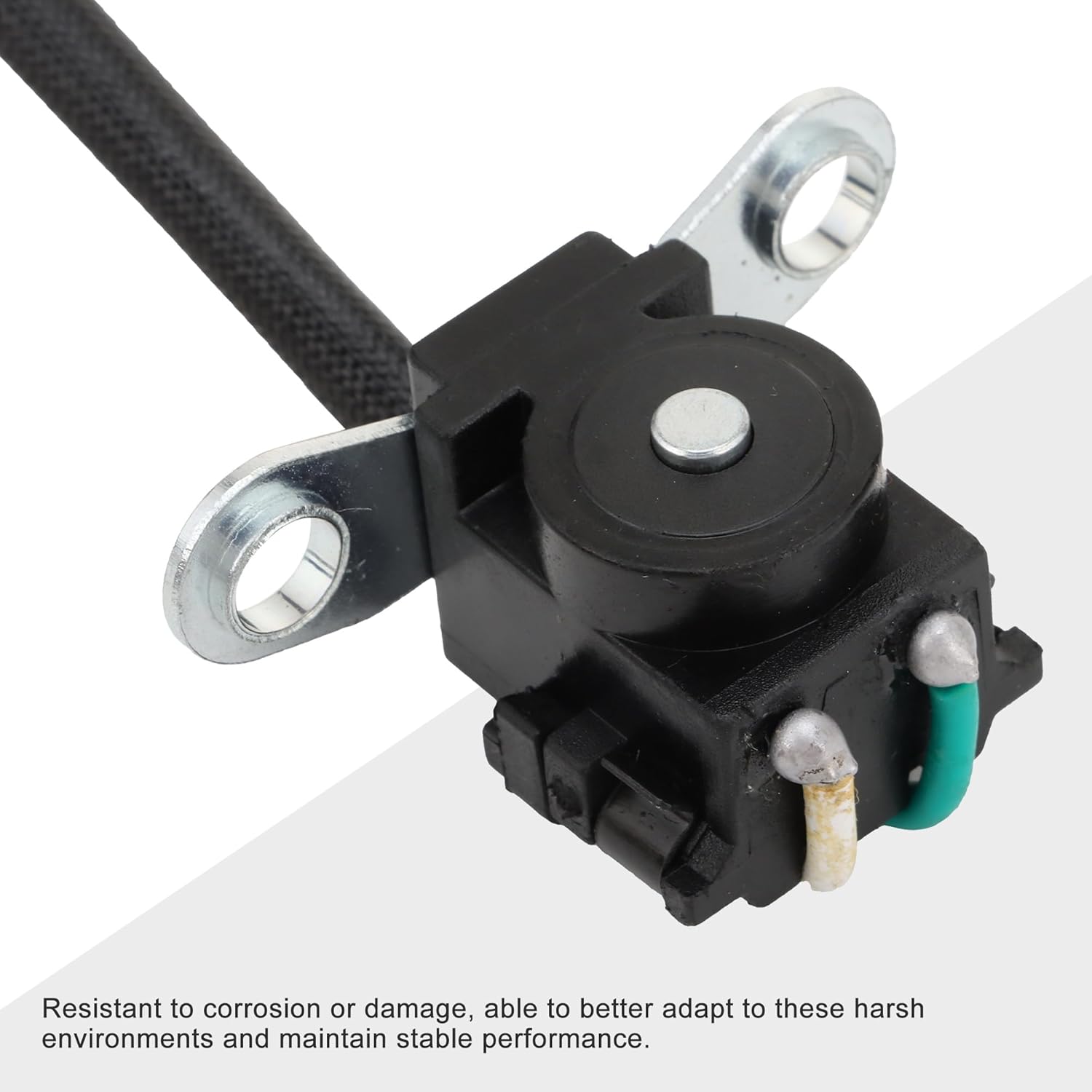

- Includes: Pick-up pulsar coil, rubber grommet, and connectors
Why Choose This Stator?
- Direct "Plug-and-Play": Designed to match factory mounting points and electrical connectors for a hassle-free installation.
- Stable Power Output: Ensures a steady flow of power to the ignition system, improving starting and throttle response.
- Enhanced Heat Resistance: Features specialized insulation to prevent electrical short-circuiting under high engine temperatures and load.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Kawasaki Ninja 300 EX300 & Z300 (2013-2017). Listed year information includes 2013–2017, 2015–2018, 2013–2014, 2013, 2017. It is best matched to original part number(s) 21003-0128, 2013-2017. Key physical/spec details from the product data include Outer Diameter: 107mm (4.21"), Inner Diameter: 38mm (1.50"), Thickness: 14mm-16mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 21003-0128, 2013-2017 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki EX300/Z300 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21003-0128, 2013-2017, treat the fitment as unconfirmed. Model years outside 2013–2017, 2015–2018, 2013–2014, 2013, 2017 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21003-0128, 2013-2017. Recheck listed specs such as Outer Diameter: 107mm (4.21"), Inner Diameter: 38mm (1.50"), Thickness: 14mm-16mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
