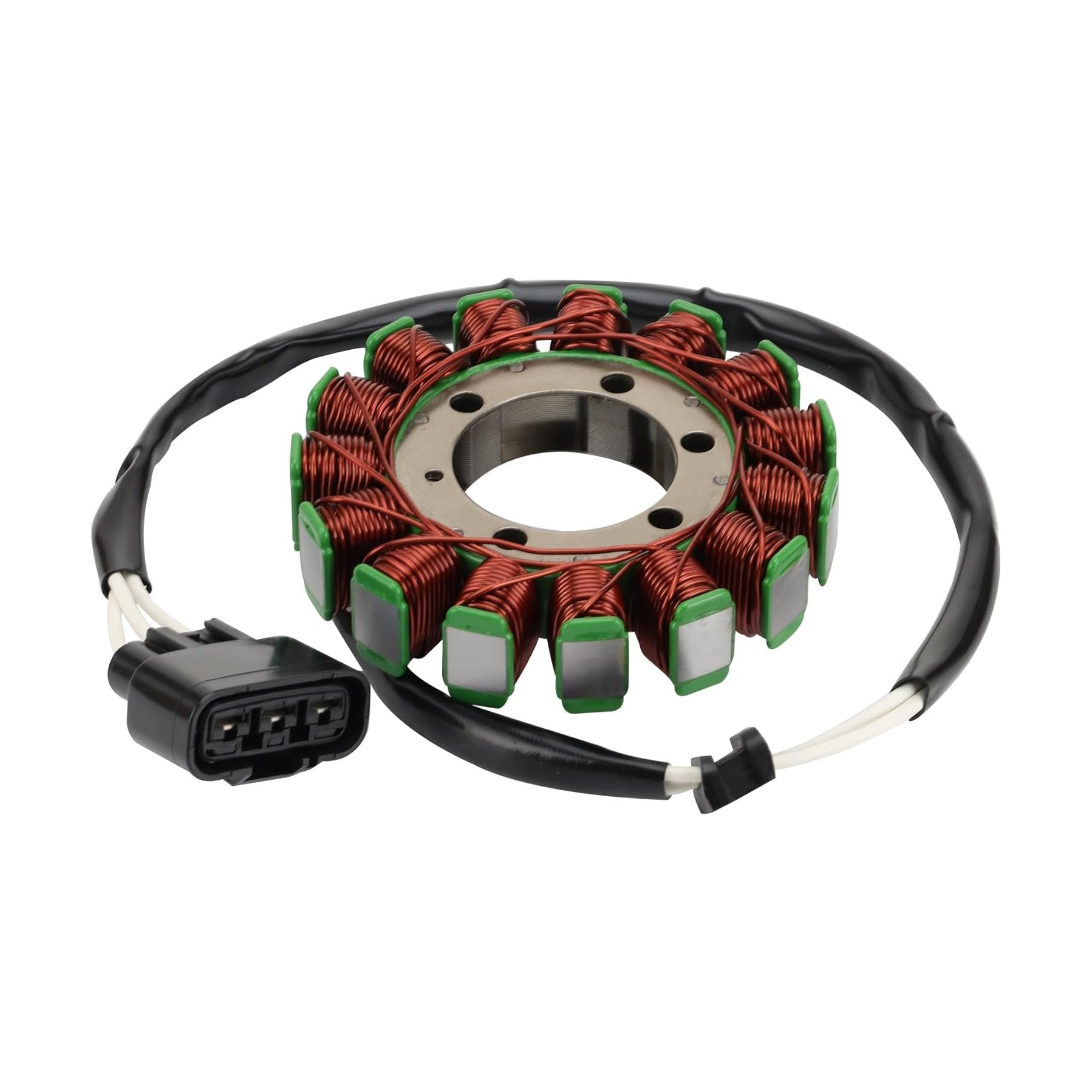

Magneto Stator Coil for Kawasaki Ninja ZX-10R & ZX-6R (2011-2017) | 21003-0107
Magneto Stator Coil for Kawasaki Ninja ZX-10R & ZX-6R (2011-2017) | 21003-0107
Couldn't load pickup availability
Product Overview
Restore peak electrical performance to your Kawasaki supersport with this high-output magneto stator. Designed for high-revving ZX-series engines, it delivers stable current for ignition, battery charging, and ABS systems—ensuring smooth power delivery on both track and street.
Built with premium copper windings and heat-resistant insulation rated up to 200°C, this stator is engineered to handle extreme temperatures and high-RPM conditions.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range |
|---|---|---|---|
| Kawasaki | Ninja ZX-10R | ZX1000 (Standard / ABS) | 2011–2017 |
| Kawasaki | Ninja ZX-6R | ZX636 | 2013–2017 |
| Kawasaki | Ninja ZX-6R 636 | KRT Edition / 30th Anniversary | 2013–2017 |
Specifications
| Specification | Details |
|---|---|
| OEM Reference | 21003-0107 |

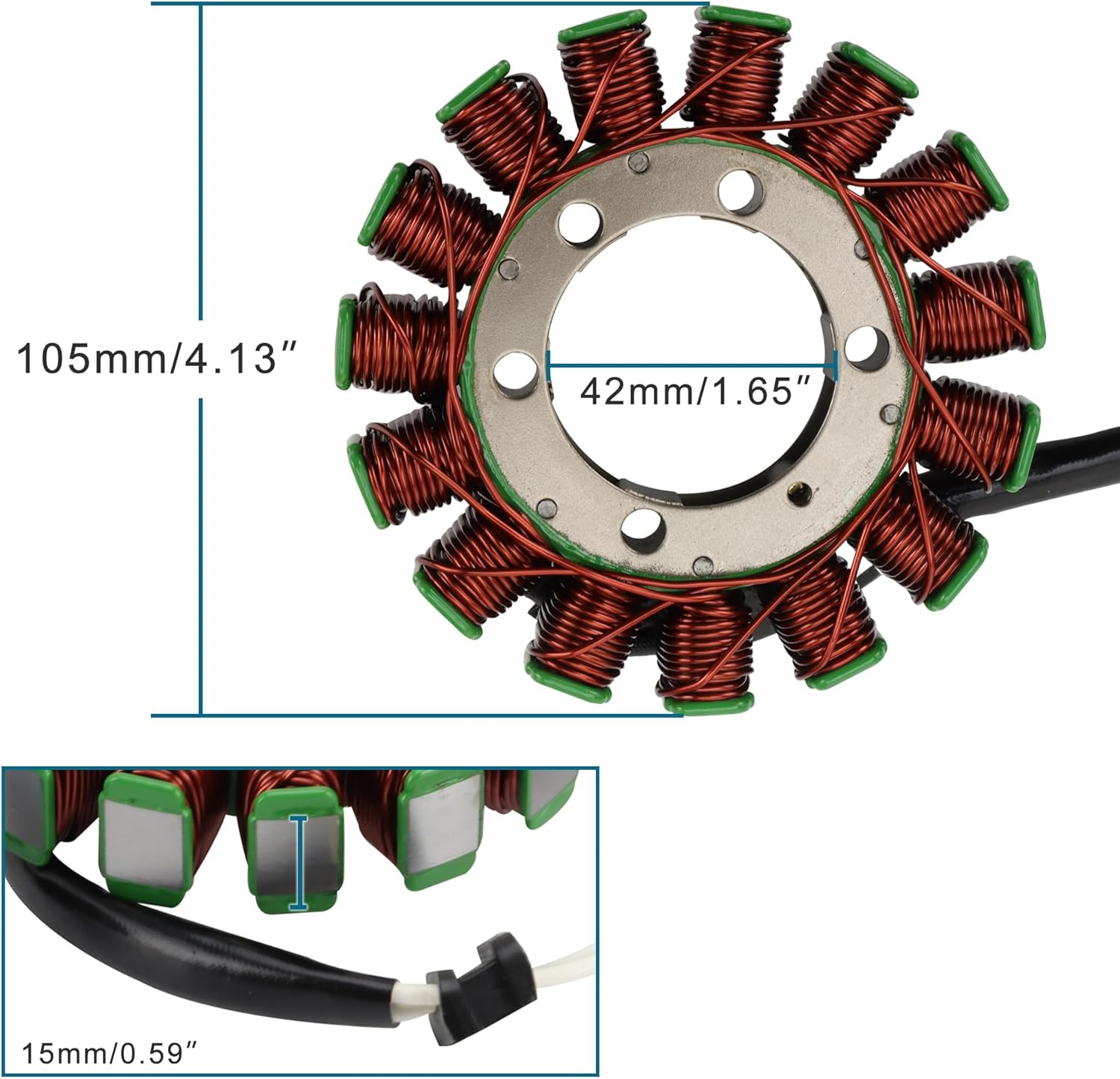

| Outer Diameter | 105 mm (4.1") |
| Inner Diameter | 42 mm (1.7") |
| Core Height | 15 mm (0.59") |
| Mounting Hole Distance | 46 mm (1.8") |
| Material | High-grade copper |
| Heat Resistance | Up to 200°C |
| Installation Type | Plug-and-play |
Key Features
- Designed for high-RPM supersport engines
- Stable output for ignition, charging, and ABS systems
- Heat-resistant construction up to 200°C
- Precision-wound coils for efficient power generation
- Direct OEM-fit for quick, no-mod installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Kawasaki; Ninja ZX-10R; ZX1000 (Standard / ABS); 2011–2017; Ninja ZX-6R; ZX636. It is best matched to original part number(s) 2011-2017, 21003-0107. Key physical/spec details from the product data include Outer Diameter: 105 mm (4.1"), Inner Diameter: 42 mm (1.7"), Core Height: 15 mm (0.59"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 2011-2017, 21003-0107 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki ZX1000/ZX636 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 2011-2017, 21003-0107, treat the fitment as unconfirmed. Model years outside 2011–2017, 2013–2017, 2011, 2017, 2013 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 2011-2017, 21003-0107. Recheck listed specs such as Outer Diameter: 105 mm (4.1"), Inner Diameter: 42 mm (1.7"), Core Height: 15 mm (0.59"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
