Magneto Stator Coil for Suzuki GN125 GS125 TU125 (1982-2001) | OEM 32101-05300
Magneto Stator Coil for Suzuki GN125 GS125 TU125 (1982-2001) | OEM 32101-05300
Couldn't load pickup availability
Magneto Generator Stator Coil for Suzuki GN125, GS125 & TU125 (1982–2001)
Restore your Suzuki's charging and ignition reliability. This premium aftermarket Magneto Stator is a direct "plug-and-play" replacement for the Suzuki 32101-05300 factory unit. Engineered specifically for the air-cooled 125cc Suzuki engine family, it ensures a consistent electrical output for stable ignition energy and reliable battery charging.

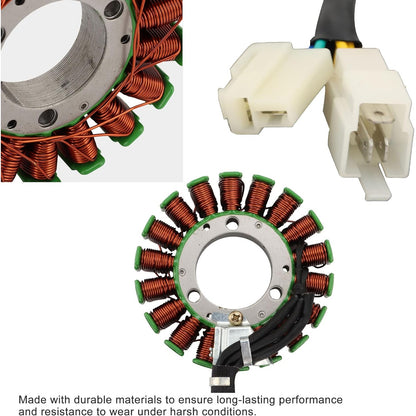

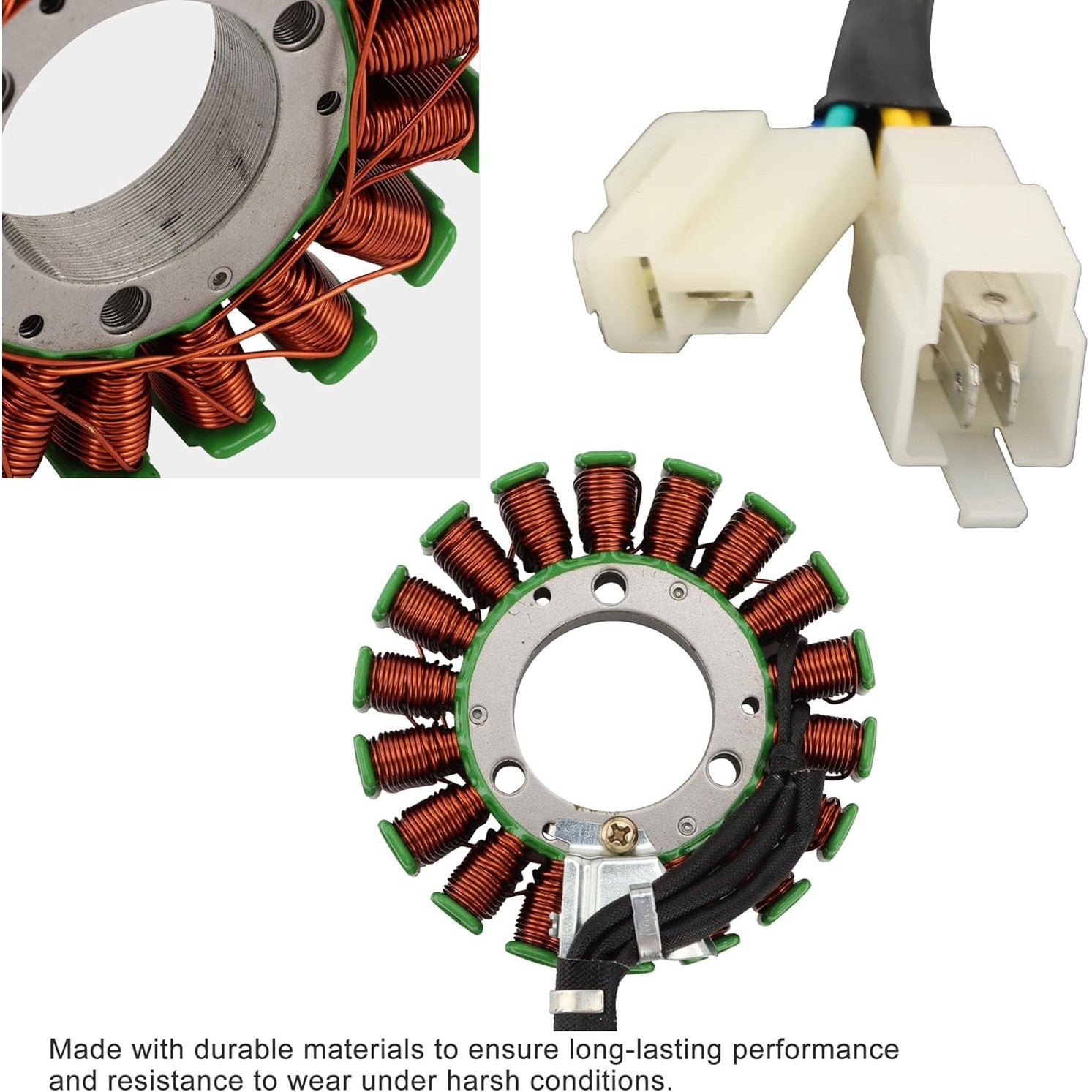

Constructed with high-quality copper wire and premium insulating materials, this stator is built to withstand the high-vibration and high-heat environments of daily street riding. The internally treated structure and high-grade lamination enable stable operation even in high-temperature environments, preventing the common electrical failures found in older motorcycles.
Product Compatibility

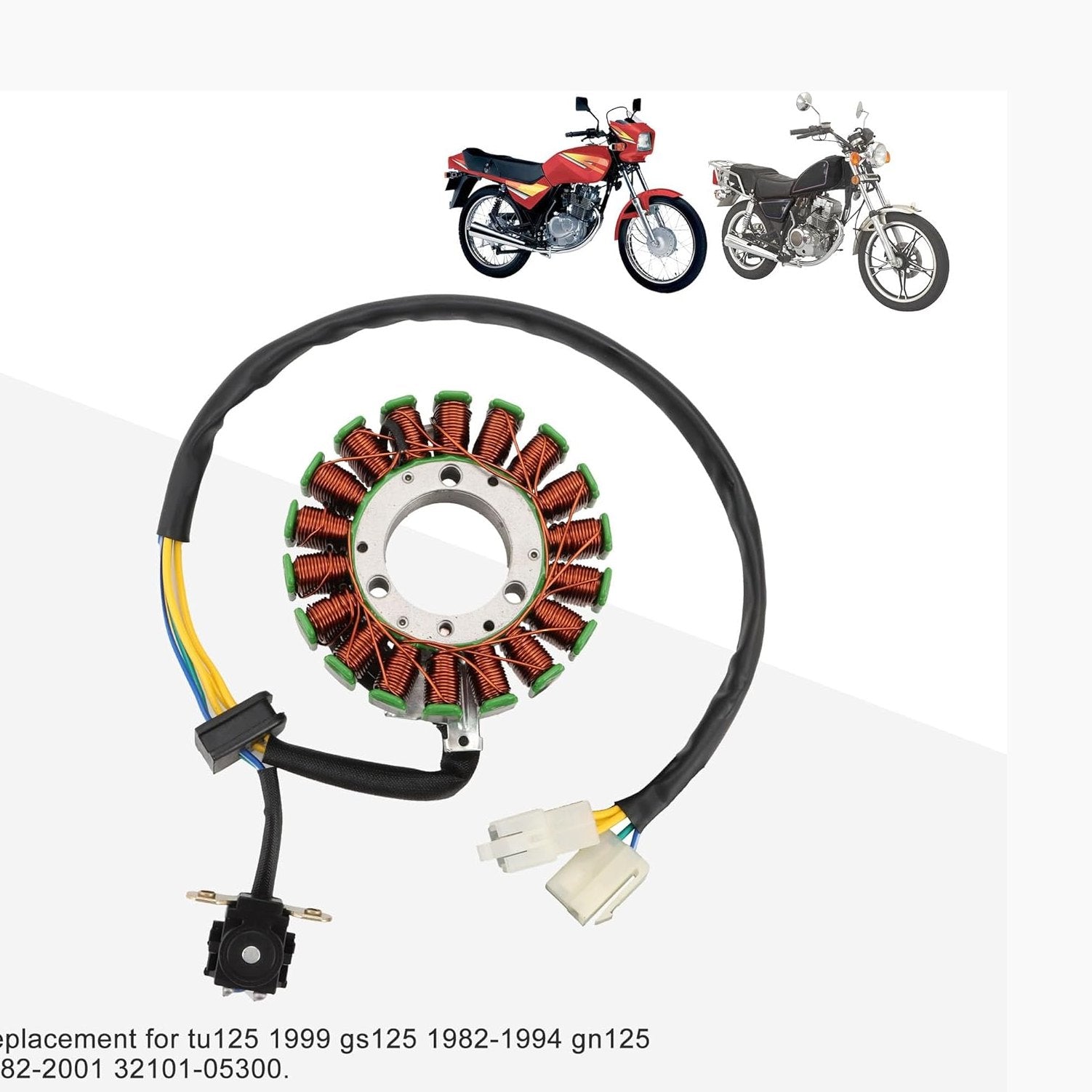

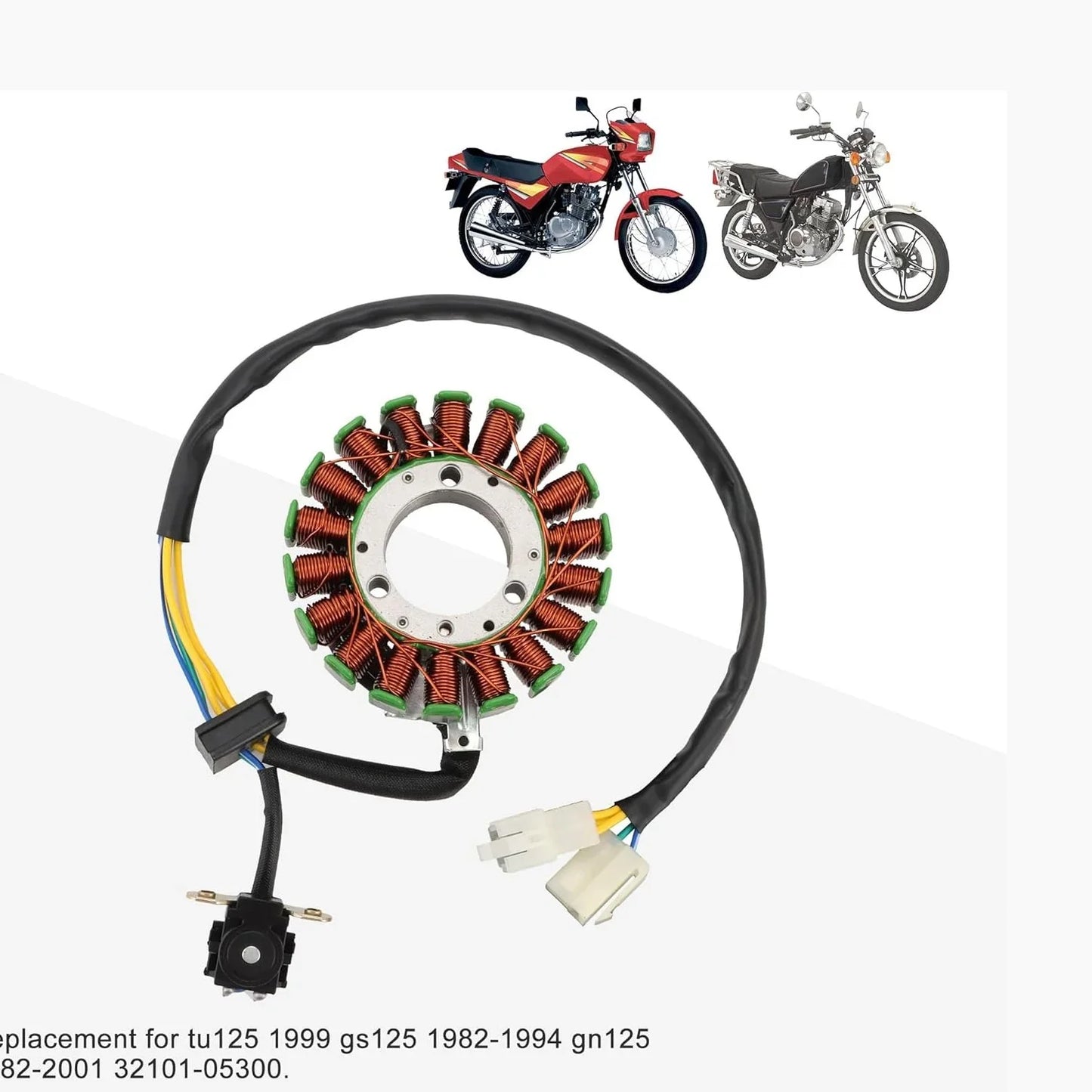

| Model | Year Range | Fitment Details |
| Suzuki GN125 / GN125E | 1982–2001 | All Classic Models |
| Suzuki GS125 / GS125E | 1982–1994 | All Early Models |
| Suzuki TU125 | 1999 | Single Year Production |
Key Technical Specs:

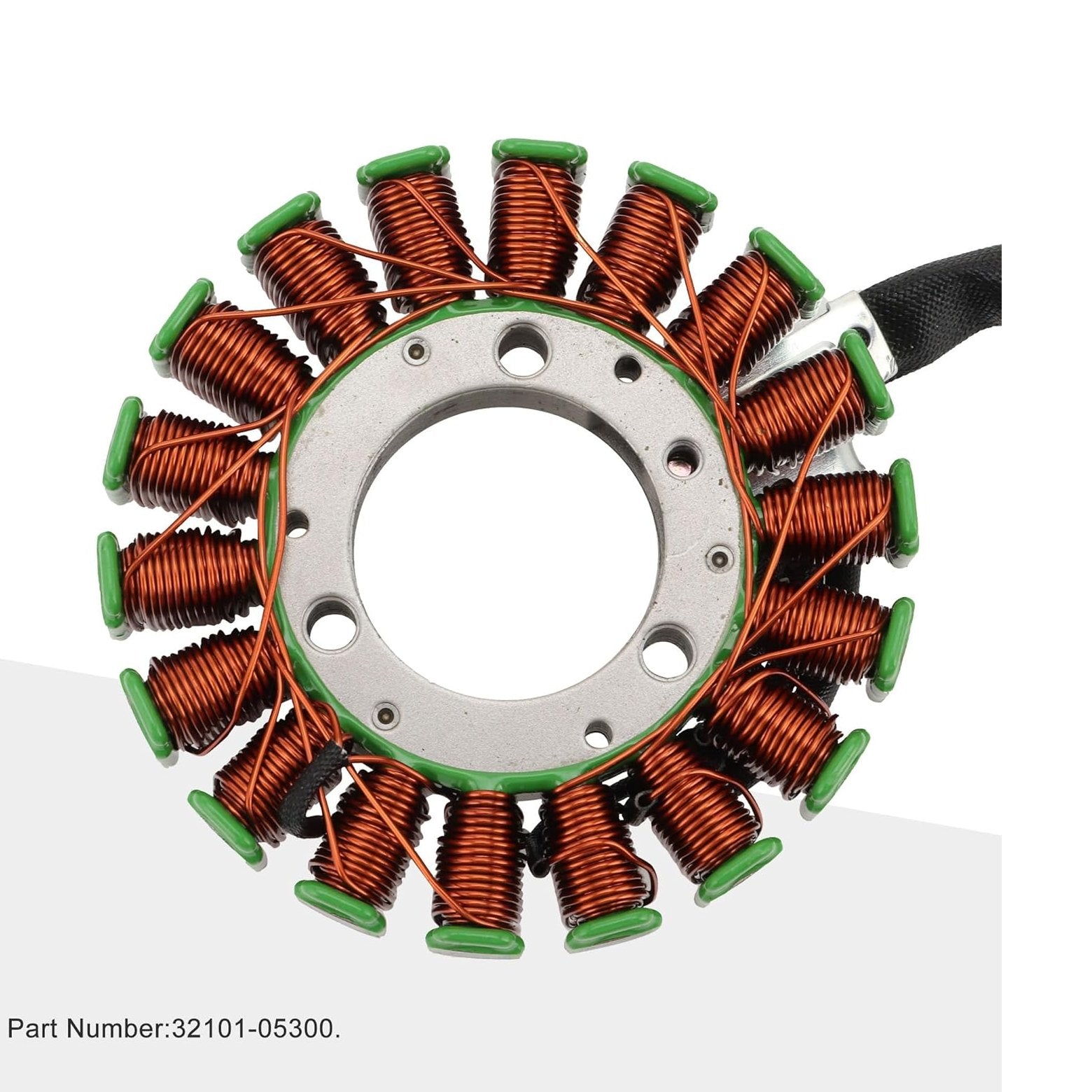

- OEM Reference: 32101-05300

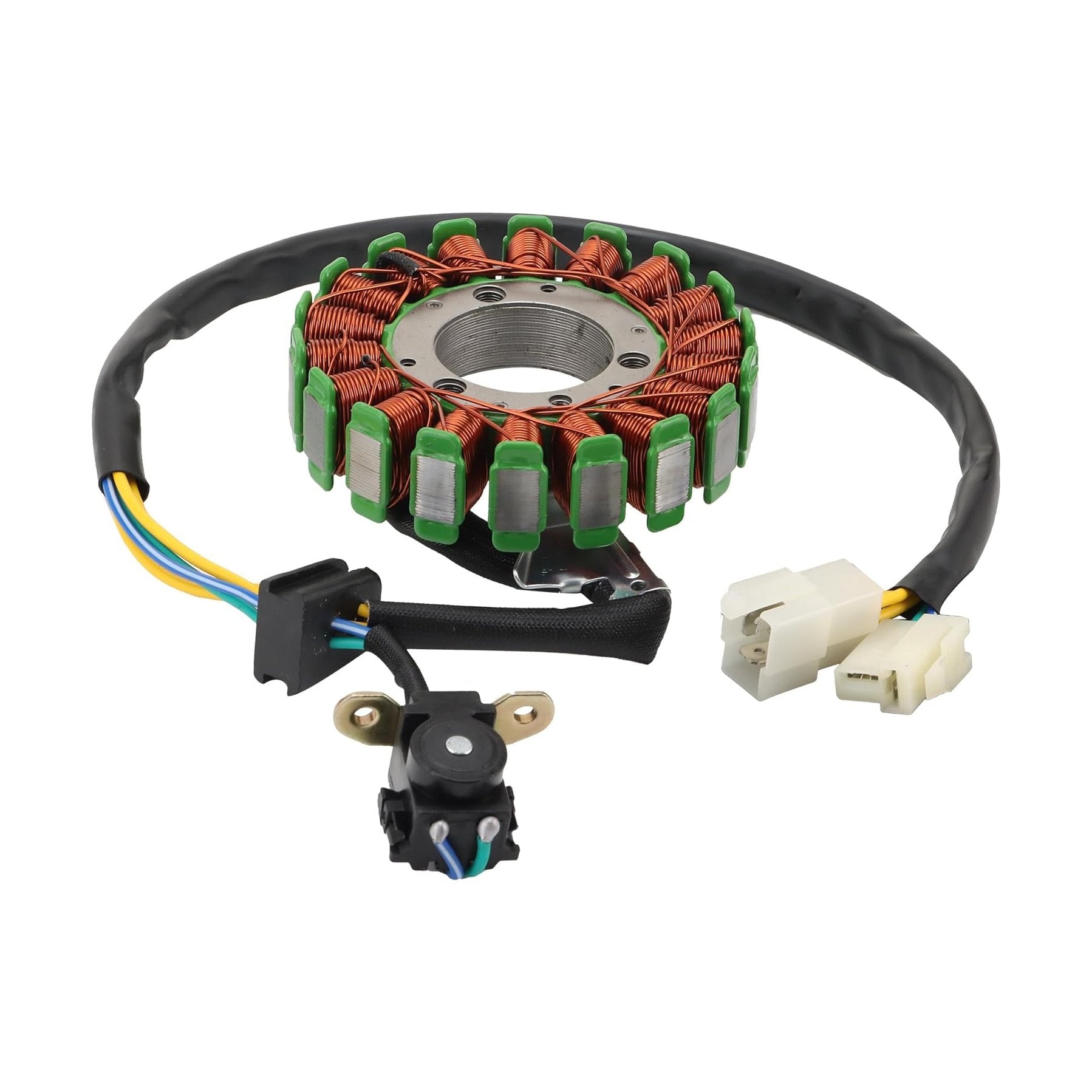

- Configuration: 5-Wire, 18-Pole design
- Voltage: 12V
- Materials: High-grade copper and magnetic conductive core
- Installation: Direct bolt-on; "plug-and-play" connectors included
Why Choose This Stator?
- Stable Power Output: Delivers a continuous current to protect your battery and ensure a strong, consistent spark for easier starting.
- Superior Durability: Features heat-resistant insulation and abrasion-resistant lead wires to prolong the life of your charging system.
- Easy Installation: Designed to match factory mounting locations and plug ends exactly, requiring no modifications to your original harness.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Fitment Details; Suzuki GN125 / GN125E; 1982–2001; All Classic Models; Suzuki GS125 / GS125E; 1982–1994; All Early Models. It is best matched to original part number(s) 32101-05300, 1982-2001. Key physical/spec details from the product data include Voltage: 12V, 125cc, 12V. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 32101-05300, 1982-2001 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki GN125/GS125/TU125/GN125E models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 32101-05300, 1982-2001, treat the fitment as unconfirmed. Model years outside 1982–2001, 1982–1994, 1982, 2001, 1994 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 32101-05300, 1982-2001. Recheck listed specs such as Voltage: 12V, 125cc, 12V. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
