Magneto Stator Coil for Suzuki RM125 (1986-1988) & RM250 (1986-1995)
Magneto Stator Coil for Suzuki RM125 (1986-1988) & RM250 (1986-1995)
Couldn't load pickup availability

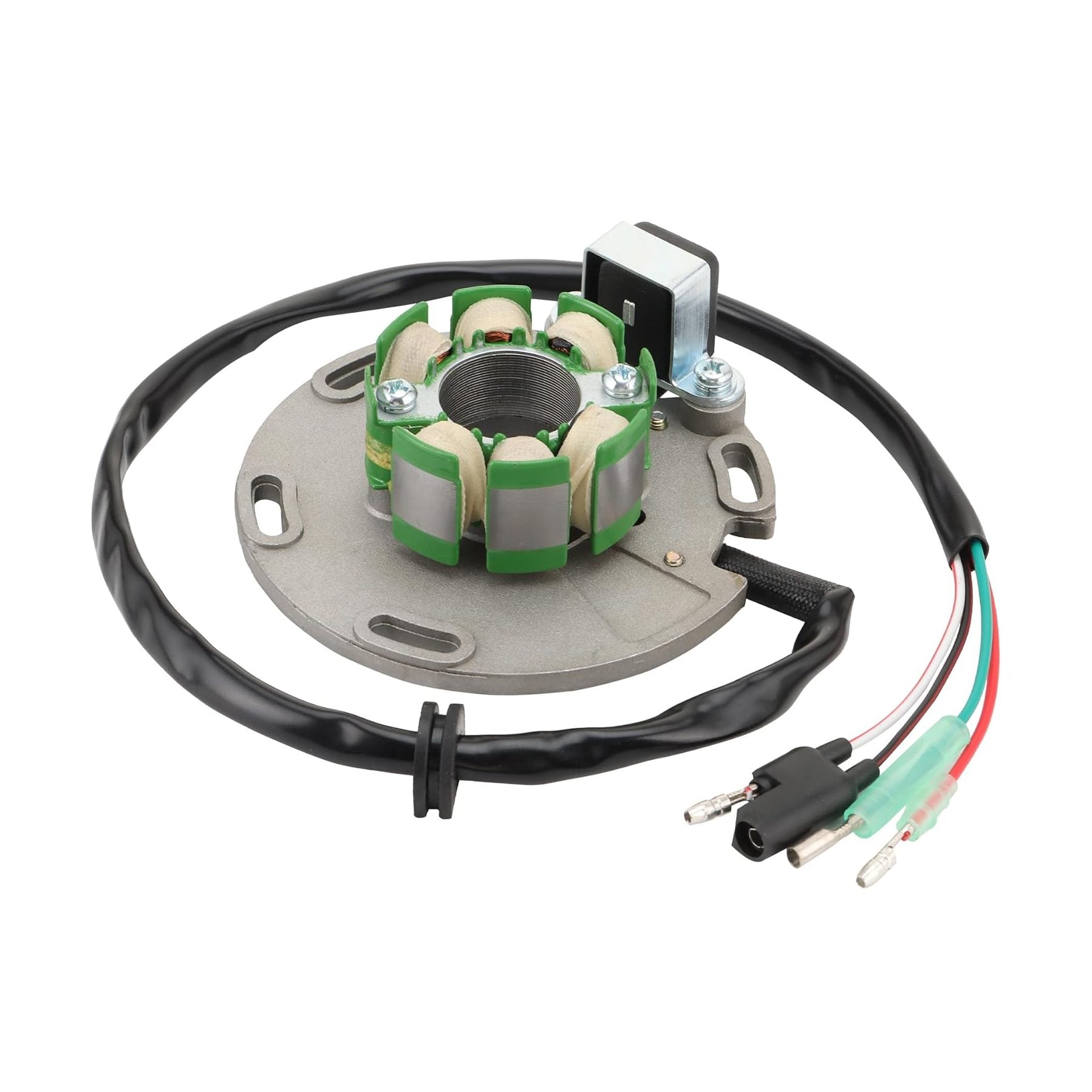

Magneto Stator Coil for Suzuki RM125 & RM250 (1986–1995)
Restore the spark to your vintage Suzuki. This GOOFIT Magneto Stator is a high-grade replacement specifically designed for the RM125 and RM250 series. Engineered to handle the high-RPM demands of 2-stroke motocross engines, it provides the stable electrical output required for consistent ignition and reliable performance on the track or trail.

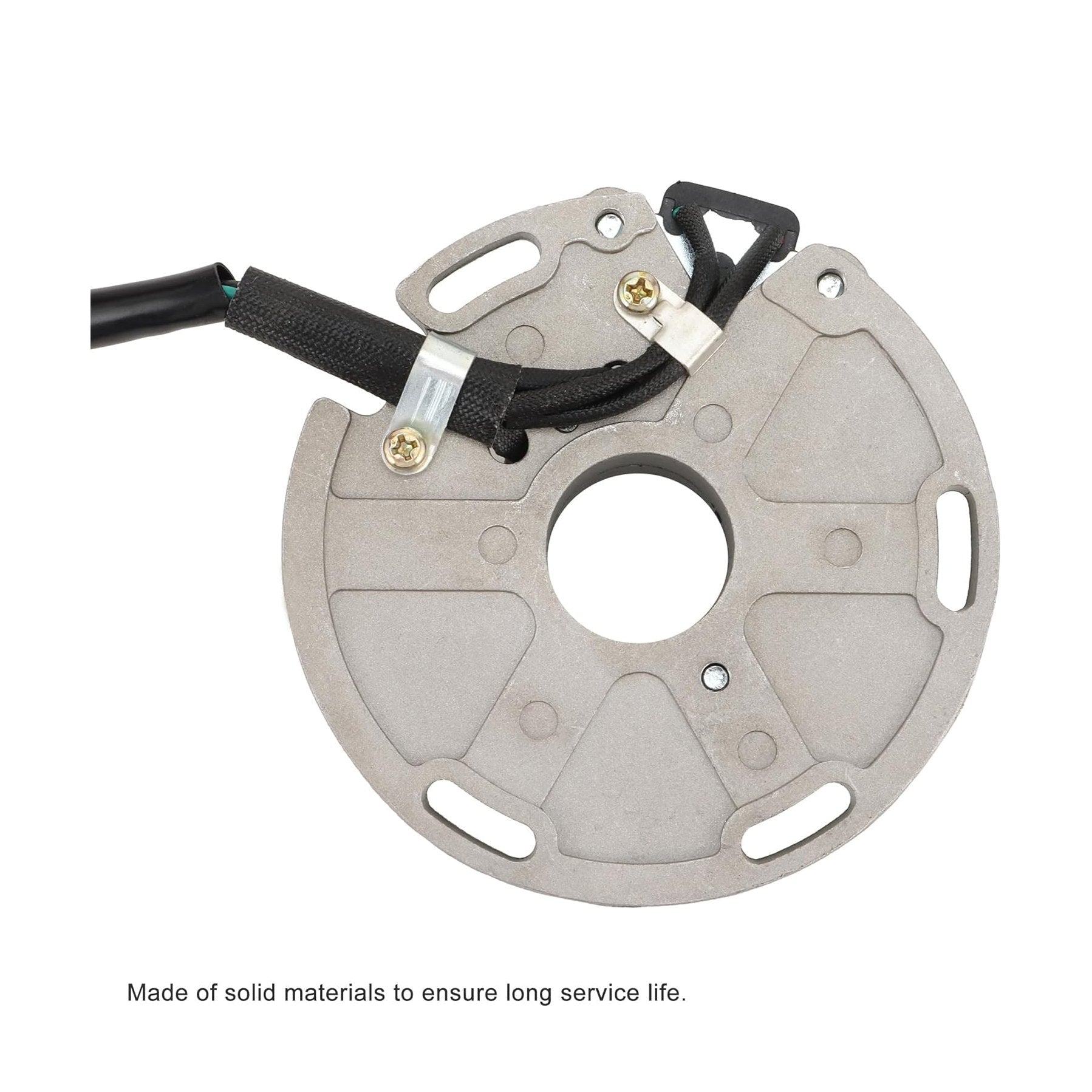

Built from solid, high-quality materials, this stator is designed for a long service life and resistance to the vibrations typical of older racing machines.
| Make | Model | Years |
| Suzuki | RM125 | 1986–1988 |
| Suzuki | RM250 | 1986–1995 |

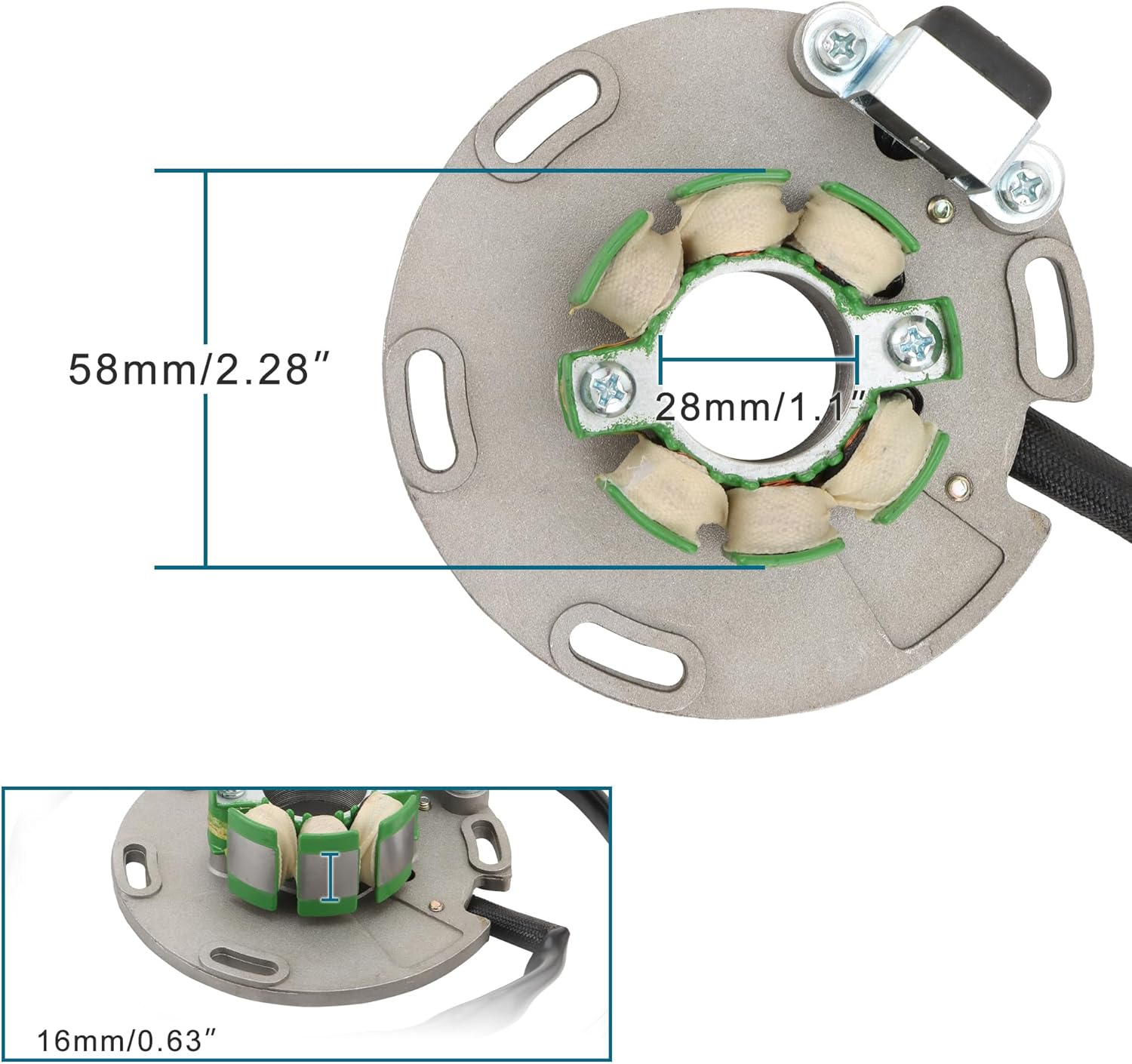

Key Technical Specs:
- Outer Diameter: 58mm (2.28")
- Inner Diameter: 28mm (1.10")
- Thickness: 16mm (0.63")
- Pole Count: 6-Pole Magneto
Why Choose This Replacement?
- Direct Fit: Engineered to match factory dimensions for a seamless installation.
- Durable Build: Constructed with high-grade copper windings and lamination for maximum heat resistance.
- Reliable Performance: Ensures a more powerful and stable spark compared to worn-out original units.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Suzuki RM125 (1986-1988) & RM250 (1986-1995). Listed year information includes 1986–1988, 1986–1995, 1986, 1988, 1995. It is best matched to original part number(s) 1986-1988, 1986-1995. Key physical/spec details from the product data include Outer Diameter: 58mm (2.28"), Inner Diameter: 28mm (1.10"), Thickness: 16mm (0.63"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 1986-1988, 1986-1995 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Suzuki RM125/RM250 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 1986-1988, 1986-1995, treat the fitment as unconfirmed. Model years outside 1986–1988, 1986–1995, 1986, 1988, 1995 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 1986-1988, 1986-1995. Recheck listed specs such as Outer Diameter: 58mm (2.28"), Inner Diameter: 28mm (1.10"), Thickness: 16mm (0.63"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
