Magneto Stator Coil for SYM Joymax 125 & GTS 125/200 | LM12W LN12W Series
Magneto Stator Coil for SYM Joymax 125 & GTS 125/200 | LM12W LN12W Series
Couldn't load pickup availability

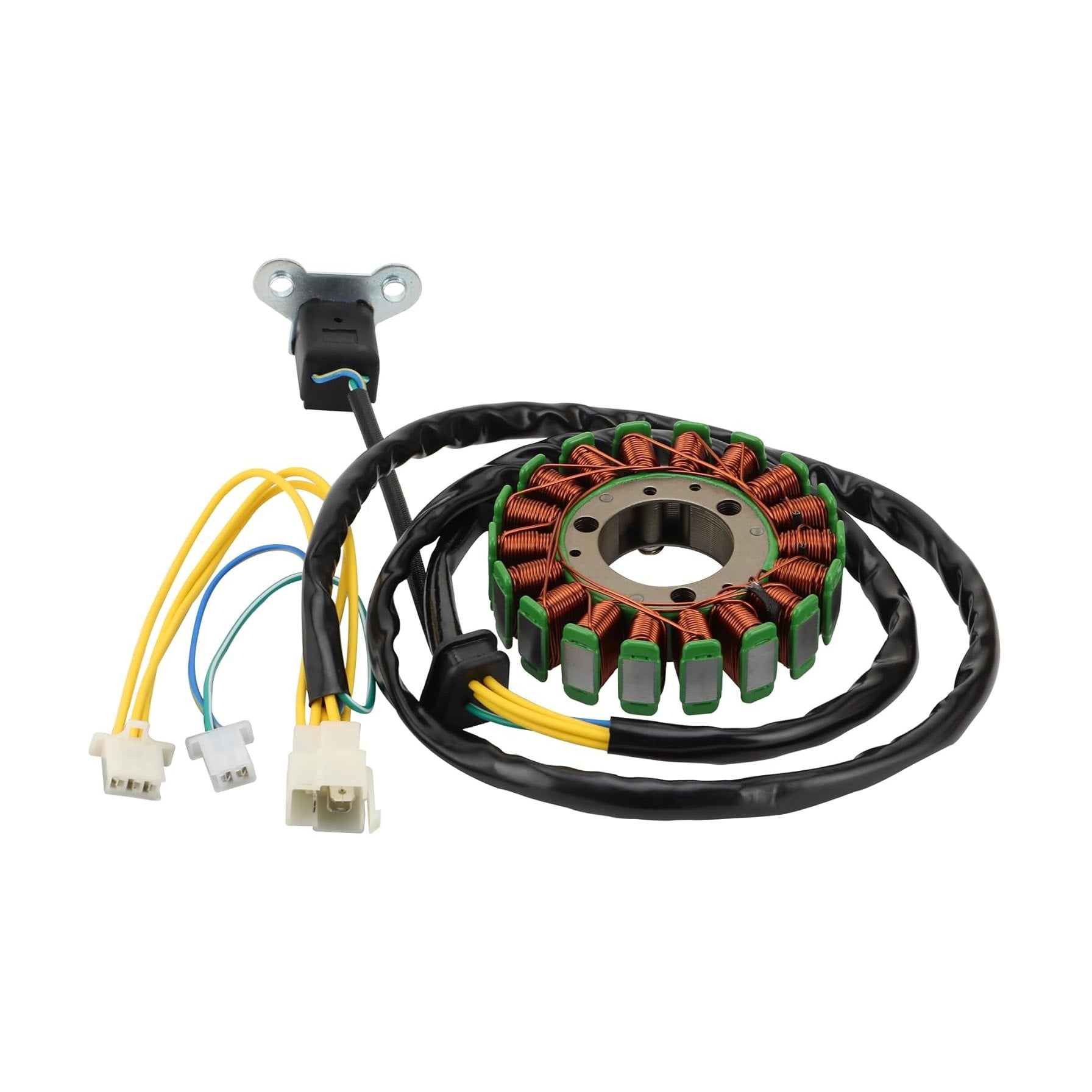

Magneto Stator Coil for SYM Joymax 125 & GTS 125/200 (LM/LN Series)
Restore your scooter's electrical reliability. This GOOFIT Magneto Stator is a high-quality replacement designed specifically for the SYM Joymax and GTS series. Engineered to match factory specifications, it provides the stable electrical output required for consistent ignition and efficient battery charging.

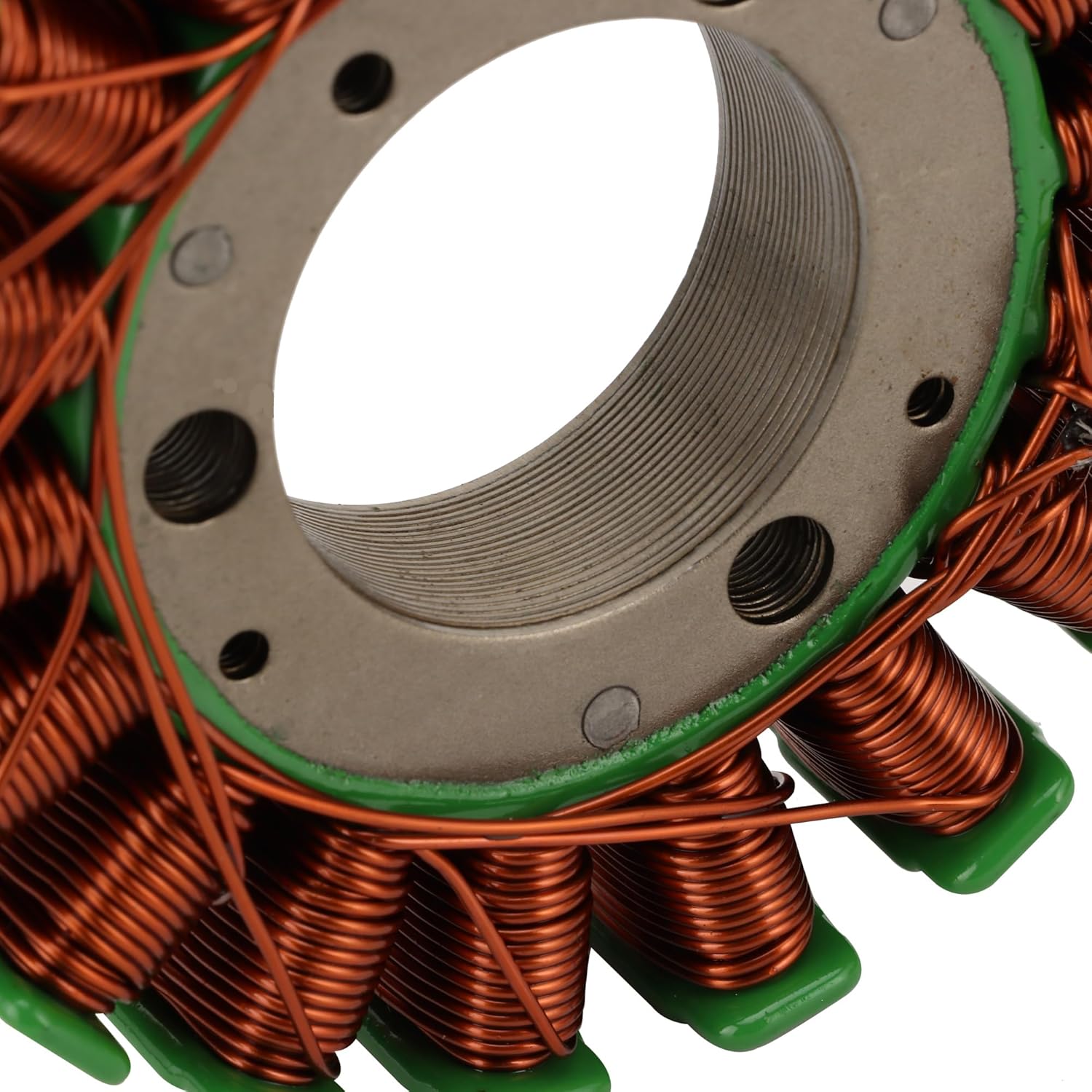

Built with high-grade copper windings and premium lamination materials, this stator is designed to withstand the heat and vibration of daily commuting, ensuring your engine runs smoothly across all RPM ranges.
| Model | Chassis Codes | Engine |
| SYM Joymax 125 | LM12W-T / LN12W4-6 | 125cc |
| SYM GTS 125 | LN12W2-6 / LM12W1-7 | 125cc |
| SYM GTS 200 | LM18W-6 | 200cc |

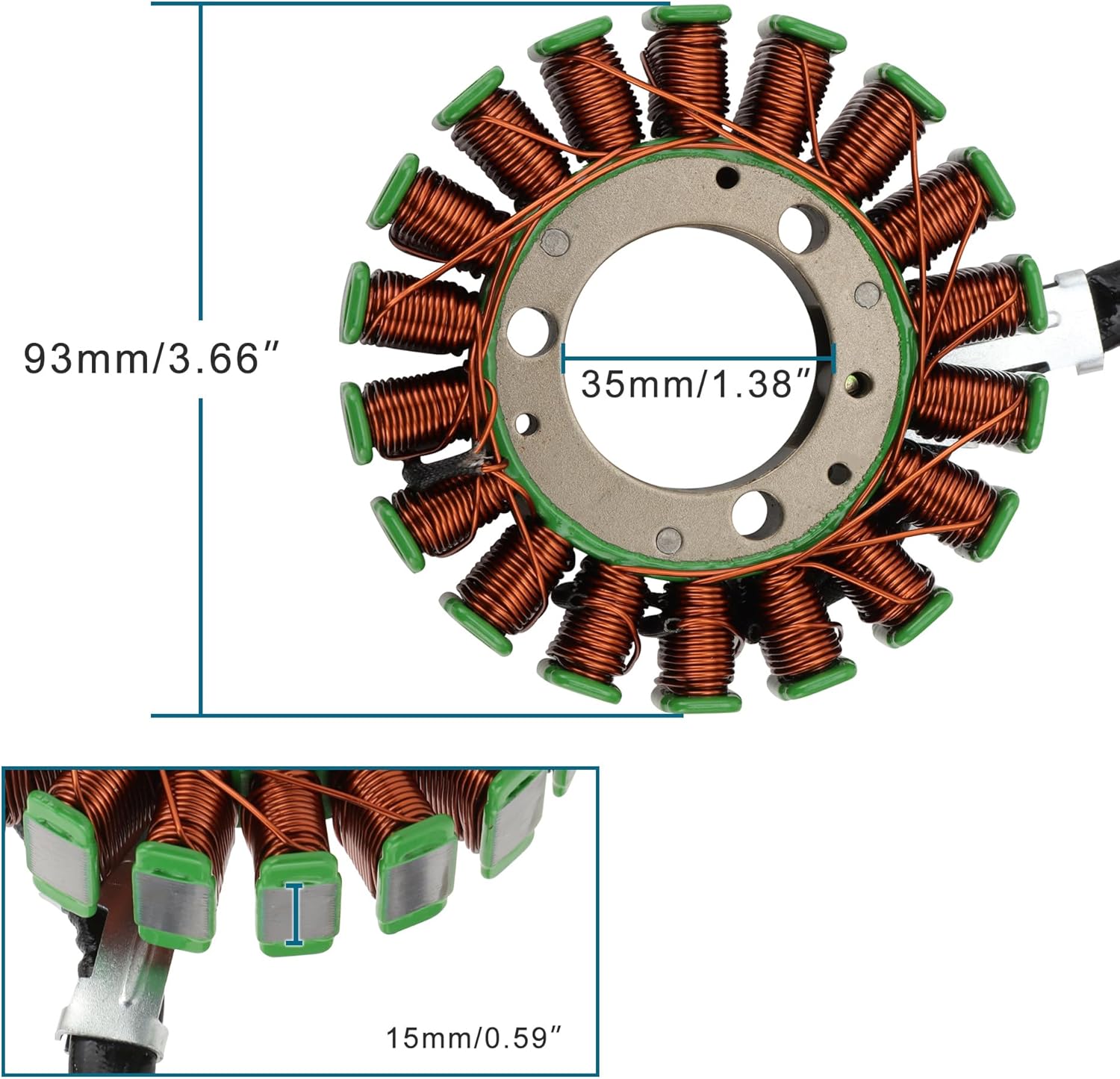

Key Technical Specs:
- Outer Diameter: 93mm (3.66")
- Inner Diameter: 35mm (1.38")
- Thickness: 15mm (0.59")
- Material: Heat-resistant copper & high-grade steel lamination
Why Choose This Stator?

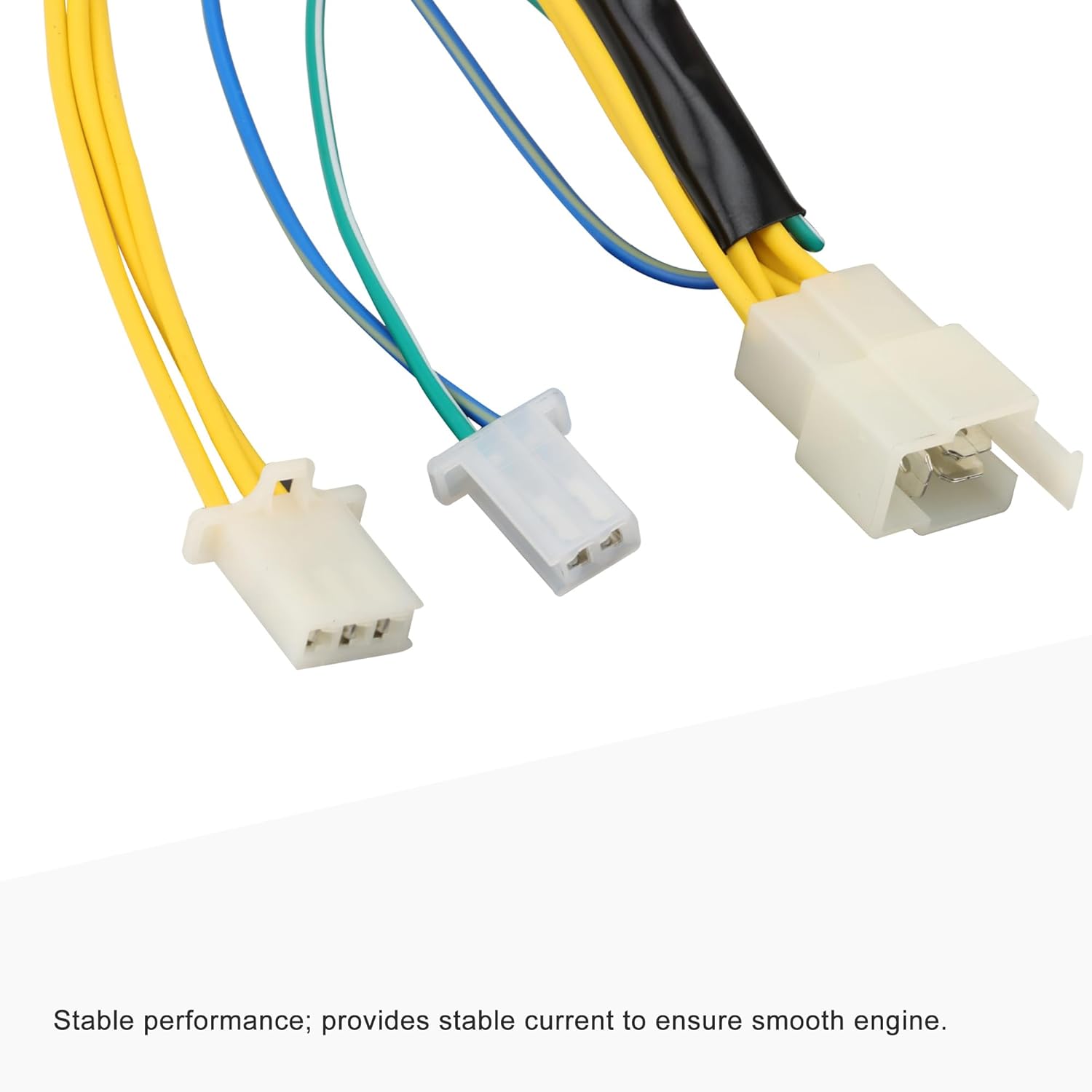

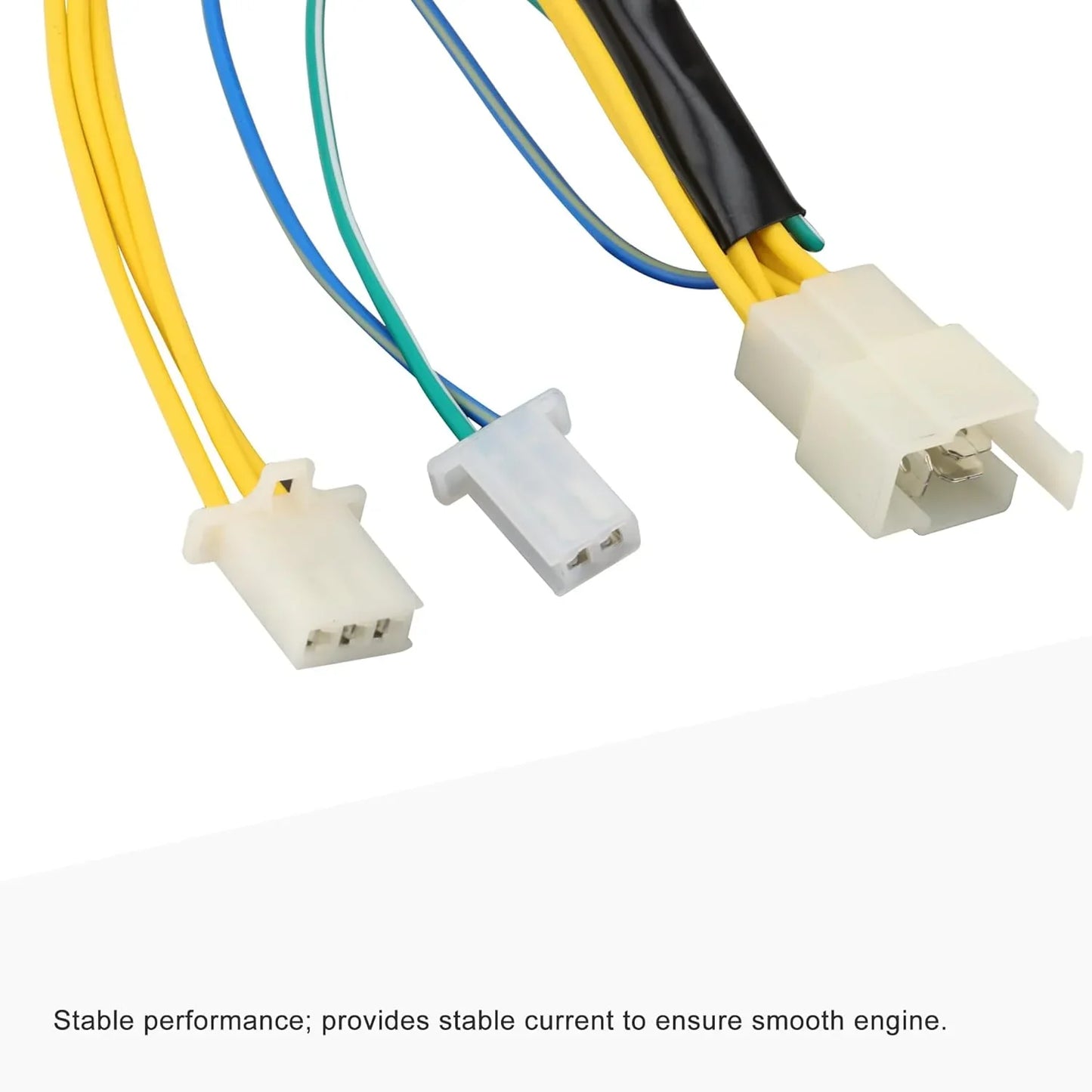

- Stable Current: Delivers a consistent flow to the ignition system to prevent stalling and improve starting.
- Direct Fit: Machined to match factory mounting points for a "plug-and-play" installation.
- Durability: Resistant to moisture and engine oil, making it suitable for long-term, high-intensity urban use.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for SYM Joymax 125 & GTS 125/200. Key physical/spec details from the product data include Outer Diameter: 93mm (3.66"), Inner Diameter: 35mm (1.38"), Thickness: 15mm (0.59"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for SYM LM12W/LN12W models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Outer Diameter: 93mm (3.66"), Inner Diameter: 35mm (1.38"), Thickness: 15mm (0.59"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
