Magneto Stator for Yamaha Super Jet 700 Wave Raider XL700
Magneto Stator for Yamaha Super Jet 700 Wave Raider XL700
Couldn't load pickup availability

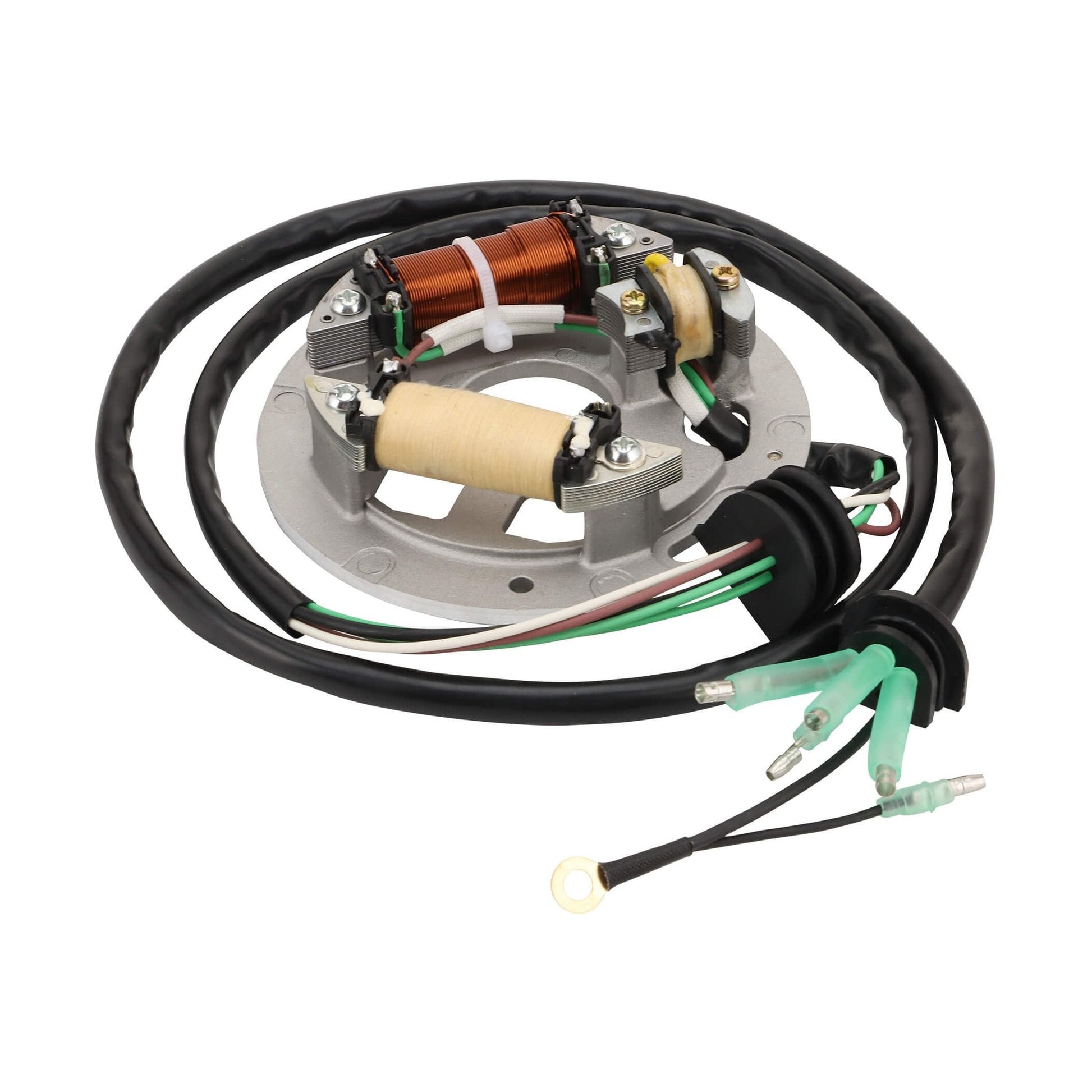

Marine Magneto Stator Coil for Yamaha 700 Series PWC (1994–2017)
Restore your watercraft’s charging and ignition reliability. This premium aftermarket Magneto Stator is a precision-engineered replacement for Yamaha OEM numbers 6R8-85560-10-00, 62T-85560-00-00, and 6R7-85560-10-00. Designed specifically for the rigorous demands of marine environments, it delivers a precise and stable charging voltage to ensure your engine starts reliably and runs smoothly at all speeds.
Crafted with high-quality copper windings and reinforced lamination materials, this stator features superior moisture and corrosion resistance. The internally treated structure and durable housing are built to withstand the high-vibration and saltwater exposure typical of jet ski operation, providing long-term durability that meets or exceeds factory specifications.
Product Compatibility
| Model | Year Range | Fitment Details |
| Super Jet 700 | 1996–2013 | All Stand-Up Models |
| Wave Raider 700 | 1994–1997 | Standard & Deluxe |
| XL 700 / Waverunner 3 | 1996–2004 | 700cc Engines |
| Wave Venture / Blaster | 1995–1998 | 700cc Engines |
Key Technical Specs:
- OEM Cross-Reference: 6R8-85560-10-00 / 62T-85560-00-00

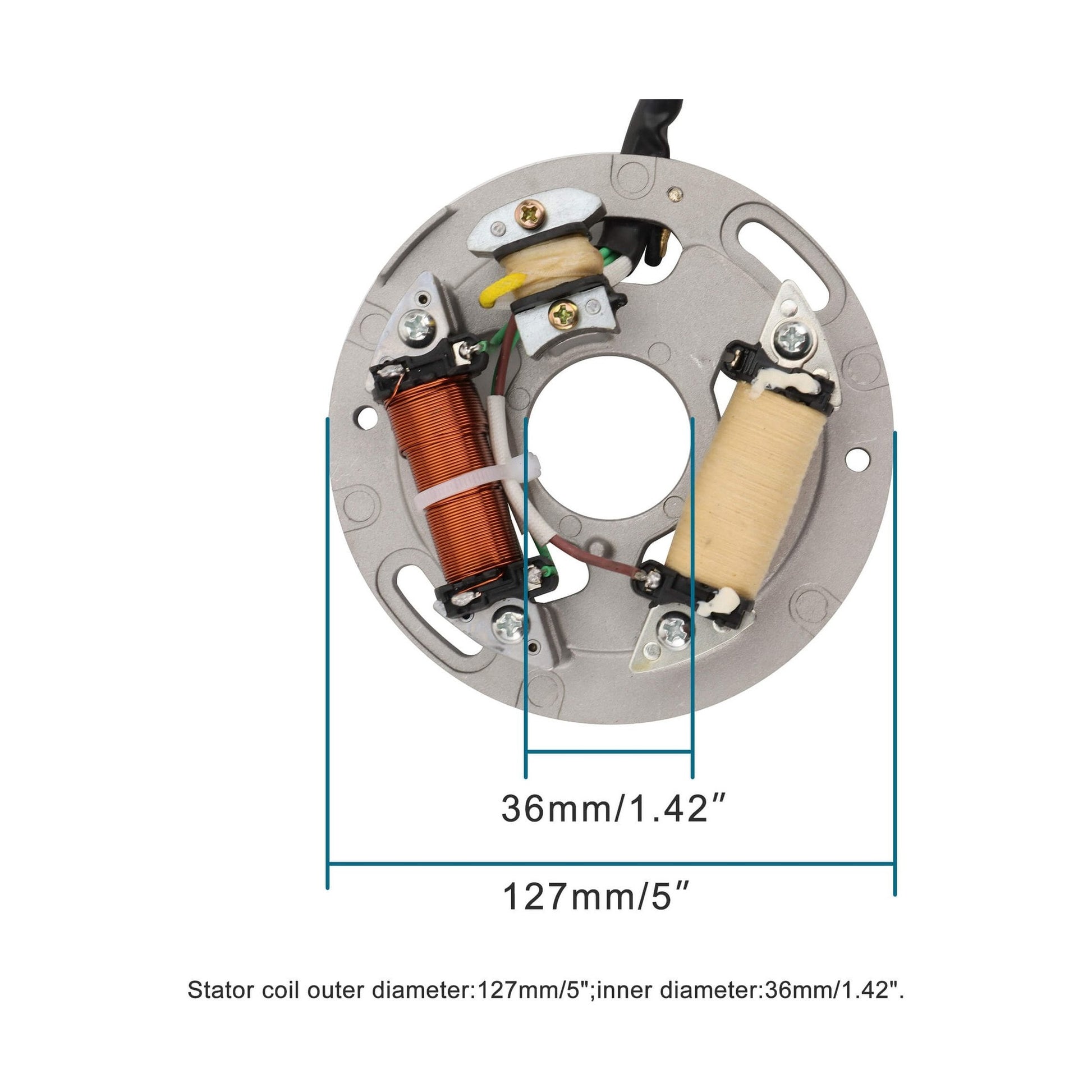

- Outer Diameter: 127mm (5")
- Inner Diameter: 36mm (1.42")
- Materials: High-grade copper windings with corrosion-resistant coating
- Design: Direct bolt-on; includes factory-style connectors
Why Choose This Stator?
- Stable Power Output: Engineered to provide a consistent electrical charge, protecting your battery and CDI from voltage spikes.
- Marine-Grade Protection: Designed specifically for watercraft with enhanced dustproof and moisture-resistant properties.
- Easy Installation: A direct-fit, plug-and-play solution that matches your original wiring harness perfectly.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Fitment Details; Super Jet 700; 1996–2013; All Stand-Up Models; Wave Raider 700; 1994–1997; Standard & Deluxe. It is best matched to original part number(s) 6R8-85560-10-00, 62T-85560-00-00, 6R7-85560-10-00. Key physical/spec details from the product data include Outer Diameter: 127mm (5"), Inner Diameter: 36mm (1. 42"), 62T. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 6R8-85560-10-00, 62T-85560-00-00, 6R7-85560-10-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha XL700 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 6R8-85560-10-00, 62T-85560-00-00, 6R7-85560-10-00, treat the fitment as unconfirmed. Model years outside 1994–2017, 1996–2013, 1994–1997, 1996–2004, 1995–1998 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 6R8-85560-10-00, 62T-85560-00-00, 6R7-85560-10-00. Recheck listed specs such as Outer Diameter: 127mm (5"), Inner Diameter: 36mm (1. 42"), 62T. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
