Magneto Stator for Yamaha TT-R230 (2005-2017) | OEM 1C6-H1410-00
Magneto Stator for Yamaha TT-R230 (2005-2017) | OEM 1C6-H1410-00
Couldn't load pickup availability

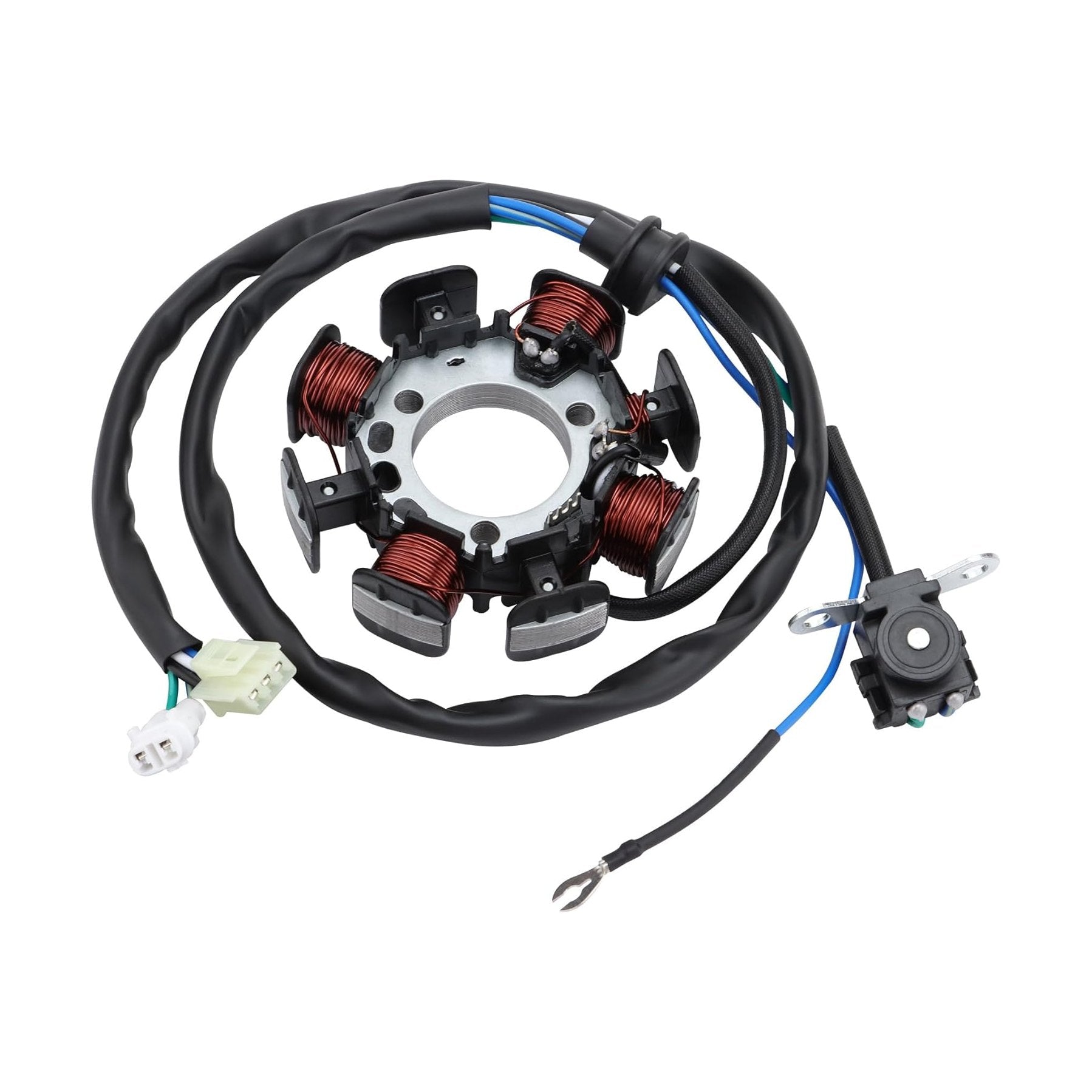

Magneto Generator Stator Coil for Yamaha TT-R230 (2005–2017)
Restore your trail bike's electrical reliability. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Yamaha 1C6-H1410-00 factory unit. Designed specifically for the TT-R230, it provides the stable electrical output needed for consistent ignition and reliable battery charging, ensuring your engine starts smoothly every time.

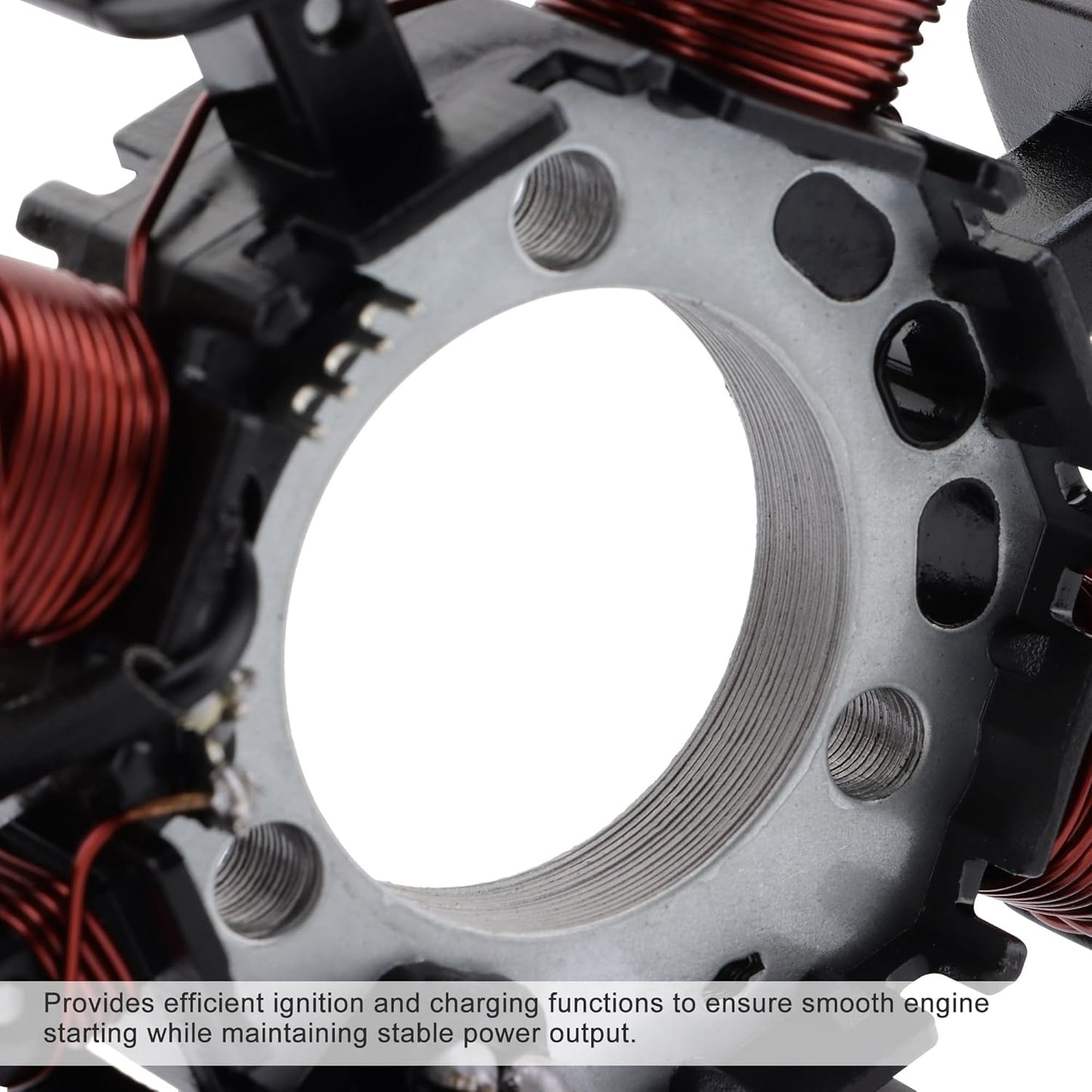

Built with highest-grade copper windings (resistant to 200°C) and premium lamination materials, this stator is designed to survive the extreme heat and vibrations of off-road riding. Its plug-and-play design includes factory-style connectors, allowing for a direct-fit installation that matches your original wiring harness perfectly.
Product Compatibility
| Model | Year Range | Fitment Note |
| Yamaha TT-R230 | 2005–2017 | All US & International Models |
Key Technical Specs:
- OEM Cross-Reference: 1C6-H1410-00 / 1C6-H1410-00-00

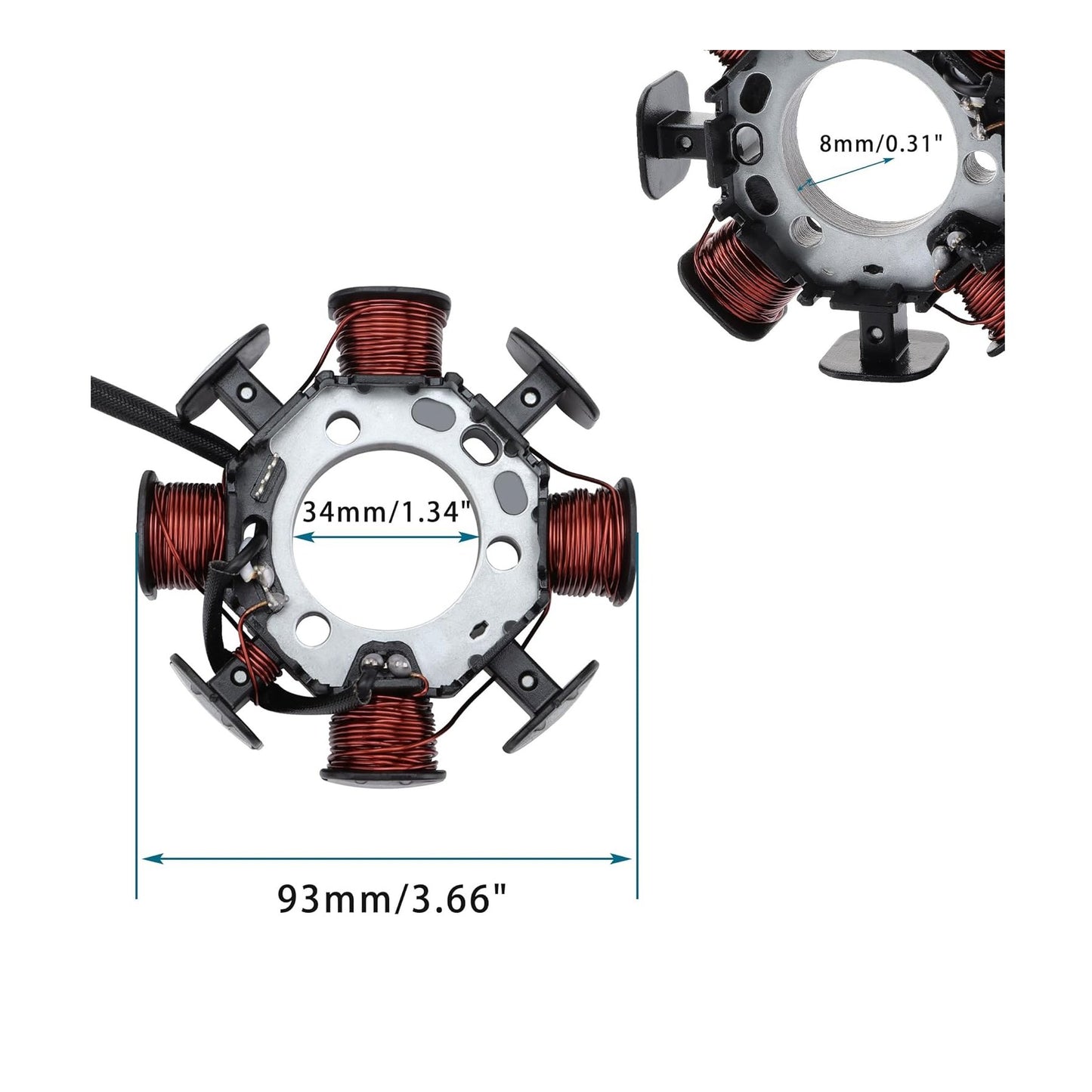

- Outer Diameter: 93mm (3.66")
- Inner Diameter: 34mm (1.34")
- Core Thickness: 9.5mm (0.37")

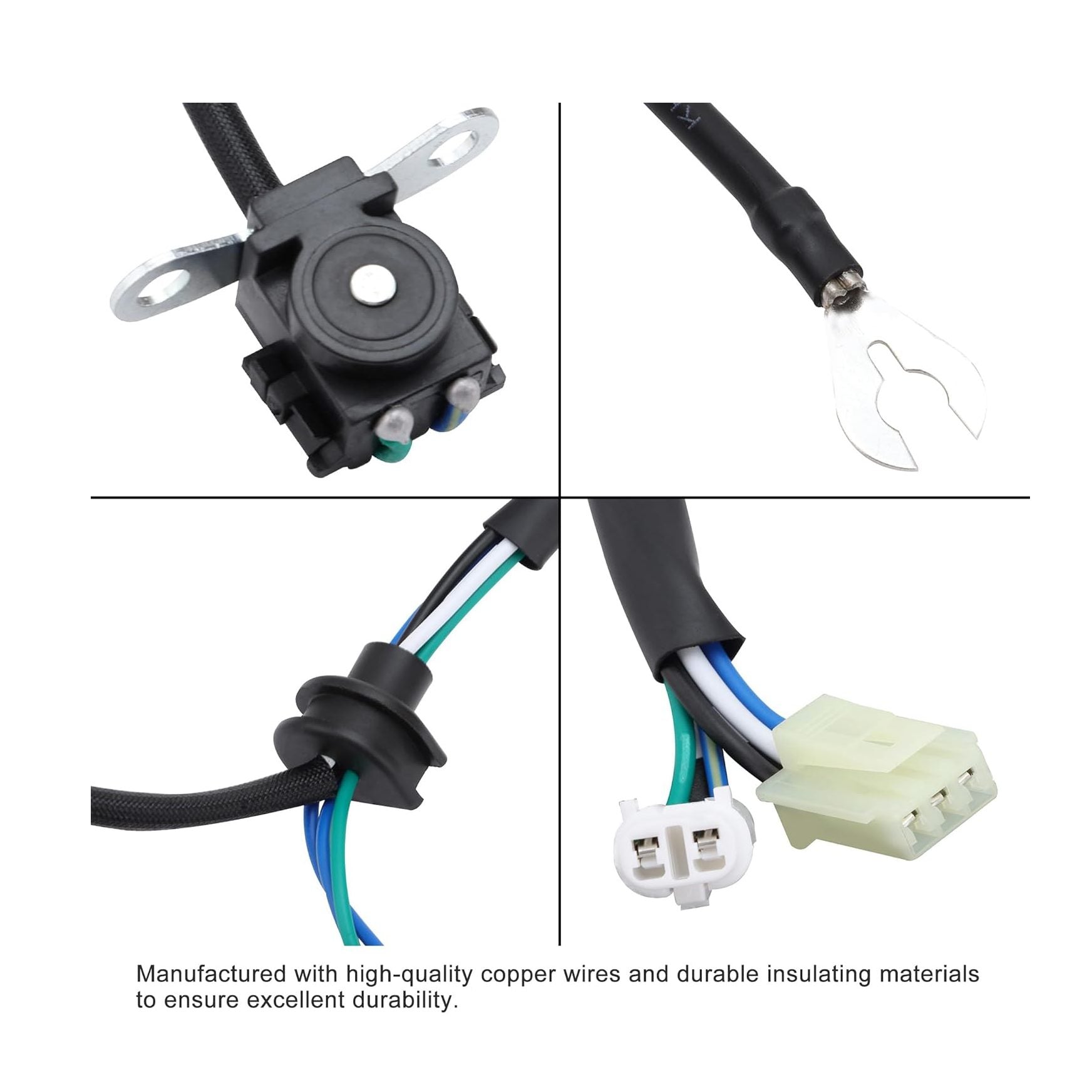

- Configuration: 5-Wire, 5-Pin design with 2 plugs
Why Choose This Stator?
- Stable Power Delivery: Engineered to reduce voltage fluctuations, ensuring a strong spark and protecting sensitive electrical components.
- Enhanced Heat Resistance: Features high-conductivity copper and reinforced insulation to prevent "burn-out" in harsh environments.
- Direct Fit: Matches factory mounting points and connectors exactly for a fast, hassle-free installation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Fitment Note; Yamaha TT-R230; 2005–2017; All US & International Models. It is best matched to original part number(s) 1C6-H1410-00, 2005-2017, 1C6-H1410-00-00. Key physical/spec details from the product data include Outer Diameter: 93mm (3.66"), Inner Diameter: 34mm (1.34"), Core Thickness: 9.5mm (0.37"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 1C6-H1410-00, 2005-2017, 1C6-H1410-00-00 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha R230/H1410 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 1C6-H1410-00, 2005-2017, 1C6-H1410-00-00, treat the fitment as unconfirmed. Model years outside 2005–2017, 2005, 2017 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 1C6-H1410-00, 2005-2017, 1C6-H1410-00-00. Recheck listed specs such as Outer Diameter: 93mm (3.66"), Inner Diameter: 34mm (1.34"), Core Thickness: 9.5mm (0.37"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
