Magneto Stator for Yamaha YBR125 (2002-2013)
Magneto Stator for Yamaha YBR125 (2002-2013)
Couldn't load pickup availability

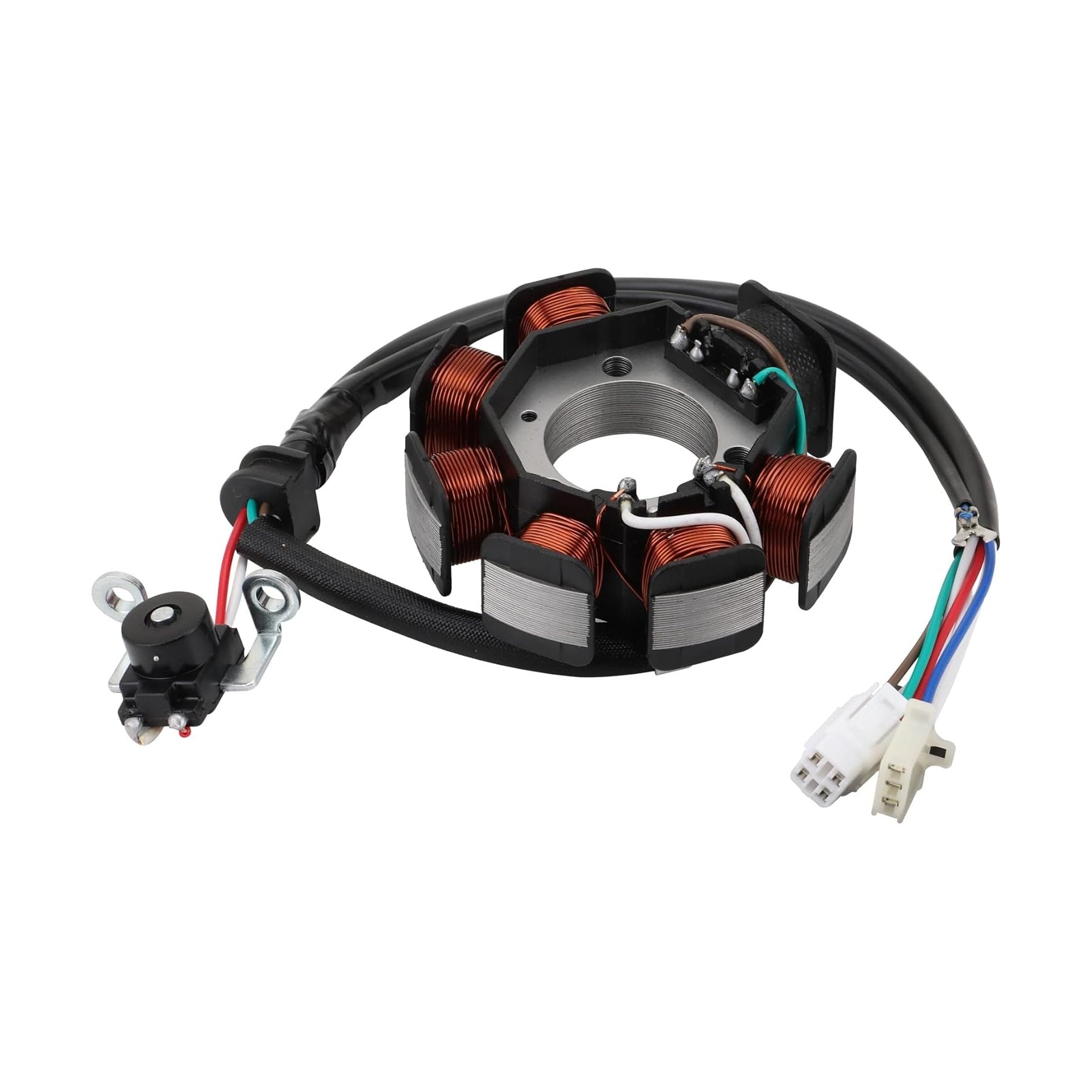

Magneto Generator Stator Coil for Yamaha YBR125 (2002–2013)
Restore your commuter's peak electrical performance. This premium aftermarket Magneto Stator is a precision-engineered replacement for the Yamaha YBR125 factory unit. Designed specifically for the 2002–2013 model years, it provides the stable AC electrical output required for consistent ignition energy and reliable engine operation.

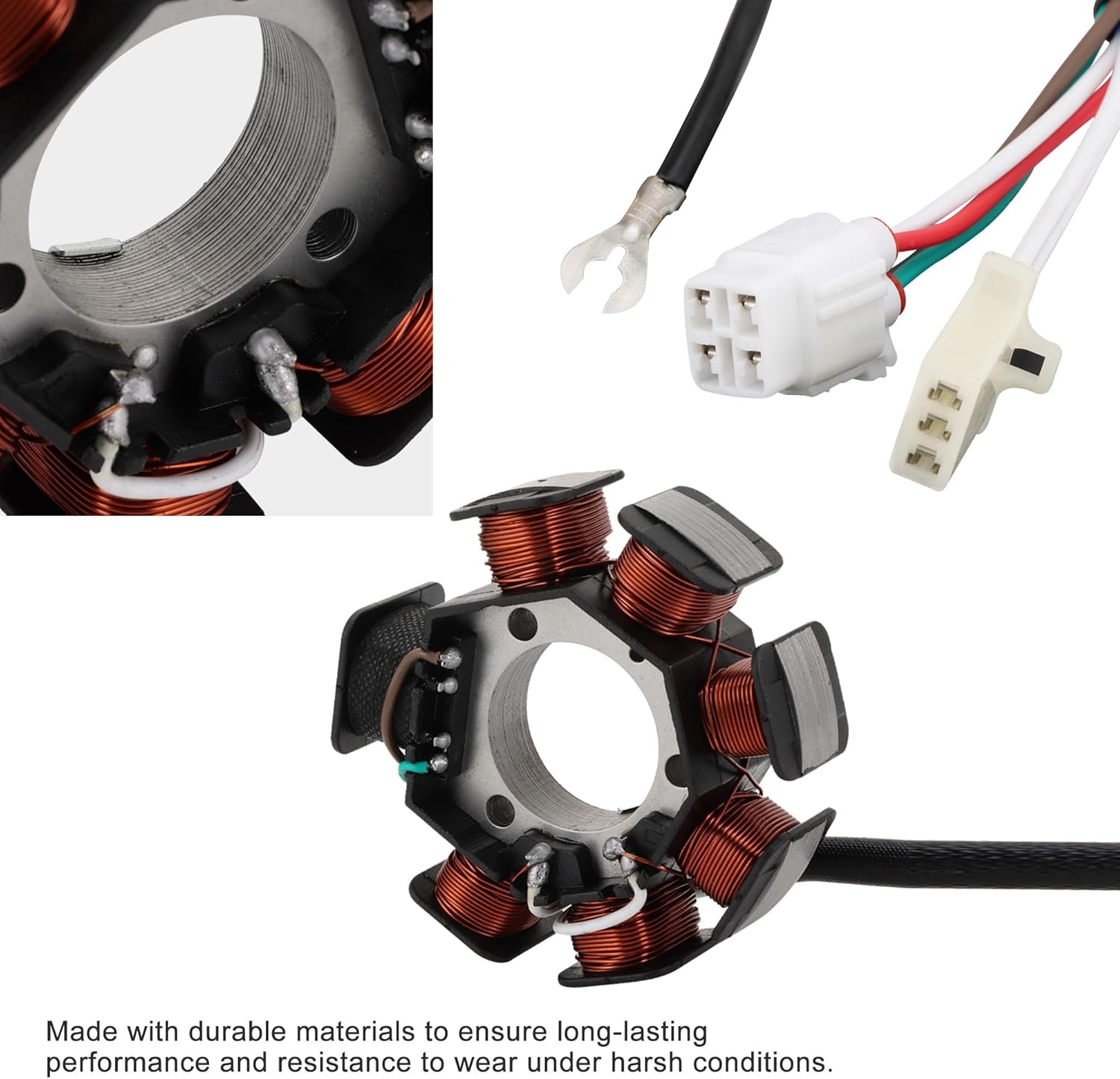

Constructed with highest-grade copper windings and advanced insulation materials, this stator is built to withstand the high-heat and high-vibration environment of a daily-use 4-stroke engine. Every unit undergoes strict quality testing to ensure excellent wear resistance, providing a durable solution that helps prevent the common "no-spark" or charging issues found in aging motorcycles.

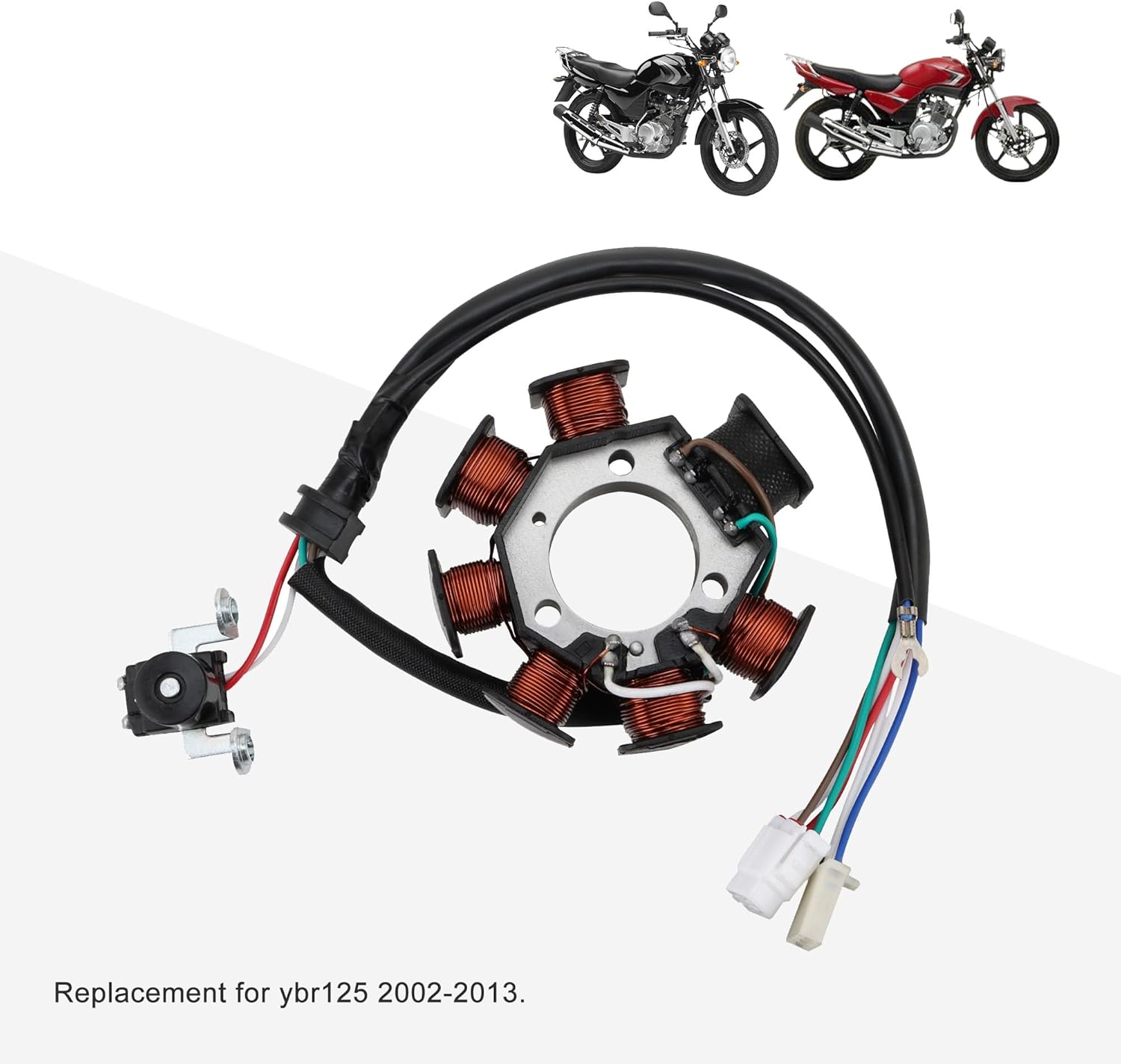

Product Compatibility
| Make | Model | Year Range | Fitment Details |
| Yamaha | YBR125 | 2002–2013 | AC Electrical System |
Key Technical Specs:
- Voltage Type: AC (Alternating Current)
- Outer Diameter: 97mm (3.8")
- Inner Diameter: 37mm (1.5")
- Iron Core Height: 15mm (0.59")
- Thickness: 31mm (1.2")
- Mounting Hole Distance: 39mm (1.5") & 42mm (1.7")
Why Choose This Stator?
- Stable Ignition Energy: Engineered to provide a consistent spark for easier starting and smoother idling.
- Extreme Heat Resistance: High-quality insulation protects against internal shorts caused by engine oil and thermal stress.

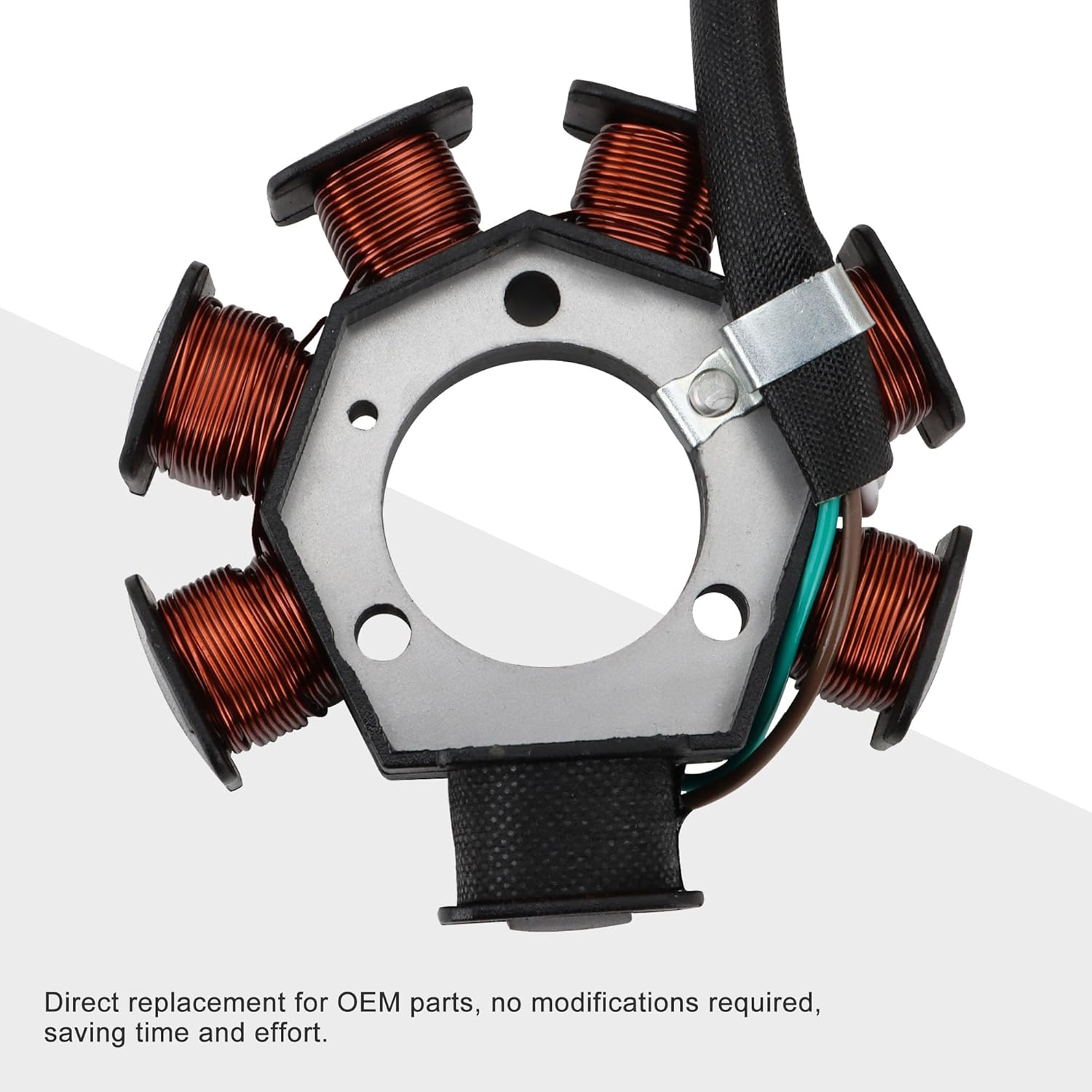

- Direct Bolt-On: Matches factory mounting points and trigger positions (35mm hole distance) for a hassle-free installation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Fitment Details; Yamaha; YBR125; 2002–2013; AC Electrical System. It is best matched to original part number(s) 2002-2013. Key physical/spec details from the product data include Voltage Type: AC (Alternating Current): Outer Diameter: 97mm (3.8"), Outer Diameter: 97mm (3.8"), Inner Diameter: 37mm (1.5"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 2002-2013 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Yamaha YBR125 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 2002-2013, treat the fitment as unconfirmed. Model years outside 2002–2013, 2002, 2013 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 2002-2013. Recheck listed specs such as Voltage Type: AC (Alternating Current): Outer Diameter: 97mm (3.8"), Outer Diameter: 97mm (3.8"), Inner Diameter: 37mm (1.5"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
