GOOFIT
Magneto Stator for 50cc-125cc Kick Start ATV & Pit Bike | TaoTao Kazuma
Magneto Stator for 50cc-125cc Kick Start ATV & Pit Bike | TaoTao Kazuma
Couldn't load pickup availability

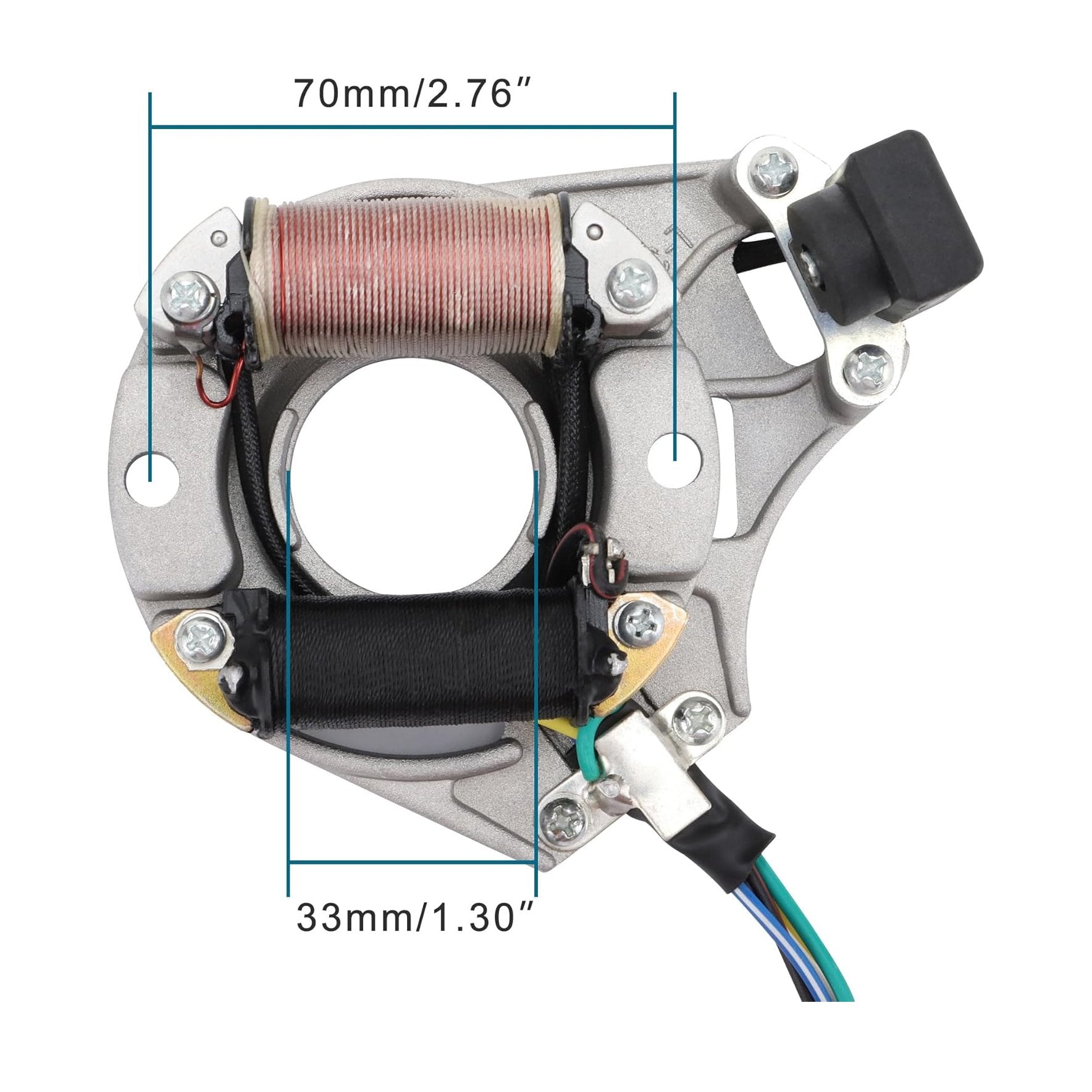

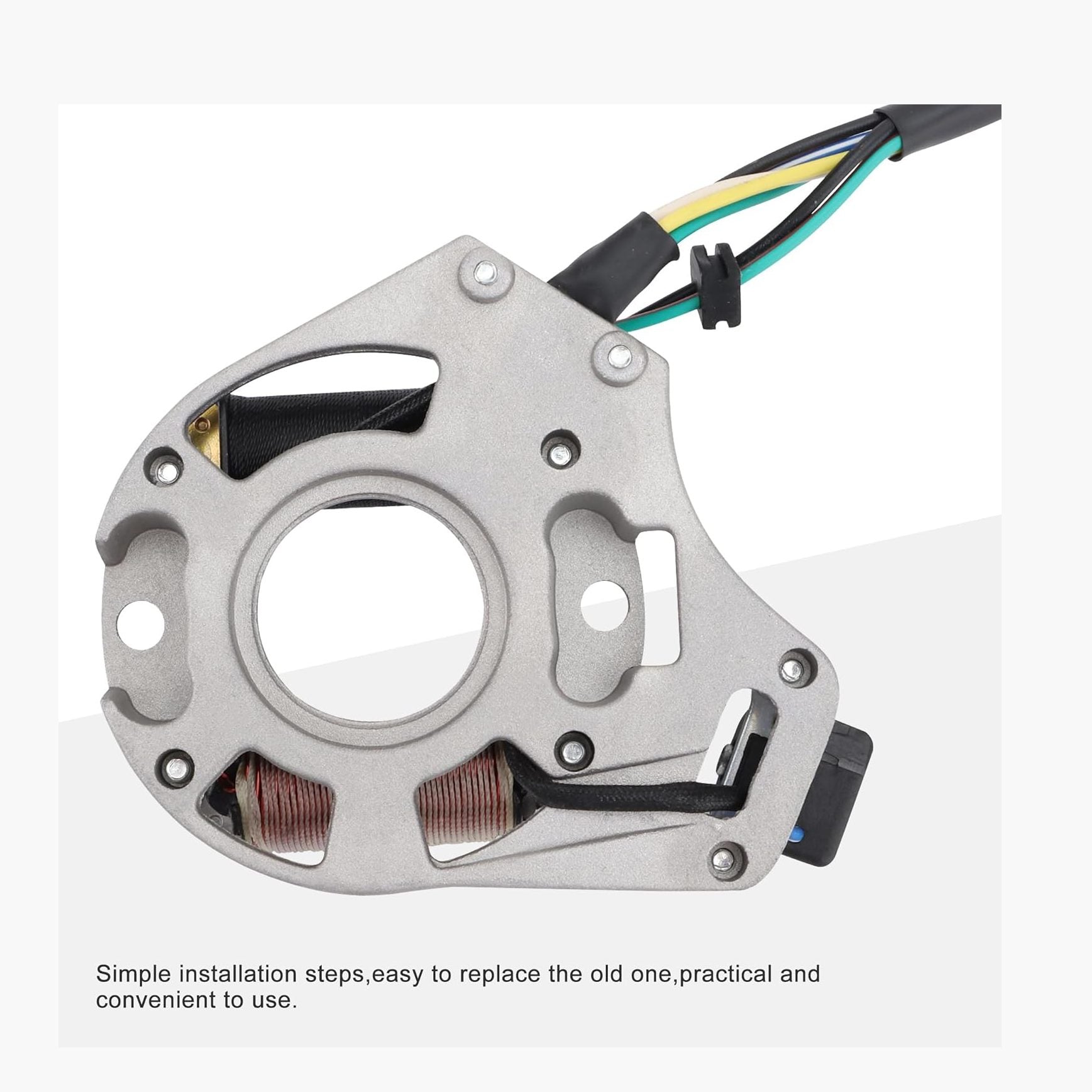

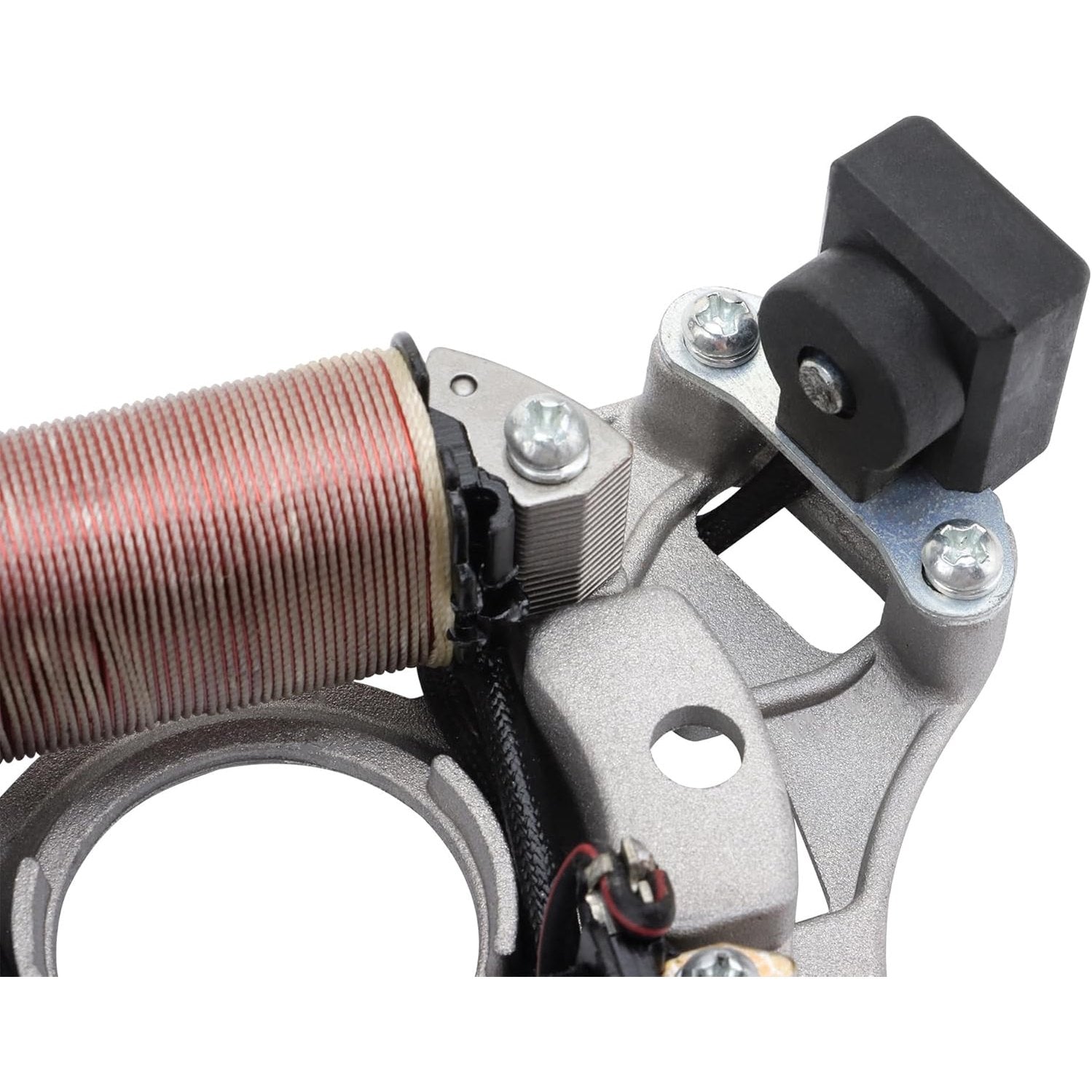

DY100 DC Magneto Stator for 50cc – 125cc Kick-Start Chinese Engines
Restore your engine's spark with factory-spec reliability. This premium DY100 DC Magneto Stator is a direct replacement for 50cc, 70cc, 90cc, 110cc, and 125cc horizontal 4-stroke engines. Specifically designed for kick-start only models, it provides the stable electrical output required for high-energy ignition and consistent performance on the trail or track.
Built with high-quality copper windings and a durable aluminum base, this stator is engineered to withstand the vibration and heat of off-road riding. It features a standard 5-wire harness plus two additional free wires to ensure maximum compatibility across various wiring configurations used by top Chinese manufacturers.
Product Compatibility
| Engine Type | Popular Brands | Vehicle Types |
| 50cc - 125cc | TaoTao, Kazuma, Sunl, Buyang | ATVs / Quads |
| Horizontal 4T | SSR, Coolster, ROKETA, AIM-EX | Dirt Bikes / Pit Bikes |
| Kick-Start Only | Loncin, Lifan, Zongshen | Go Karts / Dune Buggies |
Key Technical Specs:
- Model: DY100 DC Configuration
- System Type: DC (Direct Current) Ignition

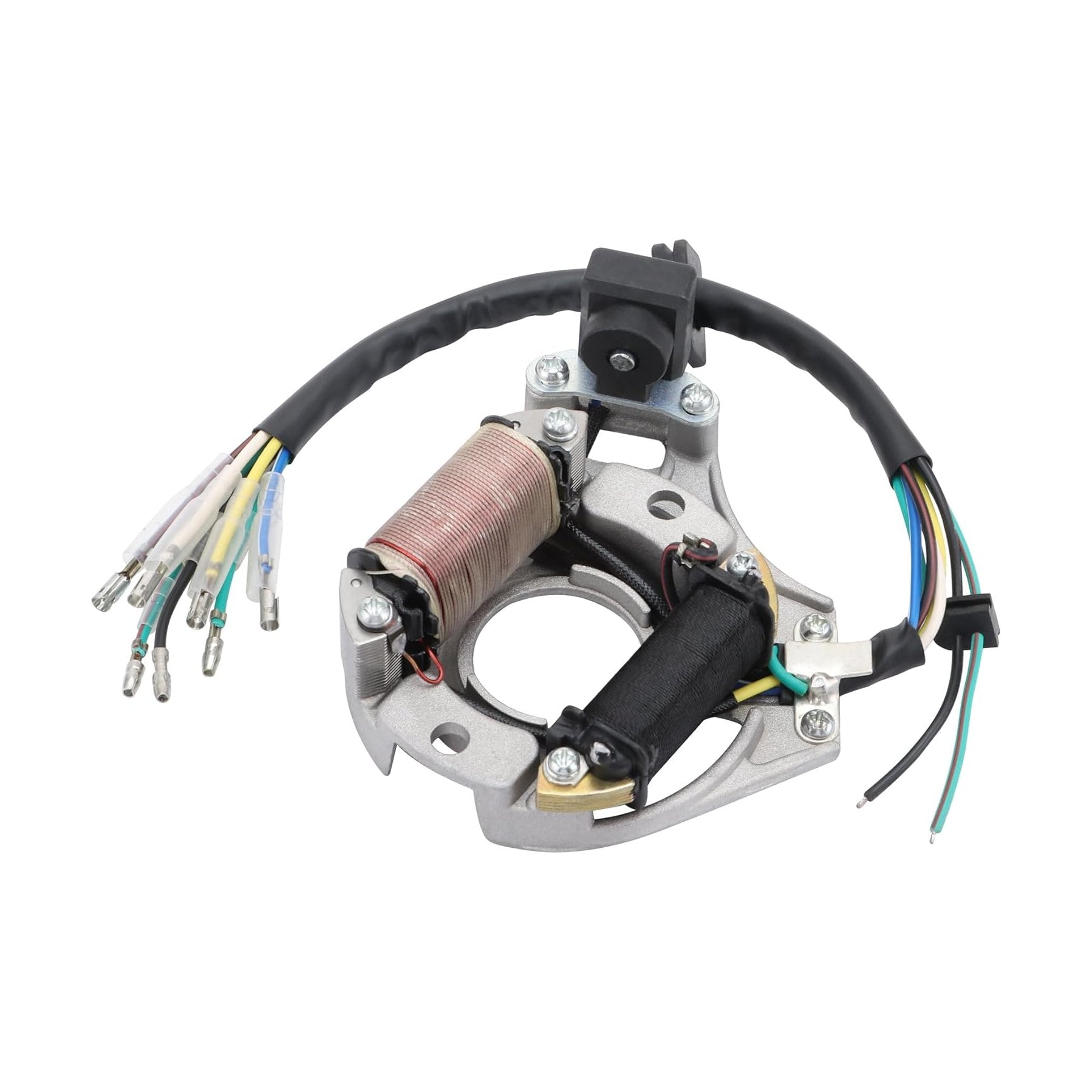

- Wiring: 5 Wires (Blue/white, Yellow, White, Green/white, Black/red) + 2 Free Wires
- Compatibility: Fits most Chinese brands with horizontal engines
- Mounting: Standard 2-bolt plate pattern
Why Choose This Stator?
- Universal Brand Support: Replaces ignition plates on nearly all major Chinese brands, including TaoTao, Roketa, and Coolsport.
- Durable Construction: High-grade insulation protects the copper coils from internal shorts caused by engine heat.
- Stable Ignition: Ensures a strong, consistent spark for easier starting and smoother engine operation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine Type; Popular Brands; Vehicle Types; 50cc - 125cc; TaoTao, Kazuma, Sunl, Buyang; ATVs / Quads; Horizontal 4T. Key physical/spec details from the product data include 50cc, 125cc, 70cc. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for TaoTao/Kazuma models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as 50cc, 125cc, 70cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
