Magneto Stator for Aprilia RSV4 2012 | Replaces 857201 / 1A010574
Magneto Stator for Aprilia RSV4 2012 | Replaces 857201 / 1A010574
5.0 / 5.0
(3) 3 total reviews
Couldn't load pickup availability
Product Overview

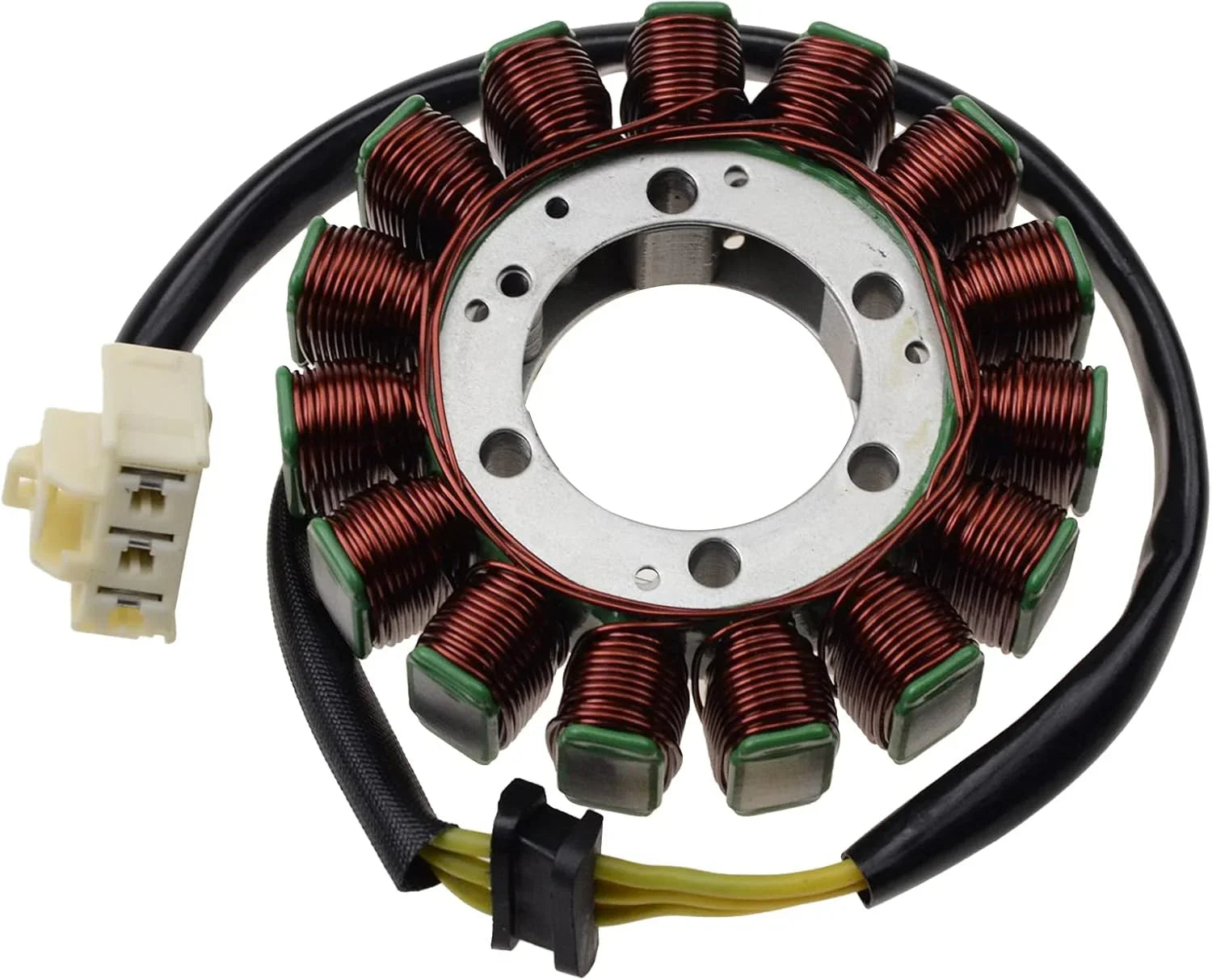

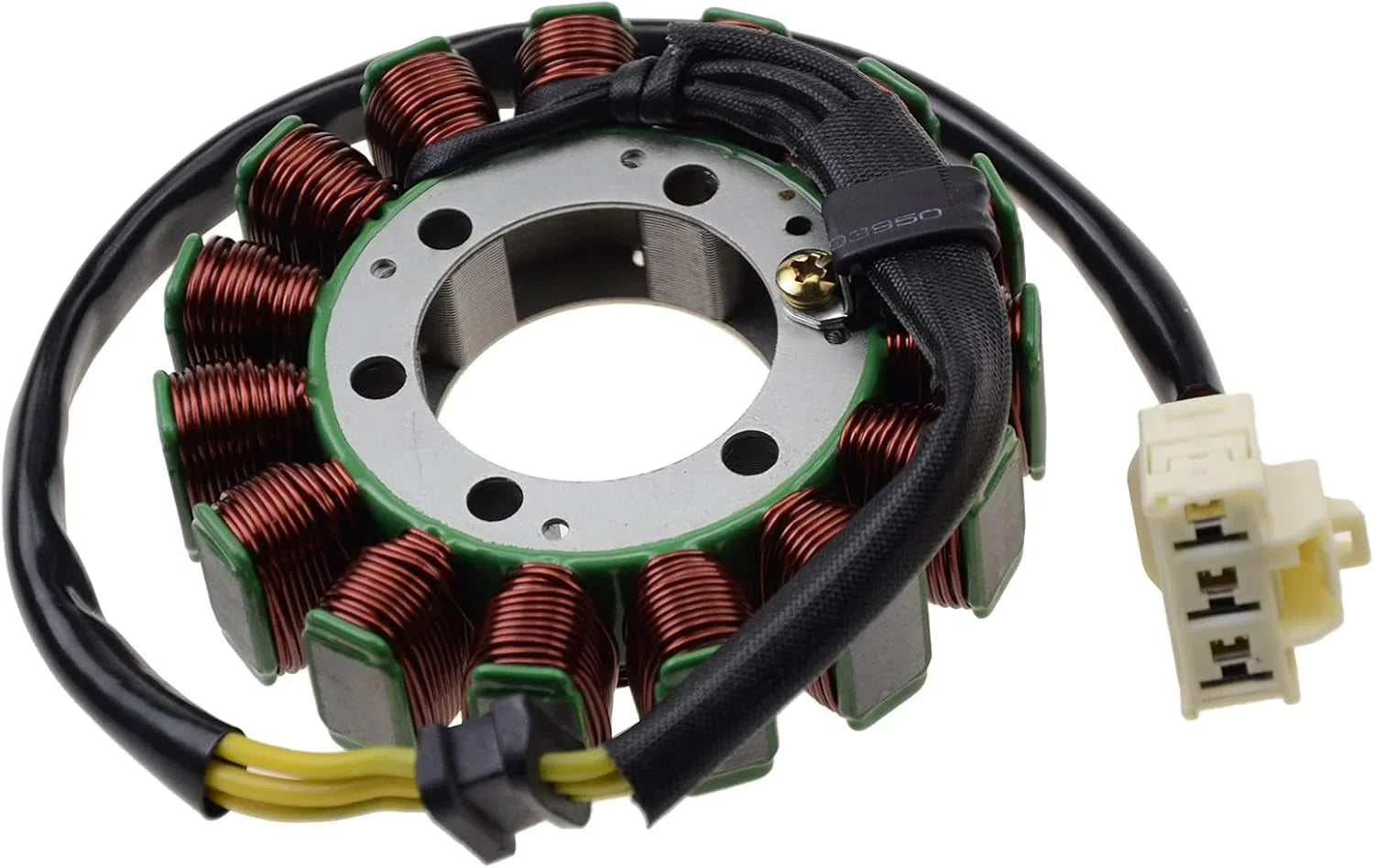

Restore reliable charging and ignition performance to your motorcycle with this 15 coil magneto stator, designed for 2012 Aprilia RSV4 applications.
Built to replace OEM 857201 / 1A010574, this unit helps solve common issues such as battery not charging, hard starting, weak spark, unstable voltage, and intermittent electrical failure. Aprilia’s OEM parts references for the 2012 RSV4 platform show these two stator numbers depending on engine number and flywheel specification.

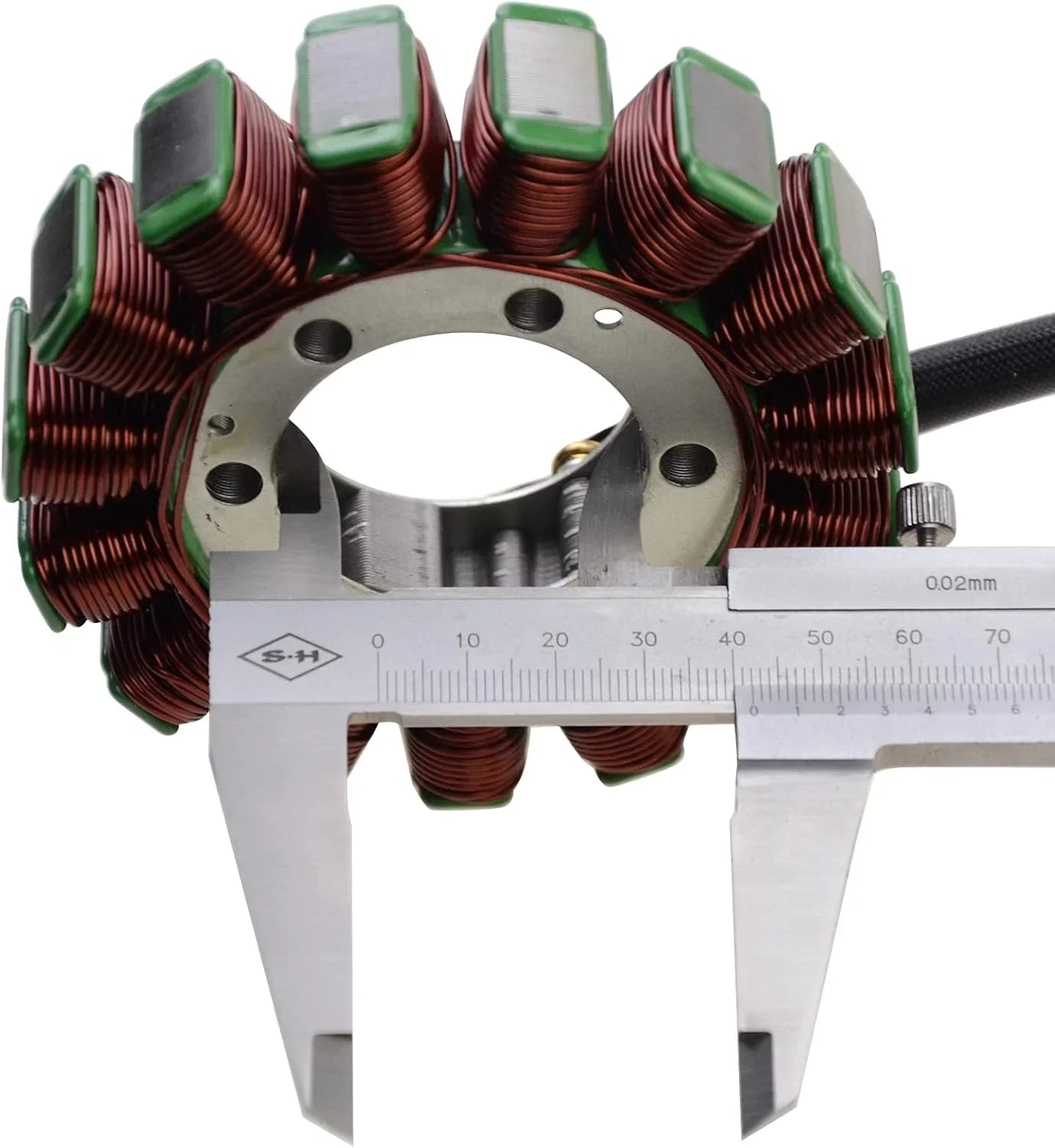

Manufactured for reliable aftermarket replacement use, this stator features a 3-wire configuration and the common replacement dimensions used for this RSV4/Tuono V4 platform: 42 mm inner diameter, 105 mm outer diameter, 17 mm thickness, 1 plug, and 3 pins.
Product Compatibility
This magneto stator is compatible with the following models:
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Aprilia | RSV4 1000 APRC Factory STD / SE | 1000cc | 2012 | Confirm engine number and flywheel type |
| Aprilia | RSV4 1000 APRC R | 1000cc | 2012 | Confirm engine number and flywheel type |
OEM Cross Reference:
857201, 1A010574
Aprilia’s parts catalog for 2012 RSV4 variants lists both RSV4 1000 APRC Factory STD/SE and RSV4 1000 APRC R, and the engine-drive-shaft fiche identifies 857201 and 1A010574 as the stator references depending on engine/flywheel version.
Specifications
| Specification | Details |
|---|---|
| Part Type | Stator |
| Configuration | 15 Coil |

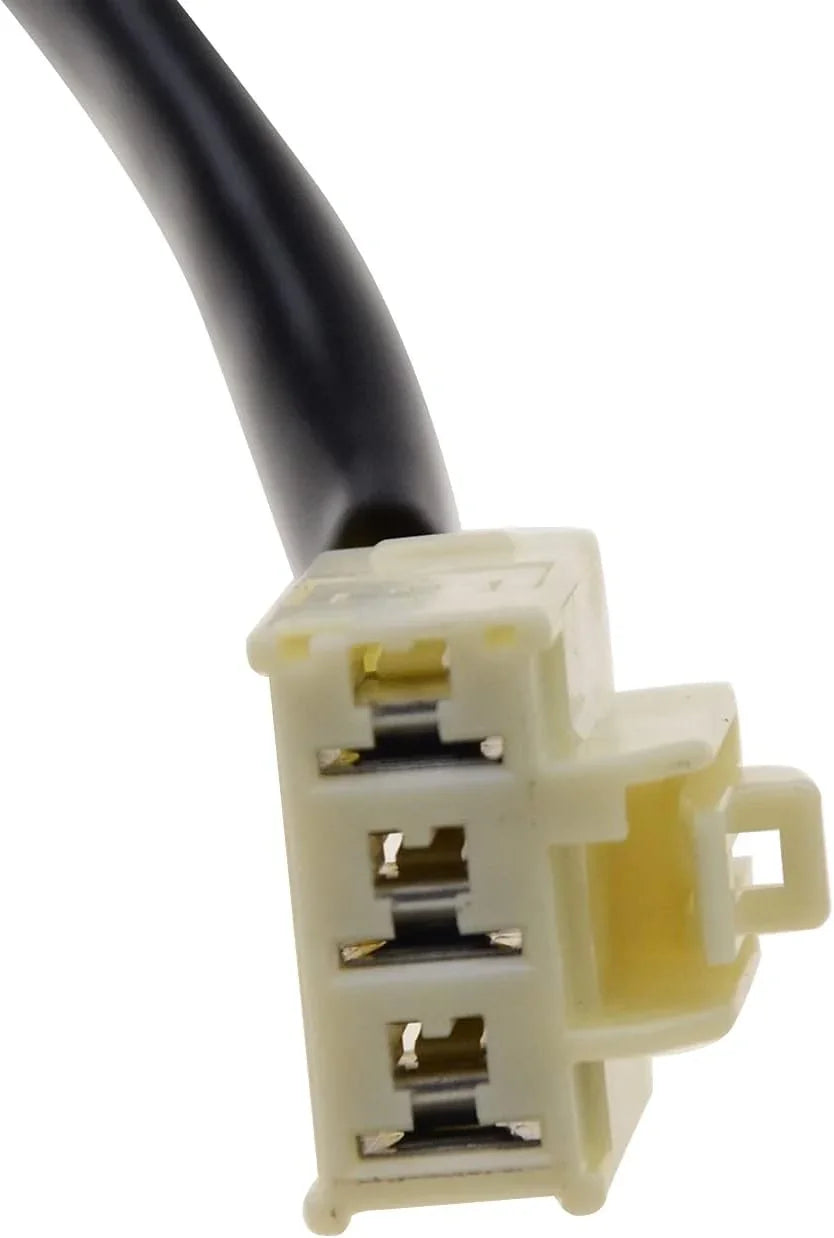

| Connector Type | 3-Wire / 1 Plug / 3 Pins |

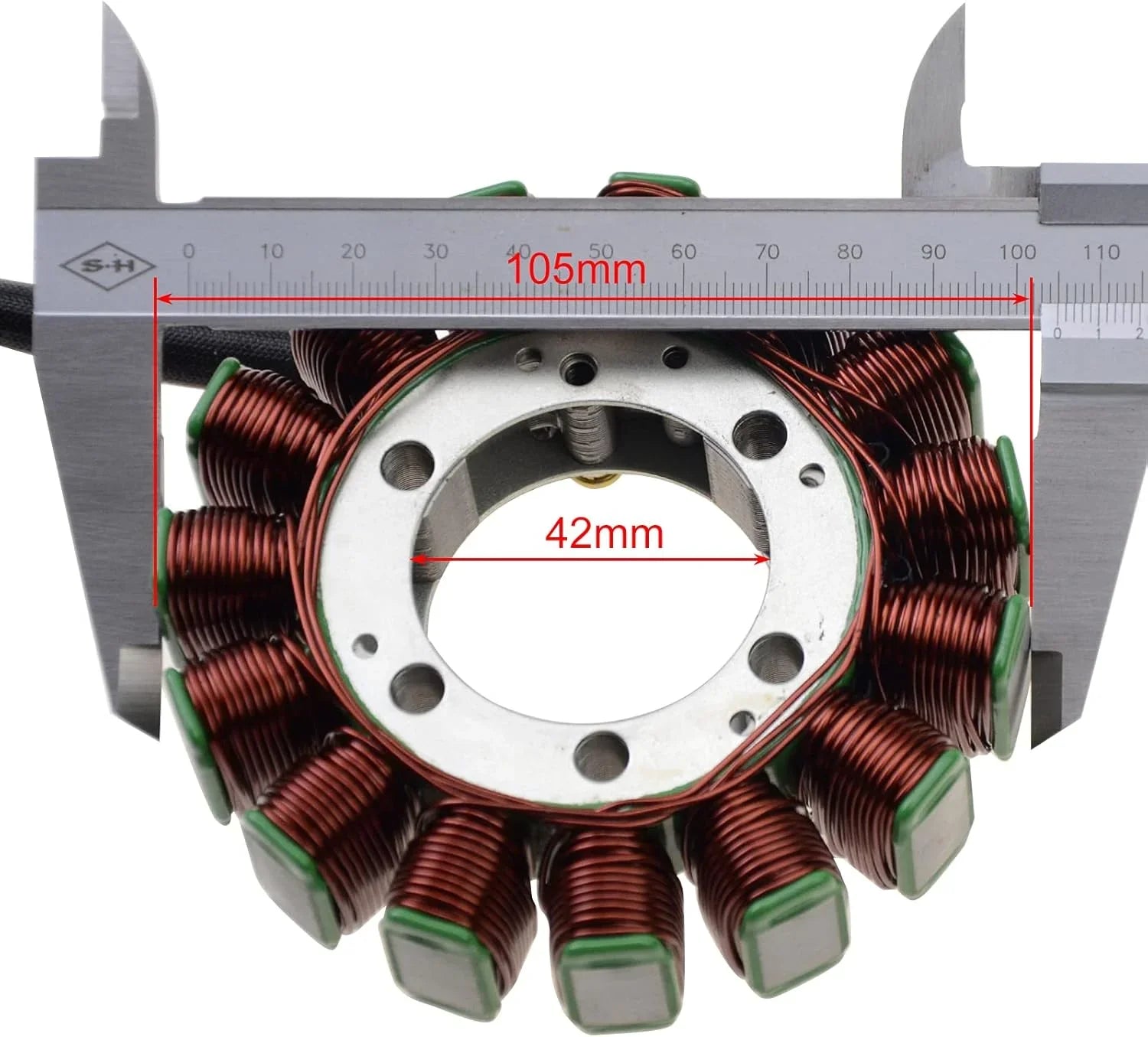

| Outer Diameter | 105 mm |
| Inner Diameter | 42 mm |
| Thickness | 17 mm |
| Material | Aftermarket replacement construction |
| Condition | 100% New Aftermarket |
Key Features
- Direct Replacement Design – Engineered to replace the original stator with matching fitment dimensions
- Reliable Electrical Performance – Helps restore stable charging and ignition output
- Durable Construction – Built for dependable service life and reliable performance
- Plug-and-Play Installation – Designed for straightforward replacement on compatible models
- Built for Sportbike Use – Suitable for high-performance street motorcycle applications
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for This magneto stator is compatible with the following models; Engine / HP / CC. Listed year information includes 2012. It is best matched to original part number(s) 857201. Key physical/spec details from the product data include Outer Diameter: 105 mm, Inner Diameter: 42 mm, Thickness: 17 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 857201 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 857201, treat the fitment as unconfirmed. Model years outside 2012 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 857201. Recheck listed specs such as Outer Diameter: 105 mm, Inner Diameter: 42 mm, Thickness: 17 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
I fix and renovate oldish bikes as a hobby, and I'm always cannibalising some to rebuild others, so it was nice to see these on Vine.
The magneto arrives well packed, in a strong box and wrapped in greaseproof paper (and a little keyring too, nice touch).
It's the exact clone of an older RSV4 mag coil, both in size, cable setup and function, at a fraction of the prize of a rather hard to source original piece, especially on a bike this rare, and I'd say way more reliable as not manufactured decades ago.
A really nice find, I know I'll be bookmarking this brand
Ho acquistato questo statore come sostituto del modello originale montato sulla Aprilia RSV4 del 2012.
La qualit�� del prodotto �� elevata: le dimensioni e le caratteristiche tecniche corrispondono perfettamente a quelle del componente originale. L��installazione �� stata semplice e veloce, senza alcun tipo di difficolt��, grazie alla piena compatibilit��.
Una volta montato, ha funzionato subito senza problemi: nessuna spia di errore, n�� malfunzionamenti del motore o dell��impianto elettrico.
Si tratta di un ricambio ben realizzato, affidabile e offerto a un prezzo competitivo.
Lo consiglio a chi cerca un��alternativa valida all��originale, senza compromettere la qualit��.
This is obviously not an OEM, however it feels great quality. I had it installed by a friend and no issues so far but can't comment on longevity
