Magneto Stator for Arctic Cat 250 300 Utility DVX 2x4 2006-2009 | OEM 3303-833
Magneto Stator for Arctic Cat 250 300 Utility DVX 2x4 2006-2009 | OEM 3303-833
Couldn't load pickup availability

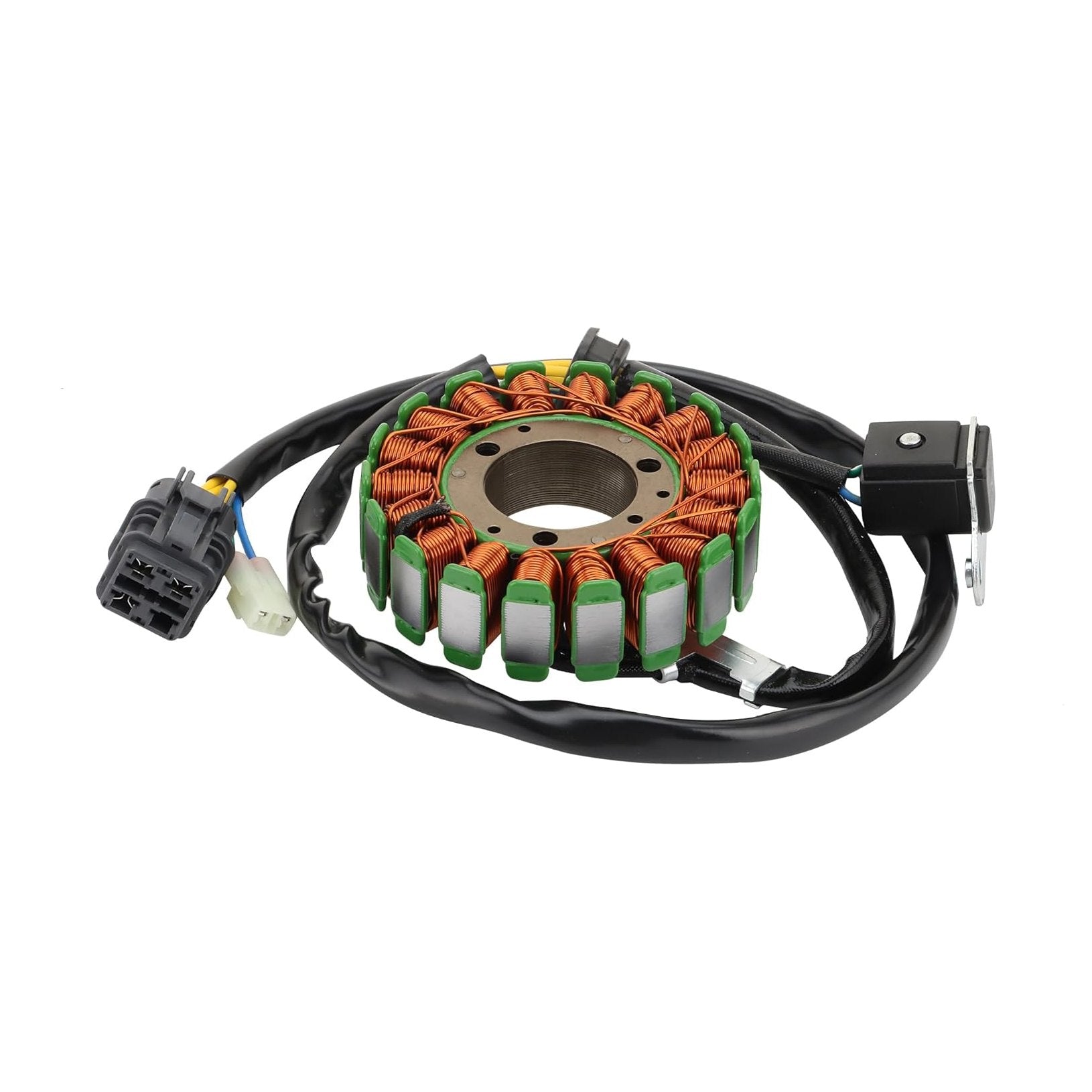

Heavy-Duty Magneto Stator for Arctic Cat 250 & 300 (2006–2009)
Restore your ATV's ignition and charging power. This premium aftermarket Magneto Stator is a precision-engineered replacement for Arctic Cat OEM parts 3303-833 and 3304-682. It is designed specifically for the 250 and 300cc engines, providing the stable electrical current necessary to power your lights, ignition system, and battery charging.
Constructed with highest-grade copper windings and premium lamination materials, this stator is built to withstand internal temperatures up to 200°C. The durable aluminum base plate provides superior corrosion resistance, ensuring reliable performance in the mud, water, and heat of rugged trail riding.
Product Compatibility
| Model Family | Specific Fits | Year Range |
| Arctic Cat 250 | Utility 2x4 Auto, 250 UT | 2006–2009 |
| Arctic Cat 300 | Utility 2x4 | 2006–2009 |
| Arctic Cat DVX | DVX 250 Sport | 2006–2008 |
Key Technical Specs:
- OEM Reference: 3303-833, 3304-682

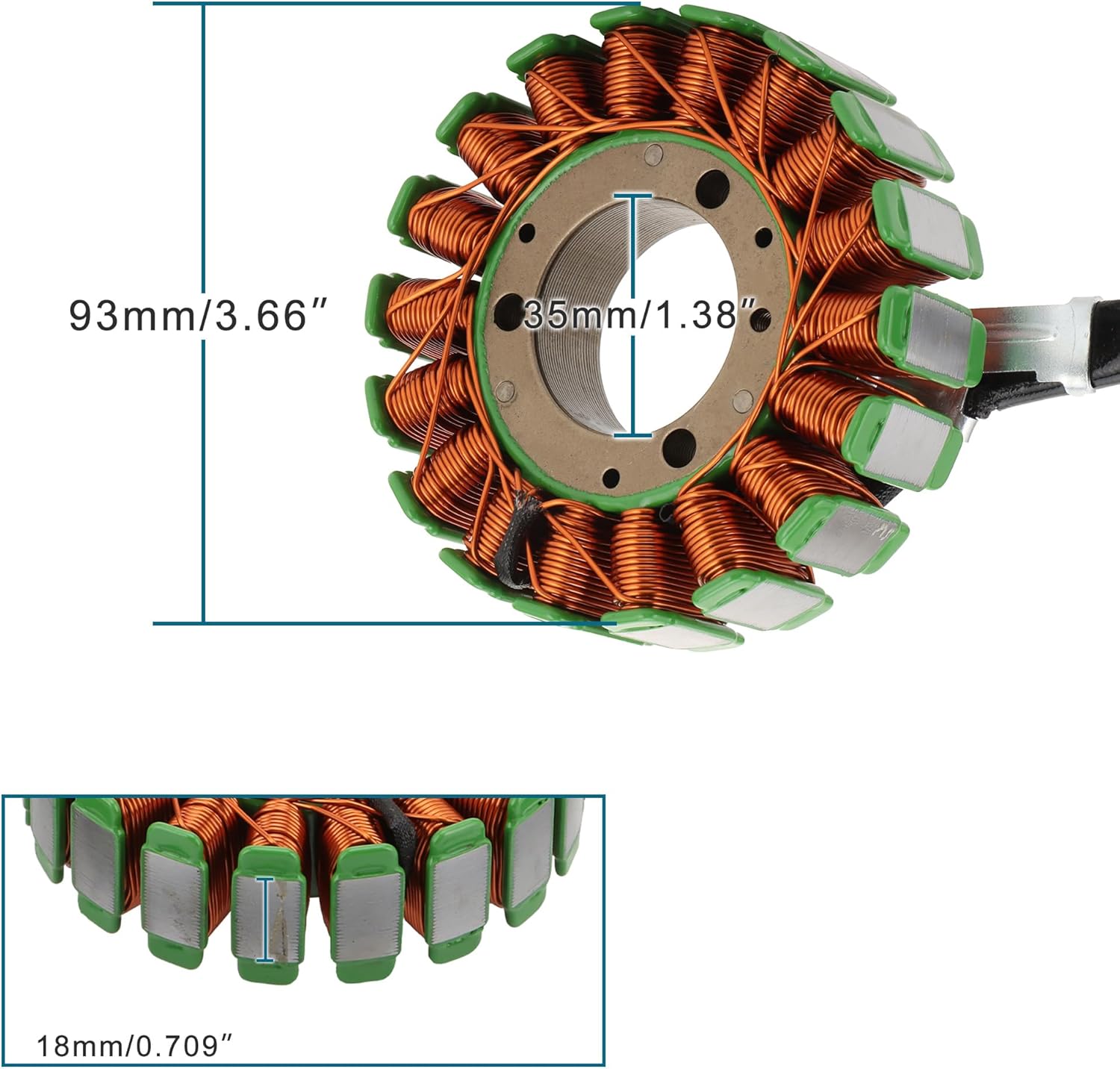

- Stator Dimensions: Outer 93mm | Inner 35mm | Thickness 18mm
- Design: 18-Pole, 5-Wire configuration

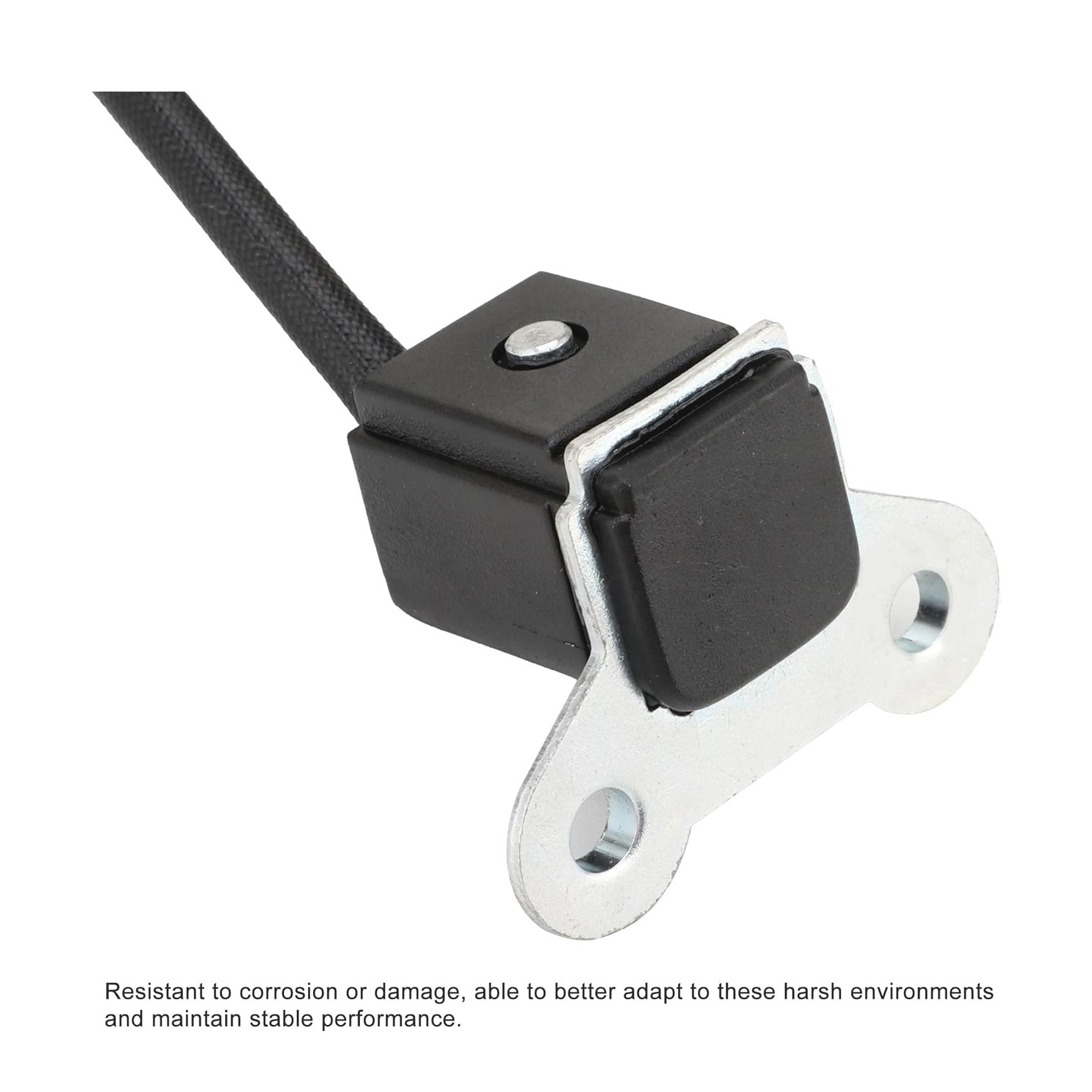

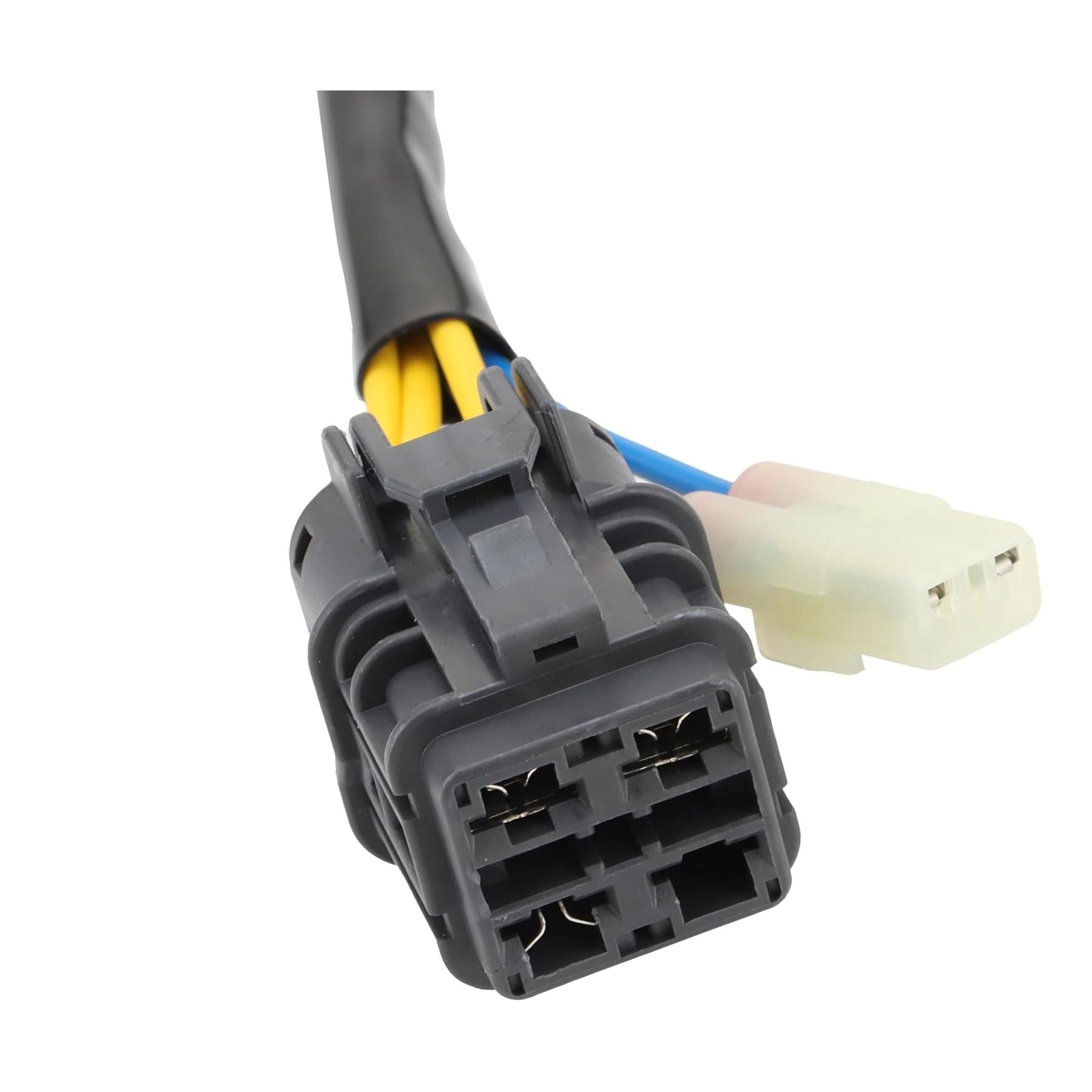

- Features: Includes pickup pulsar coil and factory-style connectors
Why Upgrade This Stator?
- Improved Spark Stability: High-density copper coils deliver a more consistent spark for better throttle response and easier cold starts.
- Superior Thermal Management: Advanced insulating materials prevent common "melt-down" failures seen in standard factory units under heavy load.
- True Plug-and-Play: Matches factory mounting points and wiring order for a fast, straightforward installation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Model Family; Specific Fits; Arctic Cat 250; Utility 2x4 Auto, 250 UT; 2006–2009; Arctic Cat 300; Utility 2x4. It is best matched to original part number(s) 3303-833, 3304-682, 2006-2009. Key physical/spec details from the product data include Stator Dimensions: Outer 93mm | Inner 35mm | Thickness 18mm, 300cc, 93mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 3303-833, 3304-682, 2006-2009 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Arctic Cat models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 3303-833, 3304-682, 2006-2009, treat the fitment as unconfirmed. Model years outside 2006–2009, 2006–2008, 2006, 2009, 2008 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 3303-833, 3304-682, 2006-2009. Recheck listed specs such as Stator Dimensions: Outer 93mm | Inner 35mm | Thickness 18mm, 300cc, 93mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
