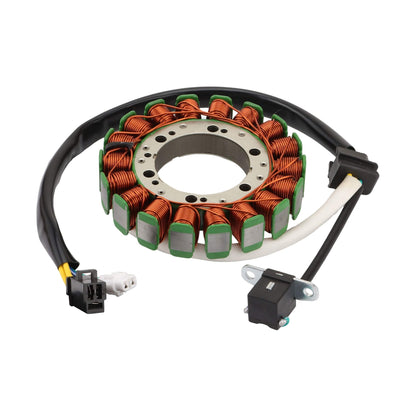

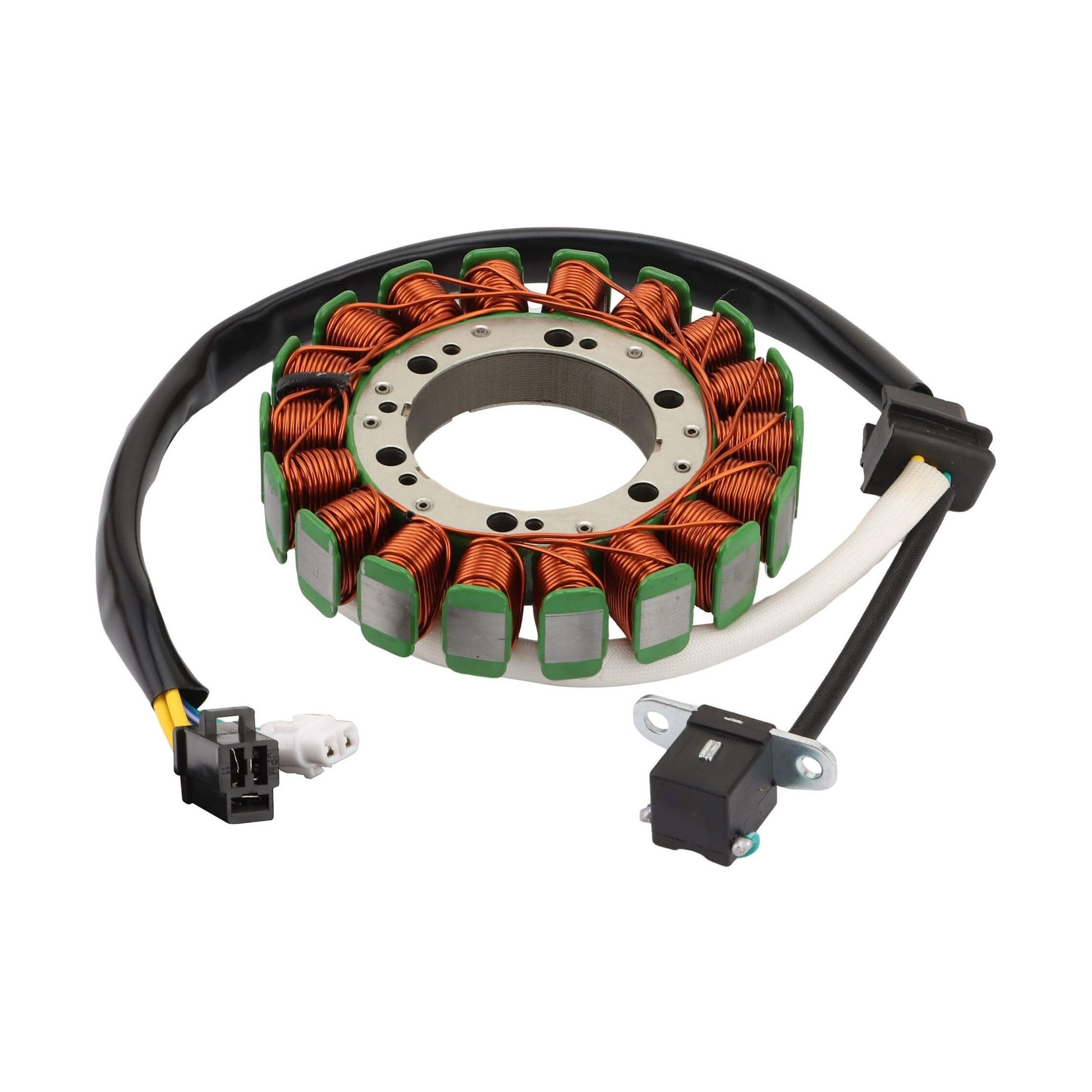

Magneto Stator for Arctic Cat 550 700 1000 MudPro Prowler TRV | OEM 0802-041
Magneto Stator for Arctic Cat 550 700 1000 MudPro Prowler TRV | OEM 0802-041
Couldn't load pickup availability
Product Overview
Restore reliable charging and ignition performance with this high-output magneto stator for Arctic Cat 550, 700, and 1000 models. Designed for demanding ATV and UTV use, it delivers stable voltage for EFI systems, lighting, and accessories. Built with heat-resistant copper windings and sealed construction for extreme off-road conditions.

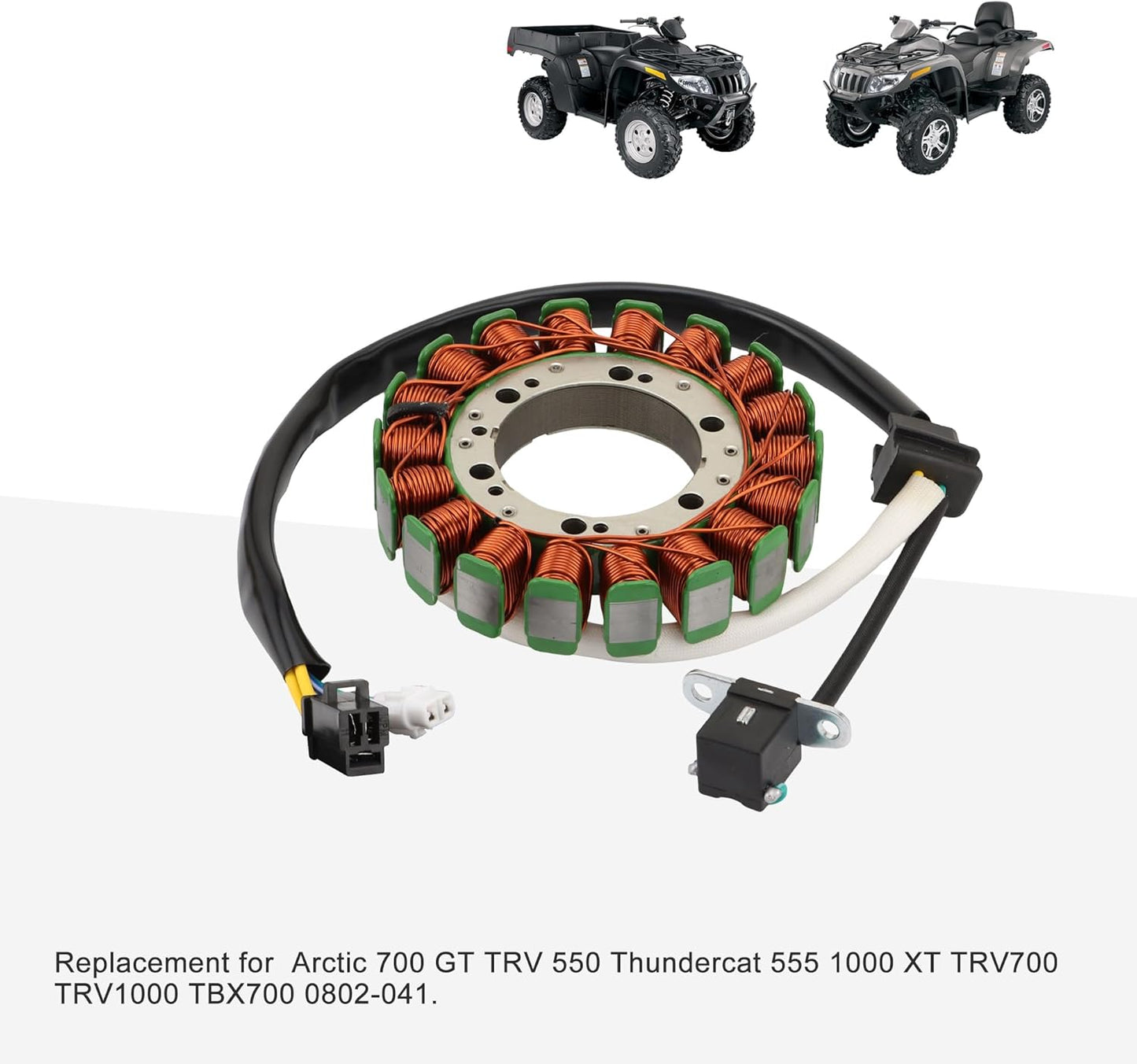

Product Compatibility
| Brand | Model Family | Specific Models | Year Range |
|---|---|---|---|
| Arctic Cat | 1000 | MudPro, Thundercat, TRV, XT, XTZ | 2008–2015 |
| Arctic Cat | 700 | MudPro, TRV, GT, TBX, XTX | 2008–2016 |
| Arctic Cat | 550 | EFI, TRV, GT, LTD, Prowler XT | 2009–2015 |
OEM Reference:
- 0802-041
Fitment Notes:
- Compatible with H1 and H2 engine platforms
- Please verify OEM part number and connector type before purchase
Specifications
| Specification | Details |
|---|---|
| Pole Configuration | 18-Pole |
| Wiring | 5-Wire System |

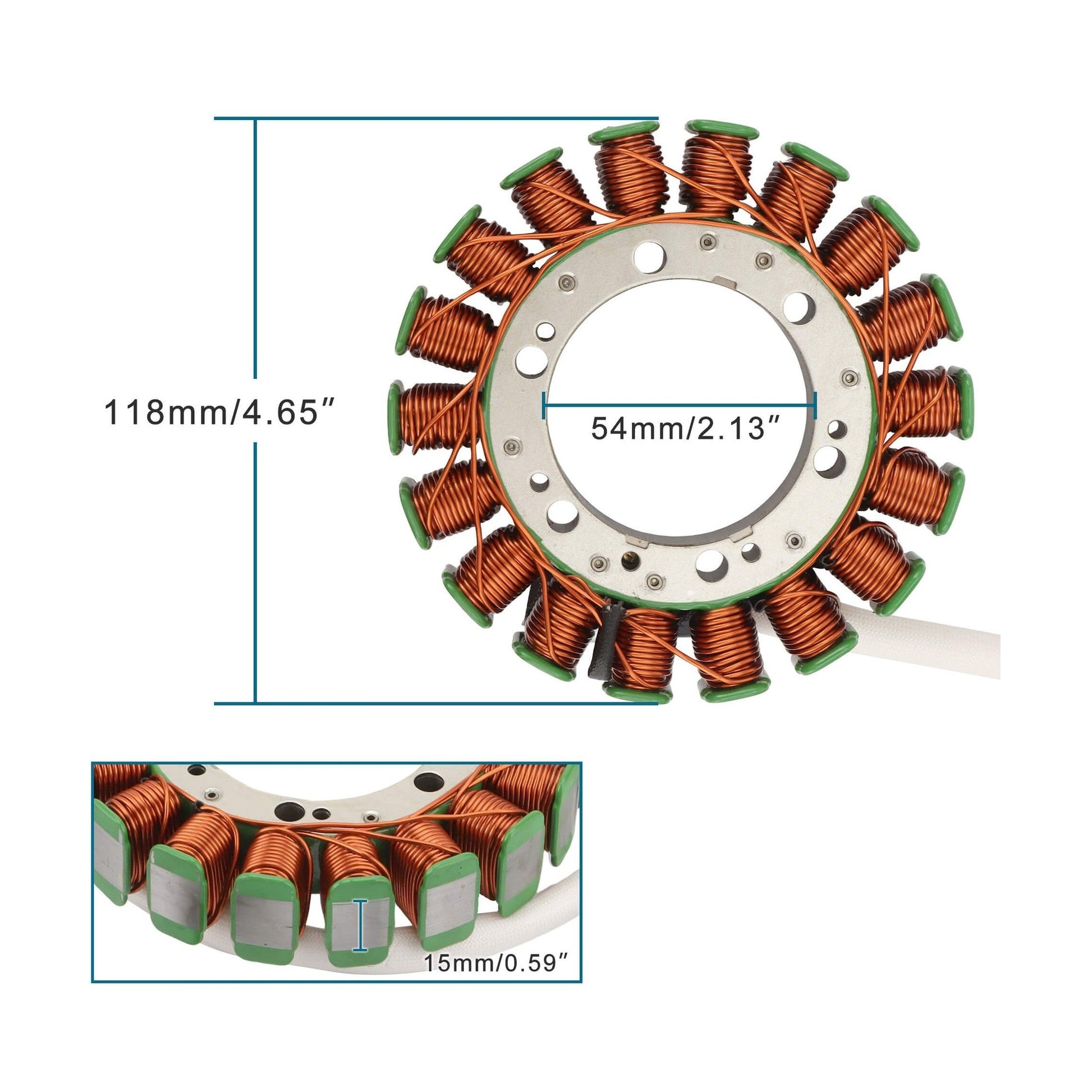

| Outer Diameter | 118 mm (4.65") |
| Inner Diameter | 54 mm (2.13") |
| Thickness | 15 mm (0.59") |
| Material | High-density copper windings |
| Temperature Rating | Up to 200°C |
| Installation | Includes pickup coil & connectors |
| Condition | 100% New Aftermarket |
Key Features
- High Output Charging Power – Supports EFI, lighting, and accessories like winches
- Extreme Heat Resistance – Rated up to 200°C to prevent stator burnout
- Sealed & Corrosion-Resistant – Built for mud, water, and harsh trail conditions
- Stable Voltage Supply – Ensures smooth idle and responsive throttle
- Direct OEM Replacement – Plug-and-play installation with factory connectors
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Model Family; Specific Models; Arctic Cat; 1000; MudPro, Thundercat, TRV, XT, XTZ; 2008–2015. It is best matched to original part number(s) 0802-041. Key physical/spec details from the product data include Outer Diameter: 118 mm (4.65"), Inner Diameter: 54 mm (2.13"), Thickness: 15 mm (0.59"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 0802-041 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Arctic Cat models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 0802-041, treat the fitment as unconfirmed. Model years outside 2008–2015, 2008–2016, 2009–2015, 2008, 2015 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 0802-041. Recheck listed specs such as Outer Diameter: 118 mm (4.65"), Inner Diameter: 54 mm (2.13"), Thickness: 15 mm (0.59"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
