Magneto Stator for Briggs & Stratton 16-23HP V-Twin | OEM 846882, 693481
Magneto Stator for Briggs & Stratton 16-23HP V-Twin | OEM 846882, 693481
Couldn't load pickup availability

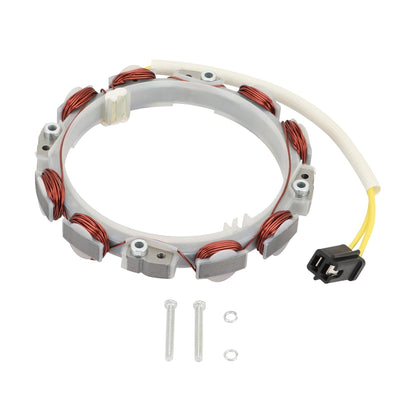

Heavy-Duty Charging Stator for Briggs & Stratton 16HP – 23HP V-Twin Engines
Restore your engine's electrical power. This premium aftermarket Charging Coil and Stator Assembly is a precision-engineered replacement for Briggs & Stratton V-Twin engines ranging from 16HP to 23HP. Designed for the high-intensity demands of riding mowers, generators, and commercial equipment, it provides the stable electrical output required to keep your battery charged and your electrical accessories running smoothly.
Manufactured with high-quality, heat-resistant copper windings and a robust, corrosion-protected housing, this stator is built to resist the vibration and thermal breakdown common in air-cooled engines. The precise 134mm design ensures a direct plug-and-play fit, making it a durable choice for reducing maintenance downtime.
Product Compatibility
- Briggs & Stratton V-Twin Series: 295347, 305447, 356447, 385447, 543277, 613277
- Horsepower Range: 16HP, 18HP, 20HP, 21HP, 23HP
- OEM Cross-Reference: 846882, 693481, 391529, 696579, 592830

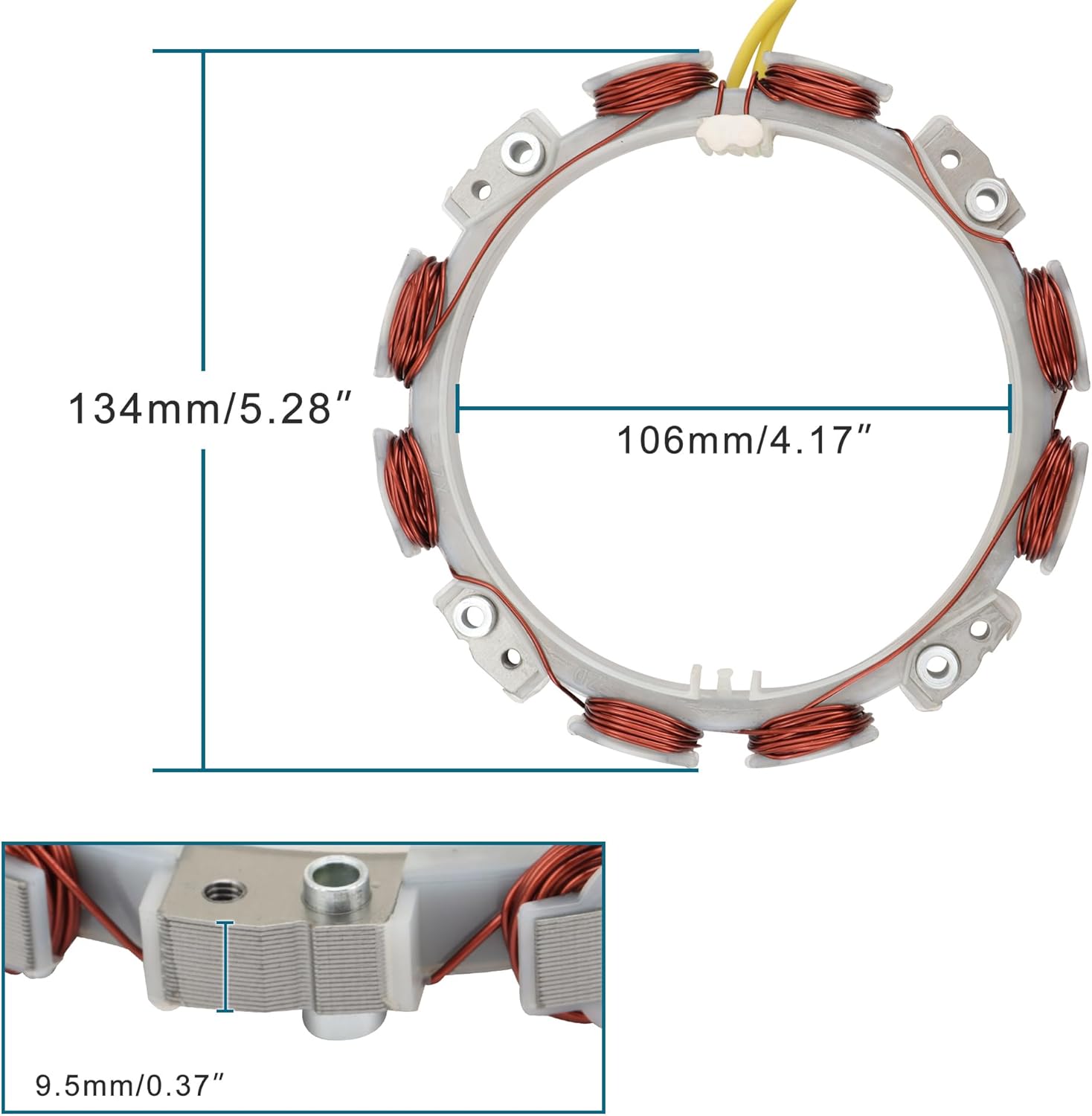

Key Technical Specifications:
- Outer Diameter: 134mm (5.28")
- Inner Diameter: 106mm (4.17")
- Iron Core Height: 9.5mm (0.37")
Why Choose This Stator?
- Efficient Conductivity: Uses premium copper wire for maximum electrical flow and efficient battery charging even under heavy load.

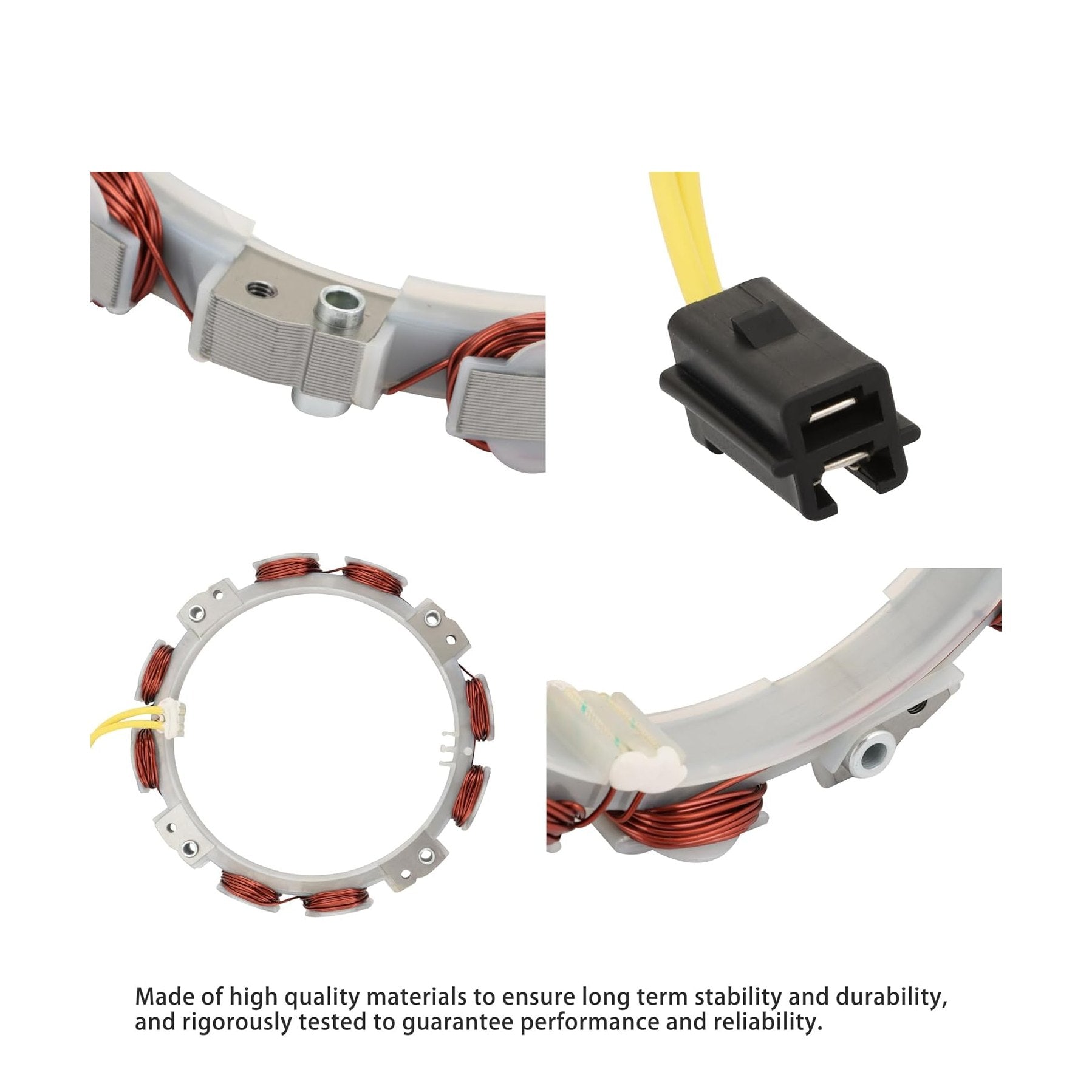

- Extreme Durability: Engineered with wear-resistant materials and high-temperature insulation to survive the severe heat of a V-Twin engine bay.

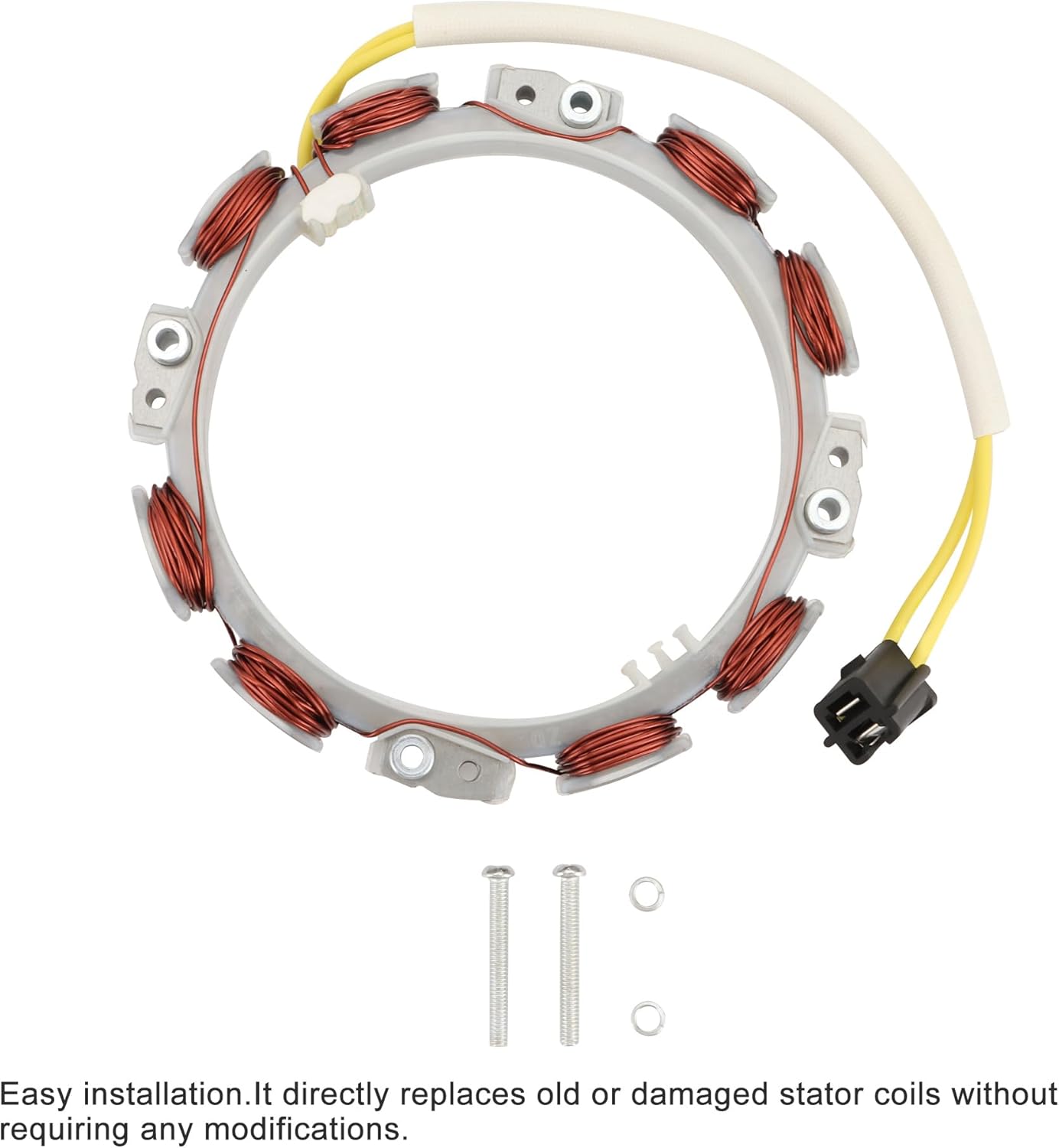

- Easy Installation: Designed as a straightforward replacement for the original unit, matching factory mounting points exactly with no modifications required.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Briggs & Stratton V-Twin Series: 295347, 305447, 356447, 385447, 543277, 613277; Horsepower Range: 16HP, 18HP, 20HP, 21HP, 23HP; OEM Cross-Reference: 846882, 693481, 391529, 696579, 592830. It is best matched to original part number(s) 846882, 693481, 16-23HP, 391529. Key physical/spec details from the product data include Outer Diameter: 134mm (5.28"), Inner Diameter: 106mm (4.17"), Iron Core Height: 9.5mm (0.37"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 846882, 693481, 16-23HP, 391529 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Briggs models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 846882, 693481, 16-23HP, 391529, treat the fitment as unconfirmed. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 846882, 693481, 16-23HP, 391529. Recheck listed specs such as Outer Diameter: 134mm (5.28"), Inner Diameter: 106mm (4.17"), Iron Core Height: 9.5mm (0.37"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
