Magneto Stator for CFMoto 800 CForce UForce ZForce | OEM 0800-032000
Magneto Stator for CFMoto 800 CForce UForce ZForce | OEM 0800-032000
Couldn't load pickup availability

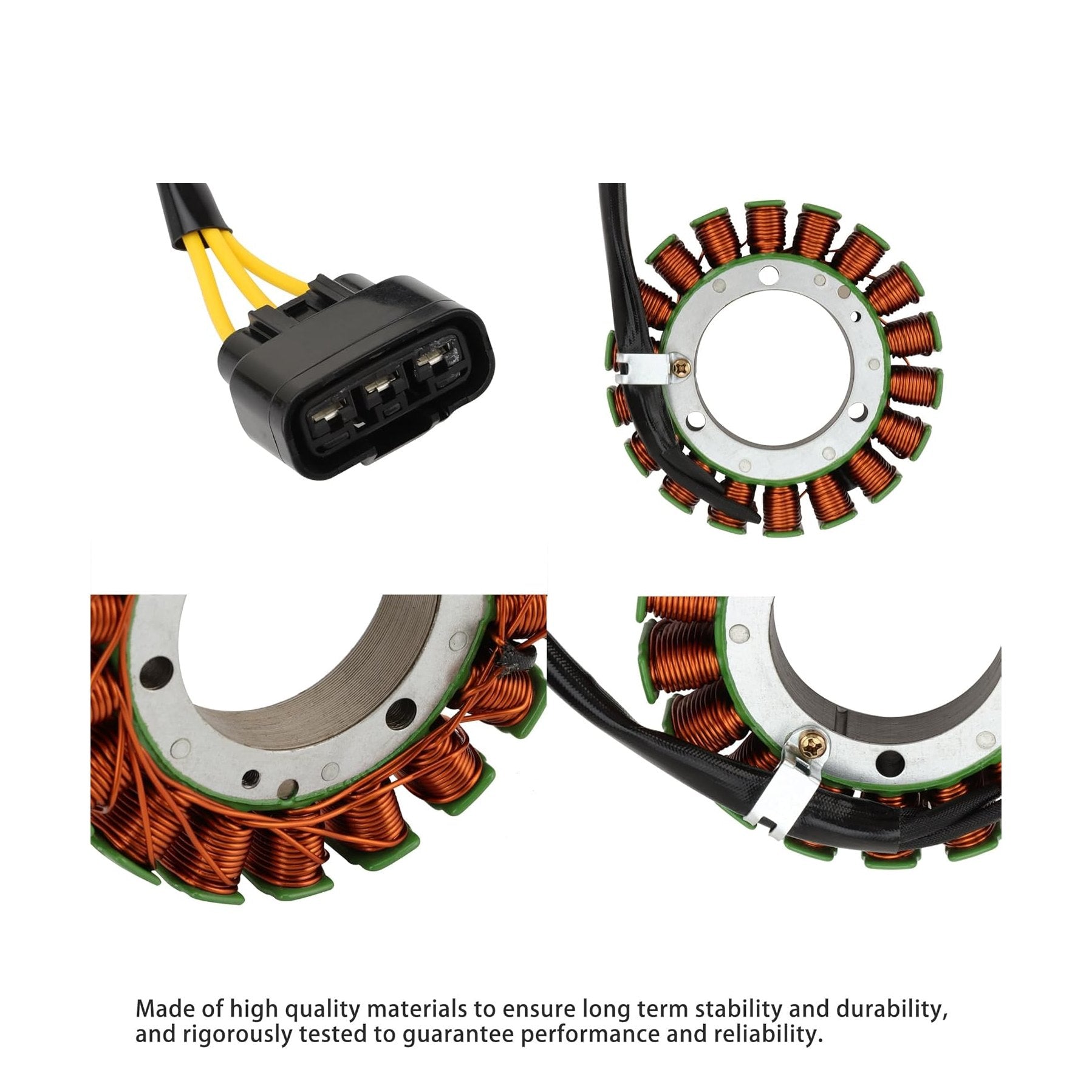

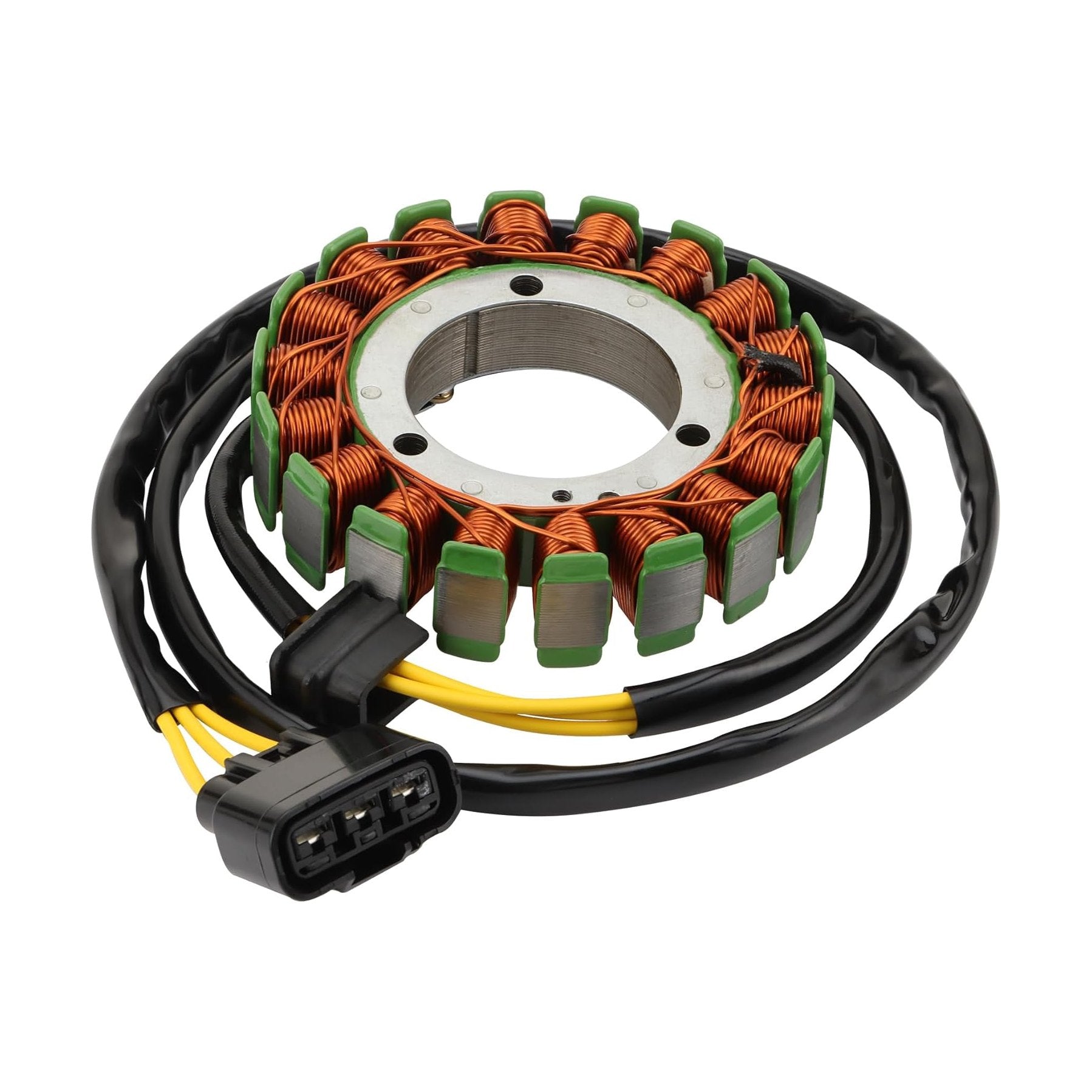

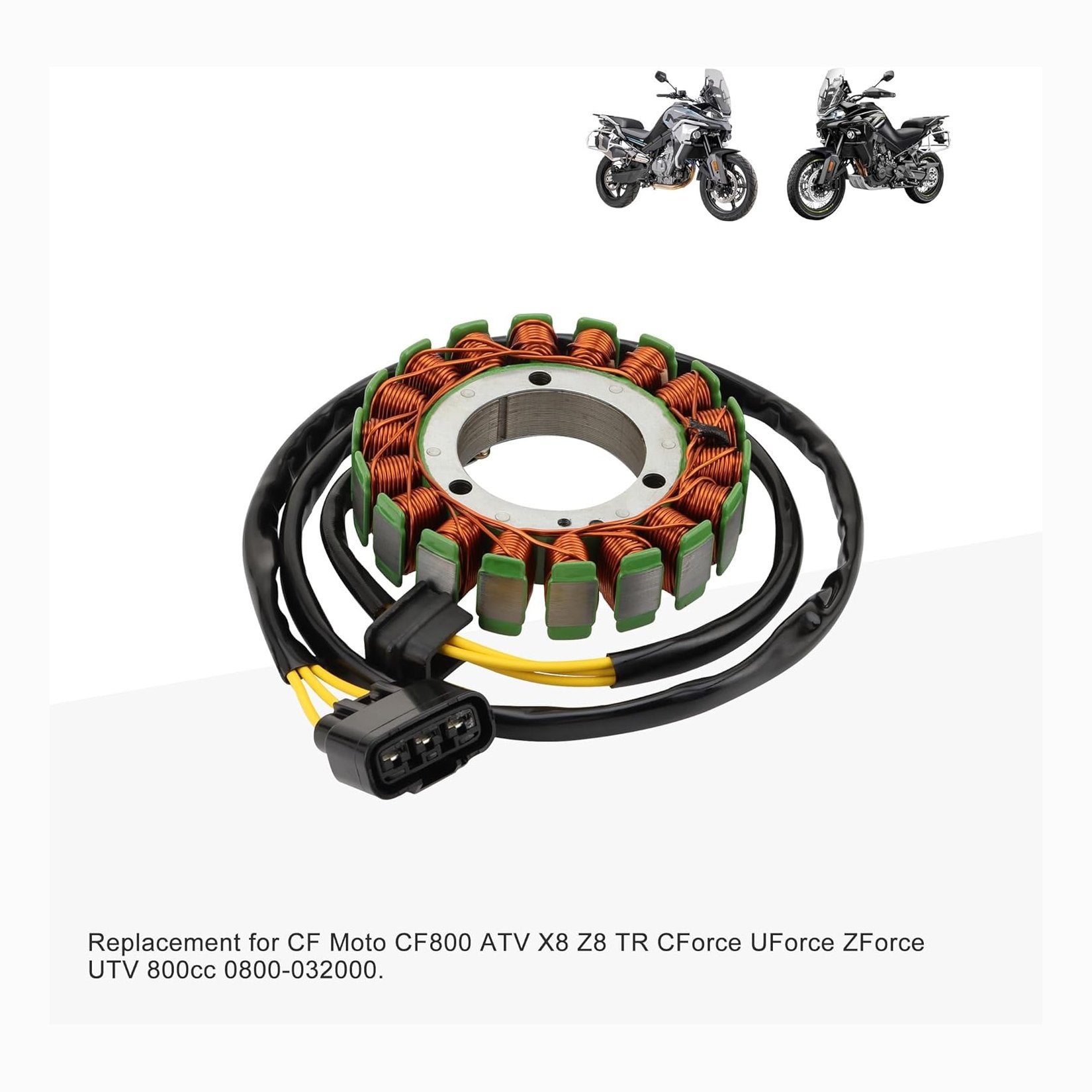

Heavy-Duty 18-Pole Magneto Stator for CFMoto 800cc Engines
Restore your machine's charging system with factory-level precision. This premium 18-coil Magneto Stator is a high-performance replacement for CFMoto OEM Part #0800-032000. Engineered specifically for the high-demand electrical systems of 800cc CForce, UForce, and ZForce models, it provides the stable current necessary for ignition, battery charging, and electronic accessories like EPS and winches.
Crafted with highest-grade copper windings and high-temp insulating materials, this stator is designed to withstand internal temperatures up to 200°C. Its precision-laminated iron core ensures maximum electromagnetic efficiency, resulting in a more stable spark and improved throttle response.
Product Compatibility
| Model Family | Specific Fits | Year Range |
| CF800 / X8 | CForce 800, X8 ATV, CF800-2 | 2013–2019+ |
| UForce 800 | UForce 800 Utility, U8, CF800-3 | 2013–2022 |
| ZForce 800 | ZForce 800 EX, Trail, Z8 | 2013–2022 |
Key Technical Specs:
- OEM Reference: 0800-032000 (also fits 0800-032000-3000 / 4000)
- Configuration: 18-Pole / 3-Wire Plug

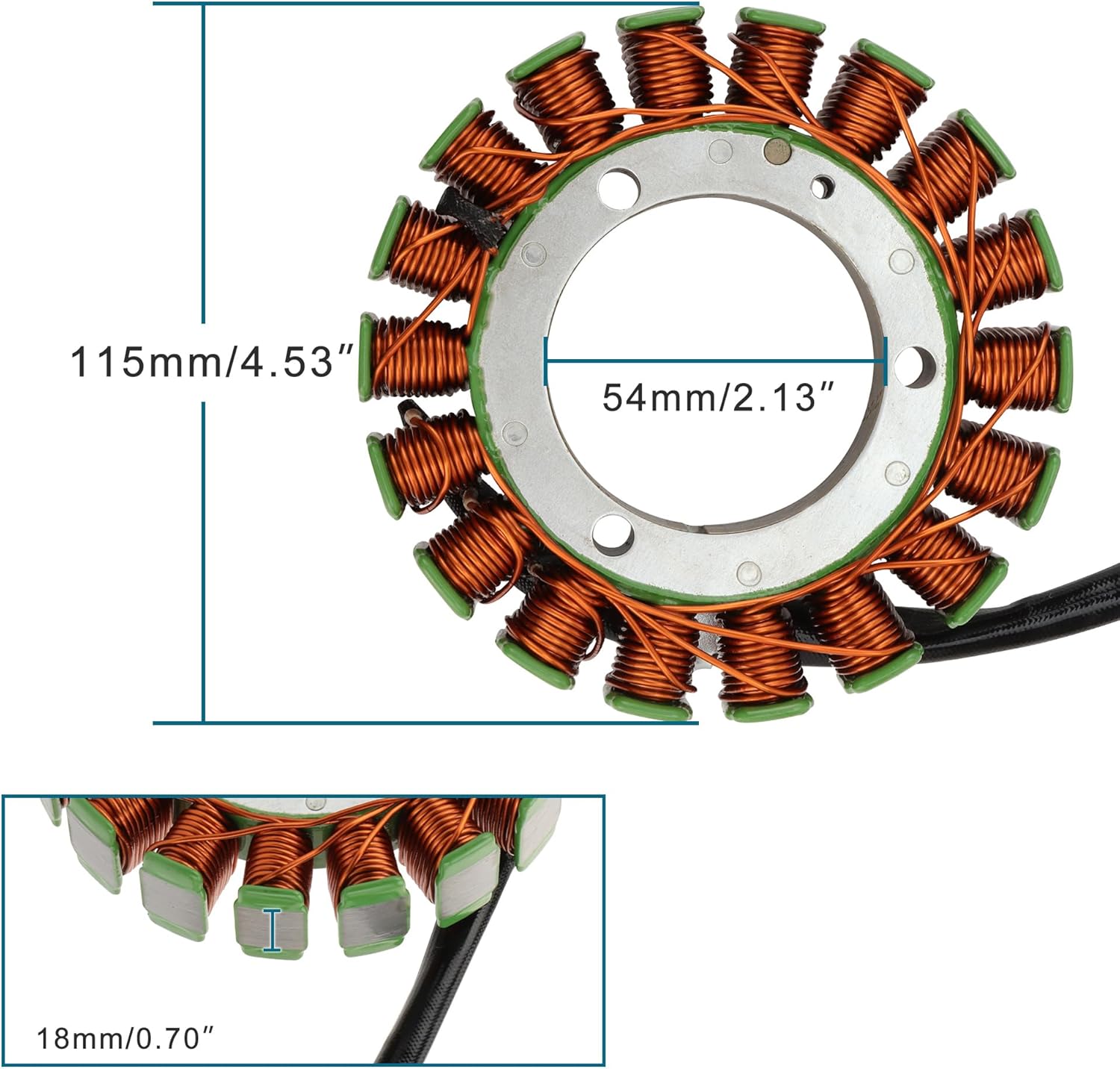

- Dimensions: Outer 115mm (4.53") | Inner 54mm (2.13") | Core Height 18mm (0.70")
- Design: Direct plug-and-play unit; no modifications required
Why Choose This Stator?
- Advanced Heat Resistance: Uses 200°C-rated copper wire to prevent the common burnout issues found in standard units.
- Stable Power Generation: Optimized 18-coil design ensures consistent voltage for smooth engine performance and battery health.
- Plug-and-Play Installation: Matches factory connectors and mounting points exactly for a hassle-free repair.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Model Family; Specific Fits; CF800 / X8; CForce 800, X8 ATV, CF800-2; 2013–2019+; UForce 800; UForce 800 Utility, U8, CF800-3. It is best matched to original part number(s) 0800-032000, 18-COIL, 0800-032000-3000. Key physical/spec details from the product data include Dimensions: Outer 115mm (4.53") | Inner 54mm (2.13") | Core Height 18mm (0.70"), Stable Power Generation: Optimized 18-coil design ensures consistent voltage for smooth engine performance and battery health., 800cc. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 0800-032000, 18-COIL, 0800-032000-3000 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for CFMOTO CF800 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 0800-032000, 18-COIL, 0800-032000-3000, treat the fitment as unconfirmed. Model years outside 2013–2019, 2013–2022, 2013, 2019, 2022 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 0800-032000, 18-COIL, 0800-032000-3000. Recheck listed specs such as Dimensions: Outer 115mm (4.53") | Inner 54mm (2.13") | Core Height 18mm (0.70"), Stable Power Generation: Optimized 18-coil design ensures consistent voltage for smooth engine performance and battery health., 800cc. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
