Magneto Stator for CN250 CF250 CH250 250cc Water-Cooled Engines

Magneto Stator for CN250 CF250 CH250 250cc Water-Cooled Engines

$33.99
$33.99
Sale Sold out
Shipping calculated at checkout.

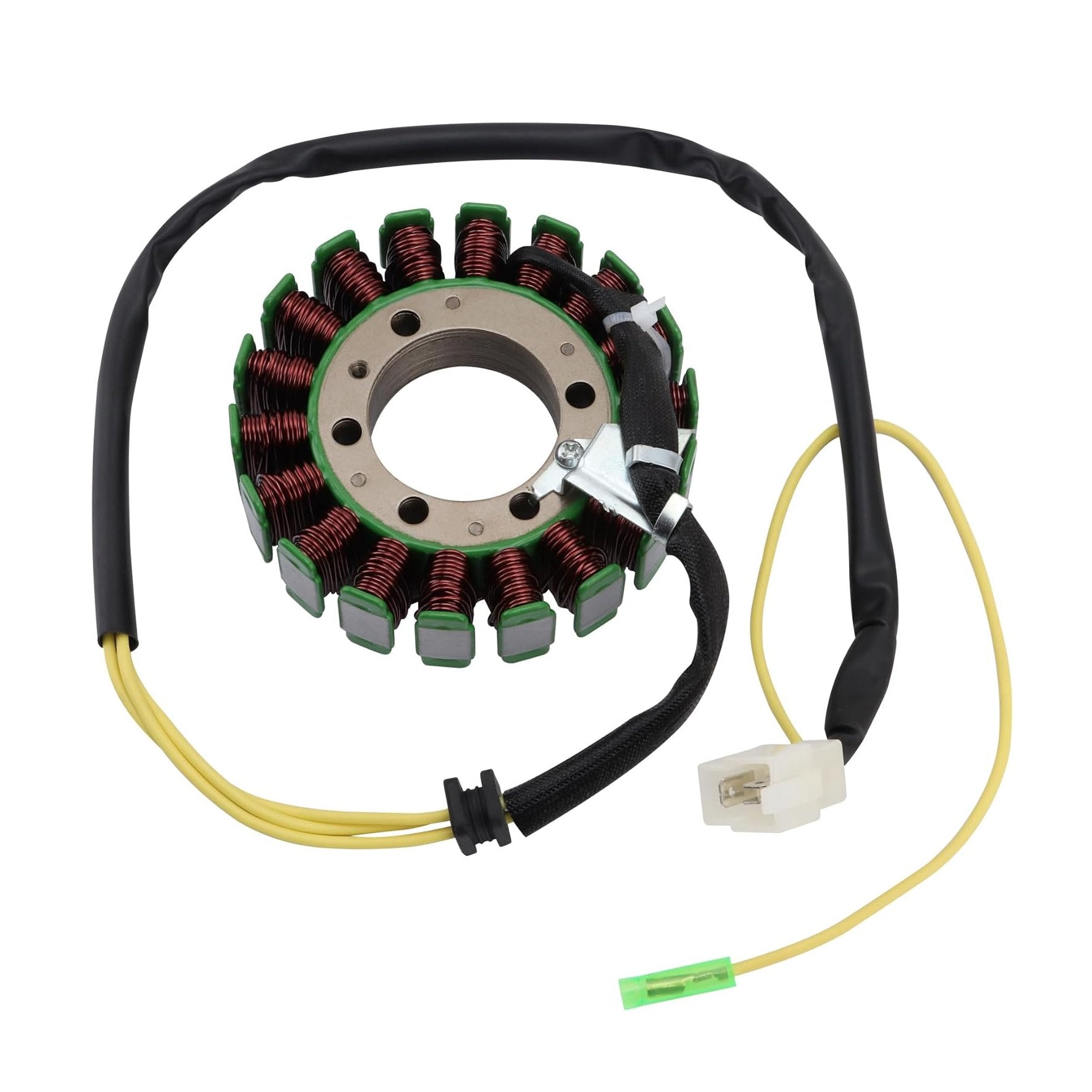

High-Output 18-Pole Magneto Stator for Water-Cooled 250cc Engines

Restore reliable charging and ignition performance. This premium 18-coil Magneto Stator is a precision-engineered replacement for 250cc water-cooled 4-stroke engines. Designed for durability in extreme environments, this stator ensures your vehicle has the stable current output needed for lights, gauges, and high-efficiency ignition.

Crafted with high-quality copper wire and high-temperature-resistant insulation, this stator is built to withstand the intense heat cycles of a liquid-cooled engine. The advanced manufacturing technology ensures even and accurate winding across all 18 poles, optimizing the magnetic circuit to reduce energy waste and provide maximum electrical efficiency.

Product Compatibility

Engine Type Popular Models Note
CN250 / CH250 Honda Helix, Honda Elite 250 Direct Replacement
CF250 (172MM) Joyner Sand Viper, Hammerhead 250 Direct Replacement
Chinese 250cc Roketa, SunL, Kazuma, Baja Dune Water-Cooled Only
CF Moto 250 250NK, 250SR, Jetmax NOT COMPATIBLE

Key Technical Specs:

  • Pole Count: 18-Coil / 18-Pole configuration
  • Engine Type: 250cc Water-Cooled (CN/CH/CF series)

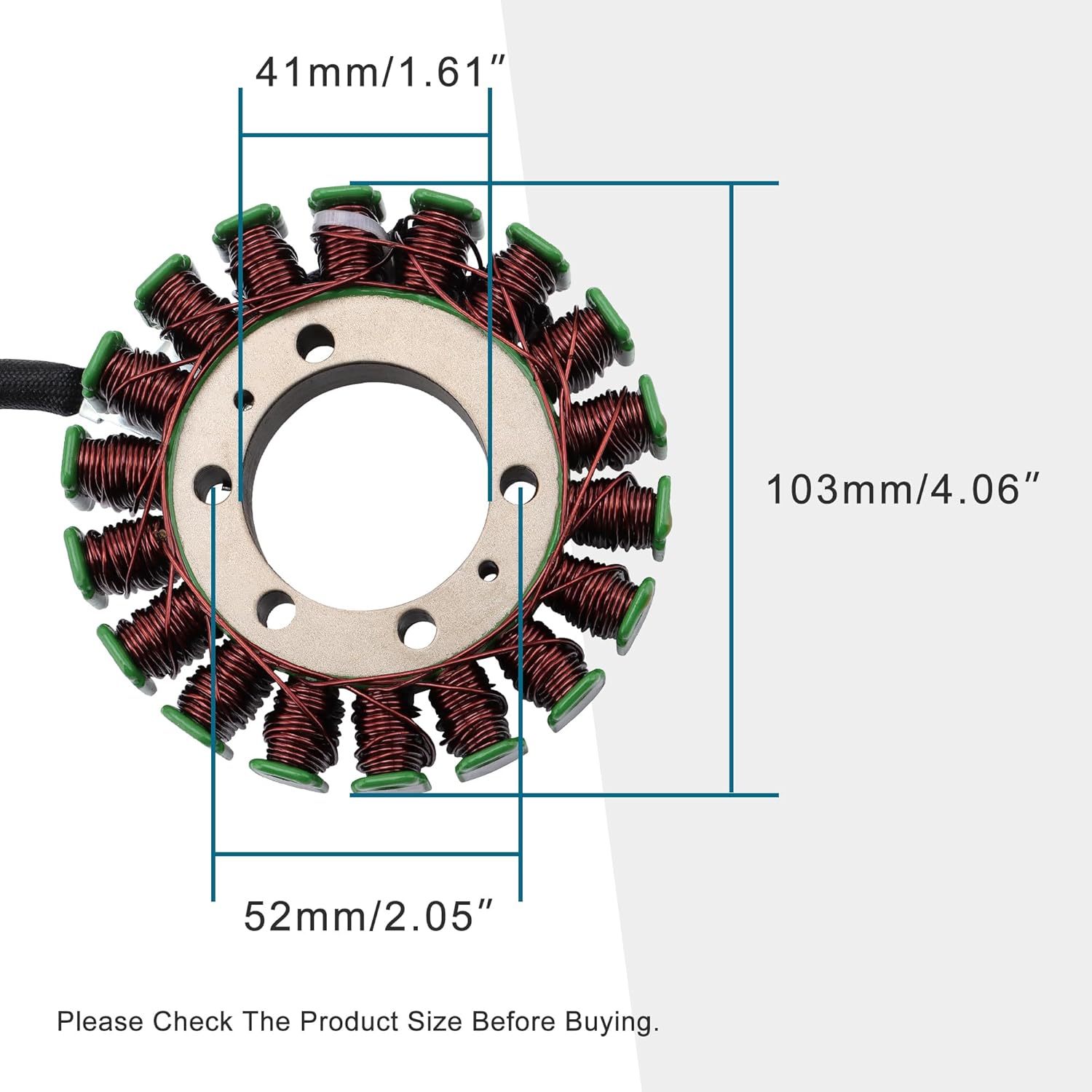

  • Dimensions: 103mm Outer Diameter | 41mm Inner Diameter
  • Materials: High-grade lamination and thermal-resistant copper

Why Upgrade This Stator?

  • Stable Current Output: Precision windings eliminate voltage fluctuations, protecting your CDI and battery from electrical spikes.
  • Green Concept Design: An optimized magnetic circuit improves power generation efficiency, which lowers internal drag on the engine for a more eco-friendly ride.
  • Extreme Durability: Built to handle the moisture and dust inherent to ATV and off-road buggy use without performance degradation.
View full details

Fitment FAQ

Will this part fit my specific model and year?

This magneto stator is intended for Engine Type; Popular Models. Key physical/spec details from the product data include Dimensions: 103mm Outer Diameter | 41mm Inner Diameter, 250cc, 172MM. Use the compatibility table and product photos together before ordering.

Do I need to match the OEM part number?

Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for CN250/CF250/CH250 models because similar model names can use different parts by year or trim.

What models or situations does this part not fit?

Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Do not rely only on the model name or engine size.

What should I check before ordering?

Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Dimensions: 103mm Outer Diameter | 41mm Inner Diameter, 250cc, 172MM. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
