Magneto Stator for GY6 50cc-125cc ATV Scooter| 5-Wire AC Half-Wave (Male Plug)

Magneto Stator for GY6 50cc-125cc ATV Scooter| 5-Wire AC Half-Wave (Male Plug)

$16.99
$16.99
Sale Sold out
Shipping calculated at checkout.

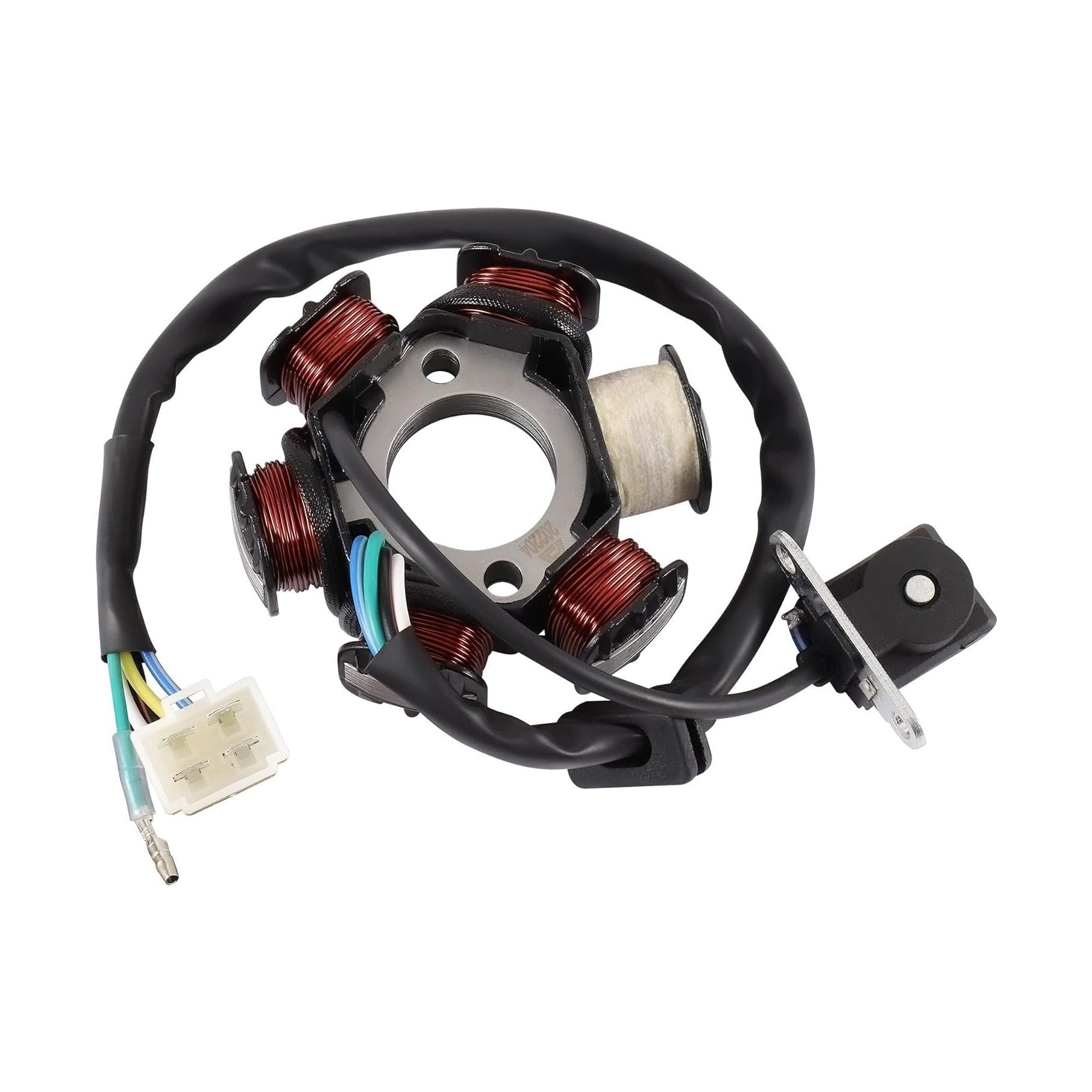

Heavy-Duty 6-Pole Magneto Stator for GY6 50cc – 125cc Engines

Restore your machine's electrical power and ignition reliability. This premium 6-pole Magneto Stator is a precision-engineered replacement for 50cc, 70cc, 90cc, 110cc, and 125cc Chinese 4-stroke engines. Whether you’re repairing a pit bike, scooter, or ATV, this stator provides the stable electrical output needed for a stronger spark and consistent battery charging

Constructed with high-strength copper wire to prevent short circuits, this unit is designed for efficient power conversion and long-lasting durability. The housing is made of a waterproof and rust-proof plastic casing, ensuring that the internal coils remain protected even in harsh riding environments.

Product Compatibility

Engine Type Popular Brands Vehicle Types
GY6 50cc / 70cc TaoTao, Peace Sports, Wolf Scooters / Mopeds
90cc / 110cc SSR, Roketa, Kazuma ATVs / Quads / Buggies
125cc (Horizontal) Apollo, X-Pro, Coolster Dirt Bikes / Go Karts

Key Technical Specs:

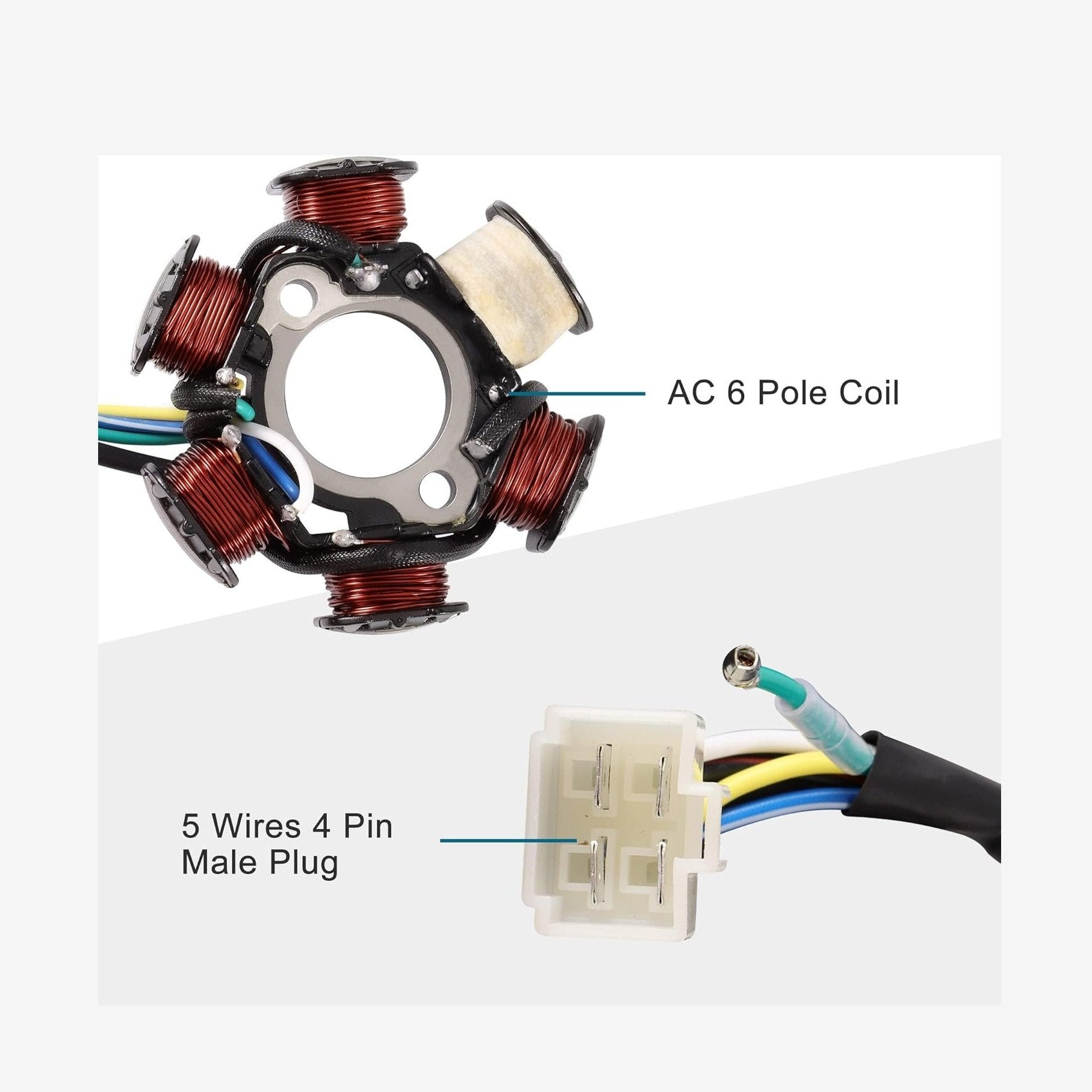

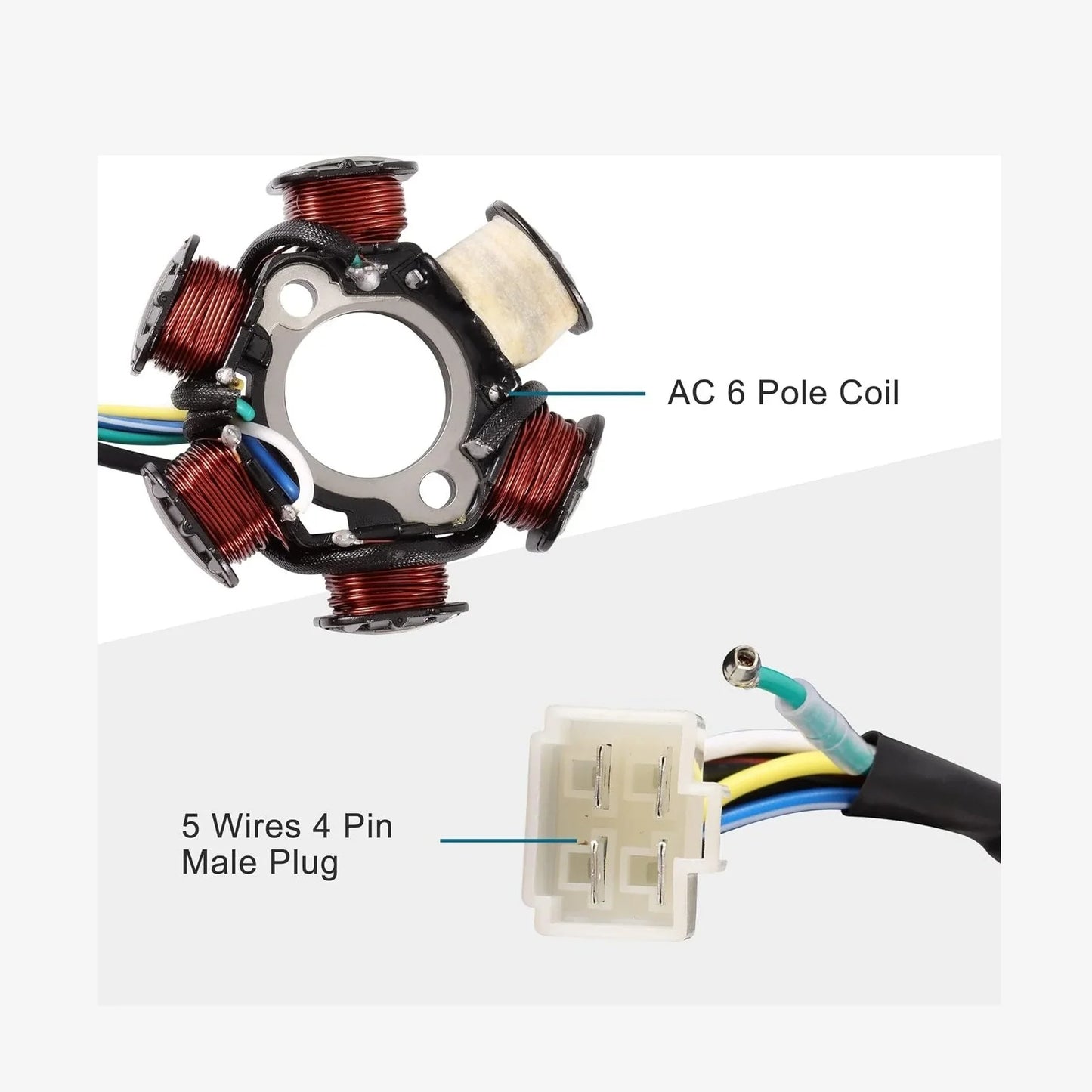

  • Configuration: 6-Pole / 6-Coil Magneto
  • Ignition Type: AC Half-Wave
  • Wiring: 5-Wire harness (Male Plug)

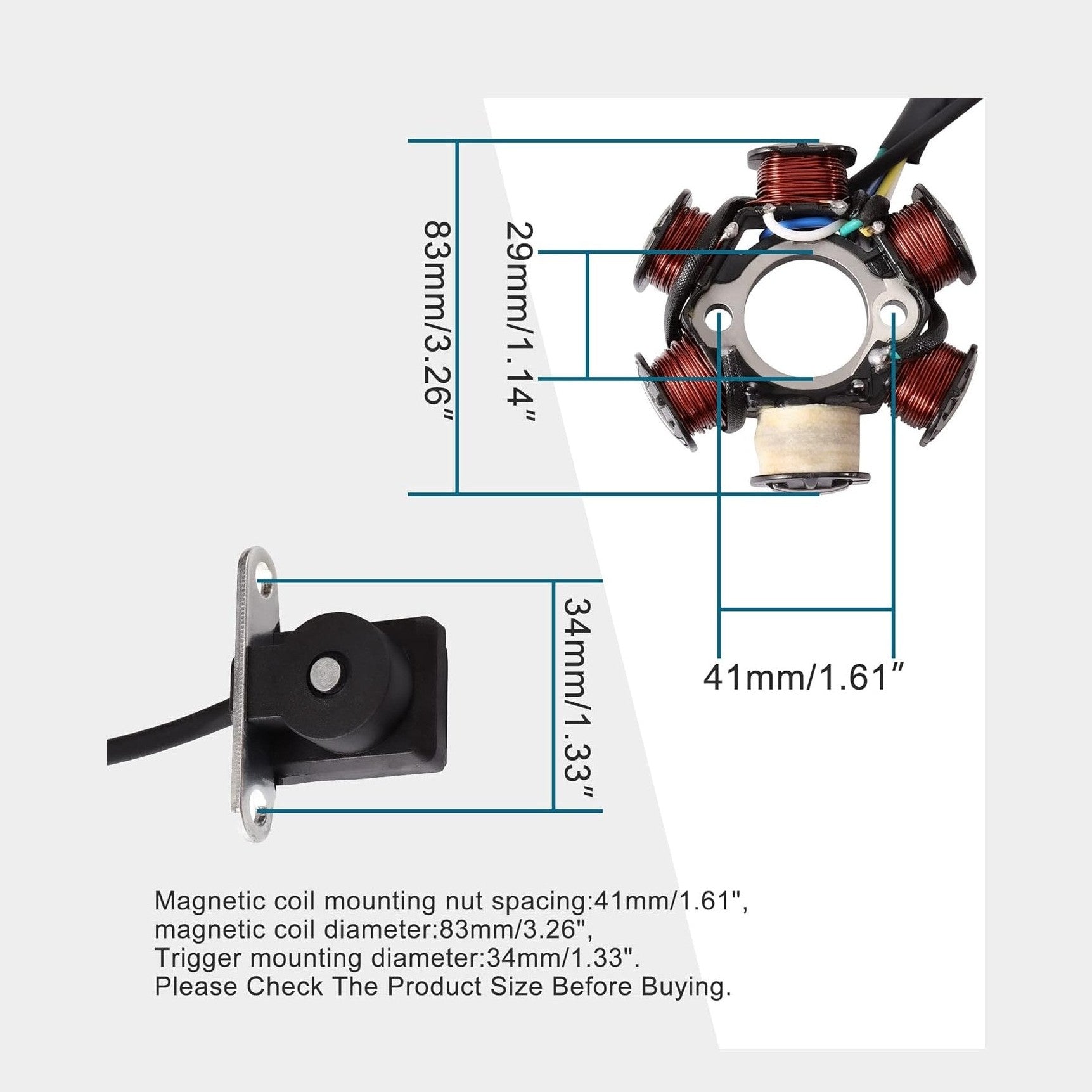

  • Mounting Nut Spacing: 41mm (1.61")
  • Coil Diameter: 83mm (3.26")
  • Trigger Mounting Diameter: 34mm (1.33")

Why Choose This Stator?

  • Optimized Power Generation: Highly efficient copper windings ensure a stable power supply for your lights, ignition system, and battery.
  • Stable Spark Performance: Delivers a stronger high-pressure spark, resulting in a more sensitive throttle response and smoother idle.
  • Durable Construction: Built with anti-corrosive and waterproof materials to ensure a long service life and reliable operation.
View full details

Fitment FAQ

Will this part fit my specific model and year?

This magneto stator is intended for Engine Type; Popular Brands; Vehicle Types; GY6 50cc / 70cc; TaoTao, Peace Sports, Wolf; Scooters / Mopeds; 90cc / 110cc. Key physical/spec details from the product data include Mounting Nut Spacing: 41mm (1.61"), Coil Diameter: 83mm (3.26"), Trigger Mounting Diameter: 34mm (1.33"). Use the compatibility table and product photos together before ordering.

Do I need to match the OEM part number?

Yes. If your original part has a stamped OEM or manufacturer number, match that number first before ordering. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for GY6/TaoTao GY6 models because similar model names can use different parts by year or trim.

What models or situations does this part not fit?

Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. Do not rely only on the model name or engine size.

What should I check before ordering?

Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Recheck listed specs such as Mounting Nut Spacing: 41mm (1.61"), Coil Diameter: 83mm (3.26"), Trigger Mounting Diameter: 34mm (1.33"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
