Magneto Stator for HISUN HS800, MSU, Massimo, Bennche 800cc | 31100-F68-0000
Magneto Stator for HISUN HS800, MSU, Massimo, Bennche 800cc | 31100-F68-0000
Couldn't load pickup availability

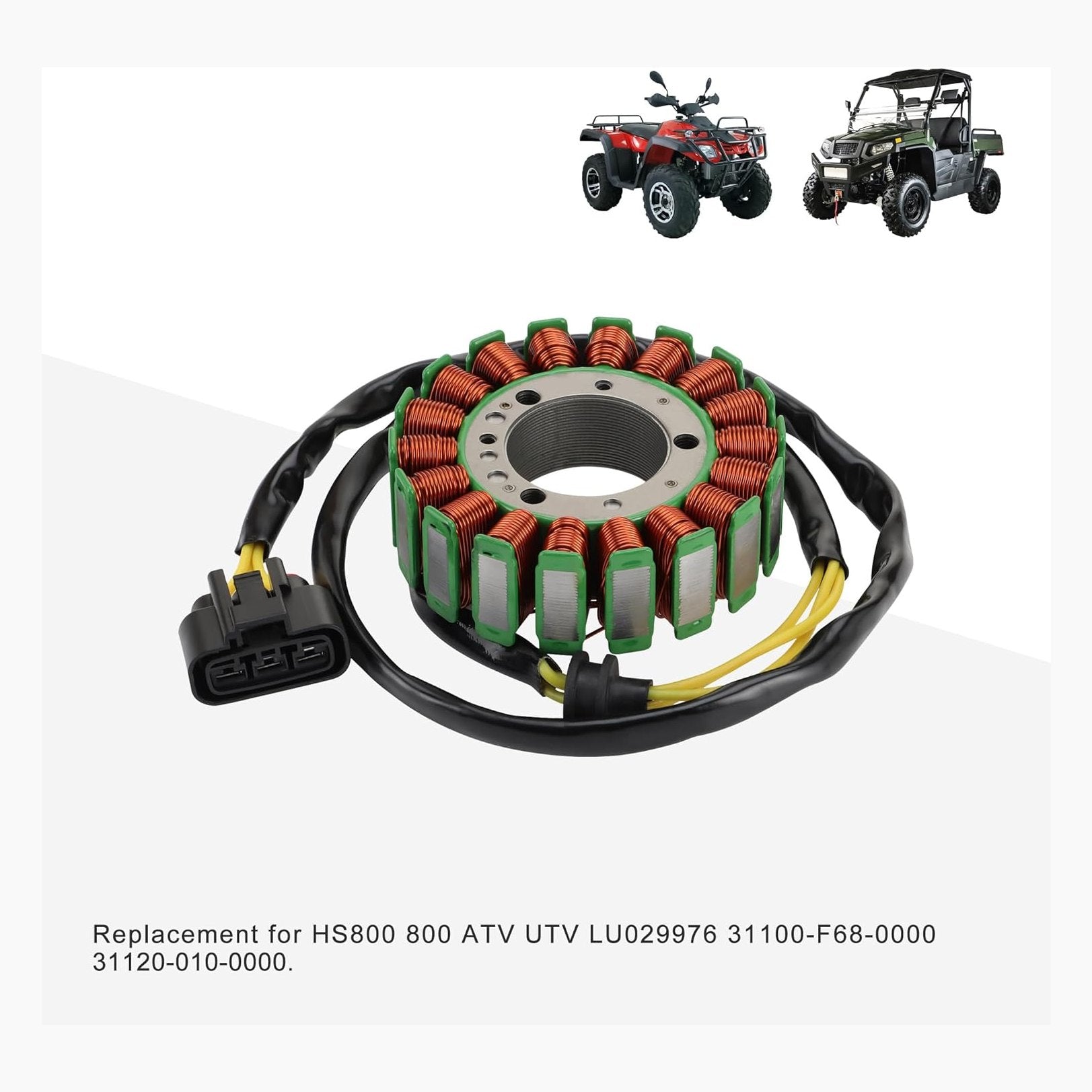

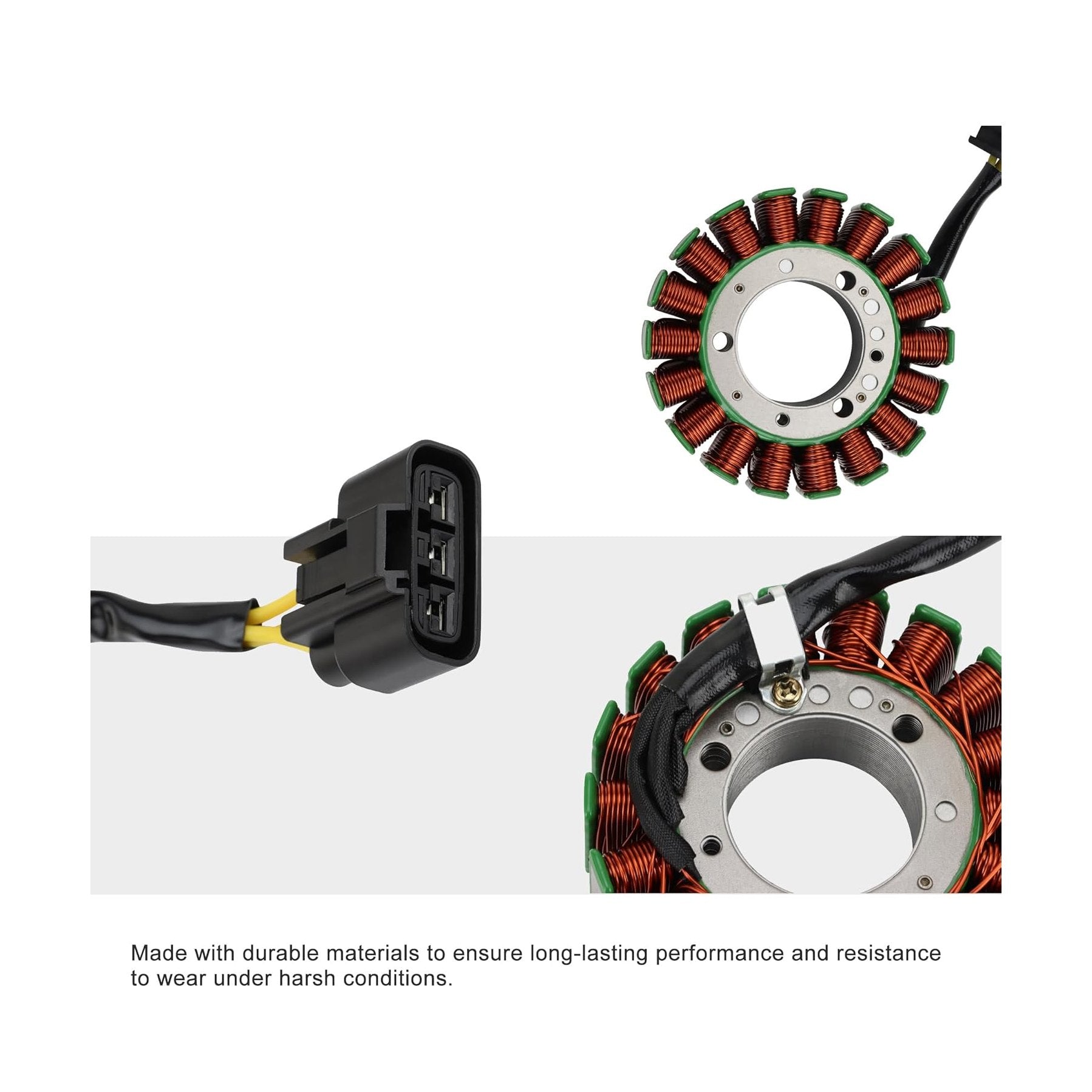

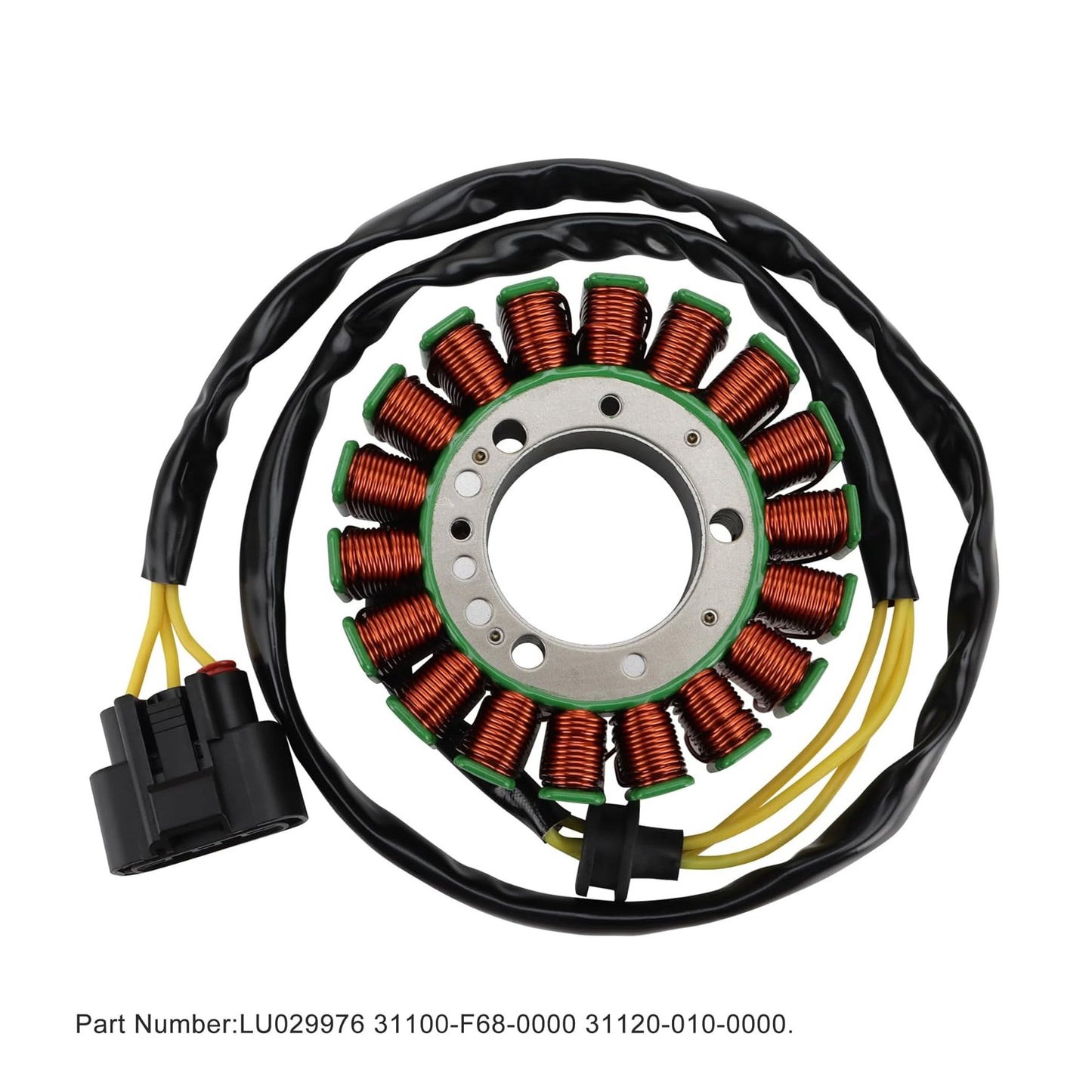

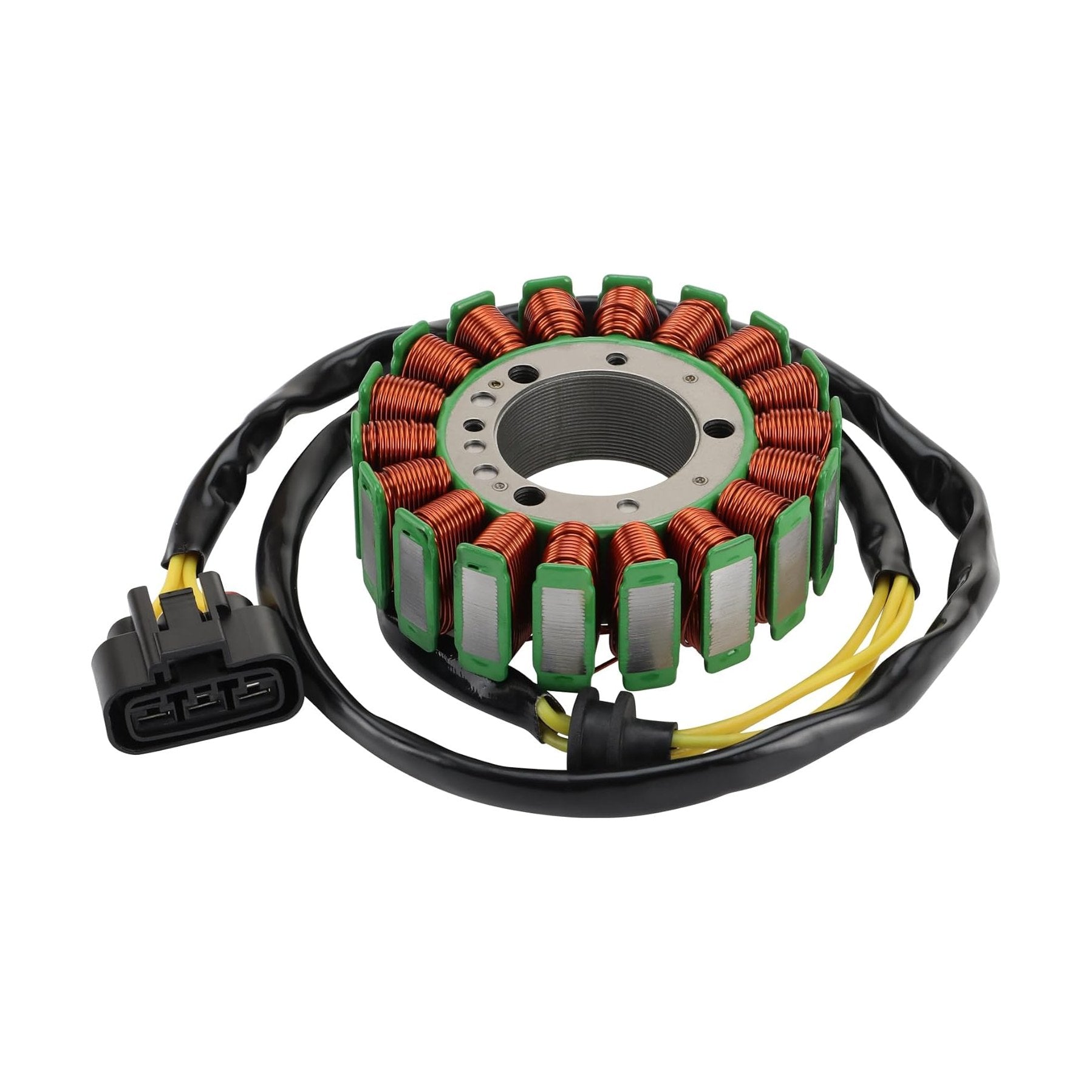

High-Performance 18-Coil Stator for HISUN 800cc V-Twin Engines
Keep your UTV trail-ready and fully charged. This premium replacement Magneto Stator is engineered for the HISUN 800cc V-Twin engine found in a wide variety of popular ATVs and UTVs. Designed to meet or exceed OEM specifications, it provides the stable electrical output required for reliable EFI ignition and consistent battery charging during high-intensity off-road use.
Constructed with high-grade copper windings and advanced insulation, this stator is built to withstand extreme heat and vibration. Whether you are running extra lights, winches, or just need reliable starting power, this 18-coil assembly ensures your machine's electrical system remains stable under high load conditions.
Product Compatibility
- HISUN: HS800 ATV & UTV models (Sector, Strike, etc.)
- Massimo: MSU 800
- Bennche: Bighorn 800
- Other Brands: Compatible with Q-Link, Supermach, Menards Yardsport, and Stels 800H.
- OEM Cross-Reference: 31100-F68-0000, 31120-010-0000, LU029976, P010000311200000
Key Technical Specifications:
- Design: 18-Coil Magneto Stator
- Outer Diameter: ~104mm (4.1")
- Inner Diameter: ~42mm (1.65")
- Thickness: ~18.6mm (0.73")
- Connector: 3-wire oval female plug + pickup coil harness
Why Choose This Stator?
- Superior Heat Resistance: Made with high-temperature resistant copper wire to prevent short-circuiting and thermal breakdown during long rides.
- Stable Power Delivery: Optimized winding density provides stronger ignition energy and a more sensitive throttle response.
- Direct Plug-and-Play: Precision-cast for an exact factory fit, making installation straightforward without needing harness modifications.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for HISUN: HS800 ATV & UTV models (Sector, Strike, etc.); Massimo: MSU 800; Bennche: Bighorn 800; Other Brands: Compatible with Q-Link, Supermach, Menards Yardsport, and Stels 800H.; OEM Cross-Reference: 31100-F68-0000, 31120-010-0000, LU029976, P010000311200000. It is best matched to original part number(s) 31100-F68-0000, 31120-010-0000. Key physical/spec details from the product data include Outer Diameter: ~104mm (4.1"), Inner Diameter: ~42mm (1.65"), Thickness: ~18.6mm (0.73"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31100-F68-0000, 31120-010-0000 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Hisun/Massimo HS800/F68/Sector/LU029976 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31100-F68-0000, 31120-010-0000, treat the fitment as unconfirmed. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31100-F68-0000, 31120-010-0000. Recheck listed specs such as Outer Diameter: ~104mm (4.1"), Inner Diameter: ~42mm (1.65"), Thickness: ~18.6mm (0.73"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
