Magneto Stator for Honda CBR250R MC19 (1988-1989)
Magneto Stator for Honda CBR250R MC19 (1988-1989)
Couldn't load pickup availability
Product Overview

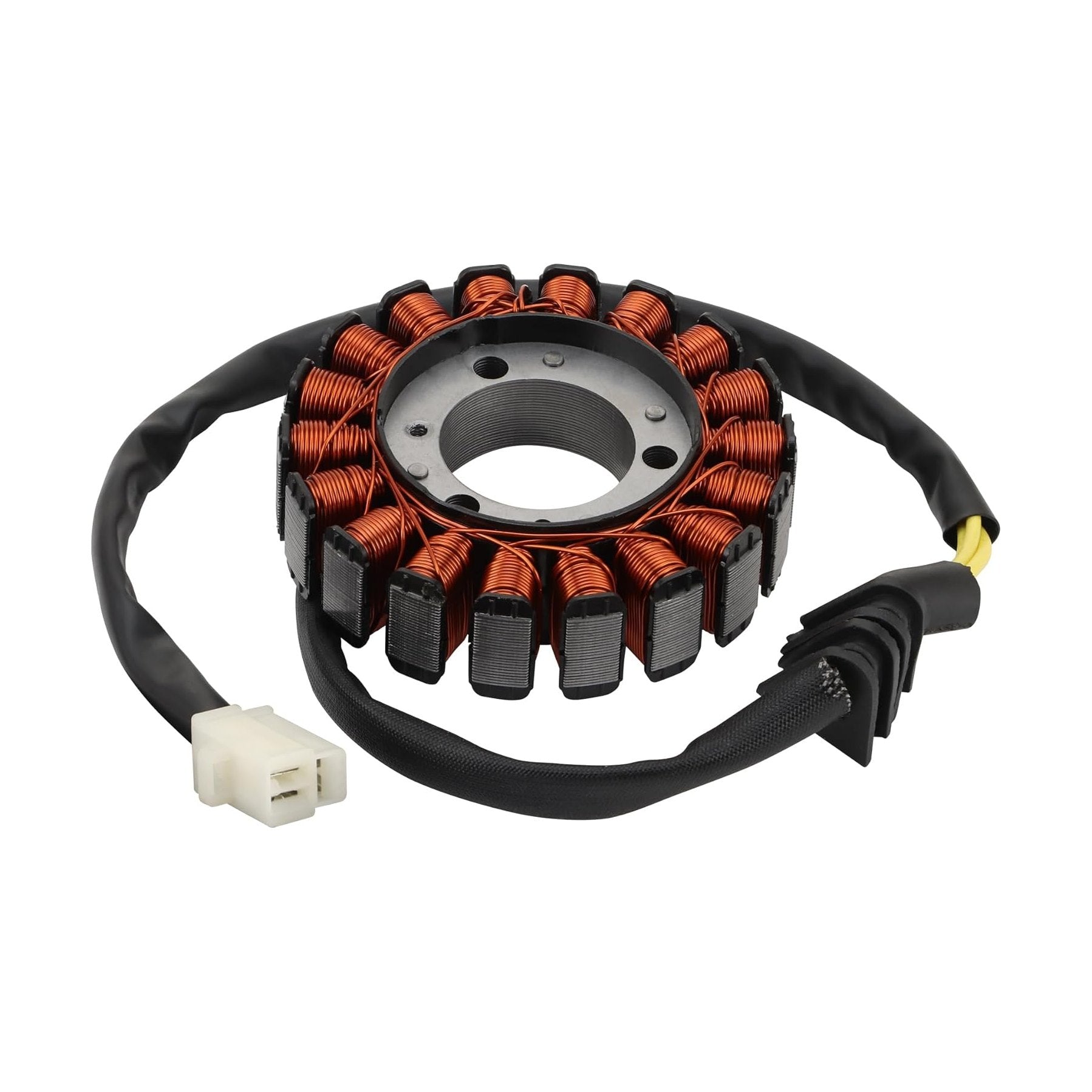

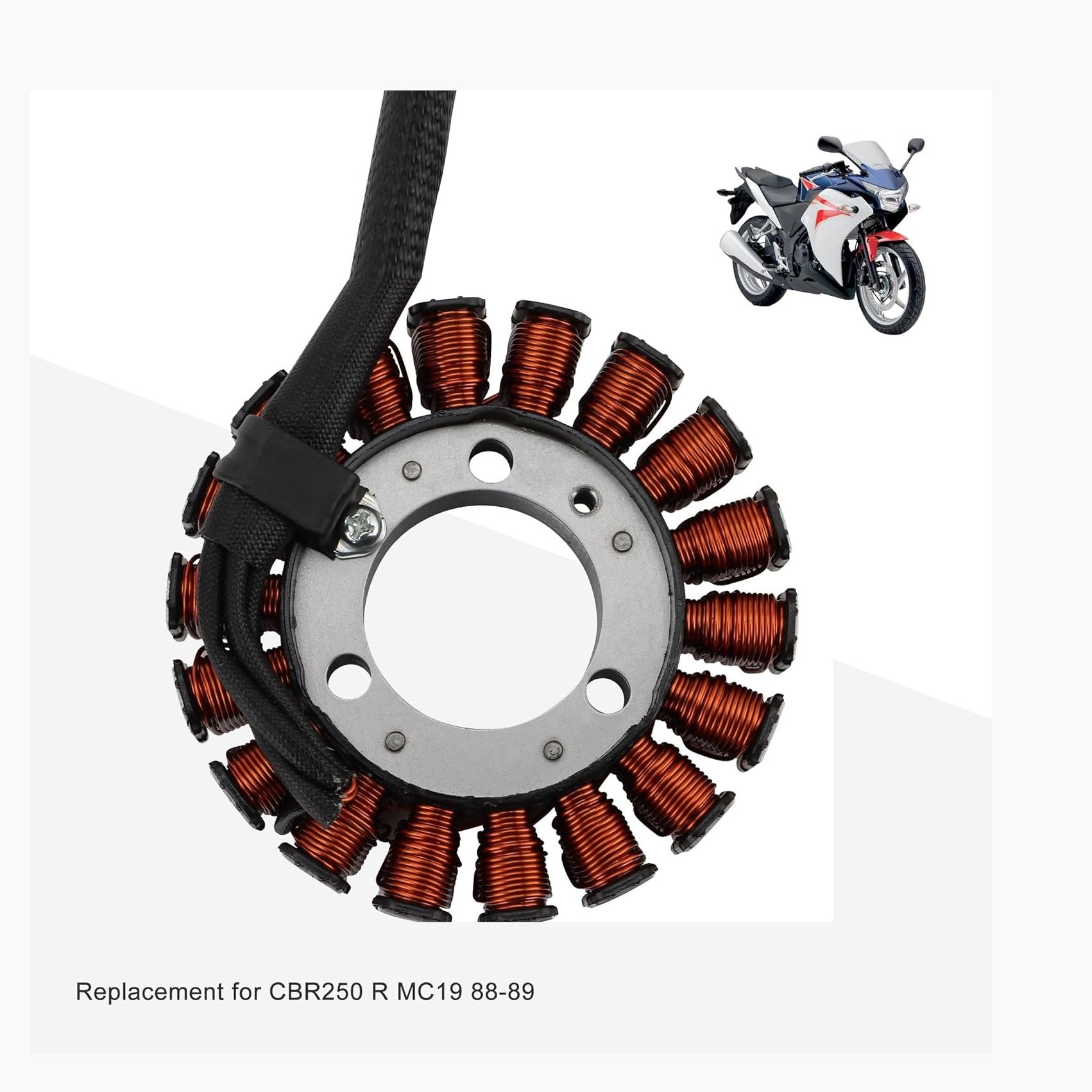

Keep your legendary high-revving engine screaming (the good way). This 93mm Magneto Stator is a precision-engineered replacement for the Honda CBR250R MC19. Designed to handle the unique electrical demands of a 20,000 RPM-capable machine, it ensures your ignition stays crisp and your battery remains charged, whether you're restoring a classic or maintaining a daily rider.
Product Compatibility
| Brand | Model | Year | Chassis Code | Engine |
| Honda | CBR250R | 1988 - 1989 | MC19 | 249cc Inline-4 |
| Honda | CBR250 Four | 1987 - 1988 | MC17 | 249cc Inline-4 |
| Honda | CBR250R | 1987 | MC14 (Early) | 249cc Inline-4 |
Specifications
| Feature | Technical Details |

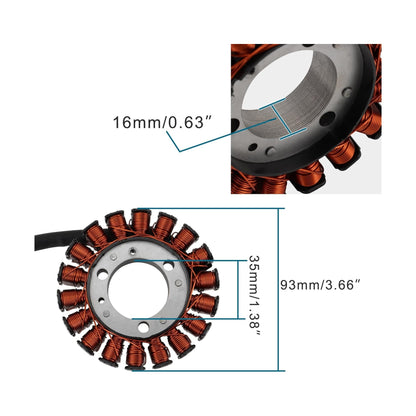

| Outer Diameter (OD) | 93mm |
| Inner Diameter (ID) | 35mm |
| Core Thickness | 16mm |
| Winding Material | High-Purity Copper (Resistant to 200°C) |
| Mounting | 3-Bolt Direct Fit |
Key Features
- Engineered for High-RPM: Specially wound to maintain a stable magnetic field even at the extreme RPM ranges typical of the CBR250R MC19 series.
- Superior Heat Management: Features premium high-temperature insulation and lamination to prevent "heat soak" and internal shorting during spirited riding.
- Consistent Power Delivery: Provides a stabilized 12V-14V output to protect your CDI and ignition coils from voltage drops or surges.

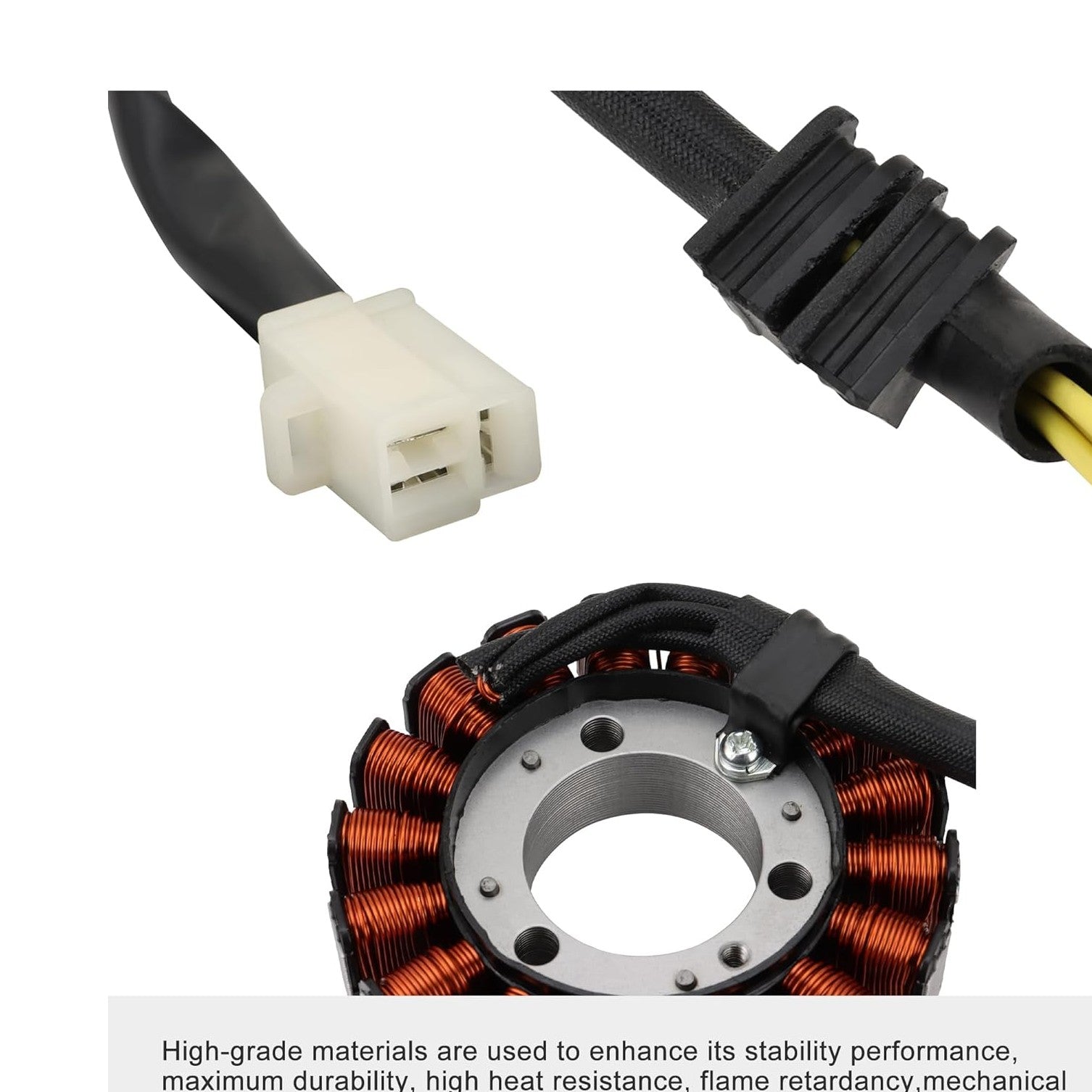

- Direct Plug-and-Play: Includes factory-matching connectors and high-durability wiring for a seamless installation without modification.
- Vibration Resistant Build: Constructed with high-grade copper and steel to withstand the mechanical stresses of a classic 4-cylinder engine environment.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Chassis Code; Engine; Honda; CBR250R; 1988 - 1989; MC19; 249cc Inline-4. Listed year information includes 1988–1989, 1987–1988, 1988, 1989, 1987. It is best matched to original part number(s) 1988-1989, 12V-14V. Key physical/spec details from the product data include Outer Diameter (OD): 93mm, Inner Diameter (ID): 35mm, Core Thickness: 16mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 1988-1989, 12V-14V before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda CBR250R/MC19 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 1988-1989, 12V-14V, treat the fitment as unconfirmed. Model years outside 1988–1989, 1987–1988, 1988, 1989, 1987 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 1988-1989, 12V-14V. Recheck listed specs such as Outer Diameter (OD): 93mm, Inner Diameter (ID): 35mm, Core Thickness: 16mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
