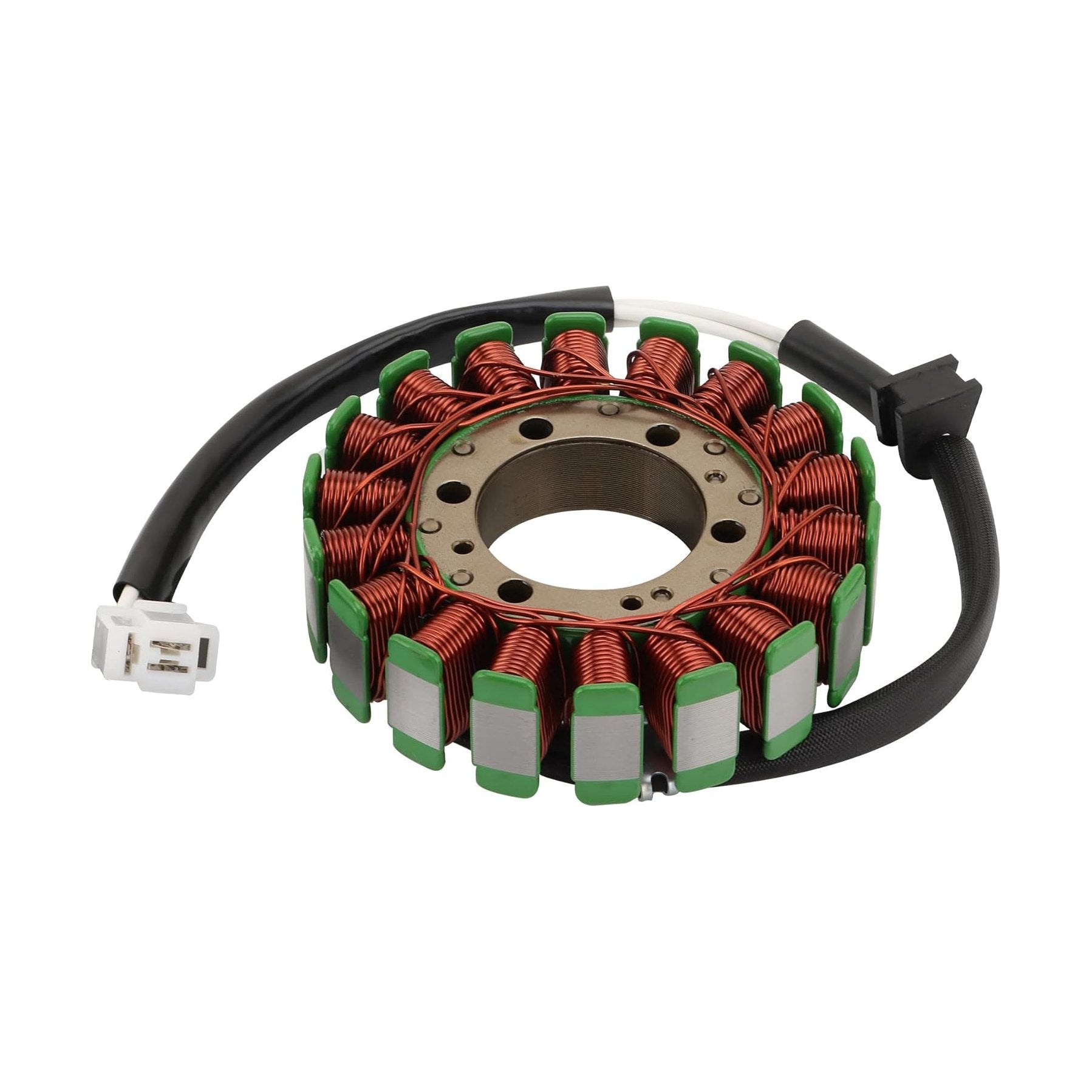

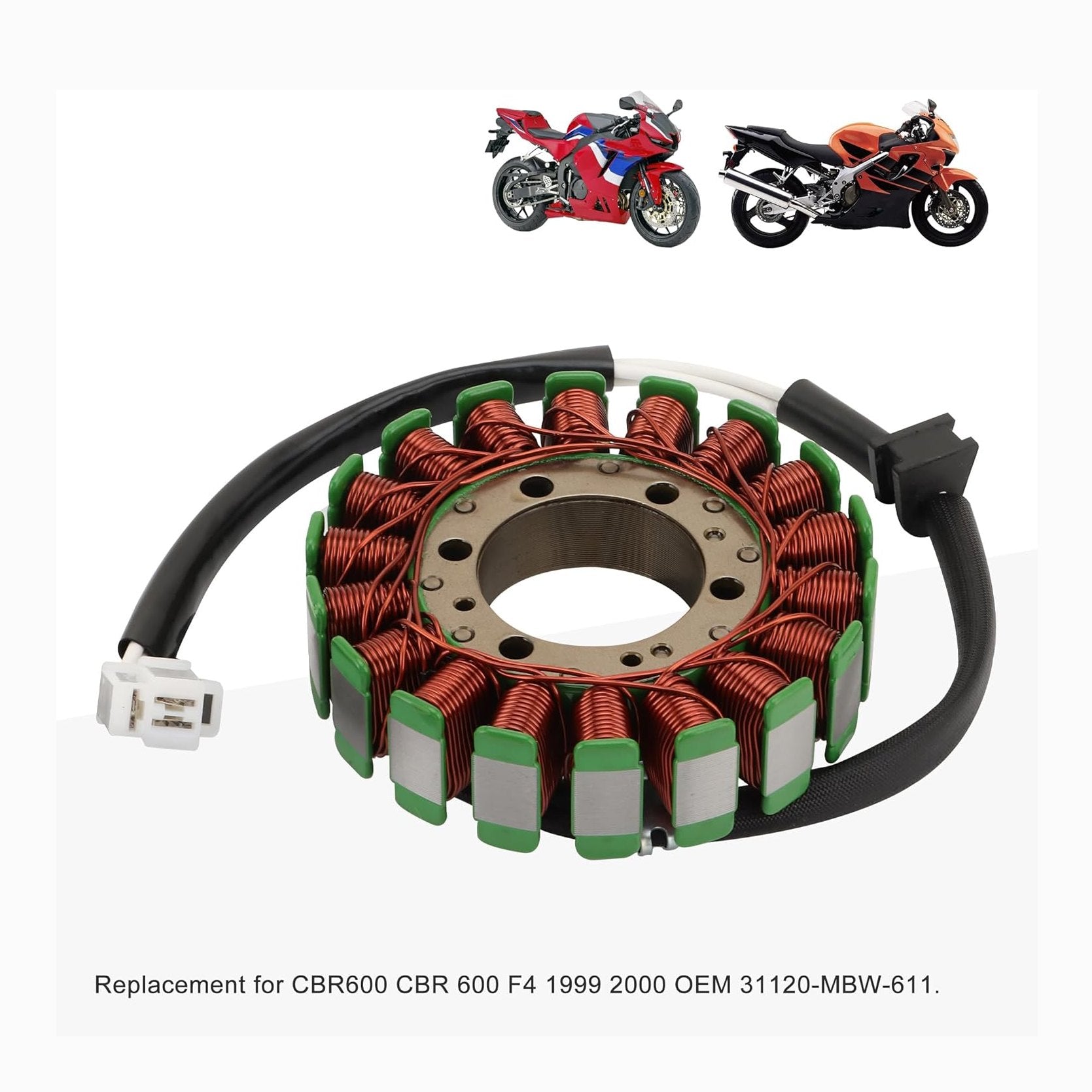

Heavy-Duty Magneto Stator for Honda CBR600 F4 (1999–2000)
Restore reliable charging and ignition to your Honda CBR600 F4. This premium Magneto Stator is a direct replacement for the OEM part number 31120-MBW-611. Specifically engineered for the 1999 and 2000 carbureted F4 models, it provides the stable electrical output needed to keep your battery charged and your ignition spark strong.
Unlike standard replacements, this stator is wound with high-quality copper wire and features thinner, high-temp insulation. This precision design allows for faster thermal conductivity, meaning the unit runs at a lower operating temperature, significantly reducing the risk of the "burnout" common in high-performance sportbikes.
Product Compatibility
- Make: Honda
- Model: CBR600 F4 (Carbureted)
- Years: 1999, 2000
Key Technical Specs:
- OEM Reference: 31120-MBW-611

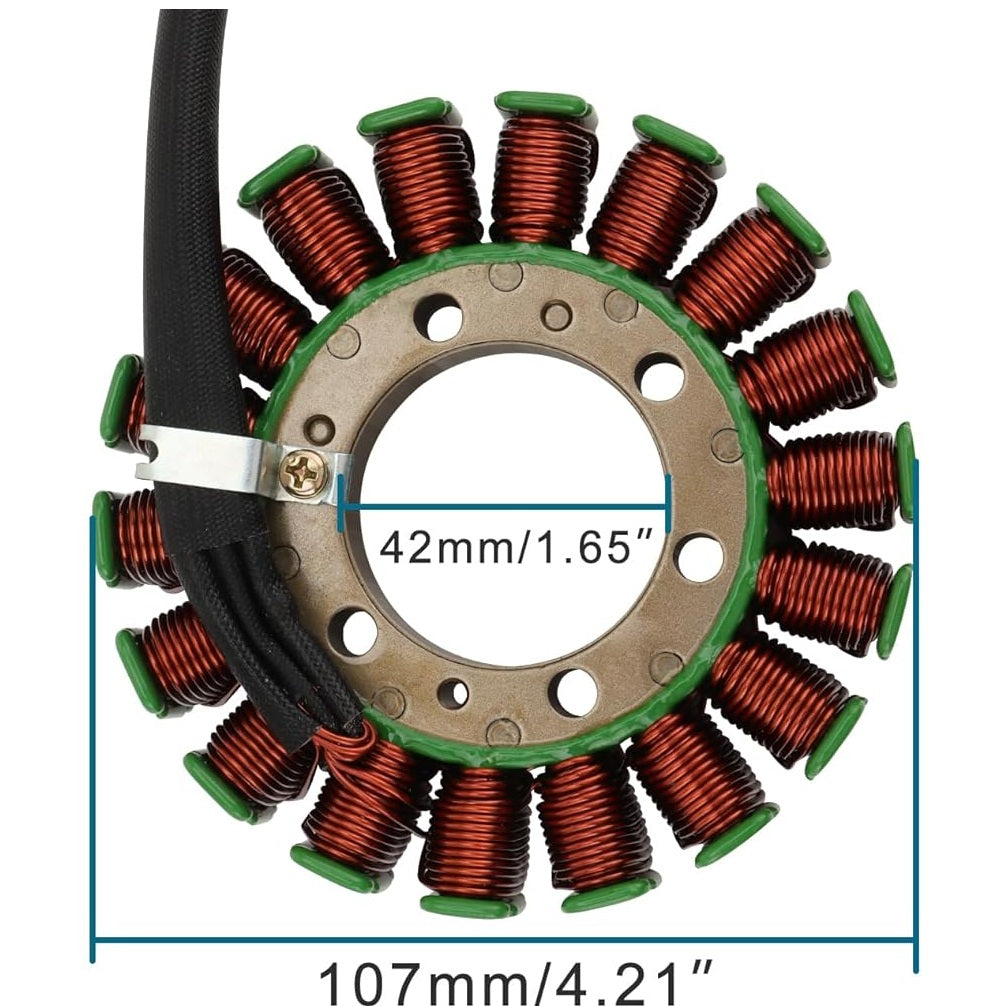

- Stator Dimensions: Outer Diameter 107mm (4.21") | Inner Diameter 42mm (1.65") | Core Height 19mm (0.74")

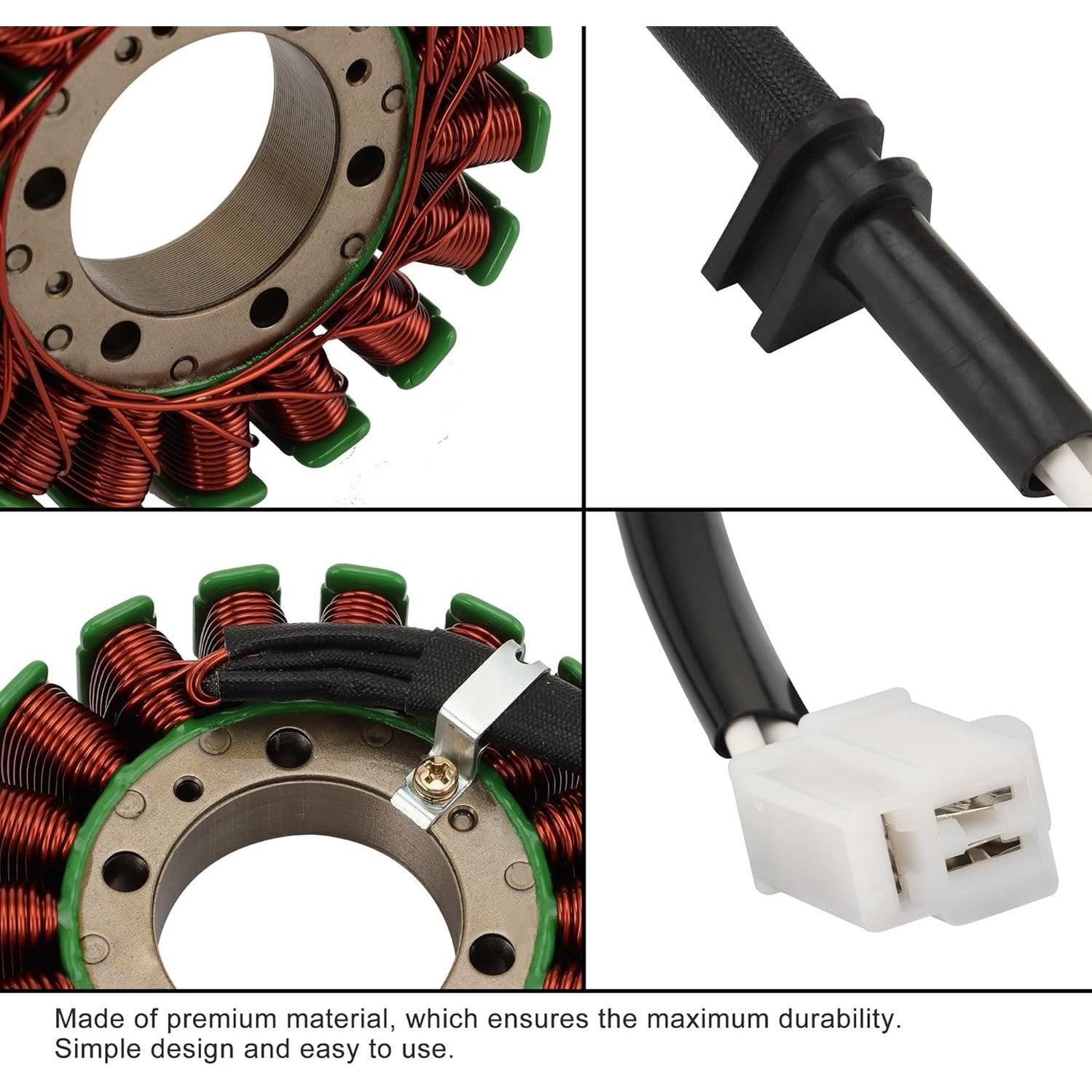

- Coil Material: High-grade copper with high-efficiency lamination
- Design: 18-pole configuration for consistent power generation
Why Choose This Stator?
- Enhanced Cooling: The advanced winding technique improves heat dissipation, ensuring a longer service life compared to stock units.
- Plug-and-Play Fit: Designed as a direct bolt-on replacement with factory-style connectors for a fast, hassle-free installation.
- Protects Your Circuitry: Improves ignition efficiency and helps protect your battery and sensitive vehicle electronics from power fluctuations.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Make: Honda; Model: CBR600 F4 (Carbureted); Years: 1999, 2000. It is best matched to original part number(s) 31120-MBW-611, 1999-2000. Key physical/spec details from the product data include Stator Dimensions: Outer Diameter 107mm (4.21") | Inner Diameter 42mm (1.65") | Core Height 19mm (0.74"), 107mm, 42mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31120-MBW-611, 1999-2000 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda CBR600/MBW-611 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-MBW-611, 1999-2000, treat the fitment as unconfirmed. Model years outside 1999–2000, 1999, 2000 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-MBW-611, 1999-2000. Recheck listed specs such as Stator Dimensions: Outer Diameter 107mm (4.21") | Inner Diameter 42mm (1.65") | Core Height 19mm (0.74"), 107mm, 42mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
