Magneto Stator for Honda TRX200A TRX200D FourTrax 200 1990–1997 | OEM 31120-HF1-004
Magneto Stator for Honda TRX200A TRX200D FourTrax 200 1990–1997 | OEM 31120-HF1-004
Couldn't load pickup availability
Product Overview

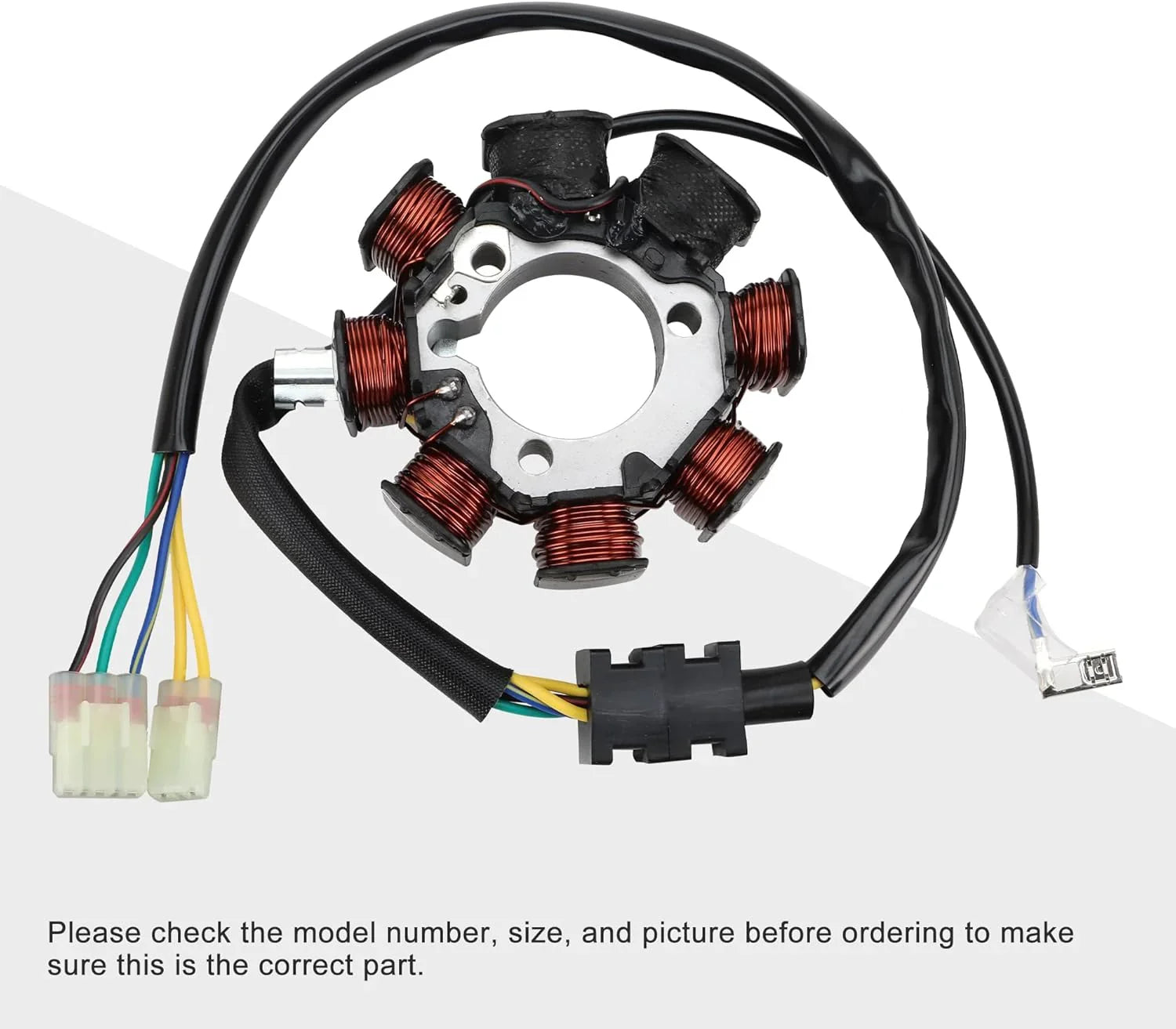

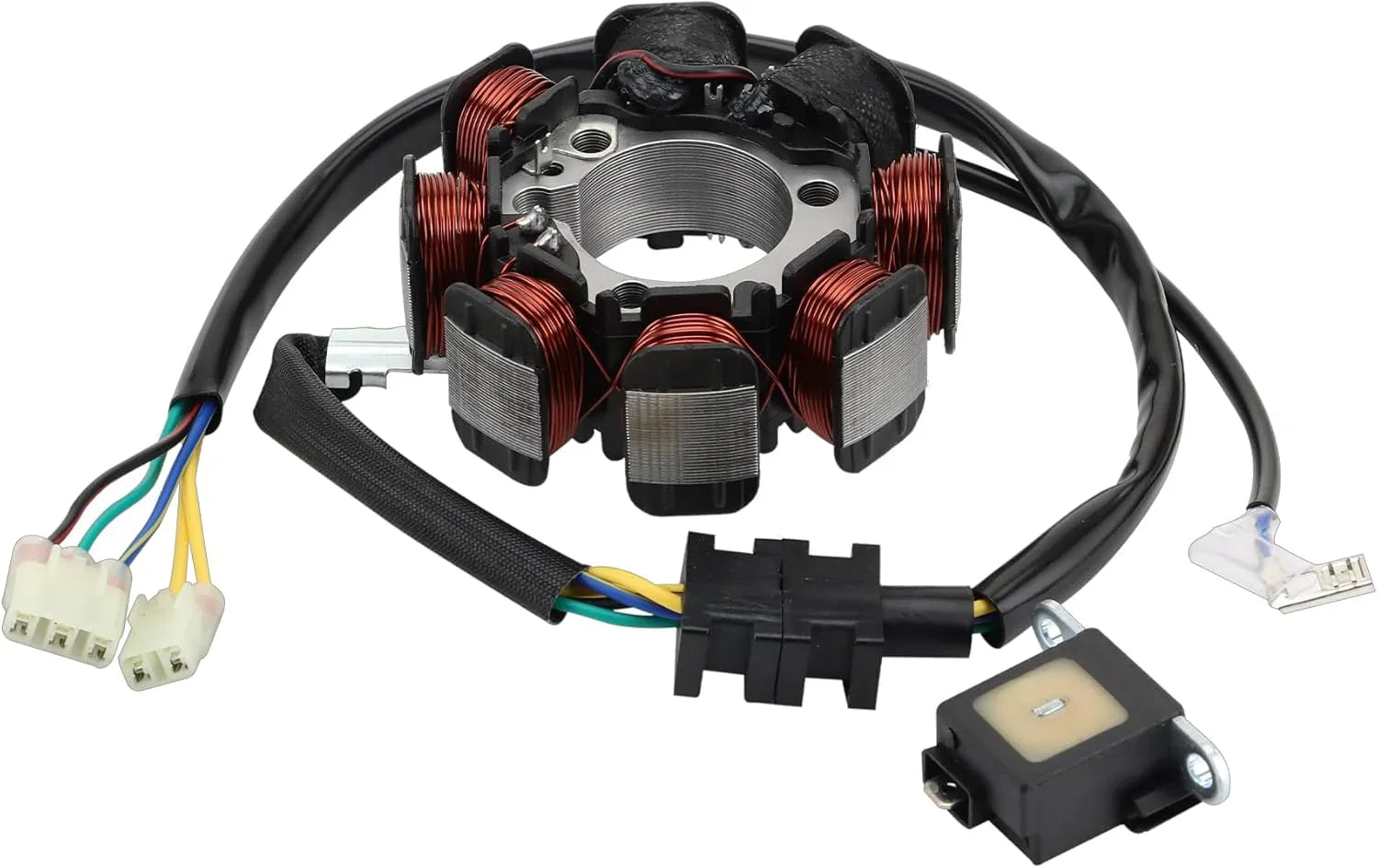

Restore reliable charging and ignition performance to your ATV with this magneto stator, designed for Honda TRX200A FourTrax 200 and TRX200D FourTrax 200 Type II applications.
Built to replace OEM 31120-HF1-004 and commonly cross-referenced to 31120-HF1-000, this unit helps solve common issues such as hard starting, weak spark, unstable charging output, and poor acceleration response.
Product Compatibility
This magneto stator is compatible with the following models:
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Honda | TRX200A FourTrax 200 | 200cc | 1990–1991 | Verify OEM number and dimensions before purchase |
| Honda | TRX200D FourTrax 200 Type II | 200cc | 1991–1997 | Verify OEM number and dimensions before purchase |
OEM Cross Reference:
31120-HF1-004, 31120-HF1-000
Specifications
| Specification | Details |
|---|---|
| Part Type | Stator |

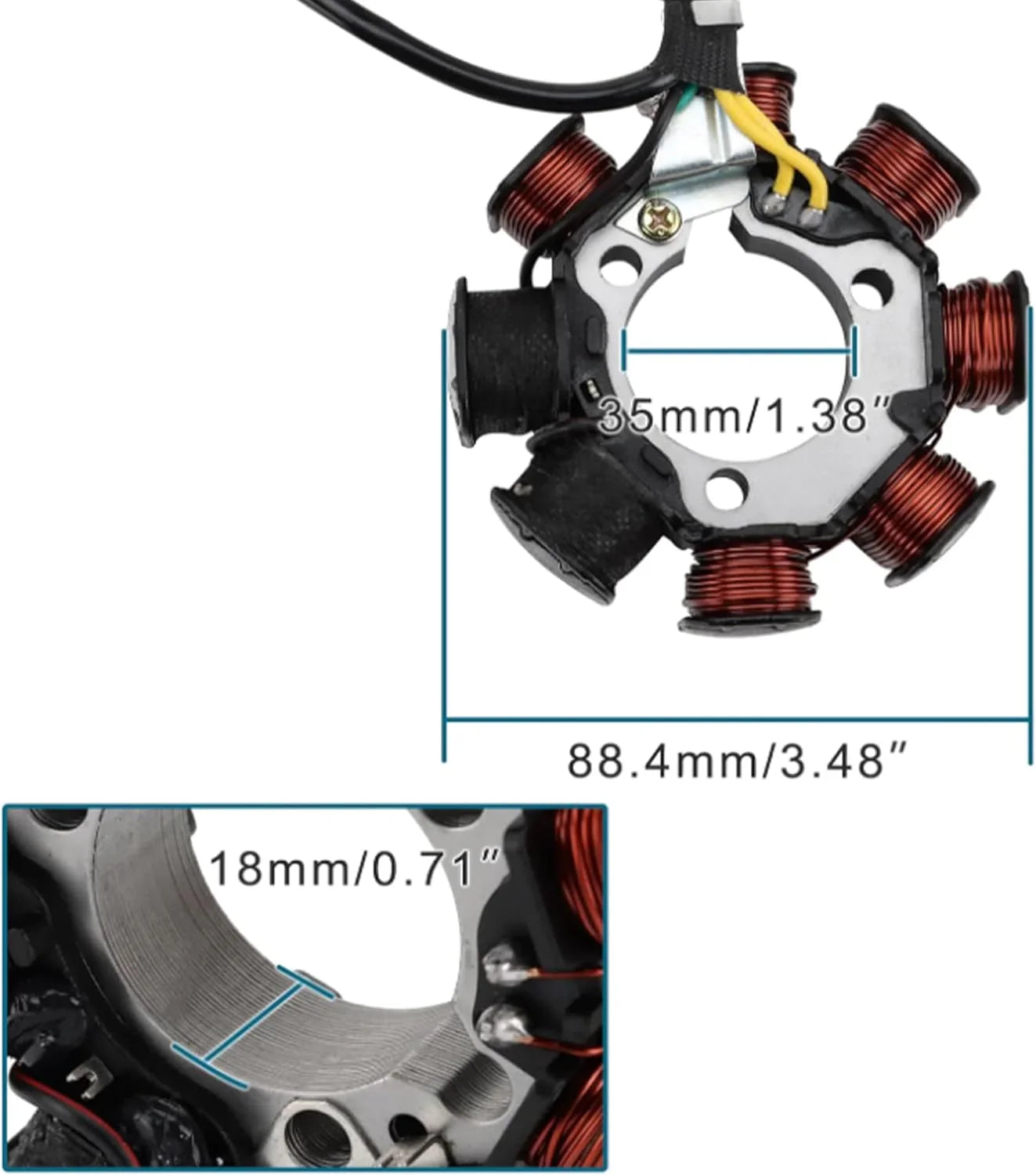

| Mounting Hole Distance | 38 mm |
| Outer Diameter | 89 mm |
| Center Hole Diameter | 35 mm |
| Connector Type | Please match with original part before ordering |
| Material | Aftermarket replacement construction |
| Condition | 100% New Aftermarket |
Key Features
- Direct Replacement Design – Engineered to replace the original unit with matching fitment and function
- Reliable Electrical Performance – Helps restore stable charging and ignition output
- Improved Starting Response – Helps support more dependable starting and smoother acceleration
- Durable Construction – Built for stable operation and long service life
- Straightforward Installation – Designed as a practical replacement for compatible models
Common Problems This Part Can Help Solve
This product may help address issues such as:
- Weak or no spark
- Hard starting
- Intermittent charging failure
- Poor acceleration response
- Unstable electrical output
- Ignition performance issues
Package Includes
1 × Magneto Stator Coil
Fitment Note
Please confirm your OEM part number, connector style, stator dimensions, and vehicle model/year before ordering.
If you are unsure about compatibility, contact us with your model, year, OEM number, and part photos before purchase.
Installation Note
Professional installation is recommended.
Before installation, inspect related components such as the battery, wiring harness, regulator/rectifier, flywheel, pulser wiring, and charging system to avoid repeat failure caused by another faulty part.
Why Choose This Replacement
A failing stator can lead to weak ignition performance, difficult starting, unstable charging, and reduced riding reliability. Replacing it with a properly matched unit helps restore dependable electrical performance and keeps your FourTrax ready for regular use.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for This magneto stator is compatible with the following models; Engine / HP / CC. Listed year information includes 1990–1997, 1990–1991, 1991–1997, 1990, 1997. It is best matched to original part number(s) 31120-HF1-004, 31120-HF1-000. Key physical/spec details from the product data include Mounting Hole Distance: 38 mm, Outer Diameter: 89 mm, Center Hole Diameter: 35 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?

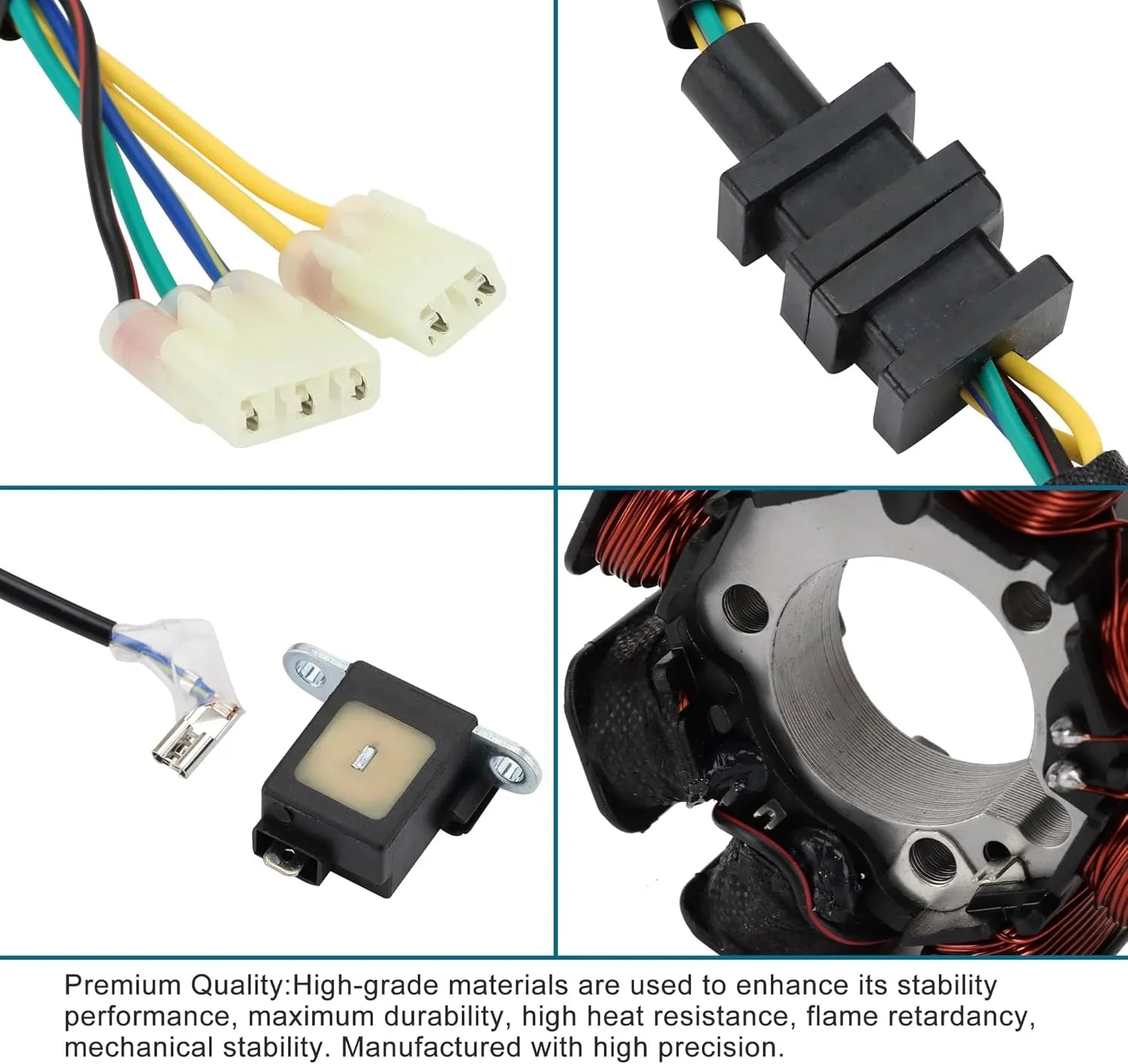

Yes. Match your original part number to 31120-HF1-004, 31120-HF1-000 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda TRX200A/TRX200D models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-HF1-004, 31120-HF1-000, treat the fitment as unconfirmed. Model years outside 1990–1997, 1990–1991, 1991–1997, 1990, 1997 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-HF1-004, 31120-HF1-000. Recheck listed specs such as Mounting Hole Distance: 38 mm, Outer Diameter: 89 mm, Center Hole Diameter: 35 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
