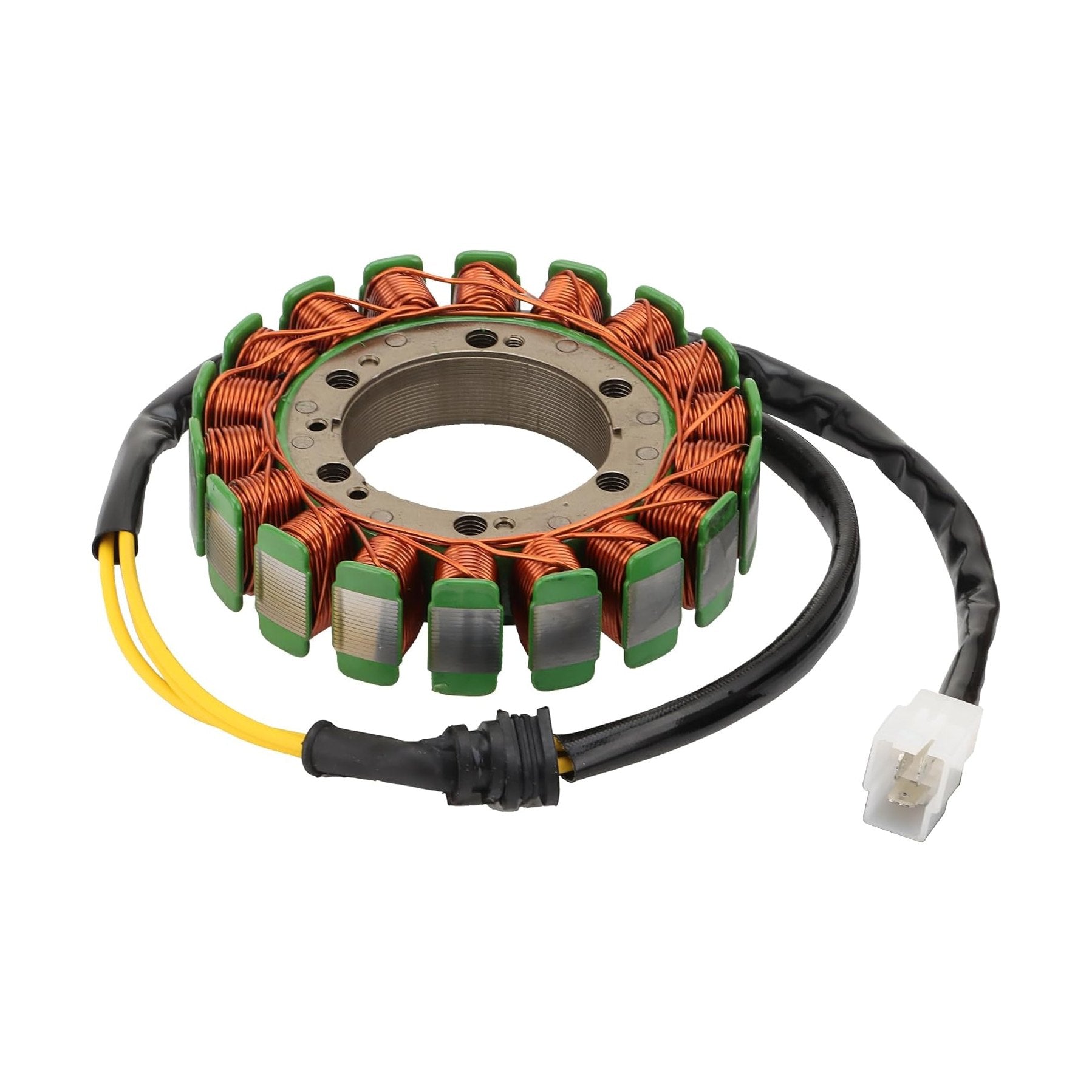

Magneto Stator for Honda VT750 Shadow & Spirit (1997-2007) | OEM 31120-MBA-004
Magneto Stator for Honda VT750 Shadow & Spirit (1997-2007) | OEM 31120-MBA-004
Couldn't load pickup availability
High-Output Magneto Stator for Honda VT750 Shadow Series (1997–2007)
Ensure your cruiser stays powered up on every ride. This premium aftermarket Magneto Stator is a precision replacement for Honda OEM part number 31120-MBA-004. Engineered to handle the high heat and electrical demands of the 750cc V-twin engine, it provides the stable current needed for your ignition and battery charging systems.
Crafted with highest-grade copper windings and advanced heat-resistant insulation (rated to 200°C), this stator is designed to run cooler and last longer than the stock factory unit. Its plug-and-play design matches the original mounting points and wiring harness perfectly, making it an ideal choice for a straightforward DIY repair.
Product Compatibility
- Honda Shadow 750: VT750C (1998-2007), VT750CD/CD2 (1998-2003), VT750DC (2001-2007)
- Honda Shadow ACE (A.C.E.): 1997-2001
- Honda Shadow Spirit: 2001-2007
- Other Models: NV400 Shadow/Slasher (1997-2000), NV750C2 (1999)
Key Technical Specifications:
- OEM Reference: 31120-MBA-004 (Also replaces 31120-MBK-014, 31120-MBK-305)

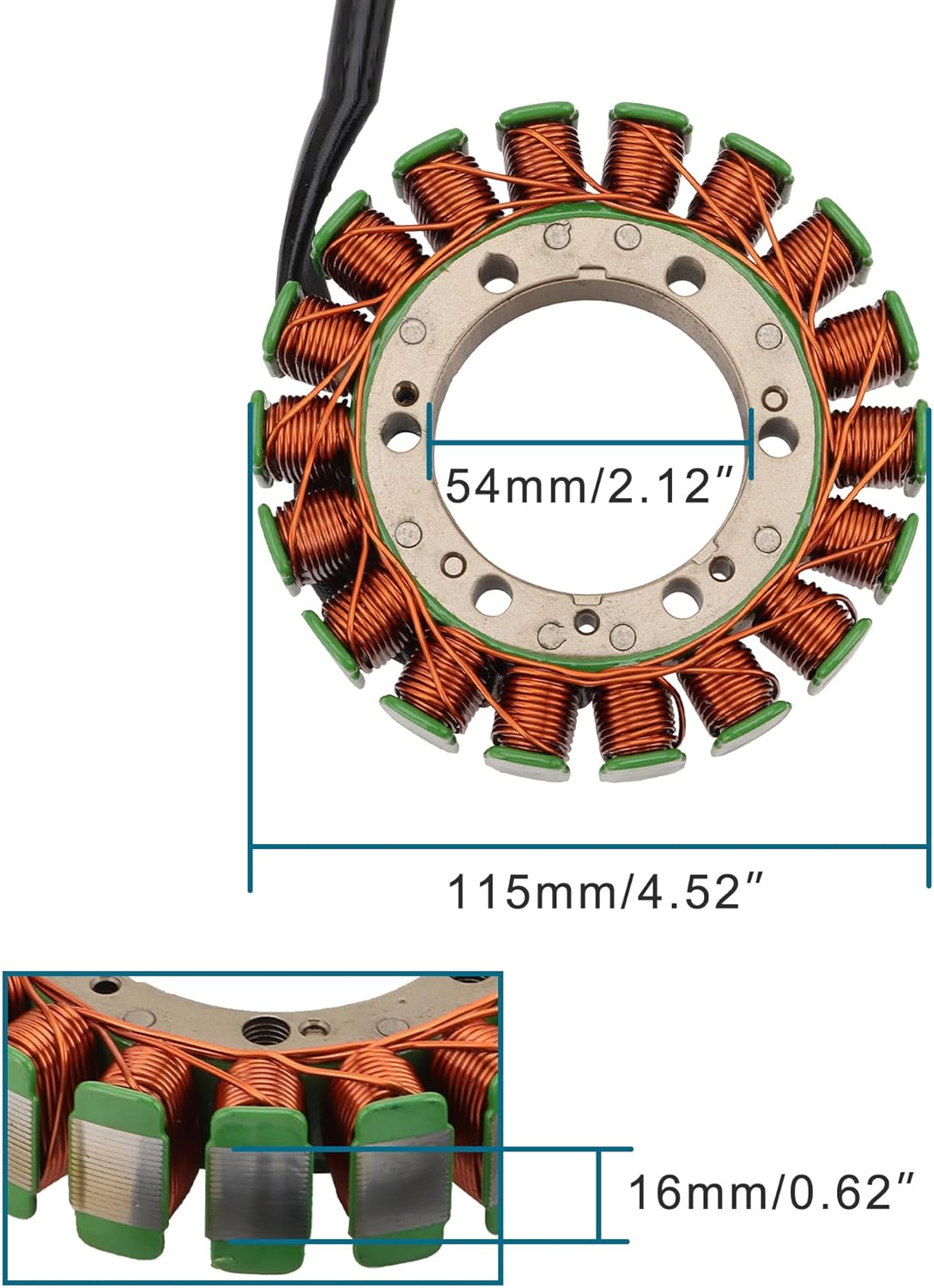

- Dimensions: Outer Diameter 115mm (4.52") | Inner Diameter 54mm (2.12") | Core Thickness 16mm (0.62")
- Coil Material: High-conductivity copper wire with high-temperature insulation
- Configuration: 18-Pole design for consistent charging output
Why Choose This Stator?
- Optimized Thermal Performance: Precision-wound coils dissipate heat faster, preventing the common "stator burnout" associated with aging electrical systems.

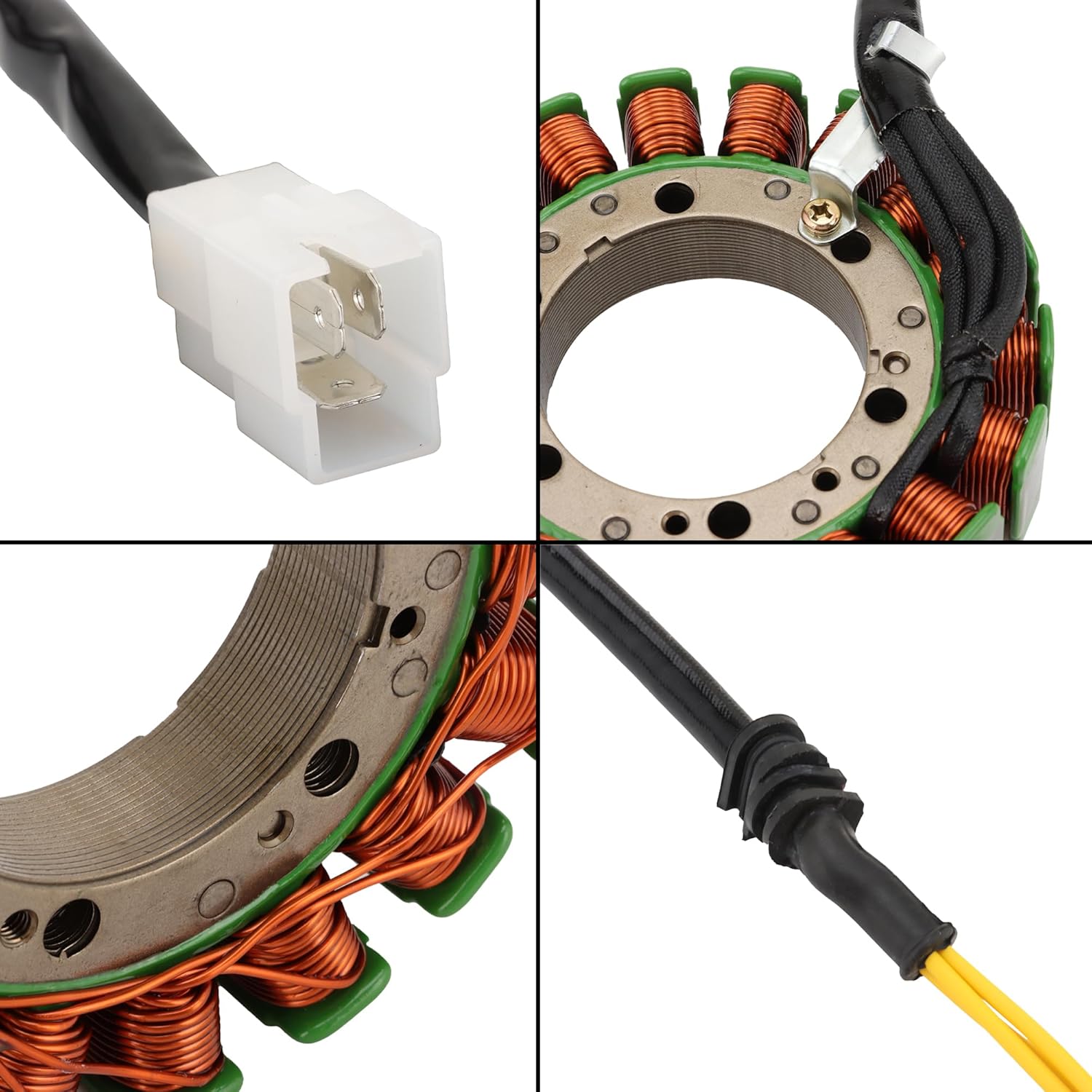

- Direct Fitment: Includes the correct factory-style connector and rubber grommet for a seal-tight, no-splice installation.
- Electrical Stability: Provides a clean, flat voltage output across the entire RPM range, protecting your battery and delicate electronics.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Honda Shadow 750: VT750C (1998-2007), VT750CD/CD2 (1998-2003), VT750DC (2001-2007); Honda Shadow ACE (A.C.E.): 1997-2001; Honda Shadow Spirit: 2001-2007; Other Models: NV400 Shadow/Slasher (1997-2000), NV750C2 (1999). Listed year information includes 1997–2007, 1998–2007, 1998–2003, 2001–2007, 1997–2001. It is best matched to original part number(s) 31120-MBA-004, 31120-MBK-014, 31120-MBK-305, 1997-2007. Key physical/spec details from the product data include Dimensions: Outer Diameter 115mm (4.52") | Inner Diameter 54mm (2.12") | Core Thickness 16mm (0.62"), 750cc, 115mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31120-MBA-004, 31120-MBK-014, 31120-MBK-305, 1997-2007 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda VT750/MBA-004/VT750C/NV400 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-MBA-004, 31120-MBK-014, 31120-MBK-305, 1997-2007, treat the fitment as unconfirmed. Model years outside 1997–2007, 1998–2007, 1998–2003, 2001–2007, 1997–2001 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-MBA-004, 31120-MBK-014, 31120-MBK-305, 1997-2007. Recheck listed specs such as Dimensions: Outer Diameter 115mm (4.52") | Inner Diameter 54mm (2.12") | Core Thickness 16mm (0.62"), 750cc, 115mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
