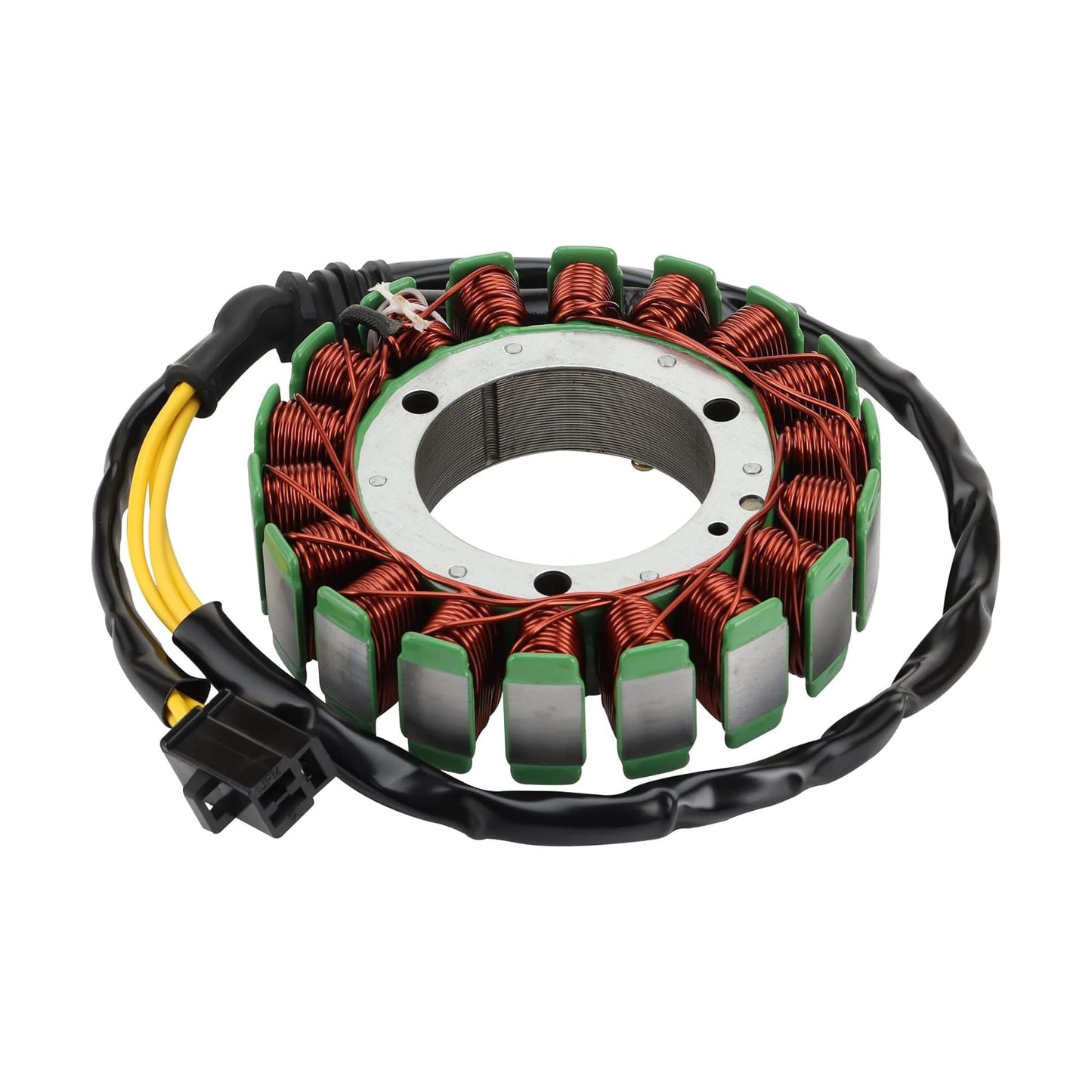

Heavy-Duty Magneto Stator for Honda XL1000V Varadero 1000 (1999–2002)
Restore reliable charging and touring performance to your Varadero 1000. This premium aftermarket Magneto Stator is a direct "plug-and-play" replacement for Honda OEM part number 31120-MBT-611. Specifically designed for the first-generation carbureted XL1000V, it provides the stable 12V current necessary to keep your battery maintained and your ignition firing perfectly during long-distance trips.

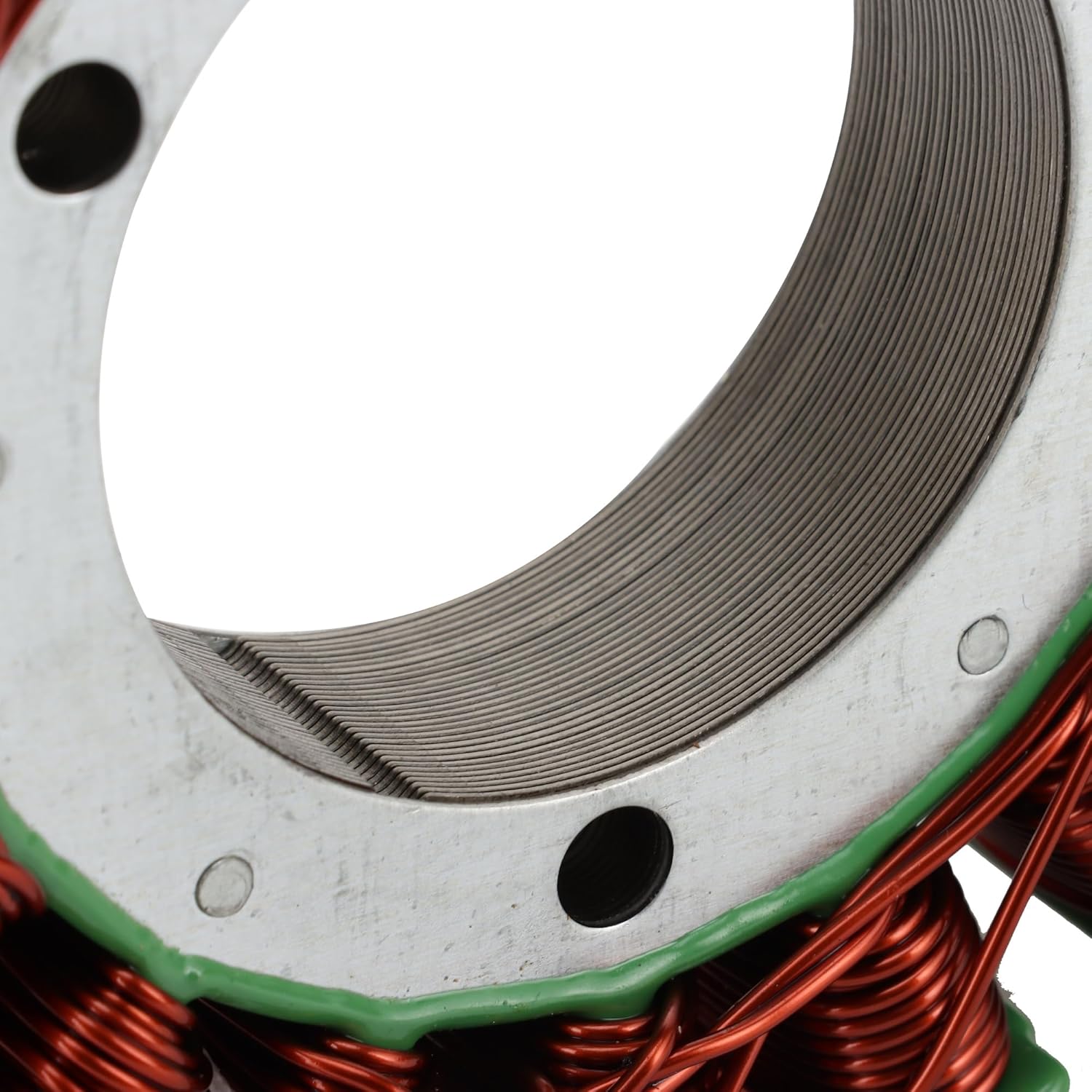

Built to exceed factory specifications, this stator is wound with highest-grade copper wire that is resistant to temperatures up to 200°C. The high-quality lamination materials minimize magnetic losses, allowing the unit to run cooler than stock components, which significantly reduces the risk of thermal failure and prolongs the service life of your charging system.
Product Fitment
- Make: Honda
- Model: XL1000V Varadero 1000
- Years: 1999, 2000, 2001, 2002
- Engine: 996cc V-Twin (Carbureted models)
Key Technical Specifications:
- OEM Reference: 31120-MBT-611

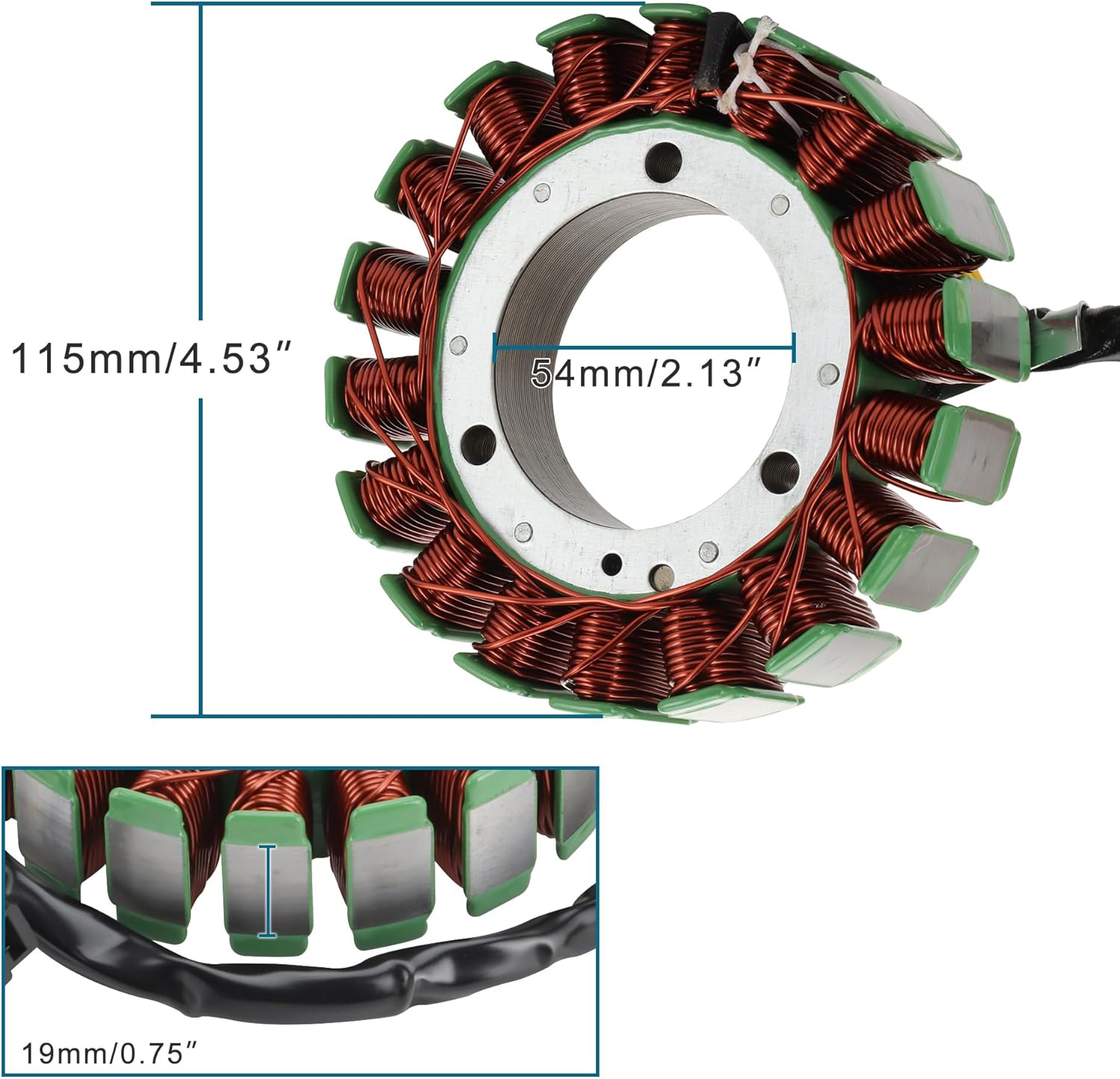

- Outer Diameter: 115mm (4.52")
- Inner Diameter: 54mm (2.12")
- Pole Thickness: 19mm (0.74")
- Coil Configuration: 18-Pole high-output design

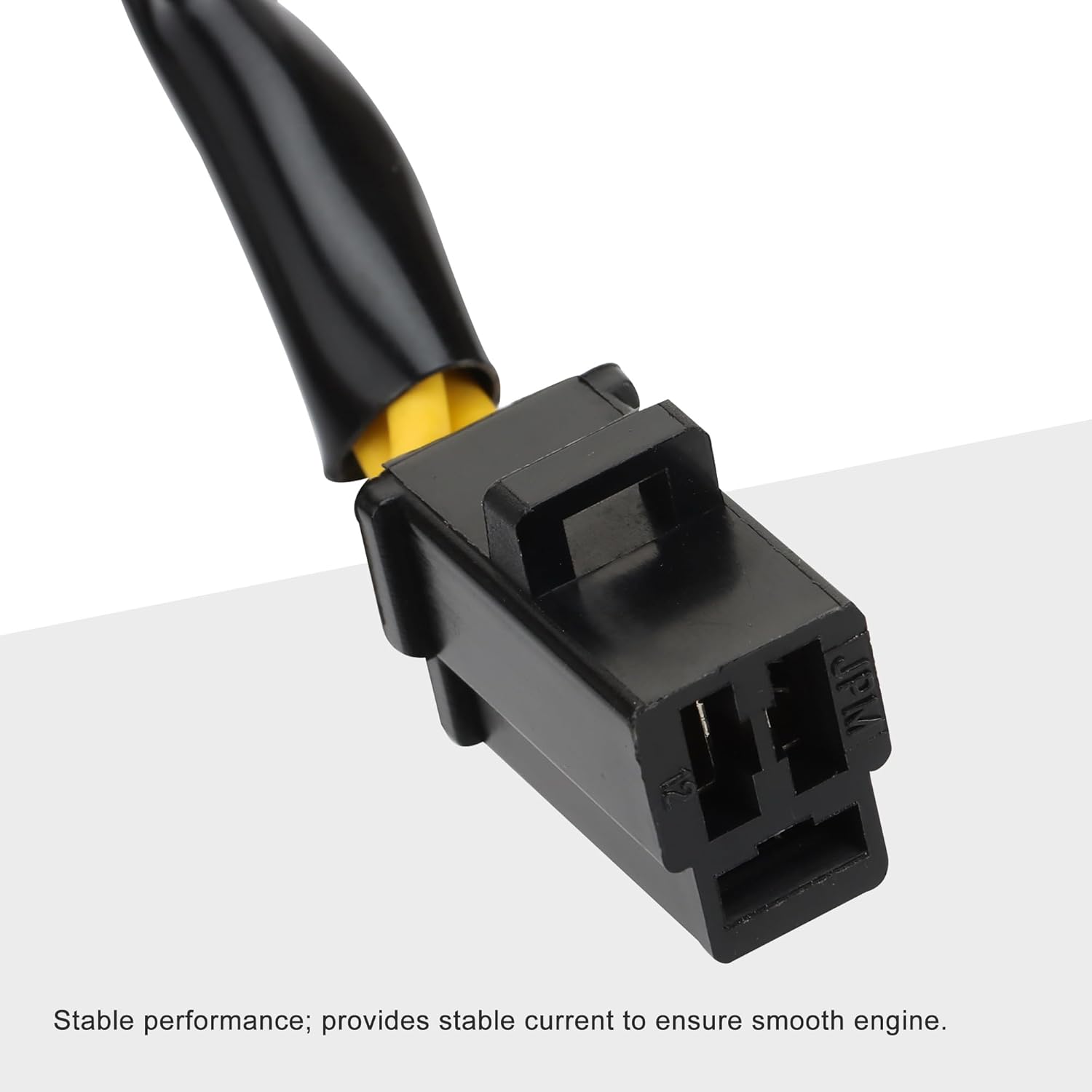

- Wiring: 3-wire setup with 3-pin connector
Why Choose This Replacement?
- Enhanced Heat Dissipation: Advanced insulation and precision winding ensure faster thermal conductivity, keeping operating temperatures low and reliability high.
- Direct Bolt-On Fit: Matches factory mounting points and wiring harnesses exactly for a fast, hassle-free installation with no modifications required.
- Consistent Power Output: Provides a stable electrical field for easier engine starts and consistent voltage delivery to lights and electronic accessories.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is designed for the first-generation Honda XL1000V Varadero 1000 from 1999–2002 with the 996cc carbureted V-twin engine. It is intended as a replacement for the Honda stator using OEM 31120-MBT-611, with an 18-pole layout, 3-wire setup, and 3-pin connector.
Do I need to match the OEM part number?
Yes. Please compare your original stator with Honda OEM 31120-MBT-611 before purchase. This is important because later XL1000V Varadero models and market-specific versions may use different charging system components, wiring connectors, or stator dimensions.
What models or situations does this part not fit?
This stator may not fit 2003 and newer Varadero models, fuel-injected versions, other Honda V-twin models, or any XL1000V with a different connector, wire count, stator diameter, mounting hole layout, or grommet position. Do not order only by the Varadero 1000 name without confirming the OEM reference.
What should I check before ordering?
Before ordering, verify OEM 31120-MBT-611, model years 1999–2002, 18-pole configuration, 3-wire / 3-pin connector, outer diameter 115 mm, inner diameter 54 mm, pole thickness 19 mm, grommet position, wire length, and mounting hole alignment.
