Magneto Stator for Honda XR150 / XR150L | OEM 31120-KRH-781
Magneto Stator for Honda XR150 / XR150L | OEM 31120-KRH-781
Couldn't load pickup availability
Product Overview

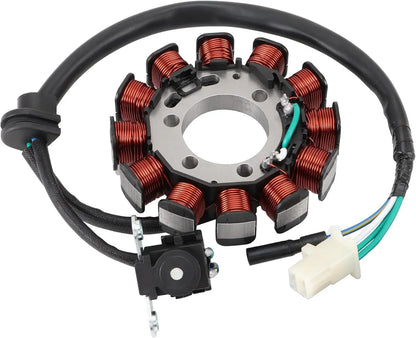

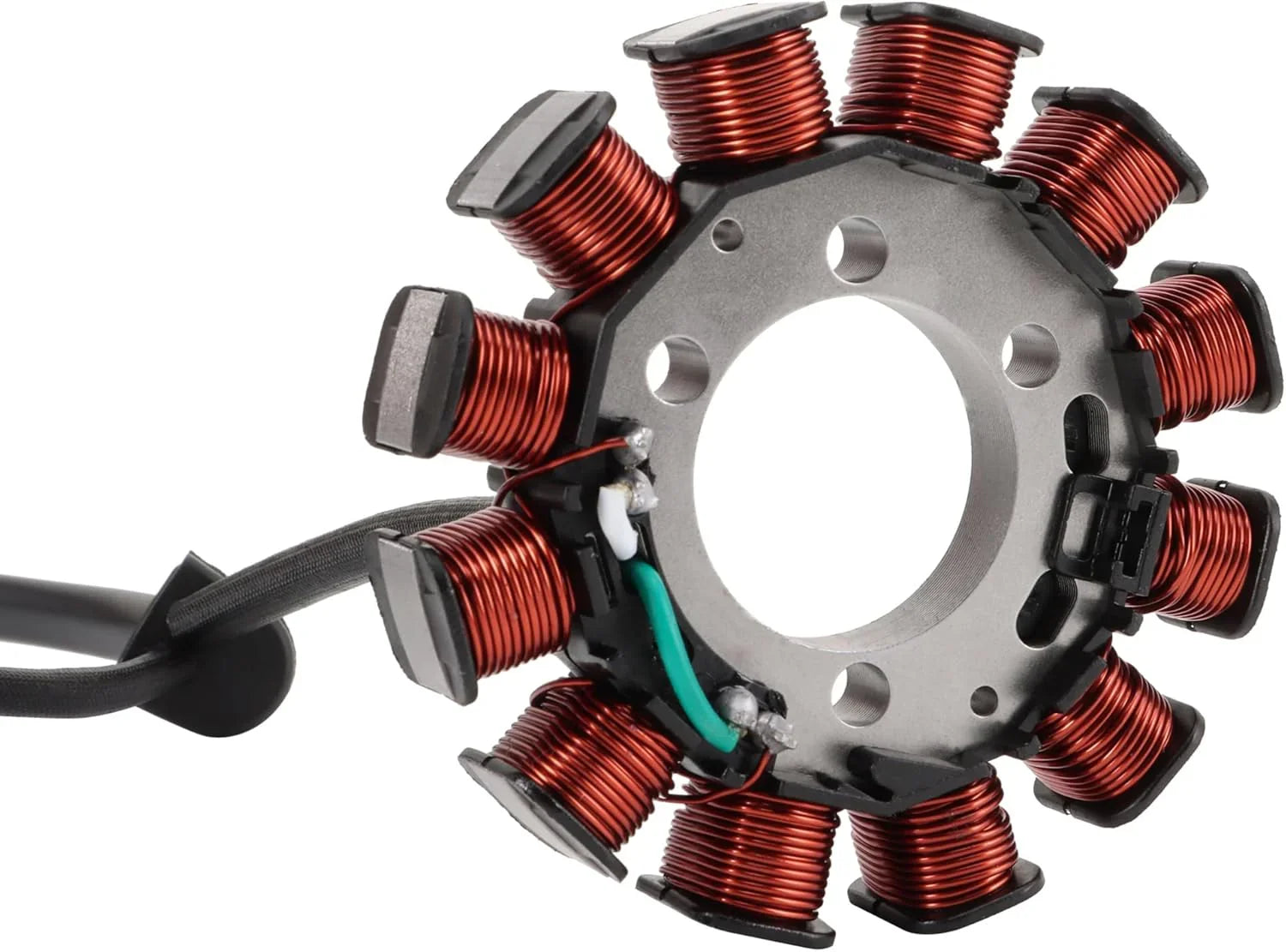

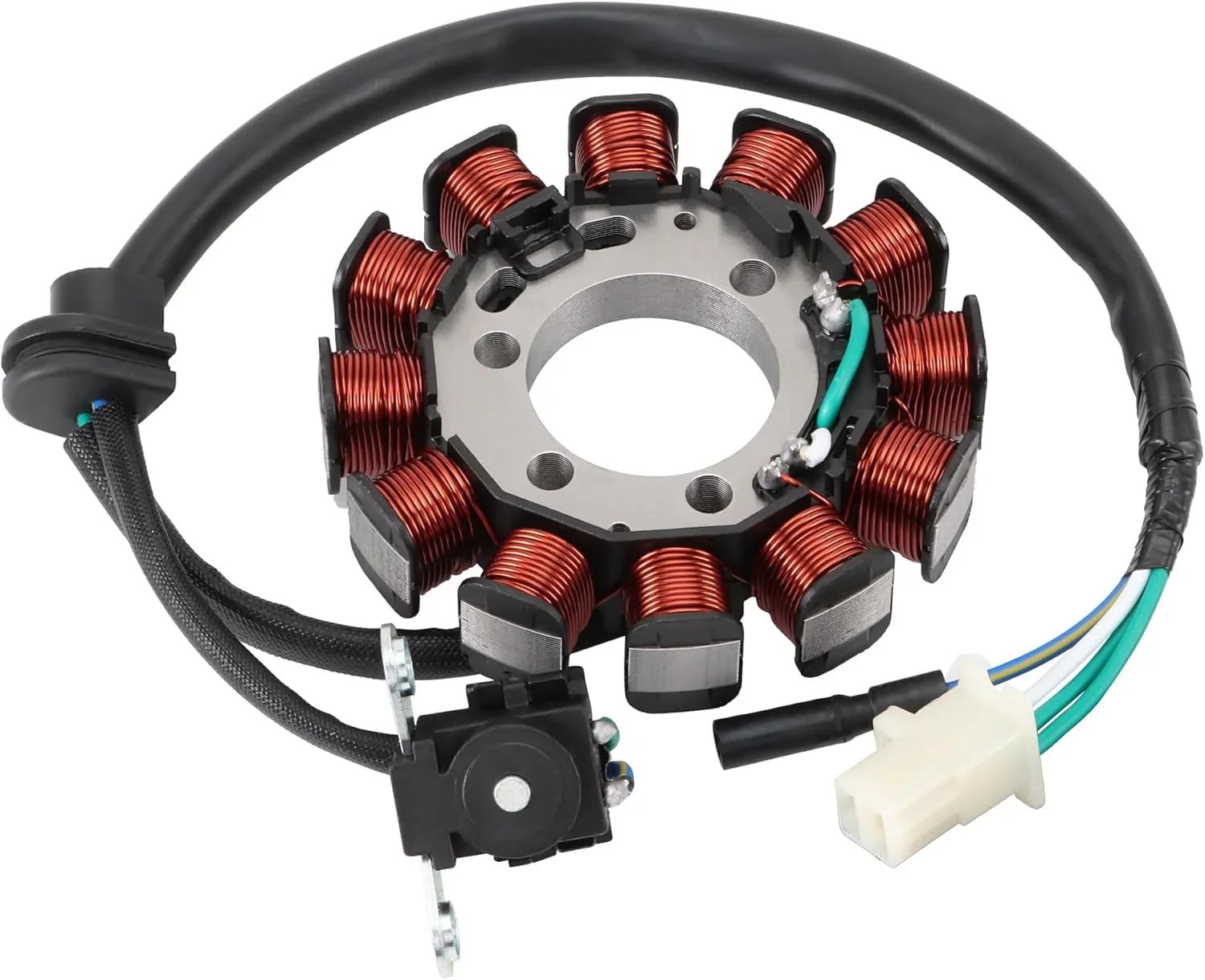

Restore reliable charging and ignition performance to your motorcycle with this 12 coil 4-wire magneto stator, designed for selected Honda XR150 / XR150L applications.
Built to replace OEM 31120-KRH-781, this unit helps solve common issues such as battery not charging, hard starting, weak spark, unstable voltage, and intermittent electrical failure.

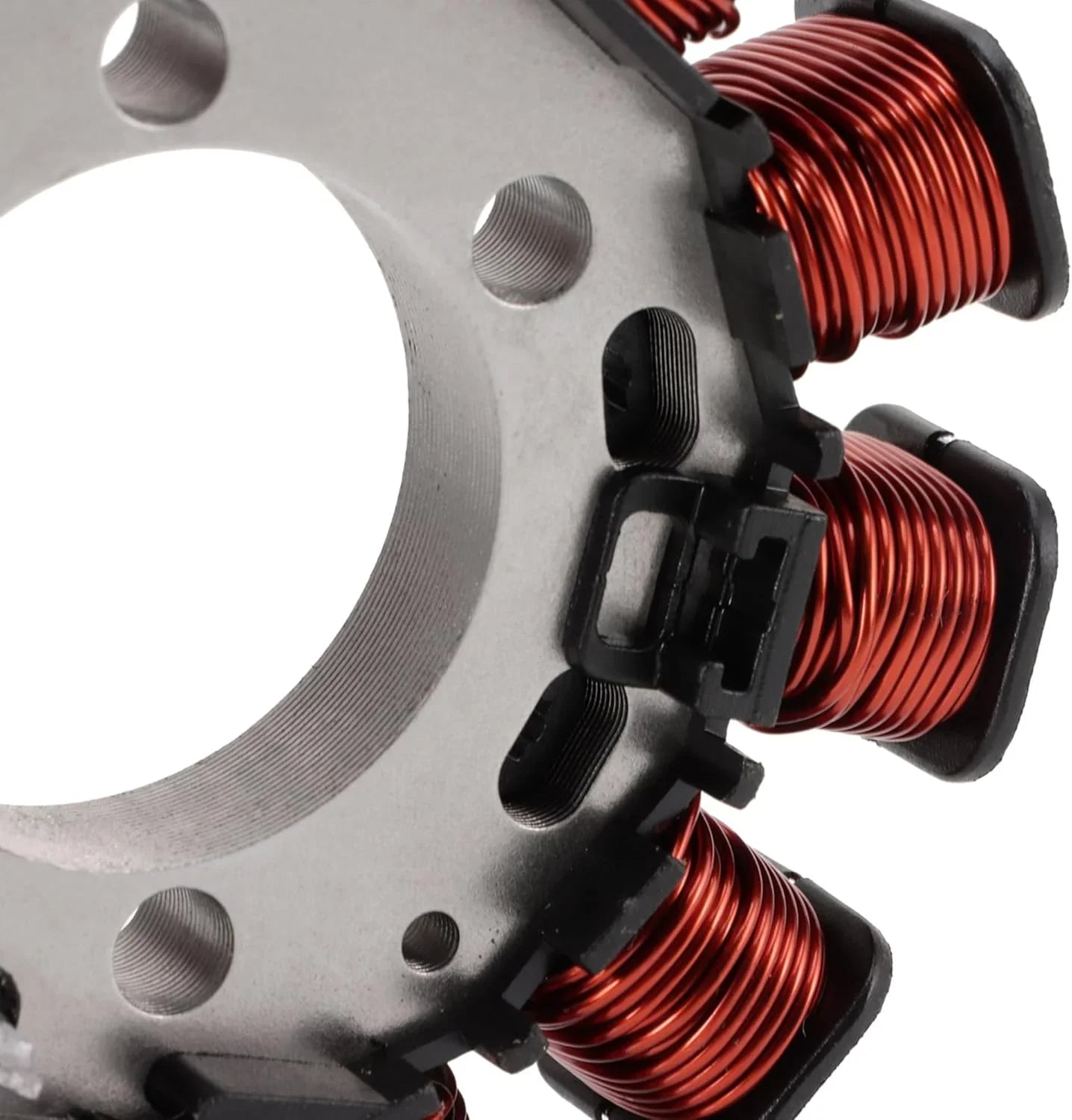

Manufactured with copper windings, full copper-clad steel wire, and an aluminum plate, it is designed to provide stable electrical output, dependable spark performance, and long service life for daily riding use.
Product Compatibility
| Brand | Model | Engine / HP / CC | Year Range | Notes |
|---|---|---|---|---|
| Honda | XR150L | 150cc | 2016 | Verified OEM fiche uses 31120-KRH-781 |
| Honda | XR150 | 150cc | 2017 | Verified OEM fiche uses 31120-KRH-781 |
| Honda | XR150 | 150cc | 2018 | Verified OEM fiche uses 31120-KRH-781 |
| Honda | XR150 | 150cc | 2019 | Verified OEM fiche uses 31120-KRH-781 |
| Honda | XR150 / XR150 1LA | 150cc | 2020–2021 | Verified OEM fiche uses 31120-KRH-781 |
| Honda | XR150 / XR150L | 150cc | 2023 | Verified OEM fiche uses 31120-KRH-781 |
| Honda | XR150 | 150cc | 2025 | Verified OEM fiche uses 31120-KRH-781 |
OEM Cross Reference:
31120-KRH-781
Specifications
| Specification | Details |
|---|---|
| Part Type | Stator |
| Configuration | 12 Coil |
| Connector Type | 4-Wire |

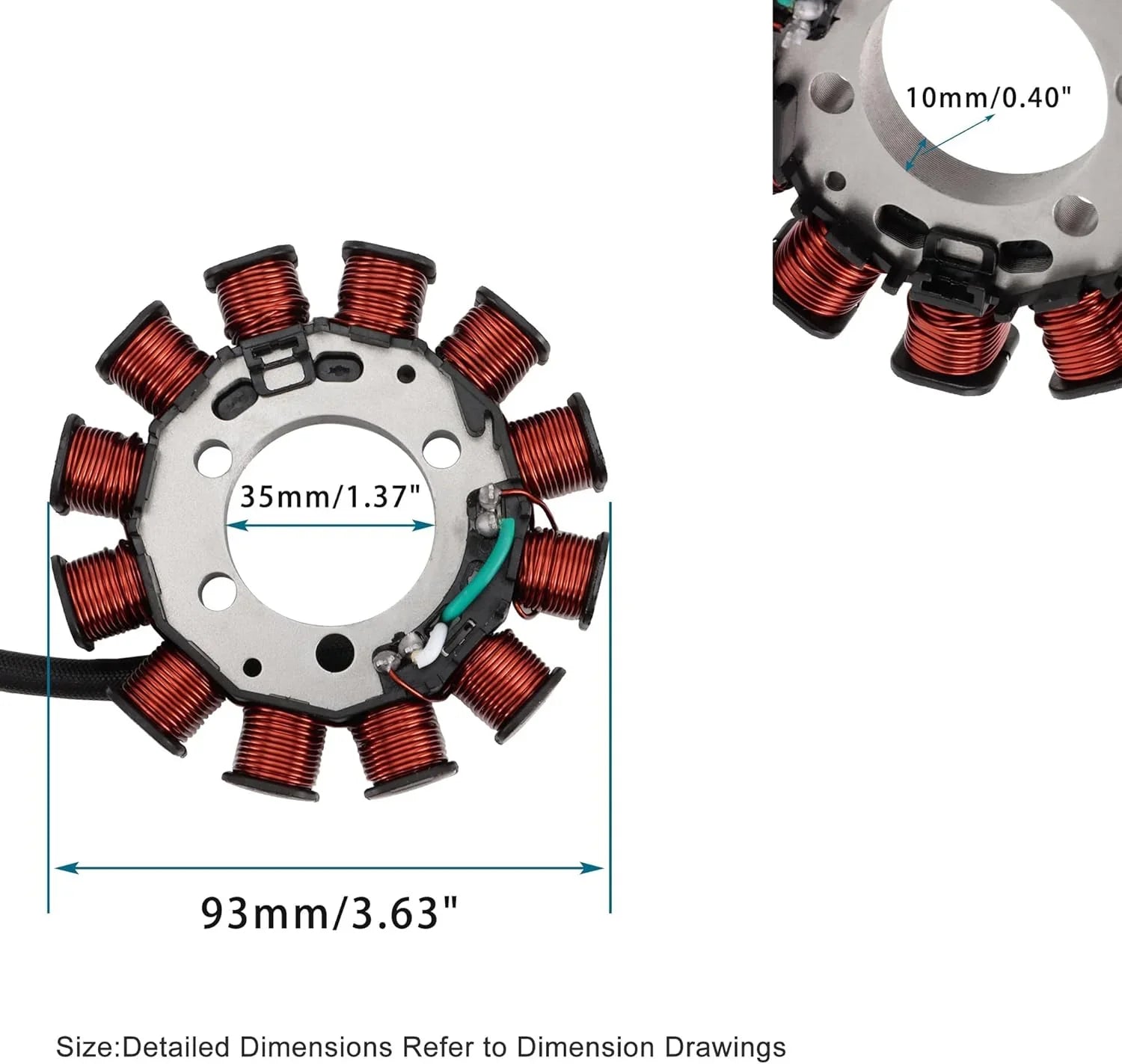

| Outer Diameter | 93 mm |
| Inner Diameter | 35 mm |
| Thickness | 10 mm |
| Material | Copper winding / Copper-clad steel wire / Aluminum plate |
| Condition | 100% New Aftermarket |
Key Features
- Direct Replacement Design – Engineered to replace the original unit with matching fitment and function
- Reliable Electrical Performance – Helps restore stable charging and ignition output

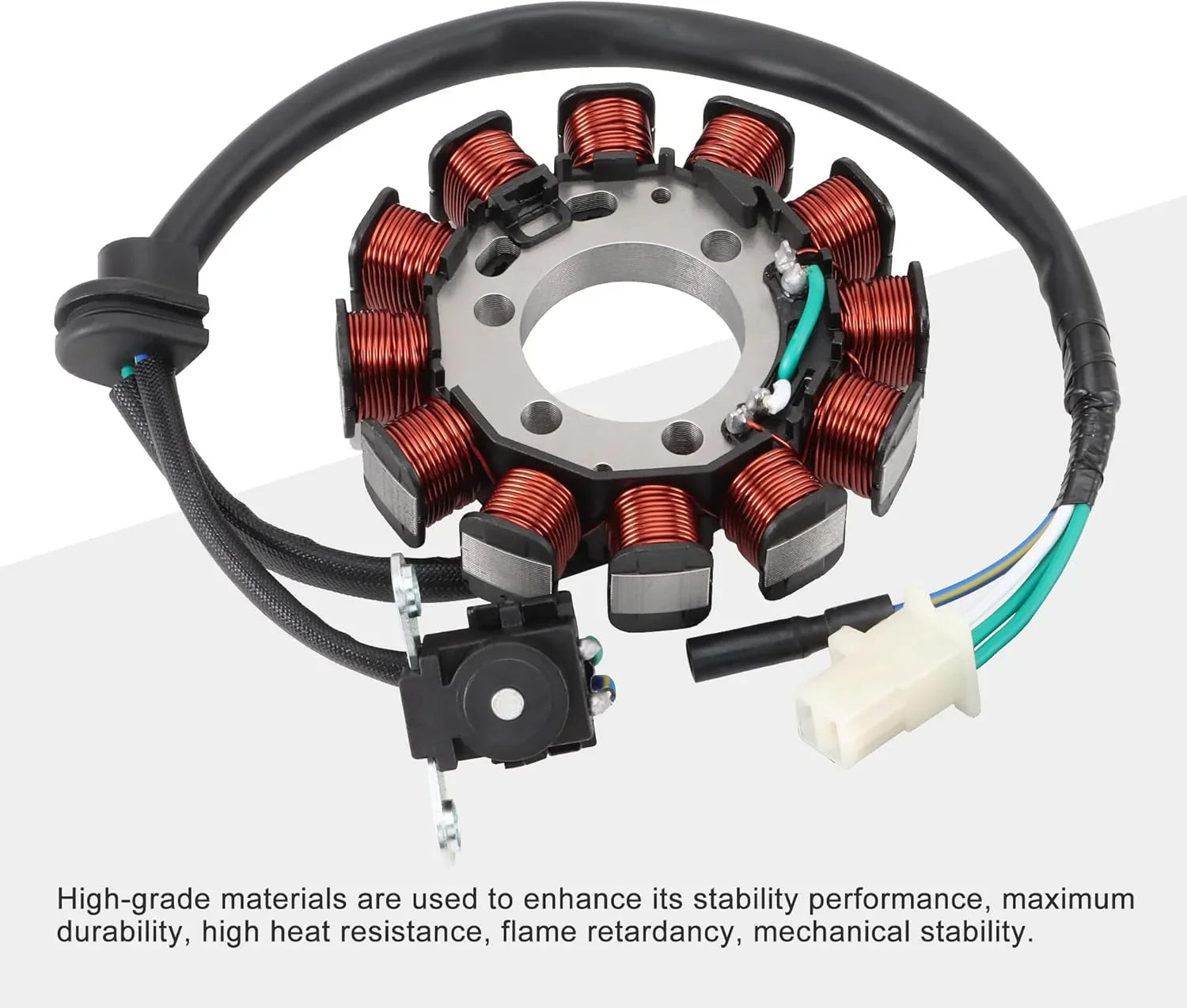

- Durable Construction – Built with copper windings and aluminum backing materials for improved heat resistance and service life
- Plug-and-Play Installation – Designed for straightforward replacement on compatible models
- Built for Daily Riding Use – Suitable for street and dual-sport motorcycle applications
Common Problems This Part Can Help Solve
This product may help address issues such as:
- Battery not charging
- Weak or no spark
- Hard starting
- Intermittent electrical failure
- Overcharging or unstable voltage
- Poor ignition performance
Package Includes
1 × 12 Coil 4-Wire Magneto Stator
Fitment Note
Please confirm your OEM part number, connector style, stator dimensions, and vehicle model/year before ordering.
If you are unsure about compatibility, contact us with your model, year, OEM number, and part photos before purchase.
Installation Note
Professional installation is recommended.
Before installation, inspect related components such as the battery, wiring harness, regulator/rectifier, flywheel, and charging system to avoid repeat failure caused by another faulty part.
Why Choose This Replacement
A failing stator can lead to charging issues, unstable voltage, weak ignition performance, and unreliable starting. Replacing it with a properly matched unit helps restore dependable electrical performance and keeps your XR150 ready for daily riding.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Engine / HP / CC. Listed year information includes 2020–2021, 2016, 2017, 2018, 2019. It is best matched to original part number(s) 31120-KRH-781. Key physical/spec details from the product data include Outer Diameter: 93 mm, Inner Diameter: 35 mm, Thickness: 10 mm. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31120-KRH-781 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda XR150/XR150L/KRH-781 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-KRH-781, treat the fitment as unconfirmed. Model years outside 2020–2021, 2016, 2017, 2018, 2019 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-KRH-781. Recheck listed specs such as Outer Diameter: 93 mm, Inner Diameter: 35 mm, Thickness: 10 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
