Magneto Stator for Honda XR250R (1986-1995) | OEM 31120-KZ1-951 & 31120-KT1-004
Magneto Stator for Honda XR250R (1986-1995) | OEM 31120-KZ1-951 & 31120-KT1-004
Couldn't load pickup availability

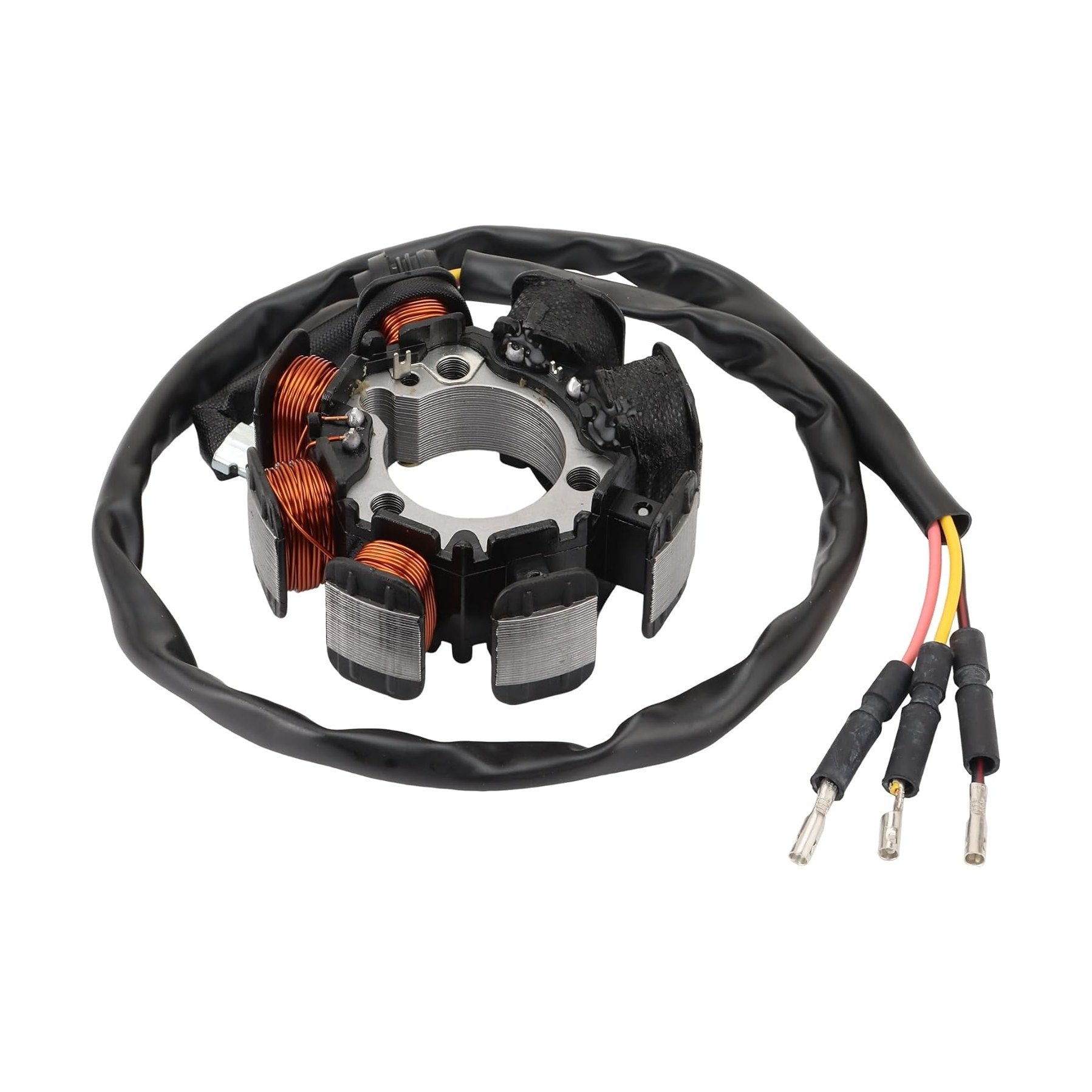

High-Durability Magneto Stator for Honda XR250R (1986–1995)
Restore your classic Enduro's ignition reliability and charging performance. This premium aftermarket Magneto Stator is a direct "plug-and-play" replacement for Honda OEM part numbers 31120-KZ1-951 and 31120-KT1-004. Engineered specifically for the air-cooled RFVC engines of the 1986–1995 XR250R, it provides the stable electrical output needed for consistent spark and reliable power in demanding off-road conditions.
Constructed with high-temperature resistant copper wire and premium insulation, this stator is designed to withstand the extreme thermal cycles of an air-cooled engine. Its rugged design offers exceptional resistance to the vibration and moisture encountered during trail riding, ensuring a longer service life than standard factory components.
Product Fitment
- Make: Honda
- Model: XR250R (Enduro / Off-Road)
- Year Range: 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
- Engine: 249cc Air-Cooled 4-Stroke Single (RFVC)
Key Technical Specifications:
- OEM Reference: 31120-KZ1-951, 31120-KT1-004

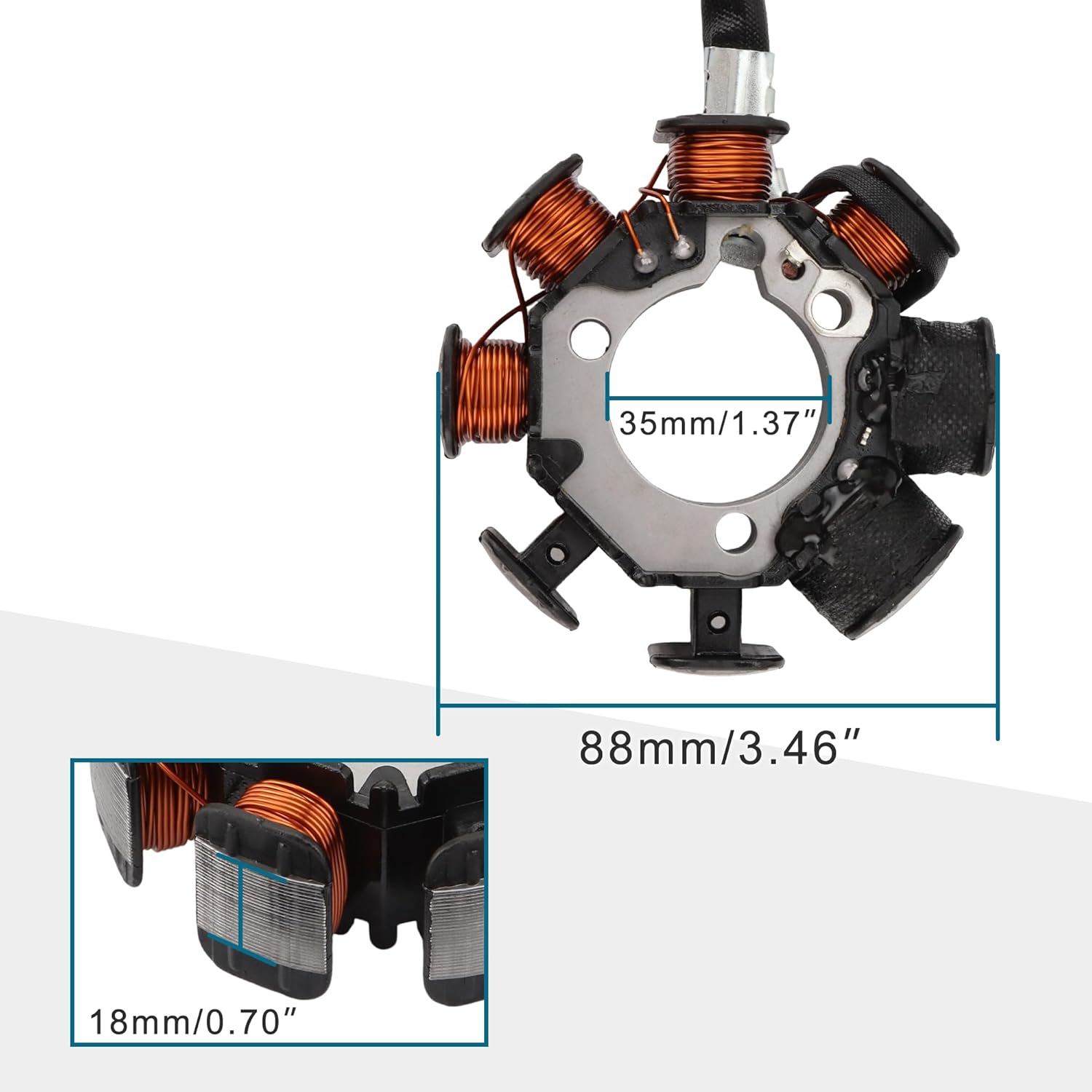

- Outer Diameter: 88mm (3.46")
- Inner Diameter: 35mm (1.37")
- Thickness: 18mm (0.70")
- Poles: 8-Pole high-efficiency design
Why Choose This Replacement?
- Enhanced Thermal Stability: Built with premium windings that maintain conductivity even under extreme heat, preventing the common "stator burnout" in older XRs.
- Stable Ignition Output: Provides a consistent electrical field for easier starting and smoother engine operation across the RPM range.
- Precision Fitment: Matches factory mounting points and includes the correct wiring harness for a simple, no-modification installation.
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Honda XR250R (1986-1995). It is best matched to original part number(s) 31120-KZ1-951, 31120-KT1-004, 1986-1995. Key physical/spec details from the product data include Outer Diameter: 88mm (3.46"), Inner Diameter: 35mm (1.37"), Thickness: 18mm (0.70"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 31120-KZ1-951, 31120-KT1-004, 1986-1995 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Honda XR250R models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 31120-KZ1-951, 31120-KT1-004, 1986-1995, treat the fitment as unconfirmed. Model years outside 1986–1995, 1986, 1995, 1987, 1988 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 31120-KZ1-951, 31120-KT1-004, 1986-1995. Recheck listed specs such as Outer Diameter: 88mm (3.46"), Inner Diameter: 35mm (1.37"), Thickness: 18mm (0.70"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
