Magneto Stator for Husqvarna TE TC SMR TXC 250-510 (2003-2010)
Magneto Stator for Husqvarna TE TC SMR TXC 250-510 (2003-2010)
Couldn't load pickup availability
- Best price guarantee
- Secure Payments
- Free shipping $50+

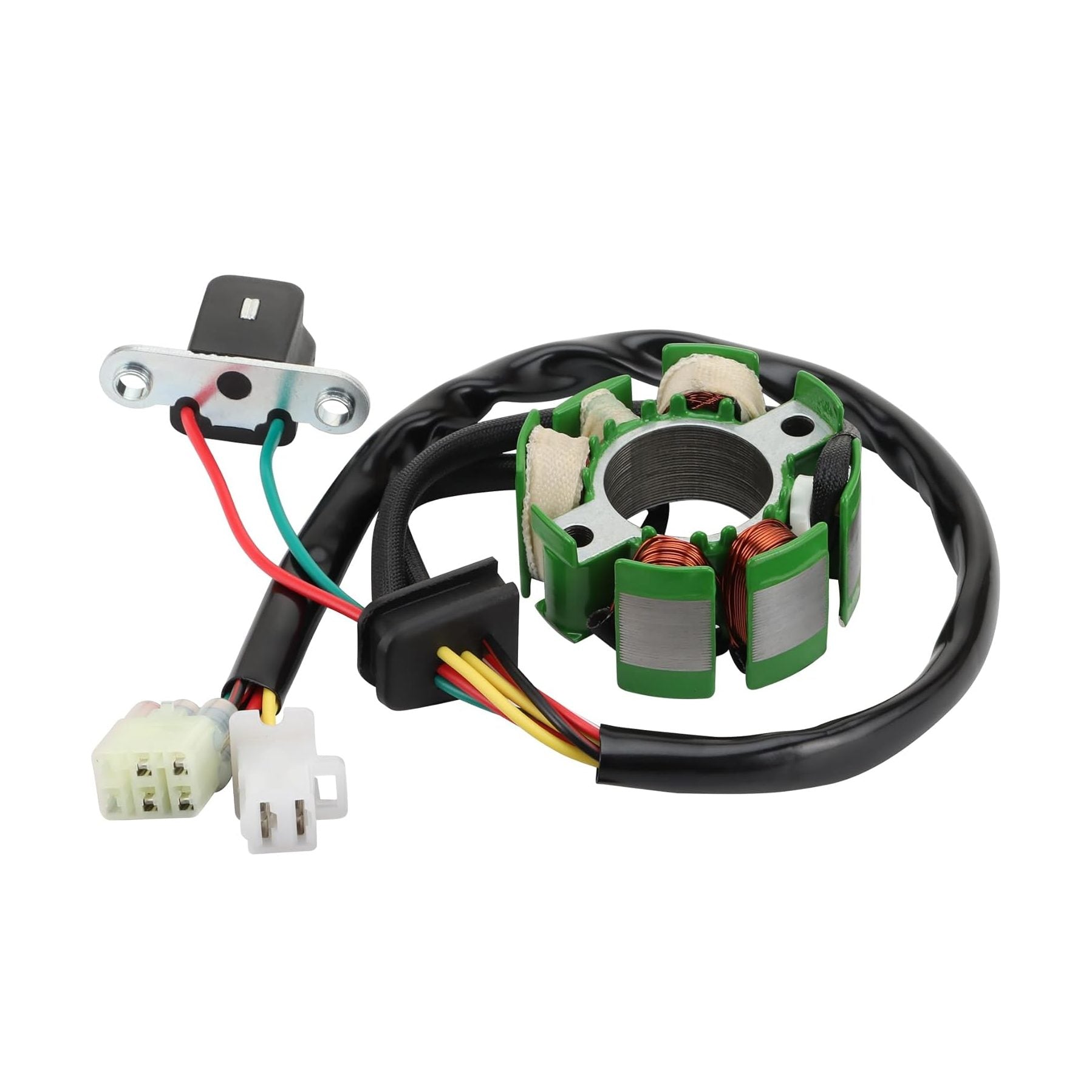

6-Pole Magneto Stator for Husqvarna TE, TC, SMR, TXC (2003–2010)
Restore your Husqvarna's electrical performance. This 6-pole Magneto Stator is designed for the high-intensity demands of Husqvarna's 250cc–510cc engine range. It serves as a direct replacement for multiple OEM part numbers, including 8000A1430 and 8000A4266, providing a stable and powerful output to improve both starting speed and operational smoothness.
Built with high-grade copper windings and advanced lamination materials, this stator is engineered for durability and resistance to engine heat.
| Model Range | Sub-Models | Estimated Years |
| Husqvarna 250 | TE, TC, TXC | 2003, 2005–2010 |
| Husqvarna 450 | TE, TC, SMR, TXC | 2003, 2005–2010 |
| Husqvarna 510 | TE, TC, SMR, TXC | 2005–2010 |
| Husqvarna SM | 400R, 450R, 510R | 2005–2007 |

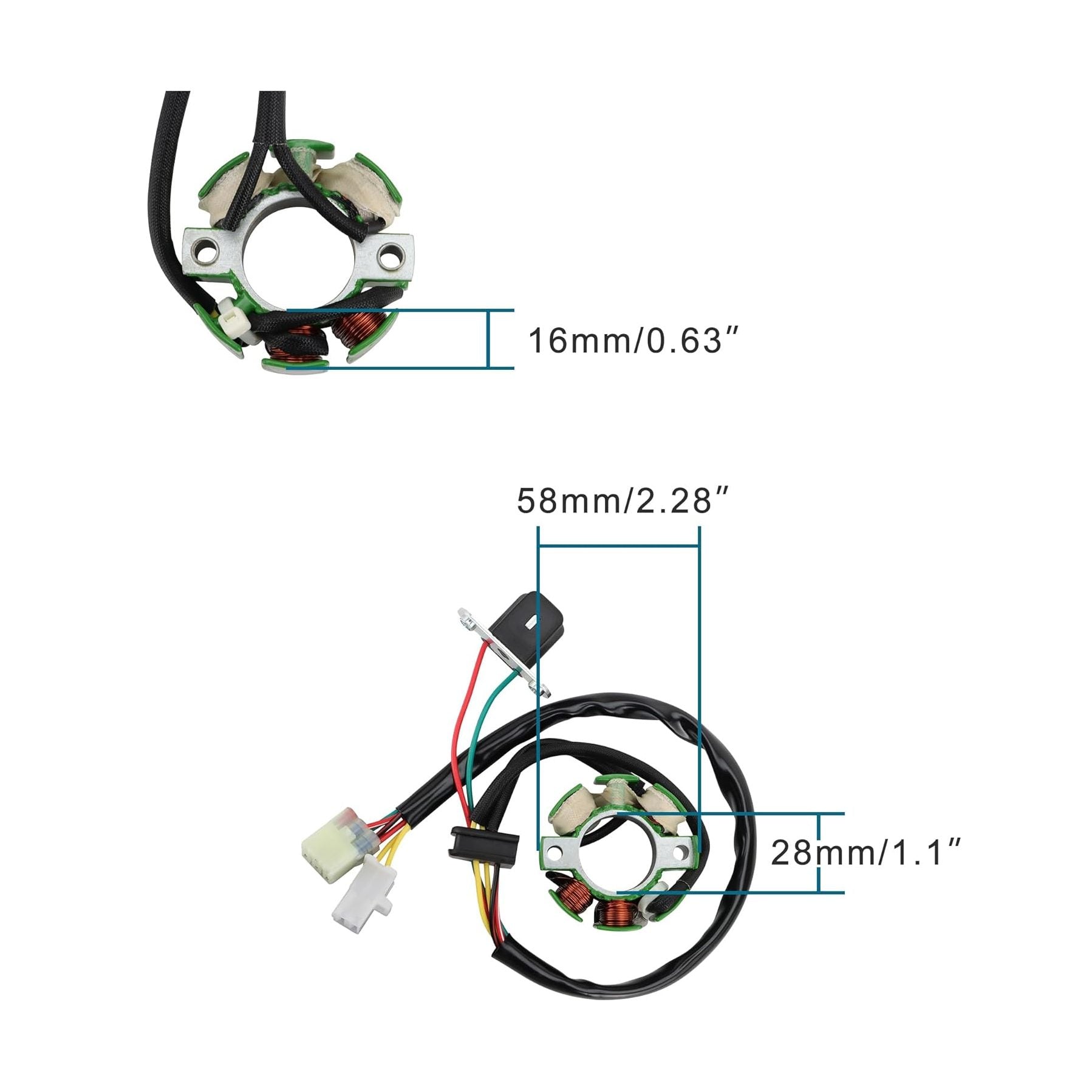

Key Technical Specifications:
- Stator Type: 6-Pole Magneto
- Outer Diameter: 58mm (2.28")
- Inner Diameter: 28mm (1.1")
- Total Thickness: 30mm (1.18")
- Core Thickness: 16mm (0.63")
Performance Highlights:
- Direct Plug-and-Play: Factory-style connectors and a rubber grommet allow for a seamless installation.
- Stable Power Output: Optimized winding technology ensures consistent voltage for better ignition.
- Heavy-Duty Construction: Resistant to vibration, moisture, and engine oils for long-lasting service.
-
Important Identification Tip: Husqvarna bikes from this era used two different stator sizes: 58mm (6-pole) and 84mm (8-pole). Please measure your original unit's outer diameter to ensure this 58mm version is the correct fit for your specific machine.
