GOOFIT

Magneto Stator for Kawasaki Brute Force 300 KVF300 2012–2022 | OEM 21003-Y007

Magneto Stator for Kawasaki Brute Force 300 KVF300 2012–2022 | OEM 21003-Y007

$46.99
$46.99
Sale Sold out
Shipping calculated at checkout.

Product Overview

Restore reliable charging and ignition performance to your ATV with this 18 coil magneto stator, designed for Kawasaki Brute Force 300 KVF300 models from 2012 to 2022.

Built to replace OEM 21003-Y007, this unit helps solve common issues such as battery not charging, hard starting, weak spark, unstable voltage, and intermittent electrical failure.

Manufactured with copper windings, full copper-clad steel wire, and an aluminum plate, it is designed to provide stable electrical output, reliable ignition performance, and long service life for demanding off-road use.

Product Compatibility

Brand Model Engine / HP / CC Year Range Notes
Kawasaki Brute Force 300 KVF300CCF 271cc / 300-class 2012 OEM generator diagram uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CDF 271cc / 300-class 2013 OEM application uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CEF 271cc / 300-class 2014 OEM application uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CFF 271cc / 300-class 2015 OEM application uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CGF 271cc / 300-class 2016 OEM application uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CHF 271cc / 300-class 2017 OEM application uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CJF 271cc / 300-class 2018 OEM application uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CLF 271cc / 300-class 2020 OEM application uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CMFNN 271cc / 300-class 2021 OEM application uses 21003-Y007
Kawasaki Brute Force 300 KVF300-CNFNN 271cc / 300-class 2022 OEM application uses 21003-Y007

OEM Cross Reference:
21003-Y007

Specifications

Specification Details
Part Type Stator
Configuration 18 Coil

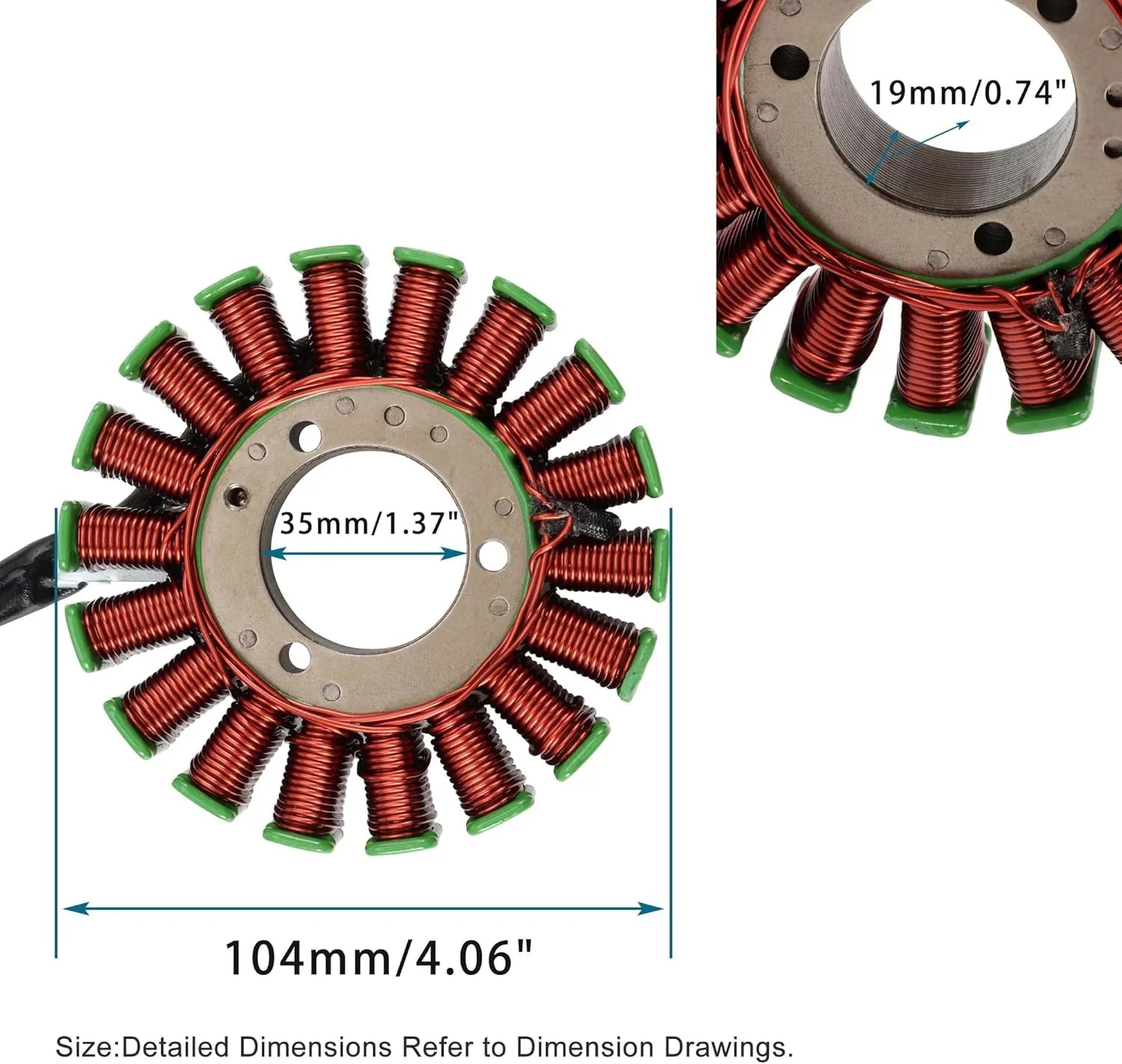

Outer Diameter 104 mm
Inner Diameter 35 mm
Thickness 19 mm
Connector Type Please match with original part before ordering
Material Copper winding / Copper-clad steel wire / Aluminum plate
Condition 100% New Aftermarket

Key Features

  • Direct Replacement Design – Engineered to replace the original unit with matching fitment and function
  • Reliable Electrical Performance – Helps restore stable charging and ignition output
  • Durable Construction – Built with copper windings and aluminum backing materials for improved heat resistance and service life
  • Plug-and-Play Installation – Designed for straightforward replacement on compatible models
  • Built for ATV Use – Suitable for utility and off-road Brute Force applications

Common Problems This Part Can Help Solve

This product may help address issues such as:

  • Battery not charging
  • Weak or no spark
  • Hard starting
  • Intermittent electrical failure
  • Overcharging or unstable voltage
  • Poor ignition performance

Package Includes

1 × 18 Coil Magneto Stator

Fitment Note

Please confirm your OEM part number, connector style, stator dimensions, and vehicle model/year before ordering.

If you are unsure about compatibility, contact us with your model, year, OEM number, and part photos before purchase.

Installation Note

Professional installation is recommended.

Before installation, inspect related components such as the battery, wiring harness, regulator/rectifier, flywheel, and charging system to avoid repeat failure caused by another faulty part.

Why Choose This Replacement

A failing stator can lead to charging issues, unstable voltage, weak ignition performance, and unreliable starting. Replacing it with a properly matched unit helps restore dependable electrical performance and keeps your Brute Force 300 ready for work and trail use.

View full details

Fitment FAQ

Will this part fit my specific model and year?

This magneto stator is intended for Engine / HP / CC. Listed year information includes 2012–2022, 2012, 2022, 2013, 2014. It is best matched to original part number(s) 21003-Y007. Key physical/spec details from the product data include Outer Diameter: 104 mm, Inner Diameter: 35 mm, Thickness: 19 mm. Use the compatibility table and product photos together before ordering.

Do I need to match the OEM part number?

Yes. Match your original part number to 21003-Y007 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki KVF300/Y007 models because similar model names can use different parts by year or trim.

What models or situations does this part not fit?

Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21003-Y007, treat the fitment as unconfirmed. Model years outside 2012–2022, 2012, 2022, 2013, 2014 should be verified separately. Do not rely only on the model name or engine size.

What should I check before ordering?

Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21003-Y007. Recheck listed specs such as Outer Diameter: 104 mm, Inner Diameter: 35 mm, Thickness: 19 mm. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
