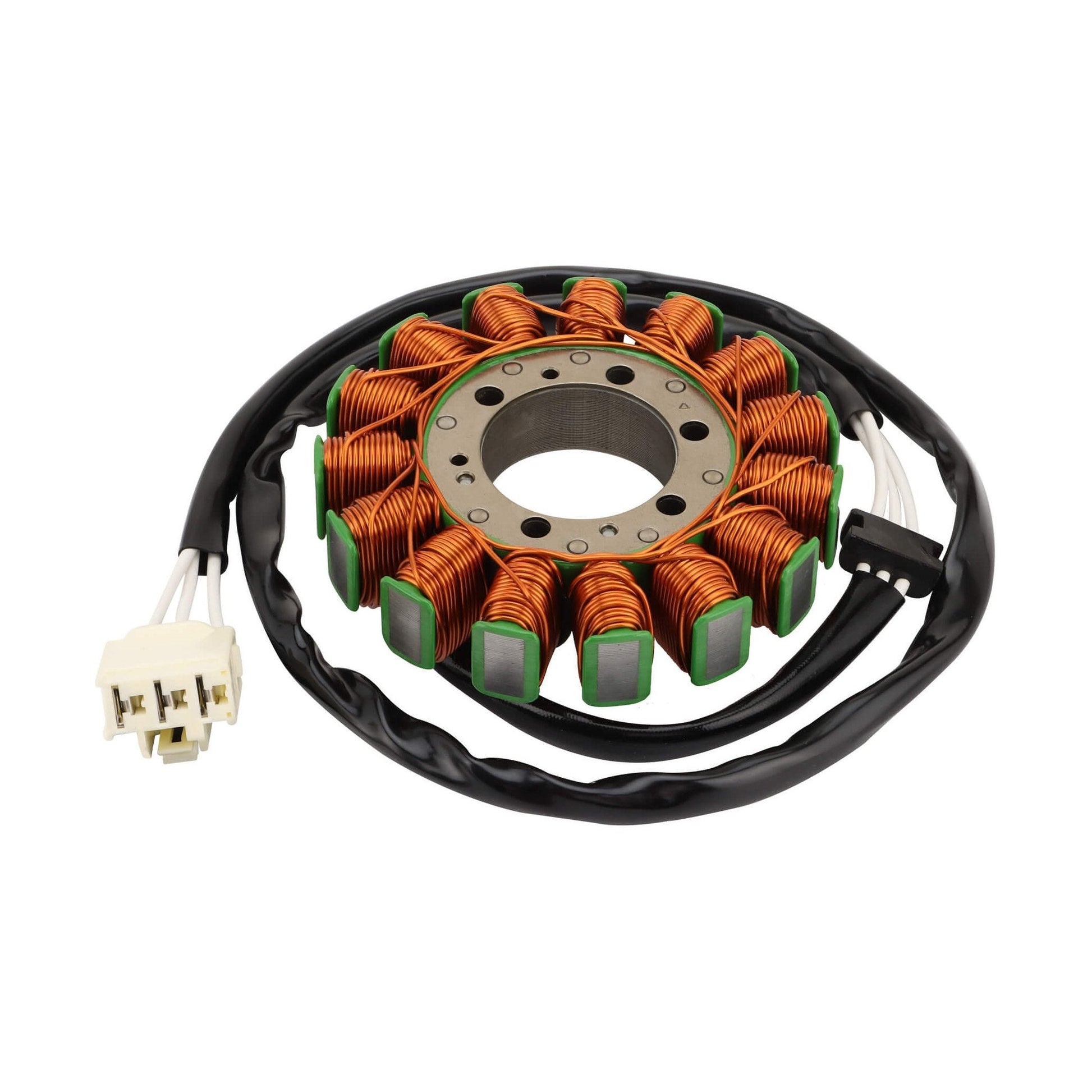

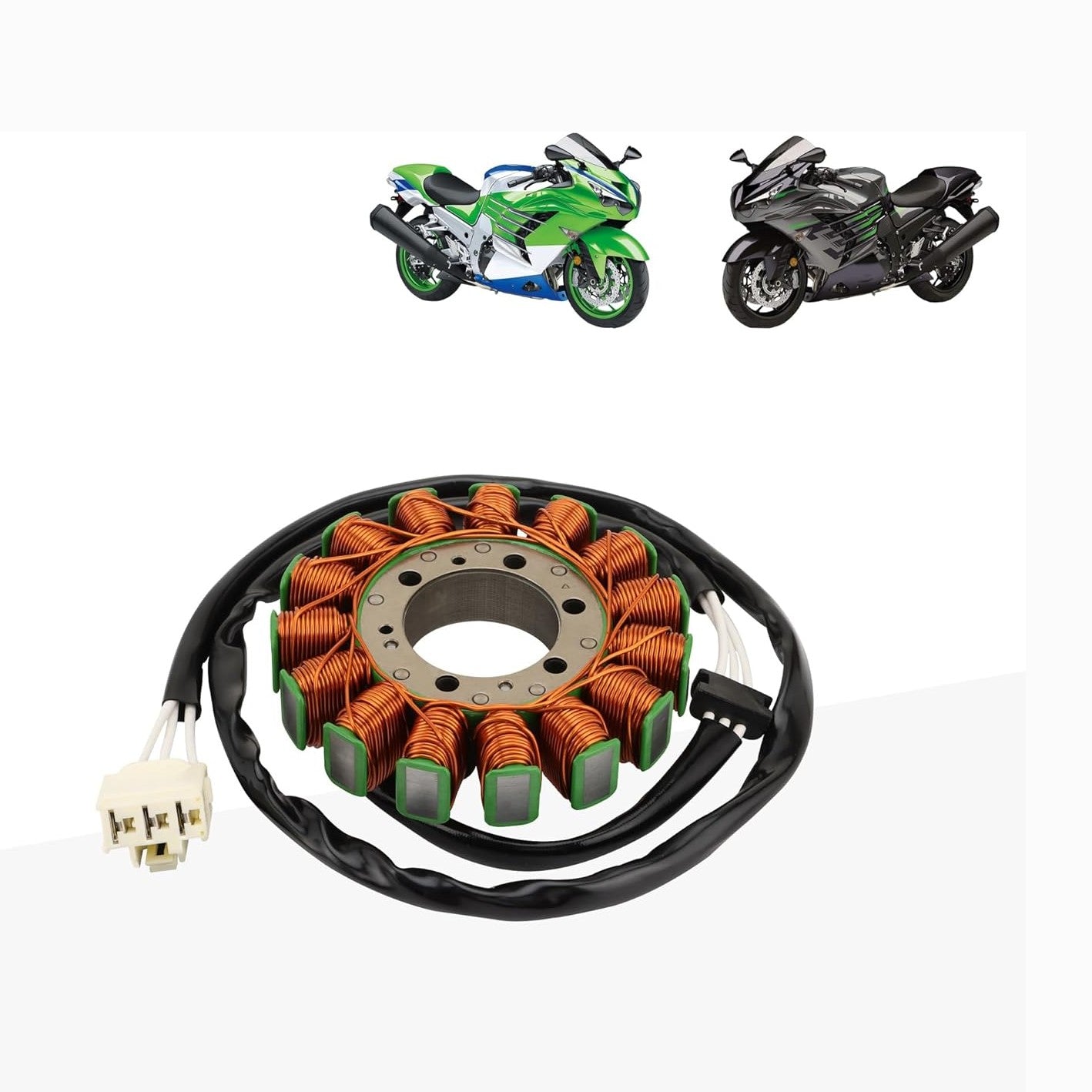

Magneto Stator for Kawasaki Ninja ZX-14 / ZX-14R (2006-2023) | OEM 21003-0144
Magneto Stator for Kawasaki Ninja ZX-14 / ZX-14R (2006-2023) | OEM 21003-0144
Couldn't load pickup availability
Product Overview
Restore reliable charging performance to your Kawasaki hyperbike with this high-performance magneto stator. Designed as a direct replacement for OEM units, it delivers stable voltage output across all RPM ranges—ensuring consistent ignition, strong battery charging, and dependable electrical performance.

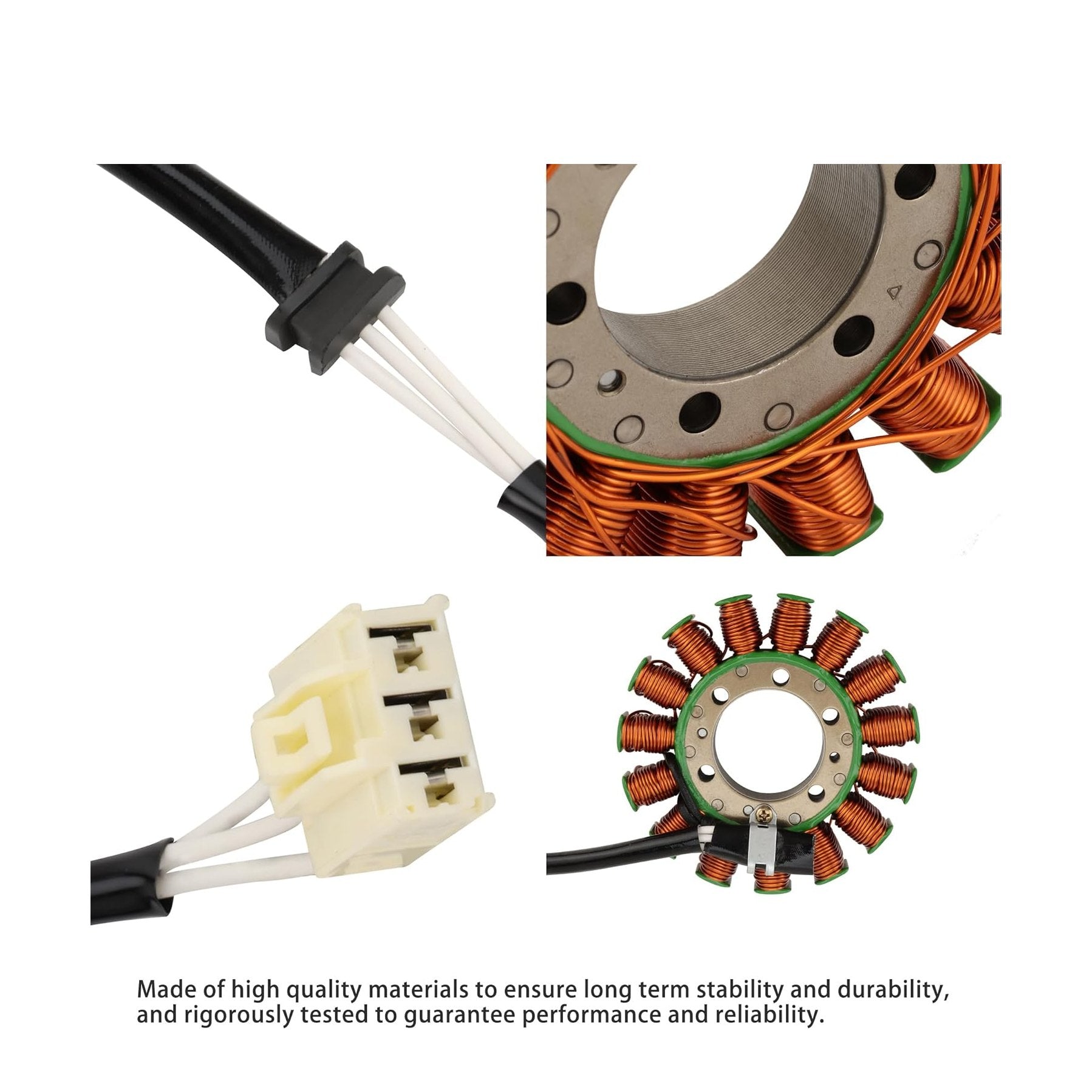

Built with premium copper windings and heat-resistant insulation, this stator is engineered to handle the extreme temperatures of large-displacement sportbike engines like the ZX-14R.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range |
|---|---|---|---|
| Kawasaki | Ninja ZX-14 | ZX1400 A/B/C | 2006–2011 |
| Kawasaki | Ninja ZX-14R | ZX1400 E/F/G/H/J/K | 2012–2023 |
| Kawasaki | ZZR1400 | Standard / ABS | 2006–2023 |
| Kawasaki | ZZR1400 | Performance Sport (SE) | 2016–2023 |
| Kawasaki | ZZR1400 | ABS Special Edition | 2020–2021 |
Specifications
| Specification | Details |
|---|---|
| OEM Reference | 21003-0144, 21003-0059, 21003-0055 |

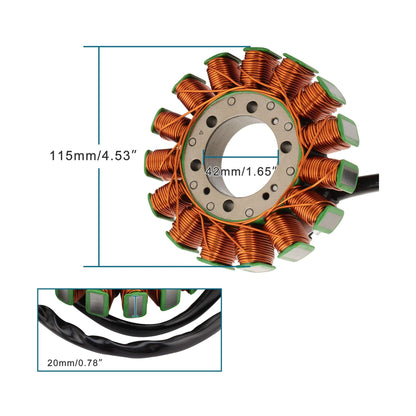

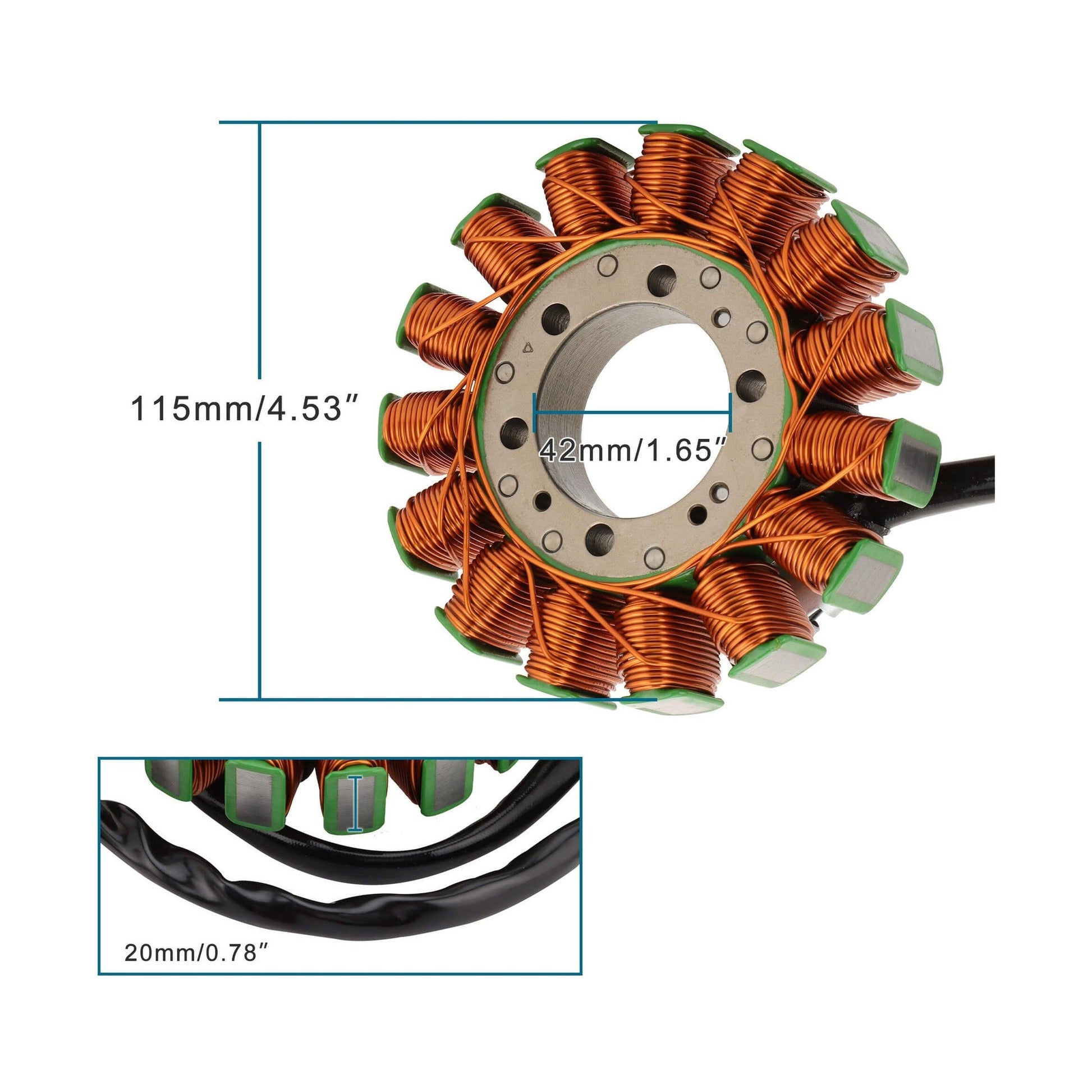

| Outer Diameter | 115 mm (4.53") |
| Inner Diameter | 42 mm (1.65") |
| Core Height | 20 mm (0.78") |
| Material | High-grade copper windings |
| Insulation | Heat-resistant coating |
| Installation Type | Direct plug-and-play |
Key Features
- High-output charging performance for large-displacement sportbikes
- Heat-resistant design prevents common stator burnout issues
- Stable voltage across low to high RPM ranges
- Precision-wound copper coils for improved efficiency
- Direct-fit replacement with plug-and-play installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Kawasaki; Ninja ZX-14; ZX1400 A/B/C; 2006–2011; Ninja ZX-14R; ZX1400 E/F/G/H/J/K. It is best matched to original part number(s) 21003-0144, 2006-2023, 21003-0059, 21003-0055. Key physical/spec details from the product data include Outer Diameter: 115 mm (4.53"), Inner Diameter: 42 mm (1.65"), Core Height: 20 mm (0.78"). Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 21003-0144, 2006-2023, 21003-0059, 21003-0055 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki ZX-14/ZX1400 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21003-0144, 2006-2023, 21003-0059, 21003-0055, treat the fitment as unconfirmed. Model years outside 2006–2023, 2006–2011, 2012–2023, 2016–2023, 2020–2021 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21003-0144, 2006-2023, 21003-0059, 21003-0055. Recheck listed specs such as Outer Diameter: 115 mm (4.53"), Inner Diameter: 42 mm (1.65"), Core Height: 20 mm (0.78"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
