Magneto Stator for Kawasaki Vulcan 1500 VN1500 (1987-1999) | OEM 21003-1164
Magneto Stator for Kawasaki Vulcan 1500 VN1500 (1987-1999) | OEM 21003-1164
Couldn't load pickup availability

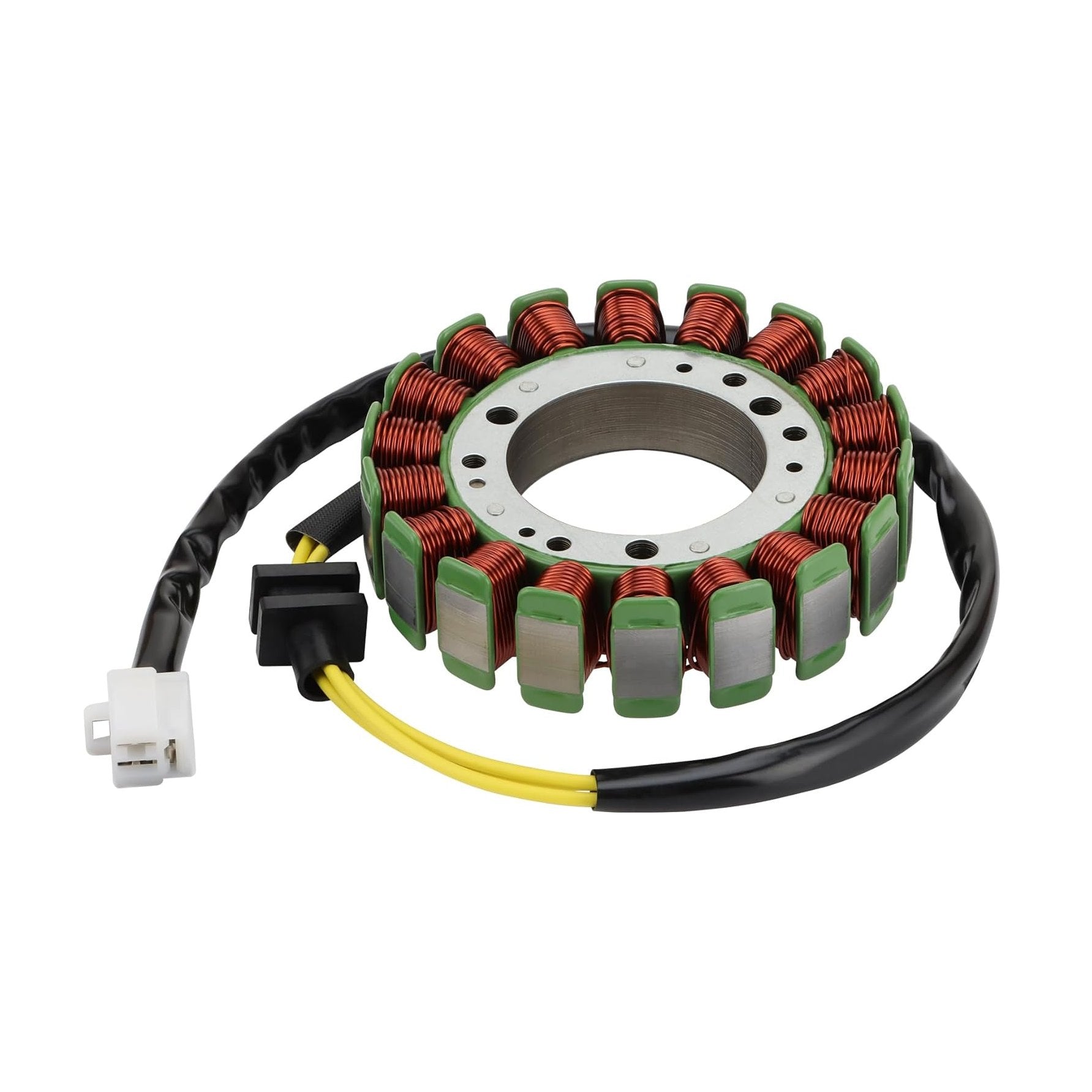

Product Overview
Ensure reliable power for your Kawasaki Vulcan 1500 with this heavy-duty magneto stator. Designed for large V-twin cruiser engines, it delivers stable voltage output for consistent starting, smooth operation, and dependable battery charging—ideal for long-distance riding.
Built with high-purity copper windings and heat-resistant insulation, this stator is engineered to withstand high engine temperatures and demanding road conditions.
Product Compatibility
| Brand | Model | Sub-Model / Notes | Year Range |
|---|---|---|---|
| Kawasaki | Vulcan 1500 | VN1500 A/B/C | 1988–1999 |
| Kawasaki | Vulcan 88 | Standard / SE | 1987–1995 |
| Kawasaki | Vulcan 1500 Classic | VN1500 Classic | 1996–1998 |
| Kawasaki | Vulcan 1500L | VN1500L | 1996–1997 |
| Kawasaki | Vulcan 1500 Drifter | VN1500 Drifter | 1999 |
Specifications
| Specification | Details |
|---|---|
| OEM Reference | 21003-1164, 21003-1385, 21003-1301 |

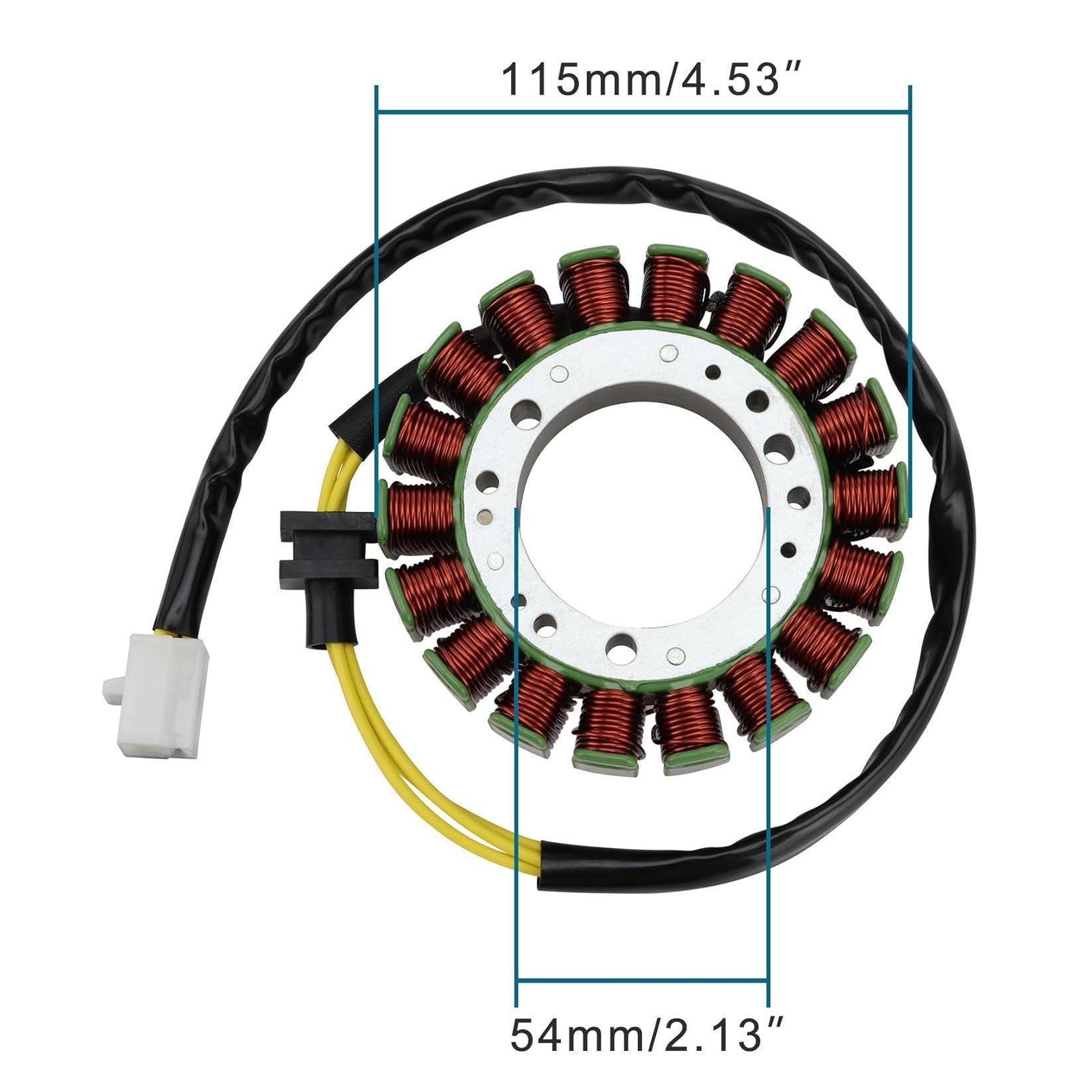

| Outer Diameter | 115 mm (4.52") |
| Inner Diameter | 54 mm (2.12") |
| Design | 18-Pole DC ignition |
| Material | High-purity copper windings |
| Heat Resistance | Up to 200°C |

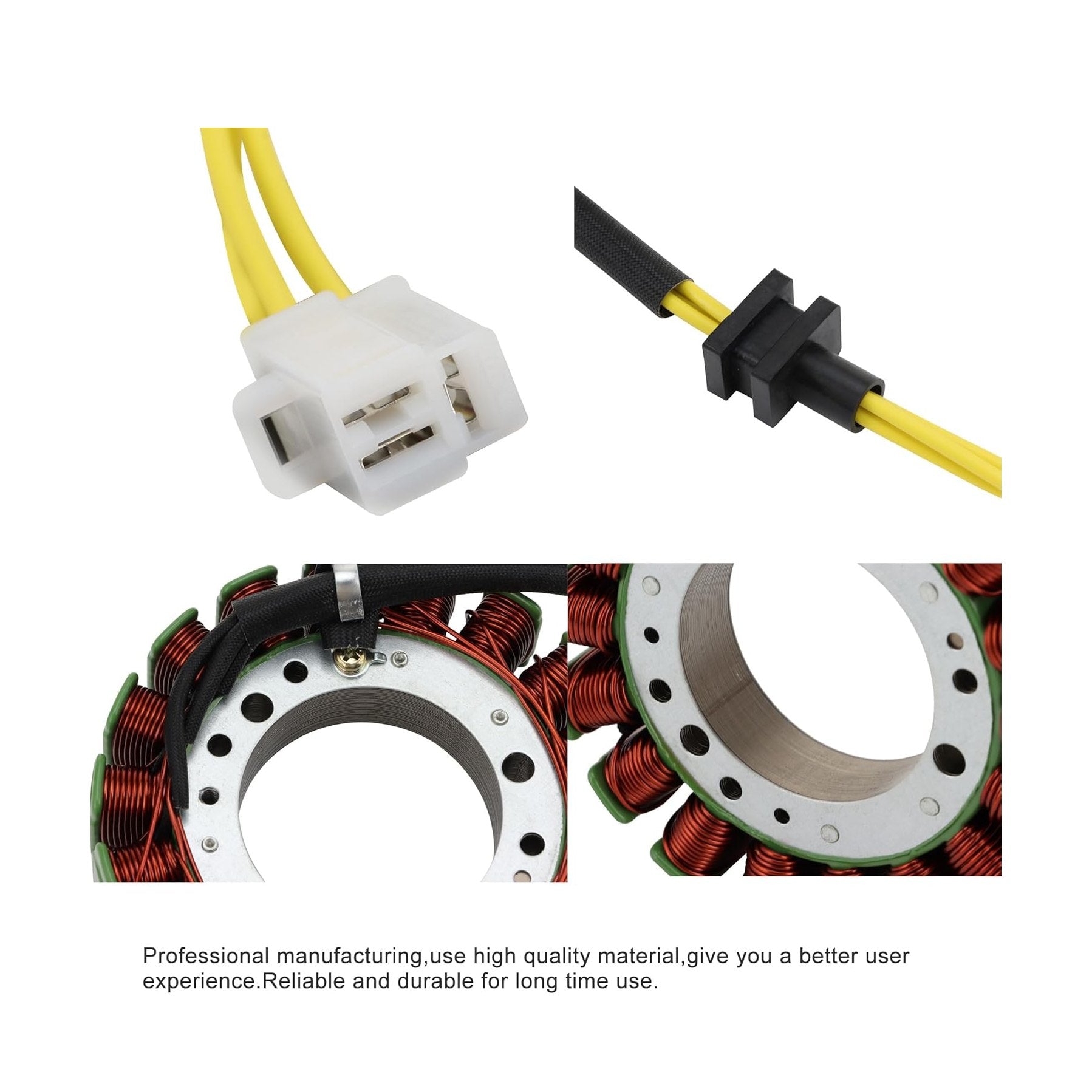

| Connector Type | OEM-style 3-pin plug |
| Installation Type | Direct plug-and-play |
Key Features
- Heavy-duty design for large V-twin cruiser engines
- Stable charging output for long-distance riding
- High-temperature resistance up to 200°C
- Precision-wound copper coils for reliable performance
- OEM-style plug for easy, no-modification installation
Share
Fitment FAQ
Will this part fit my specific model and year?
This magneto stator is intended for Kawasaki; Vulcan 1500; VN1500 A/B/C; 1988–1999; Vulcan 88; Standard / SE. It is best matched to original part number(s) 21003-1164, 1987-1999, 21003-1385, 21003-1301. Key physical/spec details from the product data include Outer Diameter: 115 mm (4.52"), Inner Diameter: 54 mm (2.12"), OEM-style 3-pin plug. Use the compatibility table and product photos together before ordering.
Do I need to match the OEM part number?
Yes. Match your original part number to 21003-1164, 1987-1999, 21003-1385, 21003-1301 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kawasaki VN1500 models because similar model names can use different parts by year or trim.
What models or situations does this part not fit?
Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with 21003-1164, 1987-1999, 21003-1385, 21003-1301, treat the fitment as unconfirmed. Model years outside 1987–1999, 1988–1999, 1987–1995, 1996–1998, 1996–1997 should be verified separately. Do not rely only on the model name or engine size.
What should I check before ordering?
Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): 21003-1164, 1987-1999, 21003-1385, 21003-1301. Recheck listed specs such as Outer Diameter: 115 mm (4.52"), Inner Diameter: 54 mm (2.12"), OEM-style 3-pin plug. If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
