Magneto Stator for Kohler CH11-CH25 & CV11-CV22 Engines | 15/20 Amp Replacement

Magneto Stator for Kohler CH11-CH25 & CV11-CV22 Engines | 15/20 Amp Replacement

$30.99
$30.99
Sale Sold out
Shipping calculated at checkout.

Professional Grade Magneto Stator for Kohler Command & K-Series Engines

Restore your engine's charging capacity and ignition reliability. This premium aftermarket Magneto Stator is a precision-engineered replacement for the high-output charging systems found in Kohler CH11-CH25 and CV11-CV22 engines. It is also a direct fit for many legendary K-Series models, providing the stable electrical current necessary for heavy-duty commercial use.

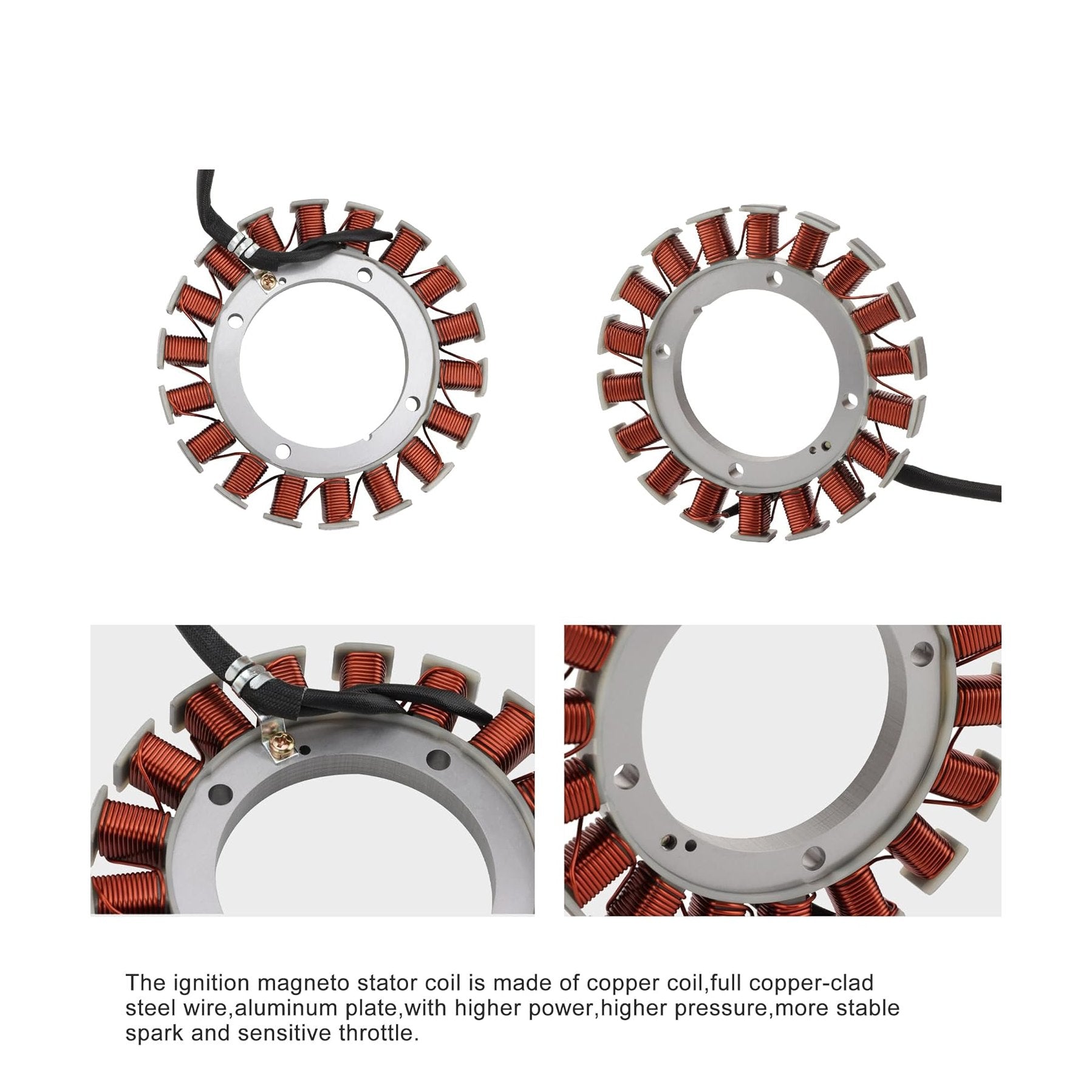

Crafted with high-quality copper coils and full copper-clad steel wire, this stator is built for superior electrical conductivity. The robust aluminum base plate ensures excellent heat dissipation, resulting in a more stable spark and sensitive throttle response even during long hours of operation in high-heat environments.

Product Compatibility

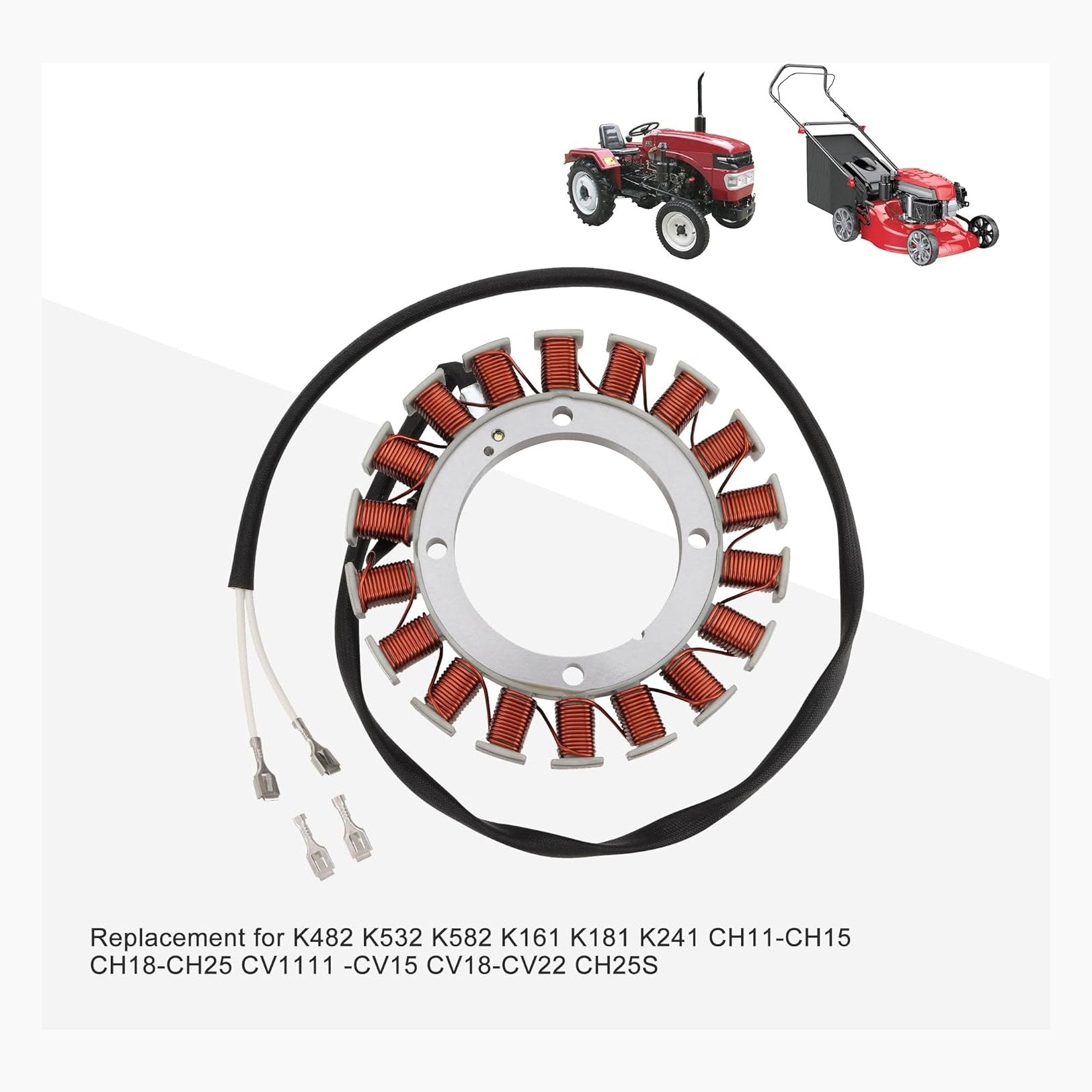

  • Kohler Command Pro: CH11, CH12.5, CH13, CH14, CH15, CH18, CH20, CH22, CH23, CH25, CH25S
  • Kohler Command Vertical: CV11, CV12.5, CV13, CV14, CV15, CV18, CV20, CV22
  • Kohler K-Series: K161, K181, K241, K482, K532, K582
  • Common Applications: Riding mowers, zero-turn tractors, and industrial power equipment.

Key Technical Specifications:

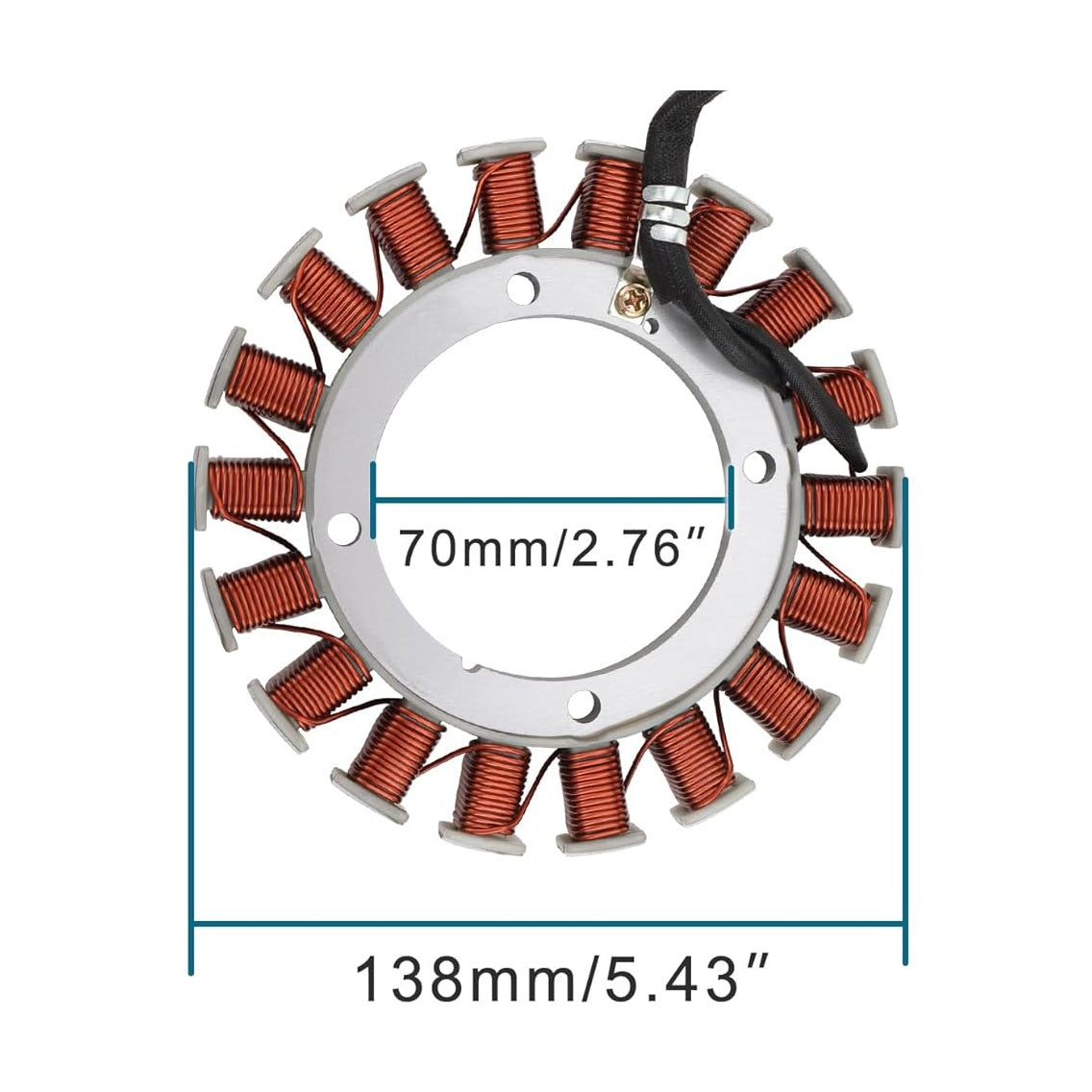

  • Outer Diameter: 138mm (5.43")
  • Inner Diameter: 70mm (2.76")
  • Core Thickness: 10mm (0.39")
  • Materials: Precision-wound copper and aluminum heat-sink plate
  • Design: 15/20 Amp high-output configuration

Why Choose This Stator?

  • Enhanced Ignition Stability: Provides the necessary electrical pressure for a consistent, powerful spark, ensuring easier cold starts.
  • Commercial Grade Durability: Designed to resist the vibration and thermal stress typical of large-displacement V-Twin and professional-grade engines.
  • Direct Fitment: Matches factory mounting patterns and wiring configurations for a fast, hassle-free installation.
View full details

Fitment FAQ

Will this part fit my specific model and year?

This magneto stator is intended for Kohler Command Pro: CH11, CH12.5, CH13, CH14, CH15, CH18, CH20, CH22, CH23, CH25, CH25S; Kohler Command Vertical: CV11, CV12.5, CV13, CV14, CV15, CV18, CV20, CV22; Kohler K-Series: K161, K181, K241, K482, K532, K582; Common Applications: Riding mowers, zero-turn tractors, and industrial power equipment.. It is best matched to original part number(s) CH11-CH25, CV11-CV22. Key physical/spec details from the product data include Outer Diameter: 138mm (5.43"), Inner Diameter: 70mm (2.76"), Core Thickness: 10mm (0.39"). Use the compatibility table and product photos together before ordering.

Do I need to match the OEM part number?

Yes. Match your original part number to CH11-CH25, CV11-CV22 before purchase. For this magneto stator, also compare the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. This is especially important for Kohler CH11/CH25/CV11/CV22 models because similar model names can use different parts by year or trim.

What models or situations does this part not fit?

Do not order this magneto stator for machines outside the listed compatibility, or for units with different plug layouts, pickup-coil positions, wire counts, stator diameters, or charging/ignition configurations. If your original part number does not cross-reference with CH11-CH25, CV11-CV22, treat the fitment as unconfirmed. Do not rely only on the model name or engine size.

What should I check before ordering?

Before ordering, compare your original part with the photos and check the OEM number, outer/inner diameter, core height or thickness, plug shape, wire count, mounting holes, pickup position, and rubber grommet style. Confirm OEM/cross-reference number(s): CH11-CH25, CV11-CV22. Recheck listed specs such as Outer Diameter: 138mm (5.43"), Inner Diameter: 70mm (2.76"), Core Thickness: 10mm (0.39"). If any connector, mounting point, size, or year detail is different, confirm fitment before installation.
